1. Informació important de seguretat
Read and understand all safety warnings and instructions before assembling, operating, or servicing this heater. Failure to follow these instructions may result in fire, explosion, serious injury, or death.
- Només per a ús exterior: Aquest escalfador està dissenyat només per a ús a l'aire lliure. No l'utilitzeu en interiors ni en espais tancats.
- Ventilació: Ensure adequate ventilation. Never obstruct the flow of combustion and ventilation air.
- Només gas propà: Use only propane gas. Do not connect to a remote gas supply.
- Liquidacions: Maintain minimum clearances from combustible materials: 24 inches (61 cm) from sides and rear, 36 inches (91 cm) from top.
- Condicions del vent: In windy weather, move the heater to a sheltered location or indoors to prevent damage or tipping.
- Apagat automàtic: The heater is equipped with an automatic shut-off mechanism that activates if the unit tilts over 45 degrees, enhancing safety.
- Protecció contra l'extinció de flames: Features a flameout protection system that automatically cuts off the gas supply if the flame extinguishes.
- Nens i animals de companyia: Mantingueu els nens i les mascotes a una distància segura de l'escalfador.
- Fuites de gas: Check all gas connections for leaks using a soap and water solution before each use. Never use a flame to check for leaks.

Figure 1: Flameout protection and safety certifications ensure safe operation.

Figure 2: The heater's unique safety design includes an automatic tilt-over shut-off feature.
2. Producte acabatview
The Pamapic 8560 Pyramid Flame Patio Heater provides 48,000 BTUs of heat, featuring a mesmerizing quartz glass tube flame. It is designed for outdoor use to extend your comfortable outdoor living season.
2.1 Característiques clau
- 48,000 BTU heat output for a wide heating range.
- Mesmerizing quartz glass flame tube.
- Reliable pulse ignition system for quick starting.
- Variable heat setting with built-in control valve.
- Automatic tilt-over shut-off and flameout protection.
- Durable, rust-resistant construction.
- Integrated wheels for easy mobility.
- Includes a protective cover.

Figure 3: The Pamapic 8560 Pyramid Flame Patio Heater and its included protective cover.

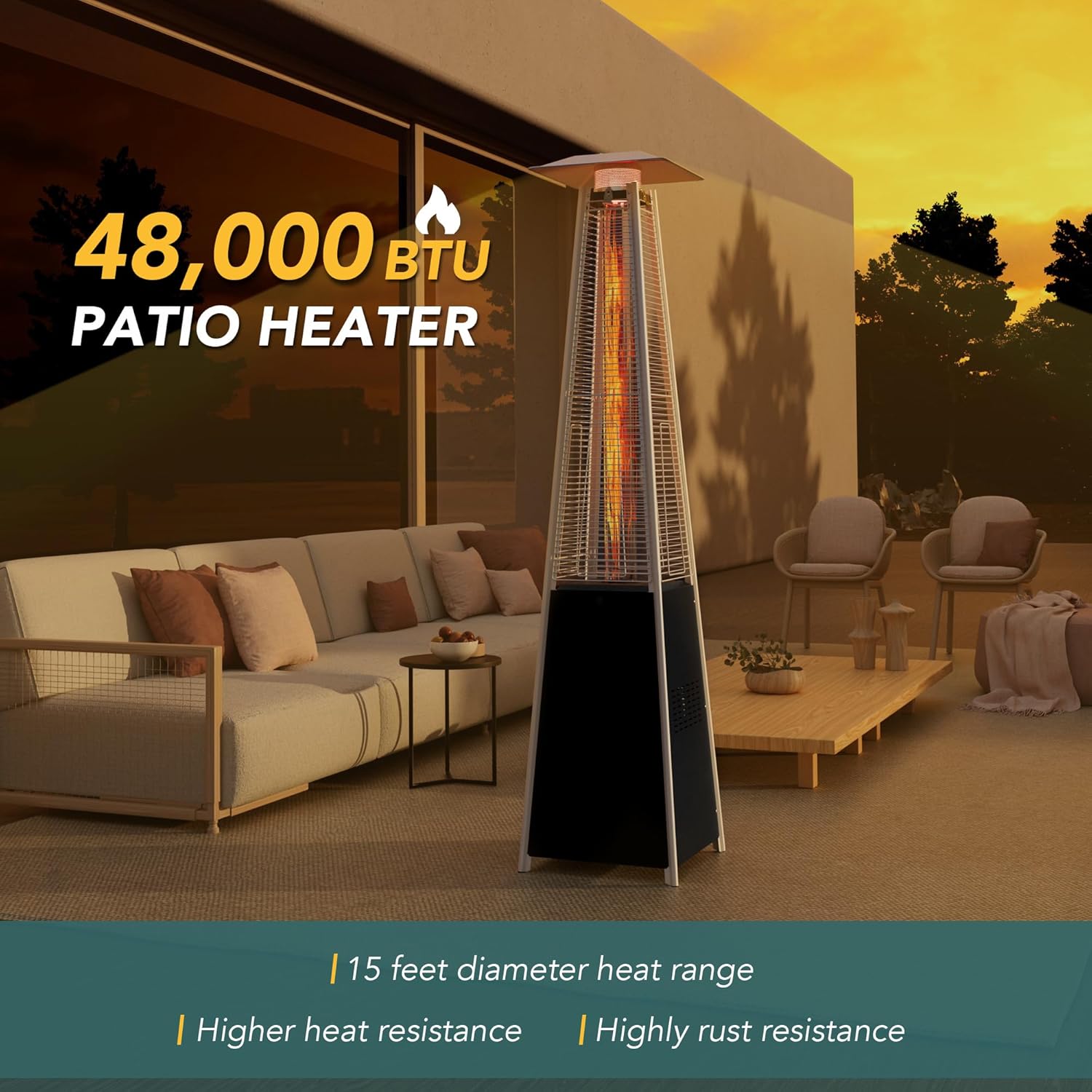

Figure 4: The heater provides 48,000 BTUs, offering a 15-foot diameter heat range.
3. Muntatge i muntatge
Assembly typically requires two people and takes approximately 60-90 minutes. Ensure all parts are present before beginning assembly.
3.1 Desembalatge i identificació de peces
Carefully remove all components from the packaging. Refer to the parts list in your separate assembly guide to identify each piece. Keep all packaging materials until assembly is complete and the heater is tested.
3.2 Passos de muntatge (generals)
- Assemble the base and attach the wheels for mobility.
- Secure the main body panels and internal structure.
- Install the quartz glass tube carefully.
- Attach the top reflector and protective grilles.
- Connect the gas hose and regulator to the burner assembly.
3.3 Propane Tank Installation
- Assegureu-vos que la vàlvula de la bombona de propà estigui tancada.
- Place a standard 20 lb. propane tank (not included) into the designated compartment at the base of the heater.
- Connecteu la mànega reguladora a la vàlvula de la bombona de propà. Estrenyeu-la fermament a mà.
- Perform a leak test: Apply a soap and water solution to all connections. Bubbles indicate a leak. If a leak is detected, tighten connections or replace faulty parts. Do not operate the heater if a leak is present.

Figure 5: Integrated smooth wheels allow for easy movement of the heater.
4. Instruccions de funcionament
4.1 Comprovacions prèvies a l'operació
- Verify all connections are secure and free of leaks.
- Ensure the heater is on a level, stable surface.
- Confirm adequate clearances from combustible materials.
- Check that the glass tube is properly seated and undamaged.
4.2 Ignition Procedure
- Open the valve on the propane tank slowly.
- Turn the control knob on the heater to the "PILOT" position.
- Press and hold the control knob down, then press the igniter button repeatedly until the pilot flame lights.
- Continue to hold the control knob down for 15-30 seconds after the pilot lights to allow the thermocouple to heat up. Release the knob; the pilot should remain lit.
- If the pilot does not stay lit, repeat steps 2-4.
- Once the pilot is lit, turn the control knob to the "LOW" position, then slowly rotate it to the desired heat setting (LOW to HIGH). The main burner will ignite.
4.3 Apagar l'escalfador
- Gireu el botó de control a la posició "OFF".
- Tanqueu completament la vàlvula del dipòsit de propà.
- Allow the heater to cool down completely before moving or covering.

Figure 6: The heater provides warmth for comfortable outdoor gatherings.
5. Manteniment
Un manteniment regular garanteix la longevitat i el funcionament segur de la vostra estufa de pati.
- Neteja: Netegeu les superfícies exteriors amb un drap suau iamp cloth. Do not use abrasive cleaners or solvents. For the glass tube, use a glass cleaner when the heater is cool.
- Inspeccions: Periodically inspect the gas hose for signs of wear, cuts, or cracks. Check all connections for tightness.
- Emmagatzematge: When not in use for extended periods, disconnect the propane tank and store the heater in a dry, sheltered location. Use the provided protective cover to shield it from dust and weather elements.
- Burner Maintenance: Keep the burner and pilot assembly clean and free of insects or debris.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| L'escalfador no s'encendrà. | No gas flow; clogged pilot/burner; faulty igniter. | Check propane tank valve; ensure tank is not empty; clean pilot/burner; check igniter electrode gap. |
| Pilot flame will not stay lit. | Thermocouple not heating; gas pressure too low. | Hold control knob longer; check propane tank level; ensure connections are tight. |
| Low flame or yellow flame. | Low gas pressure; partially clogged burner. | Check propane tank level; clean burner ports; ensure regulator is functioning correctly. |
| La calefacció s'apaga inesperadament. | Low oxygen sensor activated; tilt switch activated; low gas. | Ensure adequate ventilation; check if heater was tilted; check propane tank level. |
If troubleshooting steps do not resolve the issue, contact Pamapic customer support.
7. Especificacions
| Marca | Pamapic |
| Número de model | 8560 |
| Sortida de calor | 48,000 BTU |
| Tipus de combustible | Propà |
| Tipus d'encesa | Encesa de pols |
| Dimensions (total) | 23" de profunditat x 23" d'amplada x 88" d'alçada (58.4 cm de profunditat x 58.4 cm d'amplada x 223.5 cm d'alçada) |
| Pes de l'article | 61.7 lliures (28 kg) |
| Característiques especials | Overheat Protection, Tilt-over Safety Shut-off, Flameout Protection, Variable Heat Setting, Integrated Wheels |
| UPC | 196852052745 |

Figure 7: Detailed product dimensions for the Pamapic 8560 Patio Heater.
8. Garantia i atenció al client
For warranty information, technical assistance, or any questions regarding your Pamapic 8560 Pyramid Flame Patio Heater, please contact Pamapic customer support. Refer to your purchase documentation for specific warranty terms and contact details.
Sovint podeu trobar informació de contacte d'assistència a la pàgina web del fabricant weblloc web o a través del venedor on es va comprar el producte.
