Manual d'usuari del mini rentavaixelles de sobretaula Hermitlux HMX-DW03

1. Producte acabatview

The Hermitlux HMX-DW03 is a compact countertop dishwasher designed for small living spaces, RVs, or as a secondary dishwashing solution. It offers efficient cleaning for up to 4 place settings and features flexible water supply options, including a built-in water tank or direct tap connection.

Imatge 1.1: Frontal view of the Hermitlux HMX-DW03 Mini Countertop Dishwasher with dishes loaded.

Característiques principals:

• 4 Place Setting Capacity: Accommodates dishes up to 25 cm in diameter.
• 5 programes de rentat: Standard, Quick, ECO, Powerful, and Fruit Wash.
• High-Temperature Sterilization: Up to 75°C for thorough cleaning and hygiene.
• 360-Degree Cleaning: Dual spray arms ensure comprehensive washing.
• Subministrament d'aigua flexible: Integrated 5-liter water tank for manual filling or direct connection to a tap.
• Funció d'assecat: PTC hot air drying to keep dishes dry and odor-free.
• Disseny compacte: Dimensions of 42.5 x 42.8 x 45.8 cm, suitable for limited kitchen spaces.

2. Instruccions de seguretat

Please read all safety instructions carefully before operating the dishwasher to prevent injury or damage to the appliance.

• Ensure the dishwasher is placed on a stable, level surface.
• No feu funcionar el rentaplats si el cable d'alimentació està danyat.
• Mantingueu els nens i les mascotes lluny del rentavaixelles durant el funcionament.
• Use only detergents specifically designed for automatic dishwashers.
• Do not open the door during a wash cycle, especially during high-temperature phases.
• Desconnecteu sempre l'aparell abans de netejar-lo o fer-ne el manteniment.
• Avoid touching the heating element immediately after a cycle.
• Assegureu-vos una ventilació adequada al voltant de l'aparell.

3. Components del producte

The following items are included with your Hermitlux HMX-DW03 Mini Countertop Dishwasher:

Image 3.1: All included components for the Hermitlux HMX-DW03 dishwasher.

• Hermitlux 220V Countertop Dishwasher
• Bastidor d'emmagatzematge
• Cistella de coberteria
• Cistella de plats
• Mànega d’entrada
• Mànega de desguàs
• Cistella de fruites
• Copa
• Mànega Clamp
• Manual d'usuari
• Embut

4. Configuració i instal·lació

4.1 Placement and Dimensions

Place the dishwasher on a flat, stable surface. Ensure there is at least 50.5 cm of vertical clearance between your countertop and any overhead cabinets for proper operation and water filling.

Image 4.1: Dimensions of the Hermitlux HMX-DW03 dishwasher (42.5 cm depth, 42.8 cm width, 45.8 cm height, 50.5 cm total height with funnel).

4.2 Water Supply Options

The dishwasher supports two methods for water supply:

1. Built-in 5-Liter Water Tank (Manual Fill):

   This mode requires no permanent plumbing installation. Simply pour water into the designated opening using the provided funnel until the tank is full. The dishwasher will emit a beep and display a red signal when the water level is sufficient.



   Image 4.2: Diagram illustrating the manual water filling process into the 5-liter internal tank.



   Image 4.3: Using the funnel to add water to the dishwasher, ensuring no spills.

2. Connexió directa per aixeta:

   For a continuous water supply, connect the inlet hose to a compatible tap. Ensure the connection is secure to prevent leaks. The inlet hose length is 1.2 meters.



   Image 4.4: Connecting the dishwasher's inlet hose to a standard G3/4" tap connection.

4.3 Connexió de la mànega de drenatge

Connect the drain hose to an appropriate drainage point, such as a sink or a bucket. Ensure the hose is securely positioned to prevent accidental dislodgement during operation.

5. Instruccions de funcionament

5.1 Tauler de control

The dishwasher features an LED display and touch controls for easy program selection and monitoring.

5.2 Càrrega de plats

Arrange dishes in the baskets, ensuring that water spray can reach all surfaces. Avoid overcrowding. The dishwasher can accommodate up to 4 place settings, including plates up to 25 cm in diameter, cups, and cutlery.

Imatge 5.1: Ex.ample of dish loading, showing capacity for plates, cups, and cutlery.

5.3 Addició de detergent

Use only liquid or powder dishwasher detergent. Standard dishwasher tablets may be too large for this compact model, and liquid/powder allows for more precise dosing. There is no separate compartment for rinse aid or salt.

5.4 programes de rentat

Seleccioneu el programa adequat en funció del nivell de brutícia dels vostres plats:

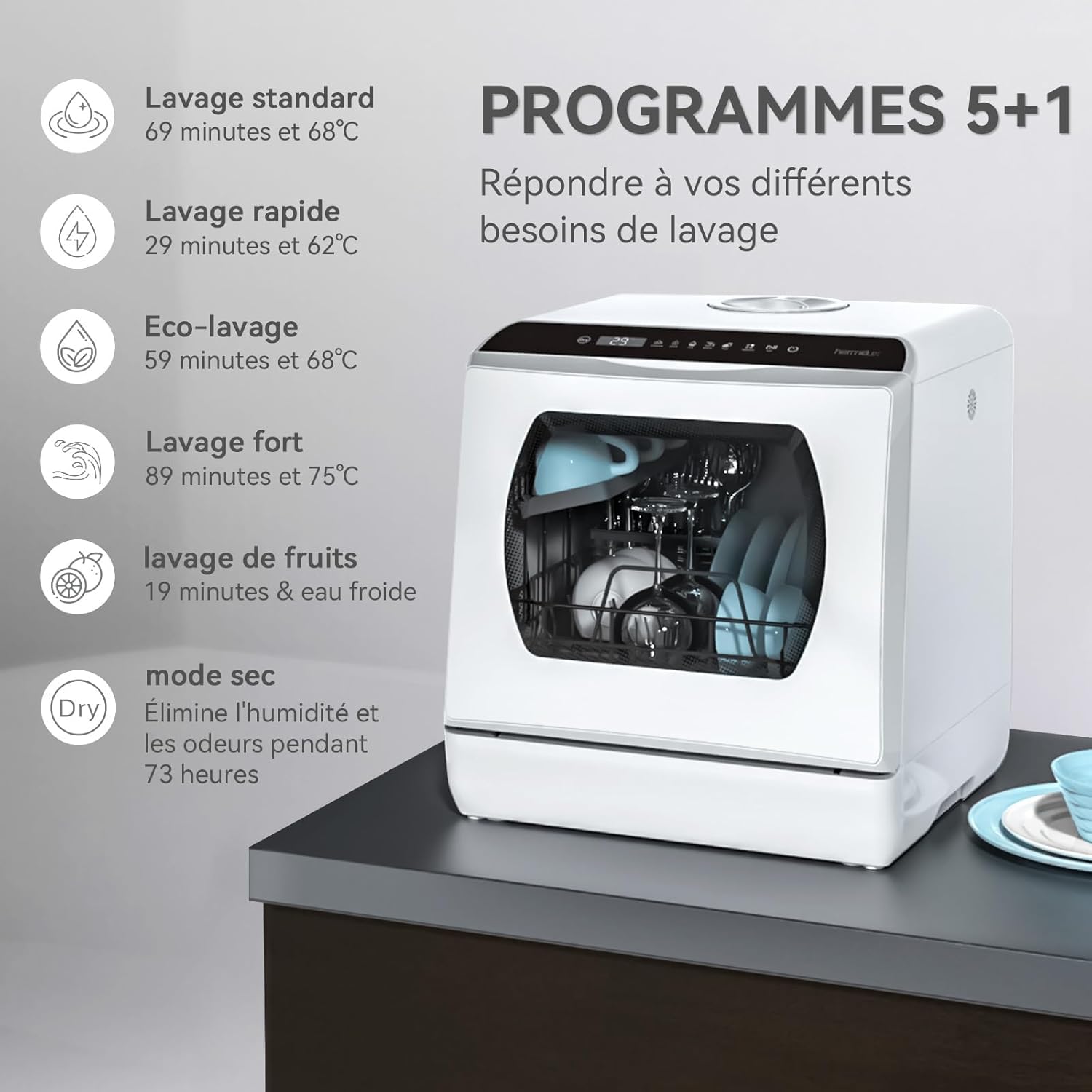

Imatge 5.2: acabatview of the 5 wash programs and drying mode.

• Standard Wash: 69 minutes at 68°C. For daily dishwashing.
• Rentat ràpid: 29 minutes at 62°C. For lightly soiled dishes.
• ECO Wash: 59 minutes at 68°C. Energy-saving program.
• Powerful Wash: 89 minutes at 75°C. For heavily soiled items and baby products.
• Rentat de fruites: 19 minutes with cold water. For cleaning fruits and vegetables (no detergent needed).

5.5 Mode d'assecat

The dishwasher includes a drying function that uses PTC hot air to eliminate humidity and odors for up to 73 hours. You can activate this mode after any wash cycle (except Fruit Wash) or separately. To stop the storage function, press and hold the power button for 3-5 seconds.

6. Manteniment

Un manteniment regular garanteix un rendiment òptim i una llarga durada del rentaplats.

6.1 Neteja del filtre

The filter should be cleaned regularly to prevent blockages and ensure effective washing. After cleaning, ensure the filter is securely tightened clockwise. Improperly fixed filters can allow debris to enter and cause malfunctions.

Image 6.1: Instructions for cleaning and re-securing the dishwasher filter.

6.2 Descalcificació

If you live in an area with hard water, descaling the dishwasher every two weeks is recommended to prevent limescale buildup. Refer to the full user manual for detailed descaling procedures.

6.3 Neteja dels braços polvoritzadors

Periodically check the spray arms for any blockages in the nozzles and clean them as needed to maintain 360-degree cleaning efficiency.

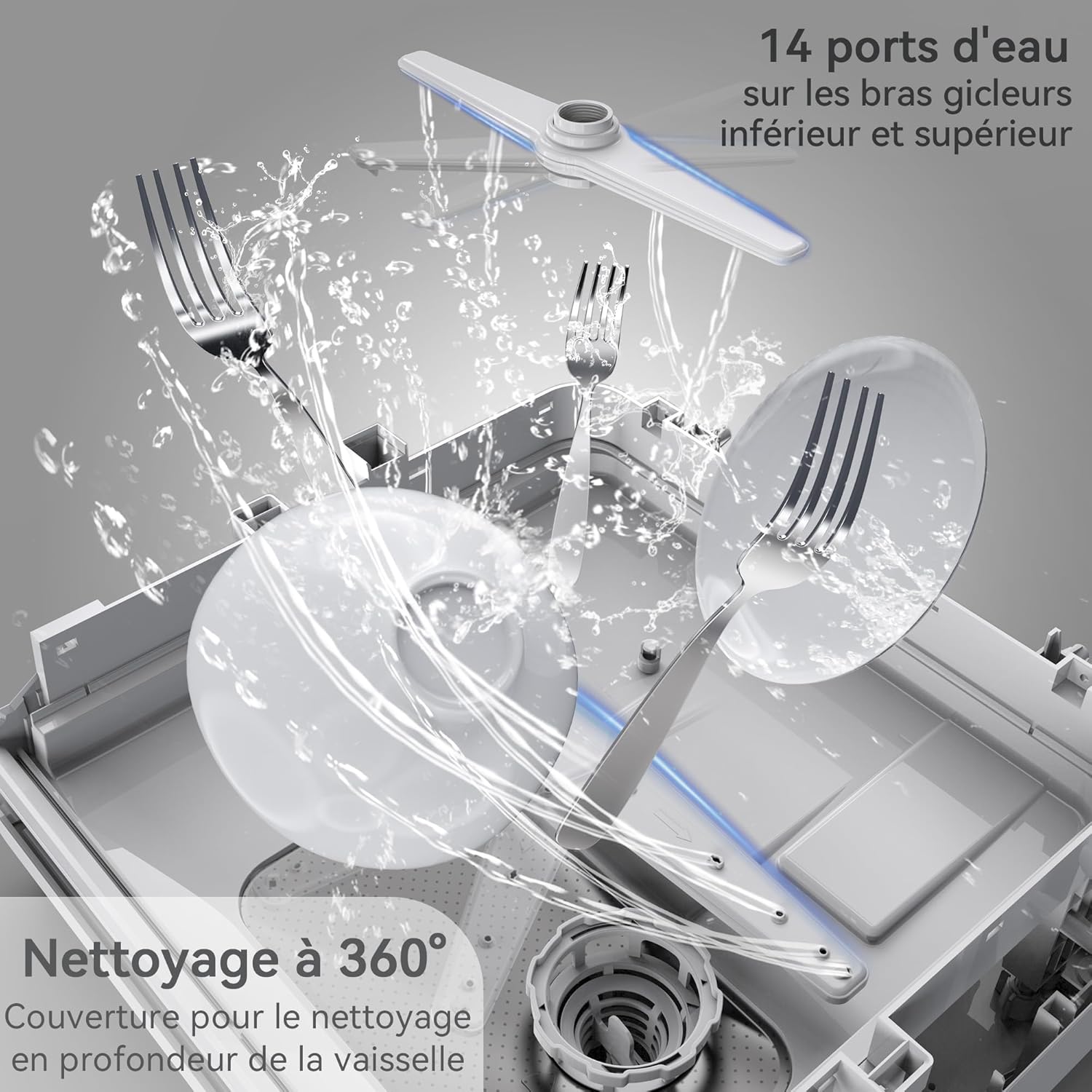

Image 6.2: Illustration of the 360-degree cleaning action from the dual spray arms.

7. Solució De Problemes

If you encounter issues with your dishwasher, refer to the following common troubleshooting tips. For specific error codes (e.g., E6), consult the comprehensive user manual.

• El rentavaixelles no s'engega: Ensure the power cord is securely plugged in and the door is fully closed. Check if the water tank is filled or the tap connection is active.
• Plats no nets: Check if the filter is clean and properly installed. Ensure spray arms are not blocked and can rotate freely. Verify that enough detergent was used and the correct wash program was selected.
• Fuga d'aigua: Check all hose connections for tightness. Ensure the door seal is clean and intact.
• Soroll inusual: Ensure dishes are loaded correctly and not obstructing the spray arms. Check for any foreign objects in the filter area.

8. Especificacions

Detailed technical specifications for the Hermitlux HMX-DW03 Mini Countertop Dishwasher:

Image 8.1: Official product information sheet with detailed specifications.

9. Garantia i Suport

Your Hermitlux HMX-DW03 Mini Countertop Dishwasher comes with a Garantia del fabricant de 12 mesos des de la data de compra. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.

For technical assistance, warranty claims, or any questions regarding your product, please contact Hermitlux customer support. Refer to the contact information provided in the physical user manual or on the official Hermitlux weblloc.

All dishwashers undergo rigorous testing before shipment. It is normal for a small amount of moisture to remain inside the appliance after testing.
