Kucht KFX360 Professional 36" Range User Manual

1. Producte acabatview

The Kucht KFX360 Professional 36" Range is designed for high performance and safety, offering a robust and elegant solution for your kitchen. This gas range provides ample capacity for cooking multiple dishes simultaneously, making it suitable for large family meals and entertaining. Its durable construction features a stainless steel exterior, a blue porcelain oven interior, and heavy-duty cast iron grates.

Les característiques clau inclouen:

• Two heavy-duty 21,000 BTU Rocket Power Burners for intense heat.
• A reversible and removable grill/griddle for versatile cooking options.
• Electronic ignition with an auto re-ignition system for safety and convenience.
• Adjustable, telescopic stainless steel oven racks for ease of use and cleaning.

Figura 1.1: Frontal view of the Kucht KFX360 Professional 36" Range, showcasing its stainless steel finish, control knobs, and large oven window.

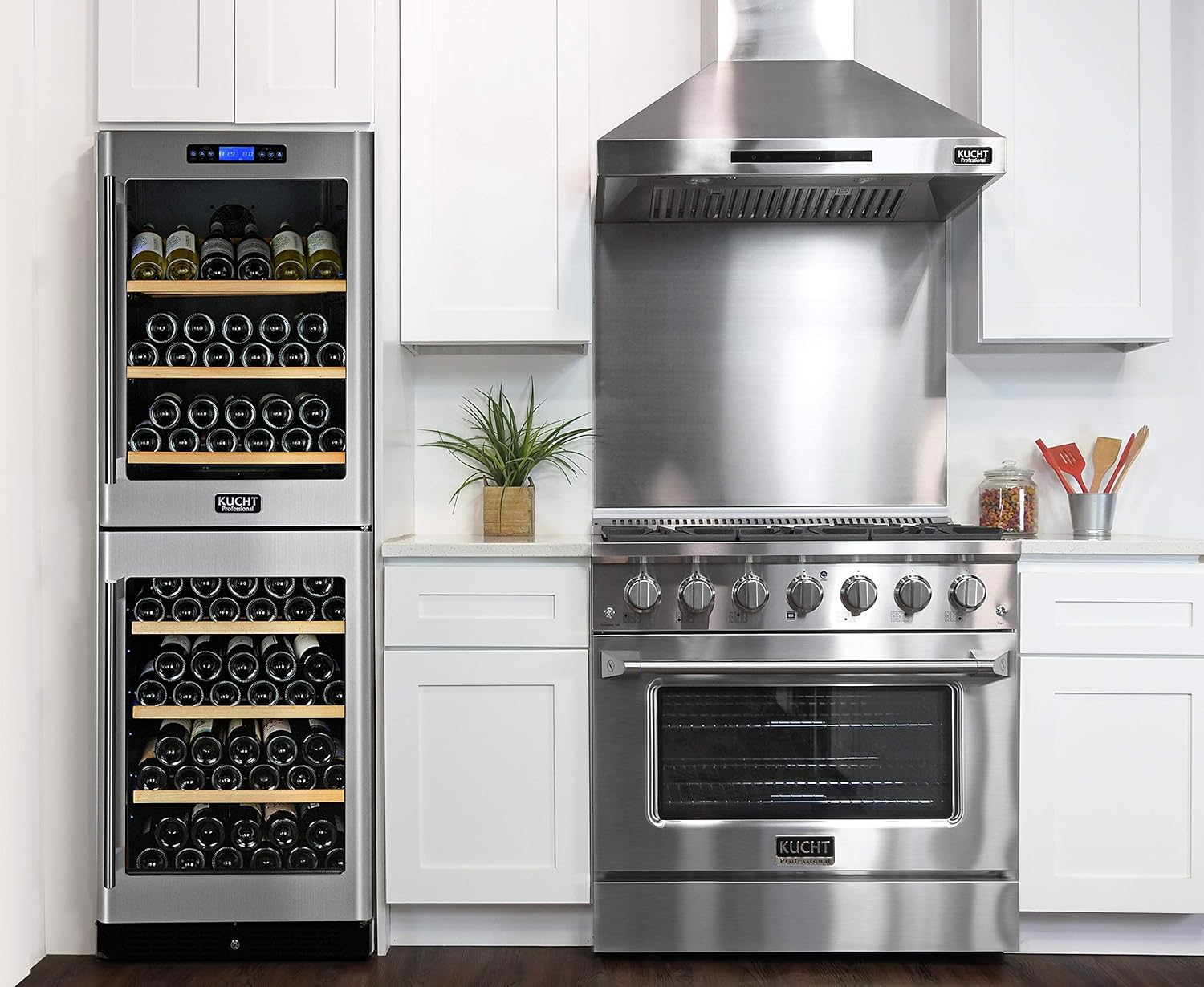

Figure 1.2: The Kucht KFX360 Range integrated into a kitchen setting, demonstrating its aesthetic appeal and size relative to other kitchen appliances.

2. Configuració i instal·lació

Proper installation is crucial for the safe and efficient operation of your Kucht KFX360 range. It is highly recommended that installation be performed by a qualified professional to ensure compliance with local codes and safety standards.

2.1 Desembalatge

• Carefully remove all packaging materials from the range.
• Inspect the range for any shipping damage. Report any damage immediately to your dealer.
• Conserveu els materials d'embalatge per a possibles transports o serveis futurs.

2.2 Col·locació i anivellament

• Position the range in its intended location, ensuring adequate clearance from combustible surfaces as per local building codes.
• Use a level to ensure the range is perfectly level. Adjust the leveling legs located at the bottom of the unit if necessary.

2.3 Connexions de gas i electricitat

This appliance requires both a gas supply and an electrical connection for operation of the electronic ignition and oven light. Ensure connections are made by a certified technician.

• Connexió de gas: Connect the range to a natural gas or LP gas supply as specified on the product label. Ensure all gas connections are leak-tested.
• Connexió elèctrica: Plug the range into a properly grounded electrical outlet. Refer to the specifications for voltage i amprequisits d'edat.

Figura 2.1: lateral view of the Kucht KFX360 Range, illustrating its depth and overall dimensions for installation planning.

3. Instruccions de funcionament

3.1 Cooktop Burner Operation

The KFX360 features sealed burners with electronic ignition and auto re-ignition. Each burner is controlled by a dedicated knob on the front panel.

• Per encendre un cremador: Push the desired burner knob in and turn it counter-clockwise to the "HI" position. You will hear a clicking sound as the igniter sparks. Once the flame ignites, continue to hold the knob in for a few seconds to allow the thermocouple to heat up and maintain the flame.
• Ajust de flama: Once ignited, release the knob and adjust the flame size by turning the knob between "HI" and "LOW" settings.
• Reencesa automàtica: If a flame accidentally extinguishes, the system will automatically spark to re-ignite it.

Figura 3.1: superior view of the Kucht KFX360 cooktop, showing the arrangement of the six sealed burners and heavy-duty grates.

Figura 3.2: Primer pla view of a single burner on the KFX360 cooktop, highlighting the brass burner cap and igniter.

3.2 Grill/Griddle Operation

The reversible and removable grill/griddle can be placed over the center burners for specialized cooking.

• Col·locació: Ensure the cooktop grates are removed from the center burner area before placing the grill/griddle.
• Preescalfament: Preheat the grill/griddle for 5-10 minutes on medium heat before cooking to ensure even heat distribution.
• Neteja: Allow the grill/griddle to cool completely before cleaning. Refer to the Maintenance section for cleaning instructions.

Figura 3.3: superior view of the Kucht KFX360 cooktop with the reversible grill/griddle accessory placed over the center burners.

3.3 Funcionament del forn

The oven features multiple cooking functions and precise temperature control. The oven interior is lined with blue porcelain for durability and ease of cleaning.

• Configuració de la temperatura: Use the oven control knob to select the desired temperature.
• Preescalfament: Allow the oven to preheat fully before placing food inside for optimal cooking results.
• Bastidors de forn: The adjustable, telescopic stainless steel racks can be positioned at various heights to accommodate different dish sizes.

4. Manteniment i Neteja

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Kucht KFX360 range.

4.1 Neteja de la placa de cuina

• Reixes i tapes de cremadors: Allow grates and burner caps to cool completely. These can be removed and washed with warm, soapy water. For stubborn stains, a non-abrasive cleaner can be used. Ensure they are completely dry before re-installing.
• Superfície d'acer inoxidable: Wipe the stainless steel cooktop surface with a soft cloth and a mild detergent or a specialized stainless steel cleaner. Always wipe in the direction of the grain to prevent streaking. Avoid abrasive cleaners or scouring pads.

4.2 Neteja del forn

• Interior del forn: The blue porcelain interior can be cleaned with warm, soapy water and a soft cloth. For baked-on spills, a non-abrasive oven cleaner designed for porcelain surfaces may be used, following the product's instructions.
• Bastidors de forn: The stainless steel oven racks can be removed and cleaned with warm, soapy water.
• Porta del forn: Clean the glass and stainless steel parts of the oven door with appropriate cleaners, avoiding harsh chemicals on the glass.

4.3 Atenció general

• Regularly check gas connections for any signs of wear or leaks.
• Ensure the area around the range is kept clean and free of flammable materials.

5. Solució De Problemes

This section provides solutions to common issues you might encounter with your Kucht KFX360 range. If the problem persists, contact Kucht customer support.

6. Especificacions

7. Garantia i Suport

Kucht stands behind the quality of its products. The KFX360 Professional 36" Range comes with comprehensive warranty coverage and dedicated support.

• USA Warranty: 4-year warranty for parts and labor.
• Canada Warranty: 2-year warranty for parts and labor.
• Lifetime Video Chat Support: Kucht offers lifetime video chat support with a Kucht specialist to assist with any questions or issues you may encounter.

For warranty claims, technical assistance, or general inquiries, please contact Kucht customer service. Refer to the official Kucht weblloc web per obtenir la informació de contacte més actualitzada.

Figure 7.1: The KUCHT Professional KFX Series logo, indicating the product line.
