1. Introducció
Thank you for choosing the HARDELL 14" Rivet Nut Tool Kit. This manual provides essential information for the safe and effective use, setup, operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before operating the tool and retain it for future reference.
2. Producte acabatview
The HARDELL 14" Rivet Nut Tool Kit is designed for installing rivet nuts in various materials, offering a reliable fastening solution for automotive, construction, and DIY projects. It features an ergonomic design and a comprehensive set of mandrels and rivet nuts.
Image 2.1: Complete HARDELL 14" Rivet Nut Tool Kit, including the tool, interchangeable mandrels, and a selection of rivet nuts, all housed in a durable carrying case.
Característiques principals:
- Effortless Grip & Smooth Operation: Engineered with a curved handle wrapped in premium soft rubber and a precision force arm controller for smooth, controlled squeezing and reduced hand fatigue.
- Creat per a la longevitat: Durable structure with aluminum alloy cladding design for increased strength and resistance to distortion. Quick-change head design allows for seamless, tool-free mandrel swaps.
- Complete Riveting Set: Includes 6 mandrels (M6, M8, M10, 1/4-20, 5/16-18, 3/8-16) and 80 rivet nuts in a rugged case.
- Color-Coded System: Mandrels and their corresponding storage slots are color-matched for quick identification and setup.
- Universal Jobsite Reach: Suitable for a wide range of applications from auto panels to HVAC ducts.
3. Pautes de seguretat
Always follow basic safety precautions when using any hand tool to reduce the risk of personal injury or damage to the tool.
- Utilitzeu l'equip de protecció individual (EPI) adequat, incloses les ulleres de seguretat, per protegir-vos contra les deixalles volants.
- Assegureu-vos que la peça de treball estigui ben ferma clamped or stable before applying the rivet nut.
- Do not force the tool. If resistance is encountered, re-evaluate the setup or the rivet nut size.
- Mantingueu les mans i els dits allunyats de les peces mòbils durant el funcionament.
- Store the tool and its components in the provided case when not in use to prevent damage and loss.
- Mantenir fora de l'abast dels nens.
4. Configuració i muntatge
Proper setup of the HARDELL Rivet Nut Tool is crucial for efficient and safe operation. The tool features a quick-change head design for easy mandrel replacement.
4.1 Mandrel Installation
Follow these steps to install or change a mandrel:
- Unscrew the nose piece and sleeve from the tool head.
- Select the appropriate mandrel size for your rivet nut. The mandrels are color-coded for easy matching with the corresponding nose piece.
- Insert the selected mandrel into the stem of the tool.
- Screw the sleeve back onto the tool head, ensuring it is snug.
- Screw the nose piece that matches the mandrel onto the sleeve, ensuring it is fully seated and tight.

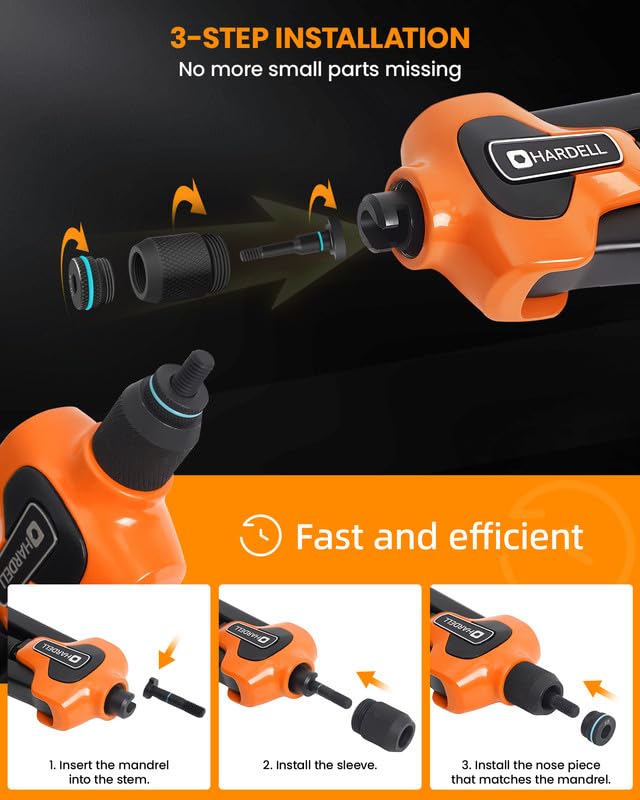

Image 4.1: Detailed 3-step installation process for changing mandrels: 1. Insert mandrel, 2. Install sleeve, 3. Install matching nose piece.
4.2 Color-Coded System
The HARDELL kit utilizes a color-coded system to simplify matching mandrels with their respective nose pieces and storage. Each mandrel size has a distinct color ring that corresponds to its matching nose piece and the designated slot in the storage case.

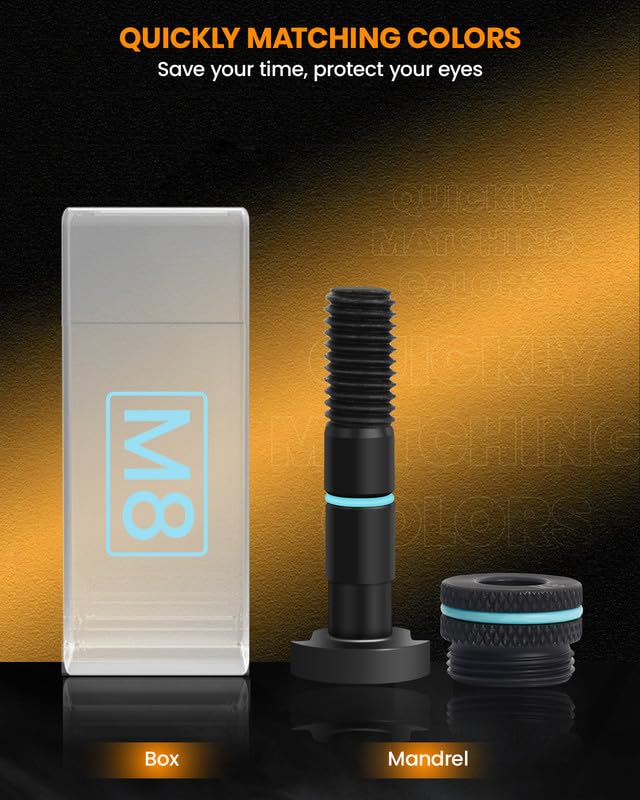

Imatge 4.2: Ex.ample of the color-coded system, showing an M8 mandrel with a blue ring, matching its designated storage box.
5. Instruccions de funcionament
Once the correct mandrel and nose piece are installed, follow these steps to operate the rivet nut tool:
- Prepara el forat: Drill a hole in your workpiece according to the recommended hole size for your chosen rivet nut (refer to Section 8, Technical Specifications). Ensure the hole is clean and free of burrs.
- Insert Rivet Nut: With the tool handles fully open, thread the rivet nut onto the mandrel until it is snug against the nose piece.
- Col·loca l'eina: Insert the rivet nut and mandrel assembly into the prepared hole in the workpiece.
- Set the Rivet Nut: Firmly press the handles together to compress and set the rivet nut. The tool's precision force arm controller helps regulate the handle opening force for smooth operation.
- Release the Tool: Once the rivet nut is set, turn the knob at the top of the tool counter-clockwise to unthread the mandrel from the set rivet nut. The tool handles will open, allowing you to remove the tool.
Image 5.1: Step-by-step guide for using the rivet nut tool: 1. Insert nut, 2. Find hole, 3. Press handle, 4. Turn knob to release.
5.1 Ajust del mànec
The tool features an arm controller that allows adjustment of the handle opening size. This can be useful for comfort and to optimize leverage depending on the rivet nut size and material thickness.

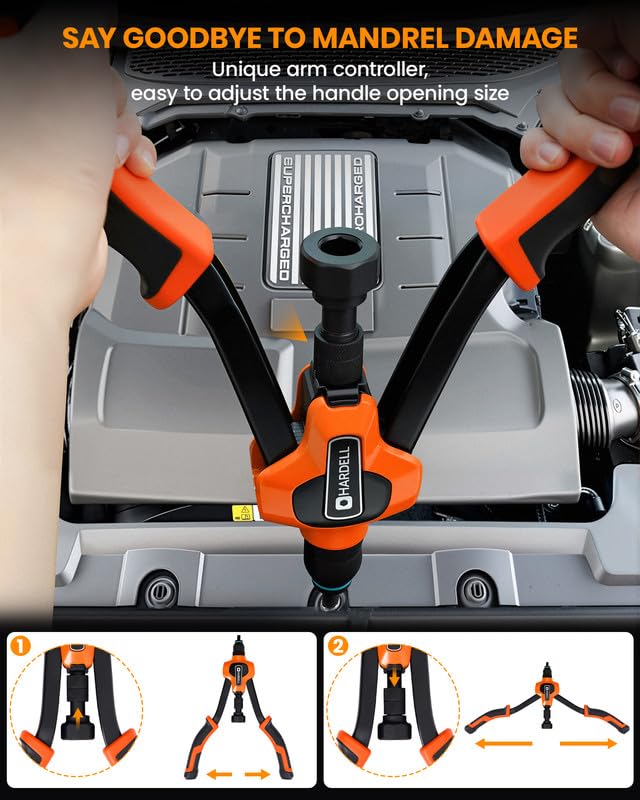

Image 5.2: Adjusting the handle opening size using the unique arm controller for improved ergonomics and control.
6. Manteniment i cura
Regular maintenance ensures the longevity and optimal performance of your HARDELL Rivet Nut Tool Kit.
- Neteja: After each use, wipe down the tool with a clean, dry cloth to remove any dust, debris, or residue. For stubborn grime, a slightly damp es pot utilitzar un drap, seguit d'un assecat complet.
- Lubricació: Periodically apply a small amount of light machine oil to the pivot points and threaded parts of the tool to ensure smooth operation and prevent rust.
- Emmagatzematge: Always store the tool and all its components in the original rugged carrying case. This protects the tool from damage, keeps all parts organized, and prevents loss of mandrels and rivet nuts. Store in a dry environment.
- Inspecció: Before each use, inspect the mandrels and nose pieces for any signs of wear, damage, or deformation. Replace any damaged components immediately to prevent tool malfunction or improper rivet nut setting.
7. Solució De Problemes
If you encounter issues while using your HARDELL Rivet Nut Tool, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Rivet nut not setting properly or stripping. | Incorrect mandrel size; Mandrel or nose piece not fully tightened; Insufficient force applied; Incorrect hole size. | Ensure the correct mandrel and nose piece are used for the rivet nut size. Verify that the mandrel and nose piece are fully seated and tight. Apply firm, consistent pressure. Check that the drilled hole matches the recommended size for the rivet nut. |
| Mandrel gets stuck in the set rivet nut. | Rivet nut over-compressed; Mandrel not properly lubricated. | Avoid over-compressing the rivet nut. Ensure the mandrel is lightly lubricated. Turn the release knob slowly and firmly. |
| L'eina sembla rígida o difícil d'utilitzar. | Lack of lubrication; Debris in moving parts. | Clean the tool and apply light machine oil to pivot points and threaded areas. |
| Mandrel damage (e.g., bending, breaking). | Excessive force on small mandrels; Mandrel not fully seated; Using incorrect mandrel size. | When using smaller mandrels, do not force the tool. Ensure the mandrel and nose piece are fully seated and tight. Always use the correct mandrel size for the rivet nut. Replace damaged mandrels immediately. |
For further assistance, please contact HARDELL customer support.
8. Especificacions tècniques
Below are the general specifications for the HARDELL 14" Rivet Nut Tool Kit:
- Mida de l'eina: 14 polzades
- Included Mandrels: M6, M8, M10, 1/4-20, 5/16-18, 3/8-16
- Included Rivet Nuts: 80 pieces (various sizes)
- Material: Acer d'aliatge, acer al carboni
- Acabat exterior: Chrome
- Dimensions del paquet: 15.55 x 10.04 x 3.62 polzades
- Pes de l'article: 6.33 lliures
- Fabricant: HARDELL
- Número de model: HARDELL (referring to the tool kit)
8.1 Rivet Nut and Hole Size Chart
This table provides recommended workpiece thickness and hole sizes for the included rivet nuts:
Image 8.1: Rivet Nut Specification Chart for various thread sizes, workpiece thickness, and corresponding hole diameters.
| Fil | Workpiece Thickness T(mm) | D (mm) | Hole size (mm) |
|---|---|---|---|
| M6 | 0.5-3.0 | 8.9 | 9.1 |
| 1/4-20 | 0.5-3.0 | 8.9 | 9.1 |
| 5/16-18 | 1.0-3.5 | 10.9 | 11.1 |
| M8 | 1.0-3.5 | 10.9 | 11.1 |
| M10 | 1.0-3.5 | 12.9 | 13.1 |
| 3/8-16 | 1.0-3.5 | 13.3 | 13.5 |
9. Garantia i Suport
HARDELL is committed to providing high-quality products and customer satisfaction. For any questions, concerns, or warranty inquiries regarding your Rivet Nut Tool Kit, please refer to the following:
- Atenció al client: Please refer to the contact information provided with your purchase or visit the official HARDELL brand store for support.
- Garantia de qualitat: HARDELL inspects every product to ensure quality. If you encounter any quality issues, please contact customer service for processing.
- Recursos en línia: Additional information and FAQs may be available on the HARDELL Brand Store.
