1. Introducció
This manual provides essential information for the safe and efficient operation of your POOLEX Poolstar Nano Action 3 kW heat pump. Please read this manual thoroughly before installation and use, and keep it for future reference. This heat pump is designed for heating small outdoor pools with a volume ranging from 10 to 21 m³.
Figure 1.1: POOLEX Poolstar Nano Action 3 kW Heat Pump. This image shows the compact design of the heat pump with its front fan and side connections.
2. Informació de seguretat
Seguiu sempre les següents precaucions de seguretat per evitar lesions o danys a la unitat:
- Ensure the power supply matches the specifications of the heat pump.
- No feu servir la unitat si el cable d'alimentació o l'endoll estan danyats.
- Mantingueu els nens i les mascotes allunyats de la unitat durant el funcionament.
- No bloquegeu les sortides d'entrada ni d'escapament d'aire.
- Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o neteja.
- Installation must comply with local electrical and plumbing codes.
- The unit is equipped with a 10 mA differential protection for safety. Do not bypass this feature.
3. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- POOLEX Poolstar Nano Action 3 kW Heat Pump Unit
- Power cable with 10 mA differential protection
- PVC connectors (diameter 32 mm)
- Mànega clamps
- Multilingual instruction manual
Figure 3.1: Product Packaging. The image displays the retail box of the POOLEX Nano Action heat pump, highlighting its features and included accessories.

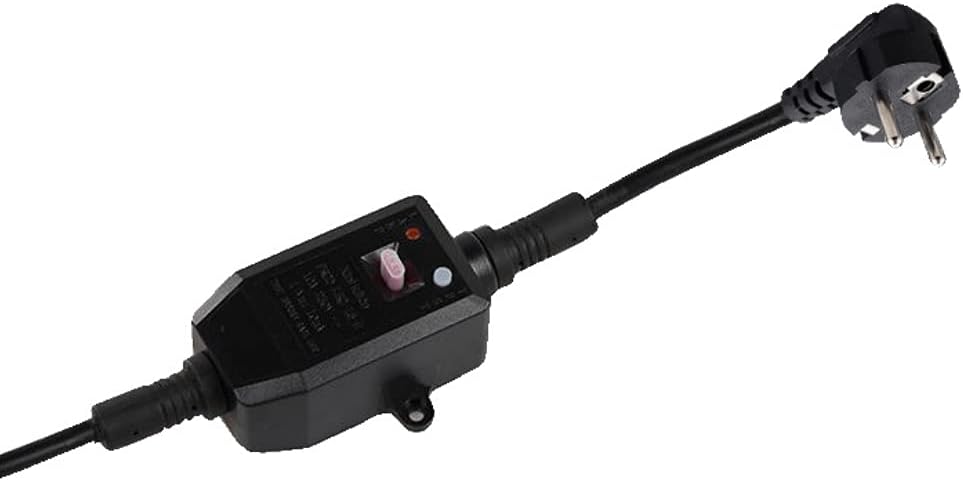

Figure 3.2: Power Cable. This image shows the power cable equipped with a safety differential protection device.
Figure 3.3: Included Accessories. This image displays the PVC connectors and hose clamps provided for installation.
4. Configuració i instal·lació
The POOLEX Poolstar Nano Action heat pump is designed for easy "Plug & Play" installation. No bypass is required.
- Col·locació: Position the heat pump on a stable, level surface near your pool. Ensure adequate air circulation around the unit. Avoid placing it in enclosed spaces.
- Connexions:
- Connect the pool's filtration system outlet to the "IN" port of the heat pump using the provided PVC connectors and hoses (not included).
- Connect the "OUT" port of the heat pump back to the pool's return inlet.
- Secure all connections with the provided hose clamps per evitar fuites.
- Connexió d'alimentació: Plug the heat pump's power cable into a suitable electrical outlet. The 5-meter cable includes a 10 mA differential protection for safety.
- Comprovació inicial: Before starting, ensure all connections are tight and there are no visible leaks.
Figure 4.1: Typical Installation. This image illustrates the heat pump connected to an above-ground pool's filtration system in a garden setting.
Figure 4.2: Plug & Play Setup. This image demonstrates the simple electrical connection of the heat pump to a power outlet, highlighting its ease of use.
5. Instruccions de funcionament
The Poolstar Nano Action heat pump is designed for straightforward operation.
- Posada en marxa: Once connected, ensure your pool's filtration system is running. The heat pump requires water flow to operate.
- Configuració de la temperatura: Use the control panel on the unit to set your desired water temperature. Refer to the specific instructions on the unit's display for navigation.
- Procés de calefacció: The heat pump will begin to heat the water as it circulates through the unit. Heating time will vary depending on pool volume, initial water temperature, and ambient air temperature. The unit is capable of operating in temperatures as low as 8°C.
- Funcionament automàtic: The heat pump will automatically turn on and off to maintain the set temperature, provided the filtration system is running.
Figure 5.1: Extending the Season. This image suggests the heat pump's ability to extend the swimming season into cooler weather, even with snow in the background.
6. Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga vida útil de la bomba de calor.
- Neteja: Netegeu periòdicament l'exterior de la unitat amb un drap suau i sec.amp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Vendes d'aire: Ensure the air intake and exhaust vents are free from debris, leaves, or other obstructions. Blocked vents can reduce efficiency and damage the unit.
- Connexions d'aigua: Regularly check hose connections for leaks and tighten clamps si cal.
- Hivernització: Before freezing temperatures, drain all water from the heat pump and disconnect it from the pool system. Store the unit in a dry, protected area.
7. Solució De Problemes
Consulteu la taula següent per veure els problemes habituals i les seves solucions. Si el problema persisteix, poseu-vos en contacte amb l'atenció al client.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | No power, tripped circuit breaker, differential protection activated. | Check power connection, reset circuit breaker, check differential protection switch. |
| Pobre rendiment de calefacció | Insufficient water flow, low ambient temperature, blocked air vents, pool too large. | Ensure filtration pump is running, check for blockages in hoses/vents, verify pool volume is within specified range. |
| Soroll inusual | Debris in fan, loose components. | Disconnect power and inspect fan for obstructions. If noise persists, contact support. |
| Fuites d'aigua | Loose hose connections, damaged O-rings. | Apretar la mànega clamps, inspeccioneu i substituïu les juntes tòriques si estan danyades. |
8. Especificacions
| Característica | Detall |
|---|---|
| Número de model | PC-NANO-A3 |
| Capacitat de calefacció | 3 kW |
| Consum d'energia | 600 W (aprox.) |
| Volum de piscina recomanat | 10 to 21 m³ |
| Temperatura mínima de funcionament | 8 °C |
| Dimensions del producte (L x A x A) | 40 x 28 x 38.5 cm |
| Pes | 17.02 kg |
| Tipus de font d'alimentació | CC/CA (AC/DC) |
Figure 8.1: Ultra Compact Design. This image visually represents the compact size of the heat pump, shown next to a dog for scale, emphasizing its small footprint.
9. Garantia i Suport
Your POOLEX Poolstar Nano Action heat pump comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.
For technical support, spare parts, or warranty claims, please contact POOLEX customer service. Contact details can typically be found on the manufacturer's official weblloc web o a l'embalatge del producte.
Fabricant: POLLSTAR
Data de primera disponibilitat: 12 de març de 2021
