Carregador de bateria de 12 V amb panell solar de 17 watts i controlador de càrrega - Manual d'instruccions 021-1173

1. Introducció

This manual provides essential information for the safe and effective use of your Battery Tender 17 Watt Solar Panel 12V Battery Charger with Charge Controller. Please read these instructions thoroughly before installation and operation to ensure optimal performance and longevity of your product and connected batteries.

Image: The Battery Tender 17 Watt Solar Panel, a compact and efficient unit designed for battery charging and maintenance.

2. Característiques del producte

• Mountable & Versatile: Designed for easy mounting to outdoor surfaces using four integrated mounting holes. Ideal for harnessing solar energy in locations without direct power access.
• Càrrega intel·ligent: Features a built-in charge controller with a 3-step charging process to prevent overcharging and battery discharge. An LED indicator light displays the current charging status.
• Àmplia compatibilitat: This compact solar panel is compatible with various 12V battery types, including lithium (LiFePO4), lead acid, flooded, and sealed maintenance-free AGM and gel cell batteries.
• Disseny protegit: IP67 rated for weather resistance, ensuring durability against outdoor elements. Includes spark-proof connections and reverse charging protection for enhanced safety.
• Manteniment baix: Engineered for minimal maintenance, offering a convenient solution for long-term battery care.

3. Què hi ha a la caixa

• 1x Battery Tender 17 Watt Solar Panel
• 1x Solar Charge Controller (integrated)
• 1x Alligator Clips Quick Disconnect Cable
• 1x Ring Terminal Quick Disconnect Cable
• 1x 6-foot Quick Disconnection Extension Cable

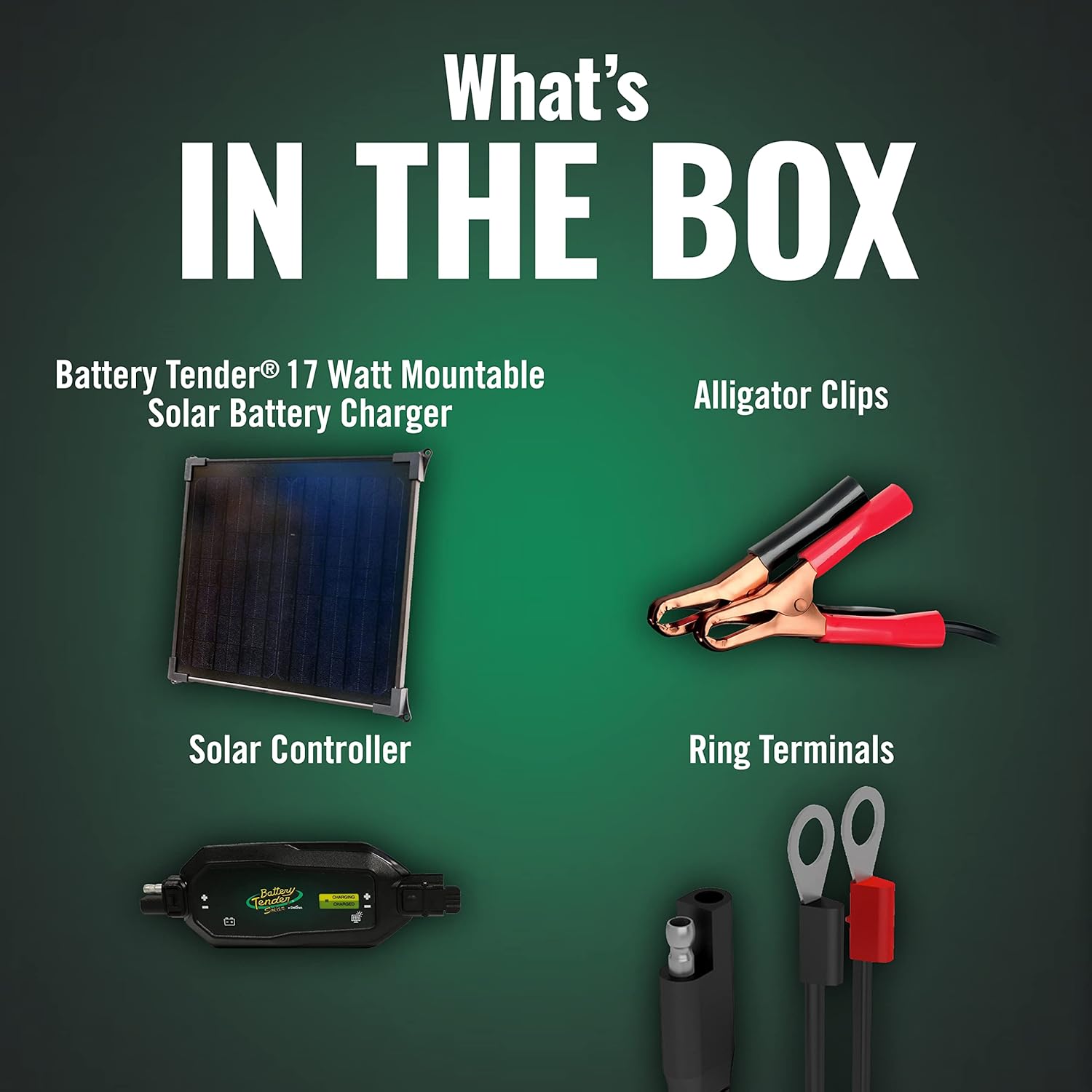

Image: The components included in the product package, showing the solar panel, charge controller, alligator clips, and ring terminals.

4. Configuració

4.1. Muntatge del panell solar

1. Identify a location that receives maximum direct sunlight throughout the day.
2. Use the four integrated mounting holes on the solar panel frame to securely attach it to a stable surface. Ensure the panel is angled towards the sun for optimal performance.

4.2. Connexió a la bateria

1. Ensure the solar panel is not exposed to direct sunlight during initial connection to prevent accidental sparking.
2. Select the appropriate quick disconnect cable: either the Clips de cocodril for temporary connections or the Terminals anellats for permanent installation.
3. Connect the red (+) connector of the quick disconnect cable to the positive terminal of your 12V battery.
4. Connect the black (-) connector of the quick disconnect cable to the negative terminal of your 12V battery.
5. Connect the quick disconnect end of the cable to the integrated solar charge controller on the solar panel. Use the 6-foot extension cable if additional length is required.
6. Once connected, expose the solar panel to sunlight. The LED indicator on the charge controller will illuminate to show charging status.

Image: A Battery Tender solar panel positioned on a vehicle's dashboard, connected to the battery for charging.

5. Instruccions de funcionament

The Battery Tender 17 Watt Solar Panel is designed for automatic operation. Once properly connected to a 12V battery and exposed to sufficient sunlight, the integrated charge controller will manage the charging process.

5.1. Indicador LED d'estat

The charge controller features an LED indicator to provide visual feedback on the charging status:

• Sense llum: Insufficient solar power or no connection.
• Ambre intermitent: Not charging the battery.
• Ambre sòlid: La bateria s'està carregant actualment.
• Verd intermitent: Battery is more than 80% charged.
• Verd sòlid: Battery is fully charged and being monitored (float mode).

Image: The solar panel highlighting its safety features, including IP67 weather resistance, reversed hook-up protection, and spark-proof design.

6. Compatibilitat de la bateria

This solar panel is designed to charge and maintain 12V batteries of various types, including:

• Liti (LiFePO4)
• Àcid de plom
• Inundat
• Sealed Maintenance-Free AGM
• Gel Cell

Image: Visual representation of the solar panel's compatibility with different 12V battery types and applications, including RVs, cars, trucks, and boats.

7. 3-Step Charging Process

The integrated smart charge controller utilizes a 3-step charging process to optimize battery health and prevent overcharging:

1. Càrrega massiva: Delivers a constant current to bring the battery to approximately 80% of its capacity.
2. Mode d'absorció: Gradually reduces the charging current while maintaining a constant voltage to bring the battery to full charge.
3. Mode flotant: Once the battery is fully charged, the controller switches to a lower, constant voltage to maintain the battery's charge without overcharging or discharging, ensuring it's always ready for use.

Image: A visual breakdown of the automatic charging stages, including spark-proof connection, bulk charge, absorption mode, and float mode.

8. Característiques de seguretat

Your Battery Tender solar panel is equipped with several safety features to protect both the device and your battery:

• Classificació de resistència a la intempèrie IP67: Provides complete protection against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes, making it suitable for outdoor use in various weather conditions.
• Spark-Proof Design: Connections are designed to prevent sparks during hook-up, enhancing safety.
• Protecció contra càrrega inversa: Prevents current from flowing back from the battery to the solar panel during periods of low light or darkness, safeguarding the battery from discharge.
• Protecció de polaritat inversa: Ensures no charge is sent unless connections are attached correctly, preventing damage from incorrect wiring.

9. Manteniment

To ensure optimal performance and extend the lifespan of your solar panel and battery, follow these simple maintenance guidelines:

• Mantenir net: Regularly wipe the solar panel surface with a soft, damp cloth to remove dust, dirt, and debris that may obstruct sunlight and reduce efficiency.
• Comproveu les connexions: Periodically inspect all cable connections to ensure they are secure and free from corrosion.
• Posicionament òptim: Adjust the panel's angle seasonally to maximize exposure to direct sunlight.
• Eviteu les obstruccions: Ensure no objects (leaves, snow, etc.) are covering the solar panel, as this will reduce its charging capability.

10. Solució De Problemes

If your solar panel is not performing as expected, consider the following:

• No LED Light: Check if the solar panel is receiving sufficient sunlight. Ensure all connections are secure and correctly polarized.
• Battery Not Charging (Flashing Amber): Verify that the battery terminals are clean and that the connections are firm. Ensure the solar panel is in direct sunlight and not obstructed.
• Càrrega lenta: Ensure the solar panel is positioned for maximum sun exposure. Clean the panel surface if it's dirty. Check the battery's overall health; older or damaged batteries may not hold a charge efficiently.
• Sobreescalfament: While the unit is designed to be robust, ensure adequate airflow around the charge controller and battery, especially in hot environments.

11. Especificacions

12. Garantia i assistència

The Battery Tender 17 Watt Solar Panel comes with a Garantia limitada del fabricant d'5 any. For any product-related inquiries, technical assistance, or warranty claims, please contact Battery Tender customer support. Lifetime customer support is provided to assist you with any questions or issues you may encounter.

For further assistance, please refer to the official Battery Tender weblloc web o contacteu directament amb el seu servei d'atenció al client.
