Introducció
This manual provides comprehensive instructions for the operation, maintenance, and care of your Oris Aquis Date Calibre 400 timepiece. Please read this manual carefully to ensure proper use and to maximize the longevity of your watch.
Producte acabatview

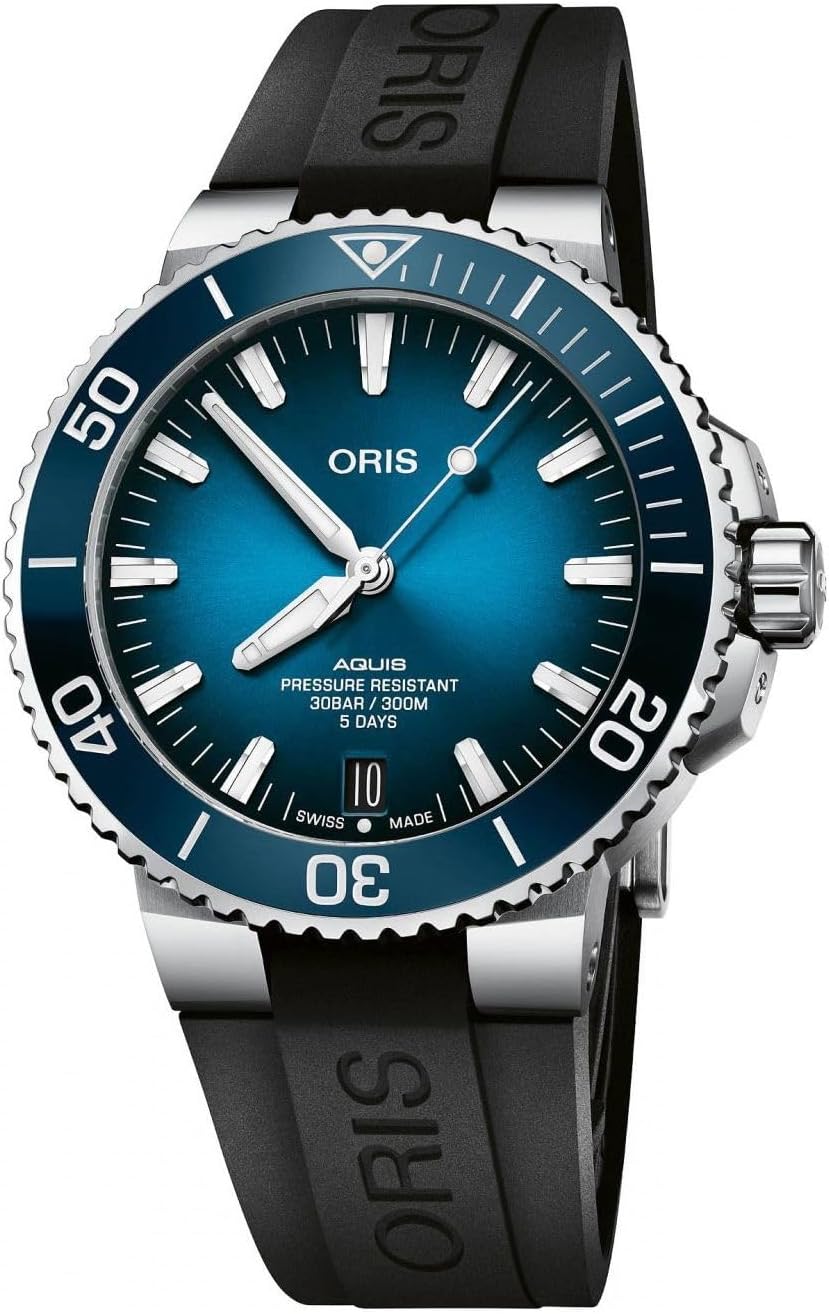

Imatge: The Oris Aquis Date Calibre 400 watch, featuring a stainless steel case, a gradient blue dial with luminescent markers, and a black rubber strap. The unidirectional rotating bezel with blue ceramic top ring is visible, along with the crown on the right side of the case.
The Oris Aquis Date Calibre 400 is a high-performance diver's watch, engineered for reliability and precision. It features a robust stainless steel case, a striking gradient blue dial, and is powered by the in-house Oris Calibre 400 automatic movement, offering an impressive 5-day power reserve.
Característiques principals:
- Moviment: Oris Calibre 400, Swiss automatic, 5-day power reserve.
- Cas: 43.5 mm stainless steel.
- Marca: Gradient blue with silver-tone luminescent indices and hands.
- Bisell: Uni-directional rotating with blue ceramic top ring.
- Resistència a l'aigua: 300 metres (1000 peus).
- Corretja: Black rubber with stainless steel folding clasp.
- Funcions: Date display at 6 o'clock.
Configuració
Initial Winding and Setting:
- Desenrosqueu la corona: Gently unscrew the crown counter-clockwise until it pops out to position 1.
- Manual Winding (Position 1): In position 1, turn the crown clockwise approximately 20-30 times to initiate the movement and build up initial power reserve. The Calibre 400 is an automatic movement and will self-wind with wrist motion, but manual winding is recommended for initial setup or after extended periods of inactivity.
- Setting the Date (Position 2): Pull the crown out one more click to position 2. Turn the crown clockwise or counter-clockwise to adjust the date. Avoid setting the date between 9 PM and 3 AM, as this can damage the movement.
- Setting the Time (Position 3): Pull the crown out to its outermost position, position 3. The seconds hand will stop (hacking feature). Turn the crown to set the hour and minute hands. To ensure accuracy, set the time a few minutes ahead and then push the crown back in when a reliable time signal (e.g., from an atomic clock) reaches the desired time.
- Assegurar la Corona: Once time and date are set, push the crown back in and screw it down clockwise firmly against the case to ensure water resistance. Do not force it.
Instruccions de funcionament
Moviment automàtic:
Your Oris Aquis Date Calibre 400 is powered by an automatic mechanical movement. It is wound by the natural motion of your wrist. When fully wound, the Calibre 400 offers a power reserve of approximately 5 days (120 hours). If the watch is not worn for an extended period, it may stop. Simply follow the initial winding steps in the "Setup" section to restart it.
Using the Uni-directional Rotating Bezel:
The watch features a uni-directional rotating bezel, designed for timing dives or other events. It rotates only counter-clockwise to prevent accidental increases in timed duration, which is a critical safety feature for divers.
- Aligning the Bezel: Rotate the bezel counter-clockwise until the triangle marker (or zero marker) aligns with the minute hand.
- Timing an Event: As time passes, the minute hand will move away from the triangle marker. The elapsed time can be read directly from the bezel scale at the position of the minute hand.
Manteniment i cura
- Neteja: Netegeu el rellotge regularment amb un drap suau i sec.amp cloth. For stainless steel parts, a mild soap solution can be used. Ensure the crown is fully screwed down before cleaning. Rinse with fresh water and dry thoroughly.
- Resistència a l'aigua: The Oris Aquis Date Calibre 400 is water-resistant to 300 meters (1000 feet). This makes it suitable for swimming, snorkeling, and professional diving. Always ensure the crown is fully screwed down before exposing the watch to water. Do not operate the crown or pushers (if any) underwater.
- Extrems de temperatura: Avoid exposing your watch to sudden and extreme temperature changes, as this can affect the movement's lubrication and seals.
- Camps magnètics: While the Calibre 400 movement offers enhanced anti-magnetism, strong magnetic fields can still affect mechanical watches. Keep your watch away from strong magnets (e.g., speakers, refrigerators, certain electronic devices).
- Impactes: Avoid dropping your watch or subjecting it to severe impacts, which can damage the internal components or external case.
- Servei: For optimal performance and longevity, it is recommended to have your Oris watch serviced by an authorized service center every 3-5 years. This includes checking the movement, replacing seals, and ensuring water resistance.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El rellotge s'ha aturat o va lent. | Reserva de marxa insuficient. | Manually wind the watch (20-30 turns of the crown) or wear it consistently for several hours. |
| La data no canvia a mitjanit. | AM/PM indicator is incorrect; watch is set to PM instead of AM. | Avança l'hora 12 hores. Assegura't que la data canviï cap a la mitjanit, no cap al migdia. |
| Condensació sota el cristall. | Moisture ingress, possibly due to crown not being screwed down or damaged seals. | Porteu immediatament el rellotge a un centre de servei autoritzat. No intenteu assecar-lo vosaltres mateixos. |
| Bezel is stiff or difficult to turn. | Dirt or debris trapped under the bezel. | Rinse the bezel under running water while rotating it. If problem persists, seek professional service. |
If you encounter issues not listed here, or if the suggested solutions do not resolve the problem, please contact an authorized Oris service center for assistance.
Especificacions
- Número de model: 01 400 7763 4135-07 4 24 74EB
- Material de la caixa: Acer inoxidable
- Diàmetre de la caixa: 43.5 mm
- Moviment: Oris Calibre 400, Automatic
- Reserva d'energia: 5 Days (120 hours)
- Resistència a l'aigua: 30 BAR / 300 Meters / 1000 Feet
- Cristall: Sapphire, domed on both sides, anti-reflective coating inside
- Color de l'esfera: Gradient Blue
- Material de la corretja: Cautxú negre
- Tipus de tancament: Stainless Steel folding clasp with extension and push-button release
- Funcions: Centre hands for hours, minutes and seconds, date window, instantaneous date, date corrector, fine timing device and stop-second
- Dimensions del producte: 7.87 x 5.91 x 3.94 polzades; 8.82 unces
Garantia i Suport
Oris offers a manufacturer's warranty for its timepieces, covering manufacturing defects. The standard warranty period for watches equipped with Calibre 400 is extended to 10 years upon registration with MyOris. Please refer to the official Oris website or the warranty card included with your purchase for detailed terms and conditions.
For support, service, or warranty claims, please contact an authorized Oris dealer or visit the official Oris website to locate a service center near you. Always ensure that any service or repair is performed by an authorized Oris service center to maintain the watch's integrity and warranty.
