ALPINA Electric Deep Fryer (Model WJ-801) Instruction Manual

Introducció

Thank you for choosing the ALPINA Electric Deep Fryer. This appliance is designed for home use to fry various foods efficiently and safely. Please read this instruction manual carefully before first use to ensure proper operation, maintenance, and to prevent damage or injury. Keep this manual for future reference.

Image: The ALPINA Electric Deep Fryer, showcasing its compact design and stainless steel finish. Dimensions are indicated as 34 cm height, 25 cm depth, and 31 cm width.

Instruccions importants de seguretat

Quan s'utilitzen aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat, incloses les següents:

• Llegiu totes les instruccions abans d'utilitzar.
• No toqueu superfícies calentes. Utilitzeu nanses o poms.
• Per protegir-vos contra les descàrregues elèctriques, no submergiu el cable, els endolls ni l'element calefactor en aigua ni en altres líquids.
• És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
• Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces.
• No feu funcionar cap aparell amb el cable o l'endoll danyats, o després que l'aparell no funcioni correctament o s'hagi danyat de qualsevol manera. Poseu-vos en contacte amb el servei d'atenció al client per a la seva revisió, reparació o ajust.
• L'ús d'accessoris no recomanats pel fabricant de l'aparell pot causar lesions.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
• No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
• Cal extremar la precaució quan es mou un aparell que contingui oli calent o altres líquids calents.
• Connecteu sempre primer l'endoll a l'aparell i després el cable a la presa de corrent. Per desconnectar-lo, gireu qualsevol control a la posició "off" i, a continuació, retireu l'endoll de la presa de corrent.
• No utilitzeu l'aparell per a un altre ús que el previst.
• Ensure the oil level is between the MIN and MAX marks.
• Never mix different types of oil or old and new oil.
• Assegureu-vos sempre que la tapa estigui ben tancada durant el funcionament per evitar esquitxades d'oli.
• This appliance is equipped with overheat protection. If the temperature exceeds safe limits, the fryer will automatically shut off.

Components i característiques del producte

The ALPINA Electric Deep Fryer is designed for ease of use and versatility. Familiarize yourself with its main parts:

• Carcassa d'acer inoxidable: Durador i fàcil de netejar.
• Removable Heating Element with Control Panel: Includes temperature dial, power indicator, and heat indicator.
• Contenidor d'oli: 5-liter capacity for frying oil.
• Cistelles per fregir: One large 5L basket and two smaller 2.5L baskets for simultaneous frying.
• Lid with Handle: Helps contain splatters and odors.
• Nanses laterals: For safe transport when the unit is cool and empty.

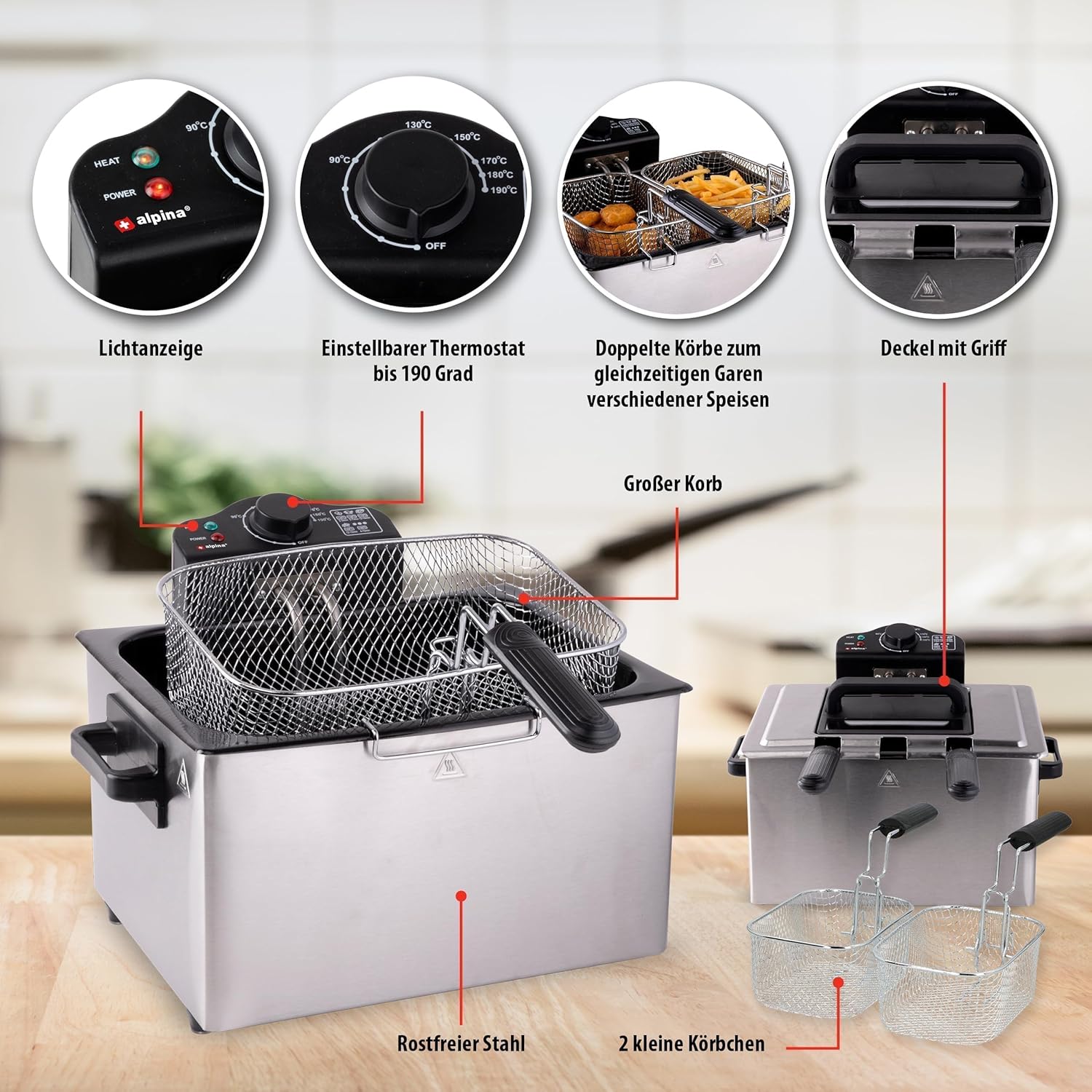

Imatge: Explosió view of the ALPINA Deep Fryer, showing the stainless steel body, removable heating element with control panel, large frying basket, two smaller frying baskets, and the lid.

Image: Visual representation of key features: 5 Liter capacity, internal light (indicator), 3 baskets, adjustable temperature, and overheat protection.

Configuració i primer ús

1. Desembalatge: Carefully remove all packaging materials and inspect the fryer for any damage.
2. Neteja: Before first use, wash the oil container, frying baskets, and lid in warm soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the stainless steel housing with a damp tela. No submergiu l'element calefactor ni el panell de control en aigua.
3. Muntatge:
   • Place the oil container securely into the stainless steel housing.
   • Insert the heating element assembly into the designated slots at the back of the oil container. Ensure it is properly seated and locked into place. The fryer will not operate if the heating element is not correctly installed.
4. Afegir oli: Pour frying oil into the oil container. Ensure the oil level is between the MIN and MAX fill lines indicated inside the container. Do not overfill or underfill.
5. Col·locació: Col·loqueu la fregidora sobre una superfície estable, resistent a la calor i seca, allunyada de parets i materials inflamables. Assegureu-vos que hi hagi una ventilació adequada.
6. Connexió d'alimentació: Plug the power cord into a grounded electrical outlet. The power indicator light (red) will illuminate.

Instruccions de funcionament

Segueix aquests passos per fregir de manera segura i eficaç:

1. Preheating Oil:
   • Turn the temperature control dial to the desired frying temperature (e.g., 170°C for chicken, 180°C for fries).
   • The heat indicator light (green) will turn on, indicating that the heating element is active.
   • Allow the oil to preheat. The heat indicator light will turn off once the set temperature is reached. It will cycle on and off during frying to maintain the temperature.
2. Preparació del menjar:
   • Ensure food items are dry before placing them in the basket. Excess moisture can cause oil to splatter.
   • Do not overload the frying basket. Fry in small batches to maintain oil temperature and ensure even cooking.
3. Fregir:
   • Carefully lower the frying basket containing the food into the hot oil.
   • Place the lid on the fryer.
   • Fry for the recommended time or until golden brown and cooked through.
   • Use the provided frying baskets. The fryer supports one large basket or two smaller baskets simultaneously.
4. Eliminació d'aliments:
   • Carefully lift the frying basket out of the oil.
   • Hook the basket onto the edge of the oil container to allow excess oil to drain.
   • Transferiu el menjar fregit a un plat folrat amb tovalloles de paper per absorbir l'oli restant.
5. After Frying: Turn the temperature control dial to "OFF" and unplug the fryer from the wall outlet. Allow the oil and fryer to cool completely before cleaning or storing.

Image: Close-up of the control panel, highlighting the power indicator light, temperature control dial, and recommended cooking temperatures for various foods.

Image: Demonstration of simultaneous frying using two smaller baskets for different food items like chips and snacks, with suggested cooking times and temperatures.

Image: The deep fryer in use with two small baskets, showing fried nuggets and fries, emphasizing the 5-liter capacity and 2000 Watt power.

Manteniment i Neteja

Regular cleaning ensures the longevity and safe operation of your deep fryer.

1. Refredament: Always ensure the fryer and oil have cooled completely before attempting to clean. This can take several hours.
2. Draining Oil: Once cool, carefully remove the heating element. Pour the cooled oil into a suitable container for disposal or storage (if reusing).
3. Components de neteja:
   • The oil container, frying baskets, and lid can be washed in warm soapy water or placed in a dishwasher. Rinse thoroughly and dry completely.
   • Wipe the exterior of the stainless steel housing with a damp cloth and mild detergent. Dry with a soft cloth.
   • The heating element and control panel should never be immersed in water. Netegeu-los amb l'anunciamp cloth only. Ensure they are completely dry before reassembly or storage.
4. Emmagatzematge: Store the clean and dry deep fryer in a cool, dry place.

Resolució de problemes

Si teniu problemes amb la fregidora, consulteu els següents problemes i solucions habituals:

If the problem persists after trying these solutions, please contact ALPINA customer support.

Especificacions

Garantia i Suport

For warranty information or technical support, please refer to the warranty card included with your product or visit the official Alpina weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
