Informació important de seguretat
For safe installation, it is strongly recommended to hire a professional electrician, wear safety glasses, and have at least two people during the installation process. Always ensure power is disconnected before beginning any installation or maintenance.
Producte acabatview
The TETOTE LED Backlit Bathroom Mirror is designed to enhance your bathroom experience with its modern aesthetics and advanced features. This frameless mirror provides adjustable lighting and an anti-fog function for optimal clarity.
- Dimensions: 32" de llargada x 40" d'amplada
- Pes: Aproximadament 28.9 lliures
- Material: Silver Coating 5mm High Quality Glass
- Característiques especials: Shatterproof, Lighted, Fogless, Adjustable Brightness, Dimmable, Multiple Color Temperatures
Figure 1: TETOTE LED Backlit Bathroom Mirror in a modern setting.
Configuració i instal·lació
The TETOTE mirror is designed for easy installation, offering both plug-in and hardwired options, and can be mounted horizontally or vertically. A detailed installation manual is available for download.
- Preparació: Ensure the wall surface is clean and dry. Identify the desired mounting location, considering electrical connections.
- Muntatge: Use the provided screws and wall anchors. For secure mounting, it is recommended to use appropriate tools and ensure the mirror is level.
- Connexió elèctrica: The mirror can be connected via a plug or hardwired directly into your electrical system. If hardwiring, consult a qualified electrician.
Figura 2: El mirall admet instal·lació tant horitzontal com vertical.

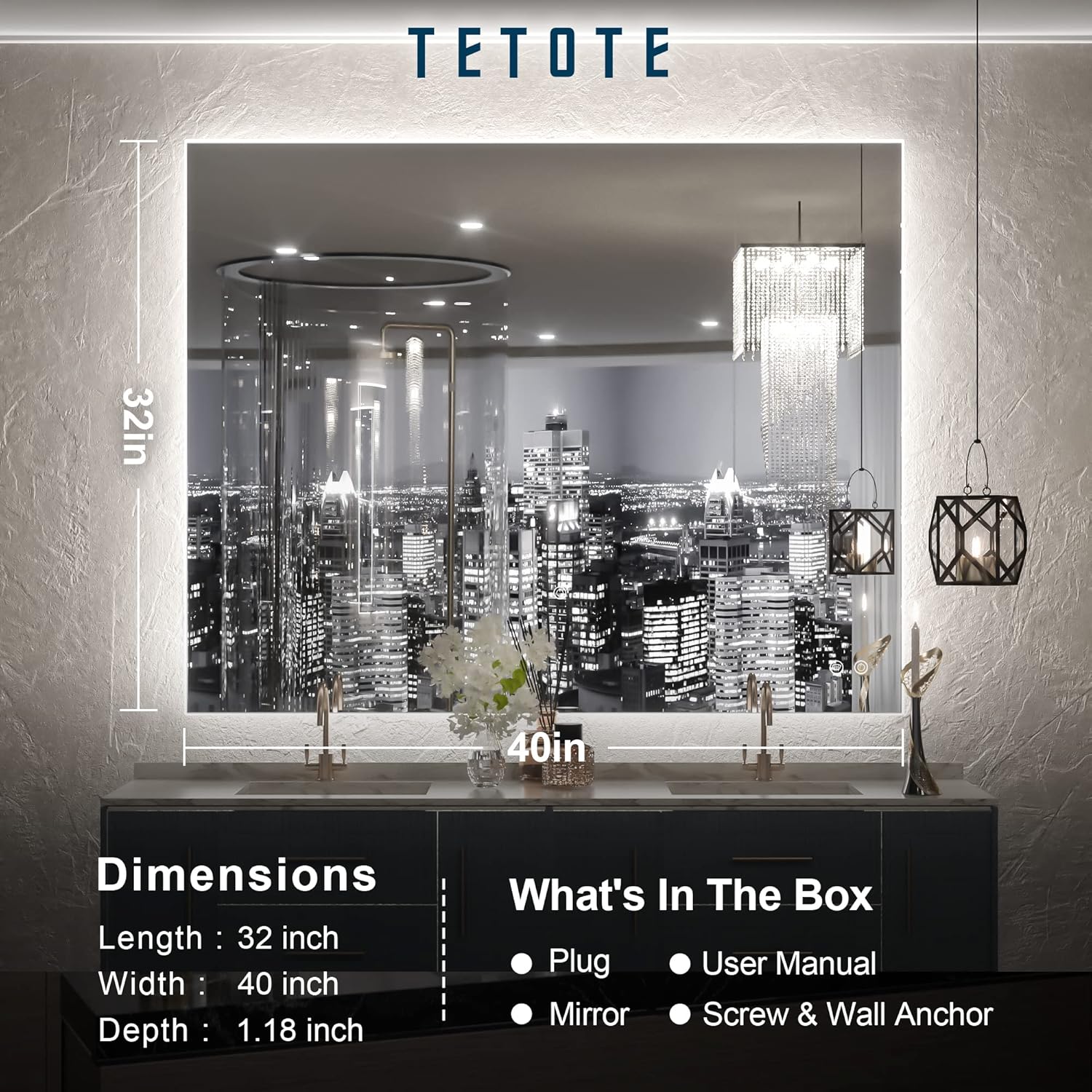

Figure 3: Detailed dimensions and included accessories for installation.
Per obtenir una guia completa, consulteu la Manual d'instal·lació (PDF).
Instruccions de funcionament
The TETOTE mirror features intuitive touch controls for its lighting and anti-fog functions.
- Power/Brightness Control:
Short press the power icon (1.) to turn the LED lights on or off. Long press the power icon to adjust the brightness from 10% to 100%. The smart memory function will retain your last brightness setting.
- Ajust de temperatura de color:
Short press the color temperature icon (2.) to cycle through different light colors: White (6000K), Natural (4500K), and Warm (3000K). The smart memory function will retain your last color setting.
- Funció antiboira:
Press the anti-fog icon (3) to activate the defogger. This function is controlled separately and will automatically shut down after one hour to prevent overheating and save energy. It ensures a clear reflection even after hot showers.
Figure 4: Adjusting color temperature from warm to cool white.
Figure 5: The anti-fog feature quickly clears condensation from the mirror surface.
Figure 6: Wall switch integration and memory function for personalized settings.
Vídeos oficials de productes
Video 1: TETOTE Tri-color Temperature Backlit Mirror for Bathroom. This video demonstrates the mirror's tri-color temperature adjustment feature, showcasing the different light settings available.
Video 2: TETOTE LED Bathroom Mirror with Lights. This video provides a general overview of the LED bathroom mirror, highlighting its illuminated features and design.
Manteniment i cura
To ensure the longevity and optimal performance of your TETOTE LED Backlit Bathroom Mirror, follow these maintenance guidelines:
- Neteja: Utilitzeu un suau, damp cloth with a mild glass cleaner. Avoid abrasive cleaners or harsh chemicals that could damage the mirror surface or LED components.
- Vida útil LED: The LED lights have a lifespan of over 50,000 hours, ensuring long-term illumination.
- Resistència a l'aigua: The mirror features an IP54 waterproof LED, ensuring safety in wet bathroom environments. However, avoid direct water spray on electrical components.
Figure 7: The energy-efficient LED strip with a long lifespan.
Resolució de problemes
If you encounter any issues with your mirror, please refer to the following common troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| Els llums no s'encenen | Sense subministrament elèctric; connexió fluixa; interruptor defectuós. | Check power outlet/circuit breaker. Ensure all connections are secure. Test the wall switch if applicable. |
| L'antiboira no funciona | Anti-fog function not activated; automatic shutdown. | Press the anti-fog icon to activate. Note that it automatically shuts off after one hour. |
| Llums parpellejants | Unstable power supply; internal wiring issue. | Ensure stable power. If flickering persists, contact customer support. |
If the issue cannot be resolved with these steps, please contact TETOTE Customer Support.
Especificacions
| Característica | Detall |
|---|---|
| Marca | TETOTE |
| Model | 32"L x 40"W Backlit-3 Color |
| Dimensions del producte | 32" de llargada x 40" d'amplada |
| Pes de l'article | 28.9 lliures |
| Material | Silver Coating 5mm High Quality Glass |
| Material del marc | Sense marc |
| Tipus de muntatge | Suport de paret (horitzontal/vertical) |
| Temperatura de color clar | 3000K (càlid), 4500K (natural), 6000K (blanc) |
| Regulable | Yes (10%-100% adjustable brightness) |
| Antiboira | Yes (Separately controlled, 1-hour auto-off) |
| Classificació impermeable | IP54 |
| Vida útil del LED | Més de 50,000 hores |
Garantia i Suport
TETOTE is committed to complete customer satisfaction. We provide a full replacement for any damaged or chipped mirrors. Our customer support team responds within 24 hours for any inquiries or assistance.
- Garantia: 2-year warranty and 5-year technical support.
- Atenció al client: For support, please contact TETOTE customer service.
