1. Introducció
Thank you for choosing the OSSURET Quad-Core Android 10 GPS Navigation System. This manual provides essential information for the proper installation, operation, and maintenance of your new car multimedia system. Please read this manual thoroughly before using the product to ensure optimal performance and safety. This unit is designed for Mitsubishi Lancer models manufactured between 2007 and 2017.
2. Informació de seguretat
- Feu servir sempre el dispositiu de manera responsable i d'acord amb les normes de trànsit locals. Conduir amb distracció pot provocar accidents.
- Do not attempt to install or repair the unit yourself if you are not qualified. Improper installation can cause damage to the vehicle's electrical system or the unit itself. Professional installation is recommended.
- Ensure all wiring connections are secure to prevent short circuits or electrical fires.
- Mantingueu la pantalla neta i lliure d'obstacles per mantenir una visibilitat clara.
- Eviteu exposar la unitat a temperatures extremes, a la llum solar directa durant períodes prolongats o a una humitat excessiva.
3. Producte acabatview
3.1 Característiques clau
- Sistema operatiu: Android 10
- Processador: Quad-Core ARM A7 4*1.2GHz
- Memòria: 1GB RAM, 16GB Flash Storage
- Visualització: 10.1-inch Capacitive Touchscreen, 1024x600 Resolution
- Navegació: Built-in GPS, supports offline maps, Google Maps, Waze, and other Android navigation apps.
- Connectivitat: Integrated WiFi, Bluetooth (Hands-free calling, A2DP music streaming), USB.
- Multimèdia: Supports 1080P video decoding, various audio and video formats (MP4, AVI, MP3, WMA, JPEG, etc.).
- Funcions avançades: Split Screen, Steering Wheel Control, Mirror Link (AirPlay for iOS, Easy-Connect for Android), Rearview Camera Input support, Android Market access.
3.2 Package Contents (Accessories)
The package includes the main head unit and various cables and adapters necessary for installation and functionality. Please verify all components are present upon unboxing.
Imatge: Various wiring harnesses, USB cables, and adapters included with the OSSURET car multimedia system.
4. Configuració i instal·lació
4.1 Compatibilitat del vehicle
This unit is specifically designed for Mitsubishi Lancer models from 2007 to 2017. It is intended for left-hand drive vehicles. Always confirm the center console of your vehicle matches the product's design before installation.
Imatge: This image shows the dashboard of a Mitsubishi Lancer before and after the installation of the OSSURET Android head unit, demonstrating the integrated fit.
4.2 Passos d'instal·lació (es recomana la instal·lació professional)
- Preparació: Desconnecteu la bateria del vehicle per evitar danys elèctrics.
- Treure la unitat original: Traieu amb cura l'estèreo del cotxe i els panells de guarnició existents.
- Connecteu el cablejat: Connect the provided wiring harnesses to the vehicle's existing connectors. Ensure all connections are secure.
- Antena GPS: Instal·leu l'antena GPS en un lloc amb llum clara view del cel, normalment al tauler de control o sota el parabrisa.
- Cables USB: Route the USB cables to an accessible location, such as the glove compartment.
- Funcionalitat de prova: Before fully reassembling the dashboard, reconnect the battery and power on the unit to test basic functions (power, audio, touchscreen, GPS signal).
- Unitat segura: Mount the new head unit securely into the dashboard opening.
- Torneu a muntar: Reinstall all trim panels and ensure a neat finish.
4.3 Engegada i configuració inicials
After installation, power on the unit. The system will boot into the Android 10 interface. Follow any on-screen prompts for initial setup, such as language selection and time zone. Connect to a Wi-Fi network to enable online features and app downloads.
5. Instruccions de funcionament
5.1 Navegació bàsica
- Pantalla tàctil: The unit features a responsive touchscreen for all interactions. Tap to select, swipe to scroll, and pinch to zoom.
- Pantalla d'inici: The main interface provides access to frequently used applications and widgets.
- Calaix d'aplicacions: Swipe up from the bottom of the screen or tap the app icon to access all installed applications.
5.2 Navegació GPS
The system comes with pre-loaded offline map data. It also supports online navigation applications like Google Maps and Waze when connected to the internet.
- Starting Navigation: Tap the 'Navigation' or 'Maps' icon on the home screen or app drawer.
- Introducció de la destinació: Use the on-screen keyboard to enter your destination address or select from saved locations.
- Guia de veu: The system provides voice-guided turn-by-turn directions.
- 2D/3D Map Views: Switch between 2D and 3D map views as preferred.
- Funció de doble zona: Navigate while listening to music or other audio sources simultaneously.

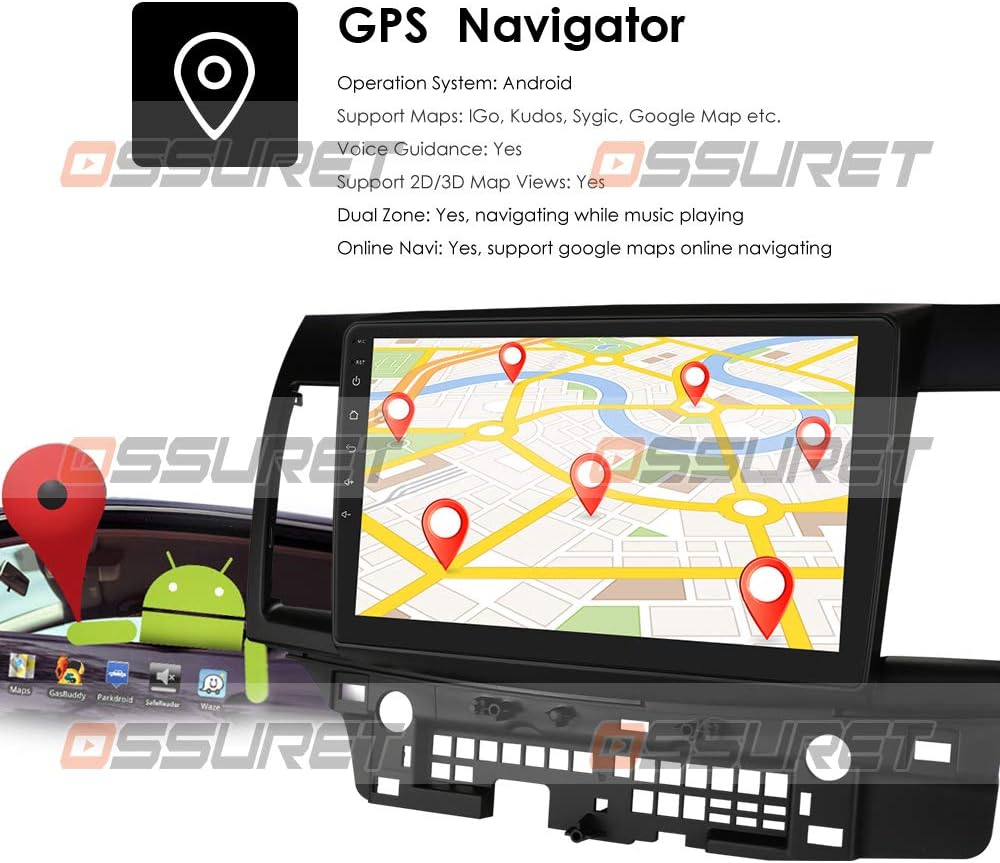

Imatge: A visual representation of the GPS navigation interface, showing a map with route markers and an Android robot icon, indicating Android OS functionality.
5.3 Radio (FM/DAB+)
- Ràdio FM: Access the FM radio application to scan for stations, save presets, and adjust settings. The FM frequency range is 87.5-108MHz.
- DAB/DAB+ (Optional): If a DAB+ box is connected (sold separately), you can enjoy digital audio broadcasting with higher sound quality and more channels. Connect the DAB+ box via a USB port.
Imatge: This image illustrates the connection of an optional DAB+ box via USB and provides a table comparing the advantages of DAB+ over traditional FM radio, such as CD-like quality and robust signal reception.
5.4 Funció Bluetooth
Connecta el teu telèfon intel·ligent mitjançant Bluetooth per a trucades de mans lliures i transmissió d'àudio.
- Maridatge: Go to Bluetooth settings on the unit and your phone, search for available devices, and pair with the OSSURET unit.
- Trucades mans lliures: Make and receive calls directly from the unit's screen. The built-in microphone allows for clear communication.
- Bluetooth Music (A2DP): Stream audio from your phone to the car speakers. Control playback (play/pause, next/previous) from the unit.
- Guia telefònica: Download your phone's contacts to the unit for easy access and searching.
- Registres de trucades: View dialed, received, and missed calls.
Imatge: This image displays the Bluetooth interface for phone calls, showing a dial pad on the car stereo screen and a smartphone displaying a similar interface, highlighting hands-free calling capability.
5.5 Reproducció multimèdia
The unit supports various media formats for music, video, and images.
- Reproductor de música: Supports MP3, WMA, AAC, RM, FLAC, etc.
- Reproductor de vídeo: Supports MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX, VP8, AVS Stream, etc., with 1080P video decoding.
- Imatge Viewer: Supports JPS, BMP, PNG, GIF formats.
5.6 Funció de pantalla dividida
Perform two tasks simultaneously by running two applications side-by-side on the screen. For example, navigate with Google Maps while listening to music or browsing a web pàgina.
5.7 Control del volant
The unit supports your vehicle's original steering wheel controls, allowing you to manage music playback and volume without taking your hands off the wheel, enhancing driving safety.
5.8 Enllaç de mirall
Mirror your smartphone's screen onto the head unit's display.
- For Apple iPhones (AirPin PRO): Connect your iPhone via Wi-Fi. The unit can create a Wi-Fi hotspot. Cerca this hotspot on your iPhone and connect. You can then mirror your iPhone's display, including the main menu, photos, videos, and online navigation maps.
- For Android Phones (Easy-Connect): Connect your Android phone using a USB charging cable. You can mirror the connected Android smartphone display, including the main menu, photos, videos, and online navigation maps.
Imatge: This image demonstrates the Mirror Link feature, showing an iPhone connected wirelessly via Wi-Fi (AirPlay) and an Android phone connected via USB (Easy-Connect), both mirroring their screens to the car stereo.
5.9 Darreraview Entrada de càmera
El sistema admet una part posteriorview camera input (camera sold separately). When the vehicle is in reverse, the display automatically switches to the camera feed, providing a clear view of the area behind the car and assisting with parking and avoiding obstacles.
Imatge: This image illustrates the rearview camera input feature, showing a car backing up with a visual overlay of parking guidelines on the screen, indicating support for a backup camera system.
5.10 Android Market and App Installation
Access the Android Market (Google Play Store) to download and install a wide variety of applications, games, and utilities. The unit supports Android Package (APK) installer for manual app installation.
Imatge: This image depicts the Android Market feature, showing various app icons floating around a tablet-like device, symbolizing access to a wide range of applications. It also highlights the 16GB ROM and support for APK installation.
6. Manteniment
- Neteja de pantalla: Feu servir un drap suau i sense borrissol per netejar la pantalla tàctil. Per a taques difícils, fregueu lleugeramentampNetegeu el drap amb aigua o un netejador de pantalles. Eviteu productes químics agressius.
- Actualitzacions de programari: Periodically check for system software updates to ensure optimal performance and access to new features. Updates can usually be found in the system settings menu.
- Còpia de seguretat de dades: Regularly back up important data or settings if applicable.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | Connexió d'alimentació fluixa, fusible fundit, problema amb la bateria del vehicle. | Check power cables and fuse. Ensure vehicle battery is charged. Consult a professional if needed. |
| Sense so | Volum massa baix, silenci activat, problema de cablejat de l'altaveu. | Augmenta el volum, comprova l'estat del silenci. Verifica les connexions dels altaveus. |
| Senyal GPS perdut o inexacte | GPS antenna obstructed, poor satellite reception. | Assegureu-vos que l'antena GPS tingui una visió clara view del cel. Mou-te a una zona oberta. |
| Bluetooth no connectat | Bluetooth off on unit or phone, device not in pairing mode. | Ensure Bluetooth is enabled on both devices. Put phone in pairing mode. Restart both devices. |
| La pantalla tàctil no respon | Bloqueig del sistema, error temporal del programari. | Restart the unit. If issue persists, perform a factory reset (refer to system settings). |
8. Especificacions
| Característica | Detall |
|---|---|
| Sistema operatiu | Android 10 |
| CPU | Quad-Core ARM A7 4*1.2GHz |
| RAM | 1 GB |
| Memòria Flash | 16 GB |
| Mida de la pantalla | 10.1 polzades |
| Resolució | 1024 x 600 |
| Descodificació de vídeo | 1080P HD H.265 2160p, Multi-format FHD video decoding |
| Interval de freqüència FM | 87.5-108MHz (EU/US) |
| WiFi | Integrat |
| Bluetooth | Hands-free calls, A2DP music, Phonebook download |
| GPS | Offline maps pre-loaded, supports Google Maps/Waze |
| Connectivitat | USB |
| Mode de sortida d'àudio | estèreo |
| Tipus d'instal·lació | Suport per al tauler de control o per al parabrisa |
| Dimensions del producte | 17.78 x 10.16 x 3.05 cm |
| Referència del fabricant | T1MTLC101001B |
9. Garantia i Suport
OSSURET provides a garantia d'un any and technical support for this car stereo system. If you have any questions regarding installation or the product itself, please contact us via message. We aim to respond within 24 hours to assist you.
