1. Informació important de seguretat
Si us plau, llegiu atentament totes les instruccions abans de fer servir aquest aparell per garantir un ús segur i eficient. Conserveu aquest manual per a futures consultes.
- Seguretat elèctrica: Ensure the appliance is connected to a properly grounded outlet. Do not use extension cords or ungrounded adapters.
- Col·locació: Position the unit on a flat, stable surface away from direct sunlight or heat sources. Ensure adequate ventilation around the unit.
- Manipulació: This appliance is heavy. Use caution and proper lifting techniques when moving. Always unplug the unit before cleaning or performing maintenance.
- Nens: Mantingueu els nens allunyats de l'aparell, sobretot quan la porta estigui oberta.
2. Producte acabatview
The EdgeStar VBM131 Commercial Beverage Merchandiser is designed for efficient and reliable cooling of beverages. With a capacity of 13.7 cubic feet, it features a stainless steel finish, a temperature alarm, and a reversible door for flexible installation. It can be used in both built-in and freestanding applications.

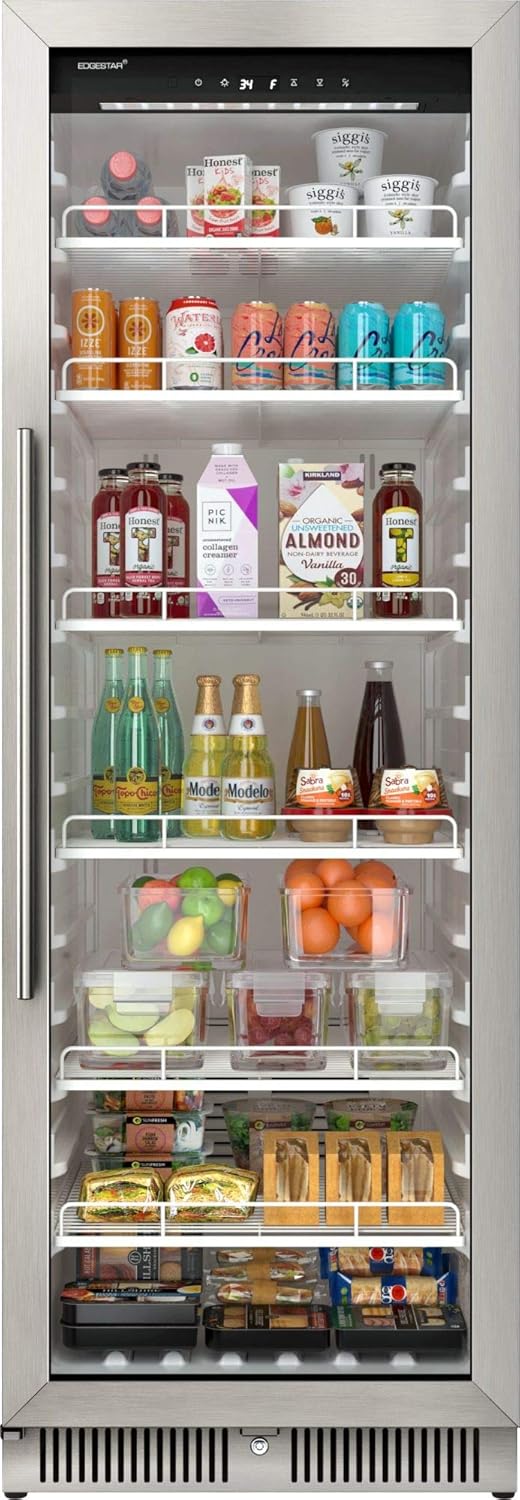

Imatge: Frontal view of the EdgeStar VBM131 Commercial Beverage Merchandiser, showcasing its interior filled with various beverages and adjustable shelves.
Característiques principals:
- Capacitat àmplia: 13.7 cubic feet of storage with six (6) adjustable shelves.
- Instal·lació flexible: Suitable for both built-in and freestanding use.
- Refrigeració òptima: Cools to temperatures as low as 34 degrees Fahrenheit.
- Monitorització de la temperatura: Features a door ajar alarm and temperature alarm to ensure beverages remain cold.
- Controls fàcils d'utilitzar: Sleek touch control panel for easy temperature monitoring and adjustment.
- Il·luminació LED: Interior LED lighting elegantly displays your beverage collection.
3. Configuració
Follow these steps for the initial setup of your beverage merchandiser.
3.1 Desembalatge i col·locació
- Traieu amb cura tots els materials d'embalatge, inclosa l'escuma i la cinta adhesiva.
- Place the unit on a flat, level surface. Ensure there is adequate clearance around the unit for proper ventilation (at least 2-3 inches on sides and back).
- Deixeu la unitat en posició vertical durant almenys 2-4 hores abans d'endollar-la. Això permet que el refrigerant s'assenti.

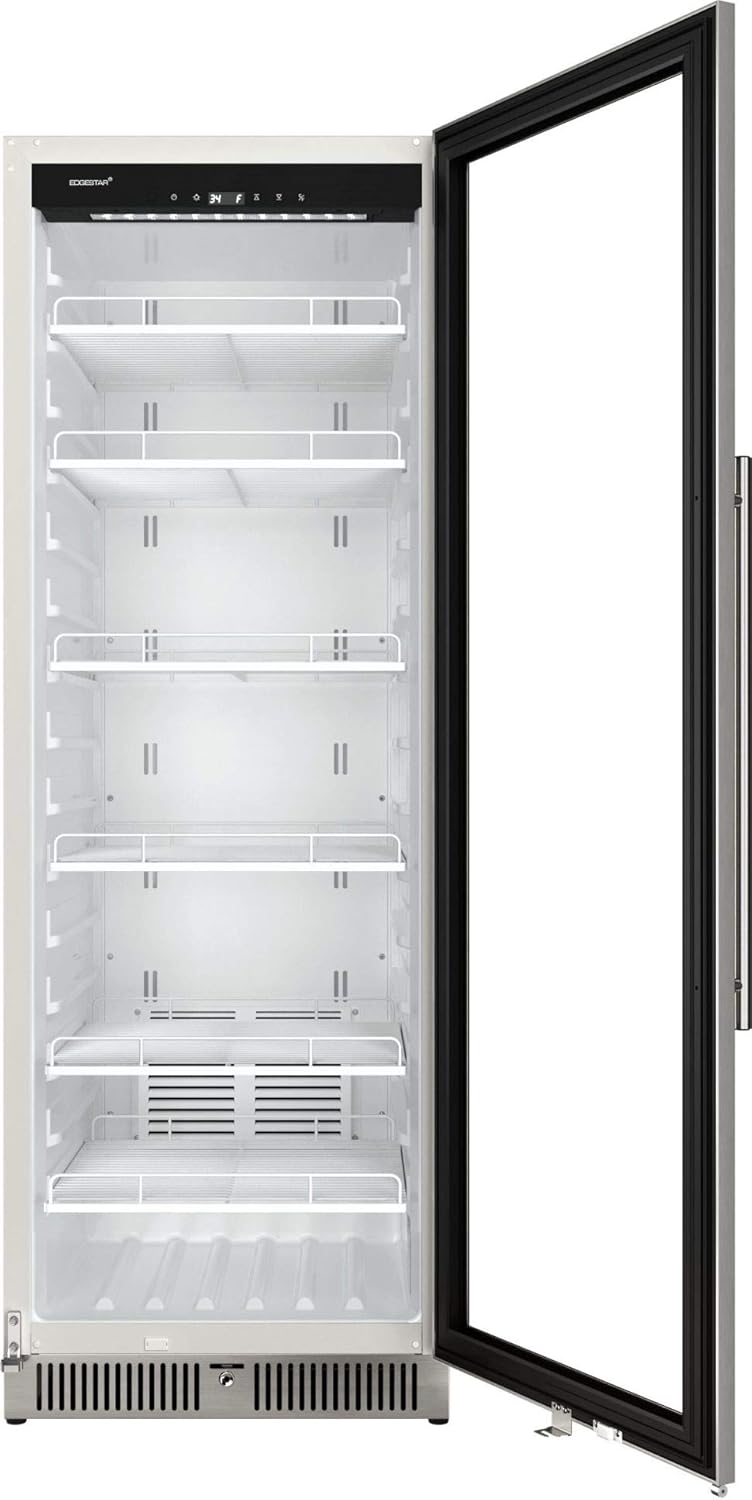

Image: The EdgeStar VBM131 Commercial Beverage Merchandiser with its door open, revealing the empty interior and adjustable shelf brackets, ready for setup.
3.2 Anivellació de la unitat
Adjust the leveling legs at the bottom of the unit to ensure it is perfectly level. A level unit prevents vibrations and ensures proper door sealing.
3.3 Inversió de porta (opcional)
The door on this unit is reversible. If you wish to change the door swing direction, refer to the detailed instructions provided in the separate door reversal kit or contact customer support for guidance. This process typically involves moving hinges and the door handle to the opposite side.
3.4 Connexió d'alimentació
Once the unit has settled, plug it into a dedicated, grounded 115 Volt AC outlet. Avoid sharing the outlet with other high-power appliances.
4. Instruccions de funcionament
Learn how to effectively use your EdgeStar beverage merchandiser.
4.1 Control de temperatura
The unit features a digital touch control panel located at the top of the interior. Use the '+' and '-' buttons to adjust the desired temperature. The temperature range is 34-64 degrees Fahrenheit (1-18 degrees Celsius). The display will show the current internal temperature.
Imatge: Anglesa view of the EdgeStar VBM131 Commercial Beverage Merchandiser with its door open, showcasing the interior filled with various items and the digital control panel at the top.
4.2 Il·luminació interior LED
The interior LED lighting can be controlled via a button on the control panel. Press the light button to turn the lights on or off, enhancing the display of your beverages.
4.3 Door Ajar and Temperature Alarms
The unit is equipped with a door ajar alarm that will sound if the door is left open for an extended period, helping to prevent temperature fluctuations. A temperature alarm will also alert you if the internal temperature deviates significantly from the set point, indicating a potential issue.
4.4 Ajust de les prestatgeries
The six wire shelves are adjustable to accommodate items of various sizes. To adjust a shelf, empty it, lift it slightly, and pull it out. Reinsert the shelf into the desired set of shelf supports, ensuring it is level and securely seated.
5. Manteniment
Regular maintenance ensures the longevity and optimal performance of your merchandiser.
5.1 Neteja de l'interior
Unplug the unit before cleaning. Use a soft cloth and a mild, non-abrasive cleaner to wipe down the interior surfaces and shelves. For stubborn stains, a solution of baking soda and water can be used. Rinse thoroughly and dry completely before plugging the unit back in.
Imatge: Un primer pla view of one of the adjustable wire shelves, highlighting its design for easy cleaning and rearrangement.
5.2 Neteja de l'exterior
Wipe the exterior stainless steel surfaces with a soft cloth and a stainless steel cleaner. For the glass door, use a glass cleaner. Avoid abrasive cleaners or scouring pads that could scratch the finish.
5.3 Descongelació
This unit features a frost-free defrost system, which automatically prevents ice buildup on the evaporator coils. Manual defrosting is generally not required. However, if excessive ice accumulation occurs, unplug the unit and allow the ice to melt naturally, then wipe away any excess water.
6. Solució De Problemes
Abans de contactar amb el servei d'atenció al client, prova aquestes solucions per a problemes comuns.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no funciona | Sense alimentació; interruptor automàtic saltat; cable d'alimentació no completament connectat. | Check power supply, reset circuit breaker, ensure cord is securely plugged in. |
| La unitat no està prou freda | Door not closed properly; excessive door opening; warm items added; poor ventilation; temperature set too high. | Ensure door is sealed; reduce door openings; allow warm items to cool before placing inside; ensure proper clearance; lower set temperature. |
| La unitat fa sorolls inusuals | Unit not level; loose components; normal operating sounds (e.g., refrigerant gurgling). | Level the unit; check for loose parts; some noises are normal. If noise is excessive or new, contact support. |
| La porta no tanca completament | Unit not level; door gasket dirty or damaged; shelves obstructing door. | Level the unit; clean or replace gasket; ensure shelves are properly seated. |
If the problem persists after attempting these solutions, please contact EdgeStar customer support.
7. Especificacions
Detailed technical specifications for the EdgeStar VBM131 Commercial Beverage Merchandiser.
| Especificació | Valor |
|---|---|
| Nom de marca | EdgeStar |
| Informació del model | VBM131SS |
| Pes de l'article | 185 lliures |
| Dimensions del producte (P x A x A) | 28 x 24 x 68 polzades |
| Capacitat | 13.7 peus cúbics |
| Consum anual d'energia | 161 watts |
| Tipus d'instal·lació | Built-In, Free Standing |
| Factor de forma | Sense congelador |
| Característiques especials | Control digital de temperatura |
| Color | 13.7 Cubic Feet (Stainless Steel) |
| Consola de control | Pulsador |
| Voltage | 115 Volts |
| Sistema de descongelació | Sense gelades |
| Frontisses de portes | Dreta (reversible) |
| Tipus de material de la porta | Vidre |
| Tipus de prestatge | Prestatges de filferro ajustables |
| Nombre de prestatgeries | 6 |
| Certificació | NSF |
| Tipus de material | Metall, acer inoxidable |
| Components inclosos | Només producte |
8. Garantia i Suport
EdgeStar products are manufactured with quality and care. For specific warranty details, please refer to the warranty card included with your product or visit the official EdgeStar weblloc web. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
Atenció al client:
If you require technical assistance, troubleshooting beyond this manual, or have questions regarding your product, please contact EdgeStar customer support. You may also find additional resources, including a downloadable PDF user manual, on the EdgeStar weblloc.
Manual d'usuari en línia: Descarrega el manual d'usuari en PDF
