Introducció
Thank you for choosing the MASINGO Ostinato M7 Karaoke Machine. This portable PA speaker system is designed to provide high-quality audio and entertainment for various occasions. Please read this manual thoroughly before operating the device to ensure proper use and longevity.
Què hi ha a la caixa
- Màquina de karaoke Ostinato M7
- 2 micròfons sense fils
- Cable USB
- Manual d'usuari
- Cable auxiliar
- TV Cable

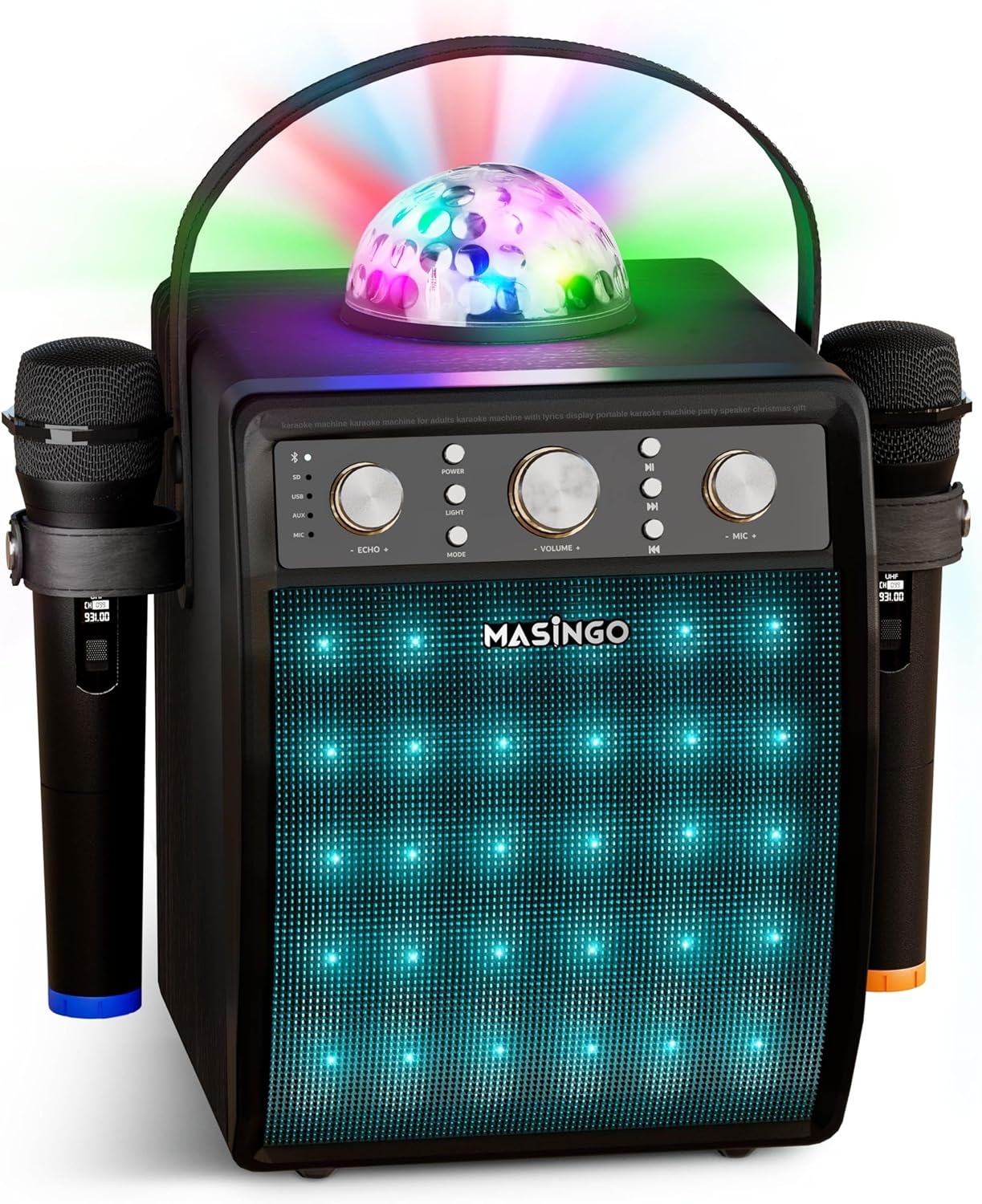

Figure 1: MASINGO Ostinato M7 Karaoke Machine with included accessories.
Configuració
1. Càrrega de la unitat
Before first use, fully charge the karaoke machine using the provided USB cable. The unit features a rechargeable battery for portable use.
2. Configuració del micròfon
The Ostinato M7 comes with two wireless microphones. Each microphone requires 2 AA batteries (not included). Open the battery compartment at the bottom of the microphone and insert the batteries, ensuring correct polarity.
Figure 2: Inserting batteries into the wireless microphone.
To turn on a microphone, slide the power switch. The display on the microphone will show its status and battery life. The microphones will automatically pair with the karaoke machine when powered on.
Figure 3: Wireless microphone display.
When not in use, the microphones can be securely stored in the leather holsters on the sides of the main unit.
Figure 4: Microphone stored in side holster.
Instruccions de funcionament
1. Tauler de control acabatview
The main control panel is located on the top of the unit, featuring various knobs and buttons for easy operation.
Figure 5: Front control panel.
Figure 6: Control panel functions diagram.
2. Modes de reproducció
The Ostinato M7 supports multiple playback modes:
- Bluetooth: Pair your smartphone or tablet wirelessly to stream music.
- USB / Micro-SD: Insert a USB drive or Micro-SD card with your favorite songs.
- Entrada AUX: Connect external devices using the provided AUX cable.
- Ràdio FM: Sintonitza les emissores de ràdio FM.
- RCA (TV Audio): Connect to your TV using the provided RCA cable for lyrics display.
Figure 7: Connecting to a TV for lyrics.
3. Light Features
Enhance your karaoke experience with the built-in disco ball and multicolored LED lights on the front speaker grille. Press the 'LIGHT' button on the control panel to cycle through different light modes or turn them off.
Video 1: Introducing the Ostinato M7 Karaoke Machine. This video demonstrates the key features and light effects of the karaoke machine.
Manteniment
To ensure the longevity and optimal performance of your MASINGO Ostinato M7 Karaoke Machine, follow these maintenance guidelines:
- Neteja: Netegeu la unitat amb un drap suau i sec. No utilitzeu productes de neteja abrasius ni dissolvents.
- Emmagatzematge: Guardeu la màquina en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Cura de la bateria: If storing for extended periods, ensure the battery is partially charged (around 50%) and recharge every few months to prevent deep discharge.
- Cura del micròfon: Traieu les piles dels micròfons si no els fareu servir durant molt de temps per evitar fuites.
Resolució de problemes
If you encounter any issues with your MASINGO Ostinato M7, please refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| No hi ha so de l'altaveu | Volume too low; incorrect mode selected; device not connected properly. | Increase master volume; press MODE button to select correct input; check cable connections or Bluetooth pairing. |
| El micròfon no funciona | Microphone off; low batteries; not paired. | Ensure microphone is switched ON; replace batteries; power cycle microphone and machine to re-pair. |
| La unitat no es carrega | USB cable faulty; power adapter insufficient; unit faulty. | Try a different USB cable and power adapter; contact customer support if issue persists. |
| Disco ball/LED lights not working | Lights turned off; unit off. | Press the LIGHT button to turn on/cycle modes; ensure main unit is powered on. |
If the problem persists after trying these solutions, please contact MASINGO customer support.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | Ostinato M7 |
| Potència de sortidatage | 30 watts |
| Font d'alimentació | Funciona amb bateria (1 bateria d'ions de liti inclosa) |
| Durada de la bateria | Fins a 5 hores (aprox.) |
| Tecnologia de connectivitat | RCA, Bluetooth, USB, AUX |
| Micròfons | 2 Wireless Microphones (UHF) |
| Dimensions del producte | 10.63 x 10.24 x 14.69 polzades |
| Pes de l'article | 9.08 lliures |
| Tipus de muntatge | Taula |
| Color | Negre |
Garantia i Suport
Your MASINGO Ostinato M7 Karaoke Machine comes with a 60-day warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
For further assistance, technical support, or warranty inquiries, please refer to the full User Manual PDF available online or contact MASINGO customer support directly.
Manual d'usuari (PDF): https://manuals.plus/m/ab93746123c1a4921ebe35d1e406cce36935f2b84bd263bad6393bf7065b19b1
