1. Introducció
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Midea MF200W90B/E 9kg Freestanding Washing Machine. Please read these instructions carefully before using the appliance and retain them for future reference.
2. Informació de seguretat
2.1 Seguretat general
- Ensure the appliance is used only by adults and under supervision if children are present.
- No permeteu que els nens juguin amb l'aparell.
- Mantenir els materials d'embalatge fora de l'abast dels nens.
- No intenteu reparar o modificar l'aparell vosaltres mateixos. Poseu-vos en contacte amb personal de servei qualificat.
2.2 Seguretat elèctrica
- Connecteu l'aparell a una presa de corrent amb connexió a terra.
- No utilitzeu cables d'extensió ni adaptadors múltiples.
- Assegureu-vos que el cable d'alimentació no estigui danyat ni pinçat.
- Desendolleu l'aparell abans de netejar-lo o fer-ne cap manteniment.
2.3 Seguretat de la instal·lació
- The appliance must be installed on a firm, level surface.
- Assegureu-vos que hi hagi un espai lliure suficient al voltant de la màquina per a la ventilació i el funcionament.
- All transport bolts must be removed before first use.
- Connect water inlet hoses securely to prevent leaks.
3. Producte acabatview
The Midea MF200W90B/E is a freestanding washing machine designed for efficient and thorough laundry care. It features a BLDC motor for quiet operation and durability, a bright LED display, and specialized functions like Health Guard and Steam for enhanced hygiene.
Figura 3.1: Frontal view of the Midea MF200W90B/E Washing Machine. This image shows the main body of the washing machine, including the large front-loading door and the control panel at the top.
3.1 Tauler de control
The washing machine features an intuitive control panel with a central Lunar Dial and touch-sensitive buttons for program selection and setting adjustments.
Figure 3.2: Close-up of the Lunar Dial. This dial is used to select wash programs and displays the remaining time or selected settings.
Figure 3.3: Control panel detailing various wash programs including HealthGuard options like Cotton, Mix, Synthetic, Jeans, Cold Wash, Allergy Care, and Steam Care, alongside quick wash cycles and spin options.
4. Configuració
4.1 Desembalatge i col·locació
Carefully remove all packaging materials. Position the washing machine on a flat, stable surface. Ensure there is sufficient space around the appliance for proper ventilation and access.
Figure 4.1: Recommended installation clearance. This diagram illustrates the minimum space required around the washing machine for optimal performance and safety, showing dimensions of 59.5W x 56.5L x 85H cm for the unit and recommended clearances.
4.2 Extracció dels cargols de transport
Before operating the washing machine, it is crucial to remove the transport bolts located at the rear of the appliance. Failure to do so can cause significant damage during operation.
Figure 4.2: Installation Guide for transport bolt removal. This diagram shows a step-by-step process for safely removing the four transport bolts from the back of the washing machine and storing them.
4.3 Subministrament i drenatge d'aigua
Connect the water inlet hose to a cold water tap. Ensure connections are tight to prevent leaks. Position the drain hose into a standpipe or secure it over a sink, ensuring it is not kinked or blocked.
4.4 Anivellament de la màquina
Adjust the adjustable feet at the bottom of the washing machine to ensure it is perfectly level. Use a spirit level to verify. A level machine reduces vibration and noise during operation.
4.5 Initial Calibration Cycle
After installation, it is recommended to run a calibration cycle without laundry to optimize the machine's performance. Refer to the specific instructions in your full user manual for initiating this cycle, as the duration may vary.
5. Instruccions de funcionament
5.1 Càrrega de la roba
Open the washing machine door and load laundry loosely into the drum. Do not overload the machine; ensure there is enough space for clothes to move freely. Close the door firmly.
5.2 Addició de detergent
Pull out the detergent dispenser drawer. Add the appropriate amount of detergent and fabric softener to their respective compartments according to the detergent manufacturer's instructions and your laundry load size.
5.3 Selecció d'un programa de rentat
Turn the Lunar Dial to select your desired wash program. The LED display will show the default settings for the chosen program.
- Programes comuns: Cotton, Mix, Synthetic, Jeans, Cold Wash, Wool.
- Programes especials: Allergy Care, Steam Care, Drum Clean.
- Quick Programs: Quick 15', Rapid 45'.
- Altres opcions: ECO 40-60, Bulky, Rinse & Spin, Spin Only.
5.4 Ajustar la configuració
After selecting a program, you can adjust settings such as temperature, spin speed, and delay start using the touch buttons on the control panel. The display will update to reflect your selections.
5.5 Inici d'un cicle de rentat
Premeu el botó Inici/Pausa per iniciar el cicle de rentat. La màquina continuarà automàticament amb el programa seleccionat.
5.6 Funcions especials
- Health Guard: Combines Steam Care and Auto Clean to maintain optimal machine hygiene and enhance cleaning performance.
- Cura de vapor: Utilizes steam to remove 99.9% of bacteria and reduce wrinkles, promoting healthier and easier-to-iron clothes.
- Cura d'al·lèrgies: Specifically designed to remove common allergens from fabrics, suitable for sensitive skin.
- Neteja del tambor: A dedicated cycle that cleans the inner and outer drum with 90°C water to refresh the machine and prevent odor buildup.
- Pre-Selection Function (Delay Start): Allows you to set a delayed start time for your wash cycle, offering flexibility to suit your schedule.
Figure 5.1: Steam Care function in operation. This image shows steam being generated inside the washing machine drum, indicating the activation of the Steam Care cycle for deep cleaning and sanitization.
6. Manteniment
6.1 Neteja del dispensador de detergent
Regularly remove and clean the detergent dispenser drawer to prevent residue buildup. Rinse it under running water and reinsert.
6.2 Neteja del tambor
Utilize the dedicated 'Drum Clean' program to clean the inner and outer drum with hot water, ensuring hygiene and preventing odors. This should be done periodically.
6.3 Neteja de la junta de la porta
Wipe the rubber door seal after each wash to remove any lint, hair, or debris. This prevents mold growth and ensures a tight seal.
6.4 Neteja del filtre de la bomba de desguàs
Locate the drain pump filter, usually at the bottom front of the machine. Open the cover, drain any residual water, and carefully remove and clean the filter of any foreign objects or lint. Reinstall securely.
6.5 Neteja exterior
Netegeu l'exterior de la rentadora amb un drap suau i secamp tela. No utilitzeu netejadors abrasius ni dissolvents.
7. Solució De Problemes
Si teniu problemes amb la rentadora, consulteu els problemes i solucions més comuns següents abans de contactar amb el servei tècnic.
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina no arrenca | Power cord unplugged, door not closed, program not selected, Start/Pause not pressed. | Check power connection, ensure door is latched, select program, press Start/Pause. |
| Fuga d'aigua | Loose hose connections, clogged drain filter, excessive detergent. | Tighten hose connections, clean drain filter, use correct detergent amount. |
| Vibració / soroll excessius | Cargols de transport no retirats, màquina no anivellada, càrrega desigual. | Remove transport bolts, adjust leveling feet, redistribute laundry in drum. |
| Water pressure error | Low water pressure, kinked inlet hose, clogged inlet filter. | Check water supply, straighten hose, clean inlet filter. If issue persists, consult a plumber. |
| La roba no neta | Sobrecàrrega, detergent insuficient, programa incorrecte. | Reduce load size, use appropriate detergent, select suitable wash program. |
8. Especificacions
Key technical specifications for the Midea MF200W90B/E washing machine:
| Característica | Especificació |
|---|---|
| Número de model | MF200W90B/E |
| Capacitat | 9 quilos |
| Dimensions (P x A x A) | 56.5 x 59.5 x 85 cm |
| Pes de l'article | 71 quilos |
| Velocitat màxima de gir | 1400 RPM |
| Classe Energètica | B |
| Nivell de soroll (gir) | 76 dB |
| Característiques especials | BLDC Motor, Hygiene Steam, Reload Function |
| Localització d'accés | Càrrega frontal |
| Tipus de controls | Pulsador |

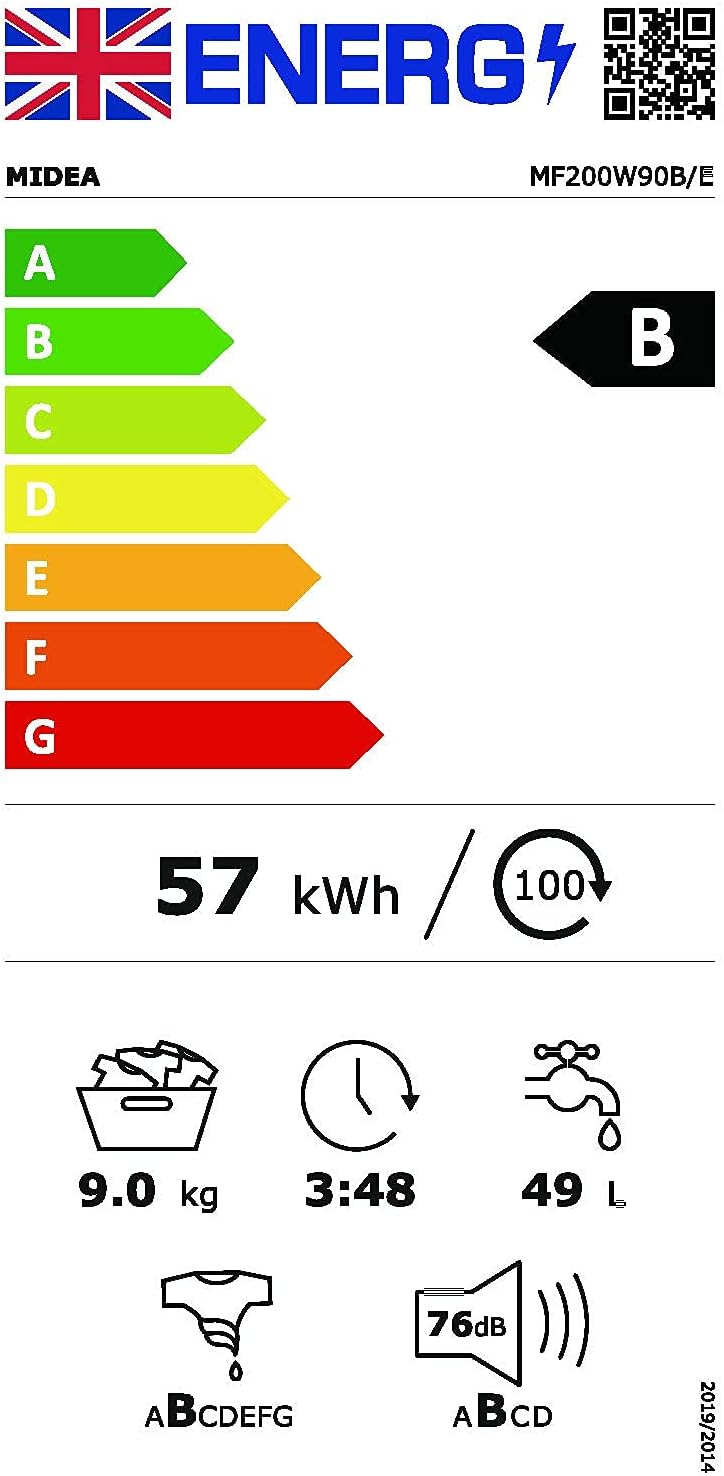

Figure 8.1: EU Energy Label. This label displays the energy efficiency class (B), energy consumption (57 kWh/100 cycles), water consumption (49 L/cycle), capacity (9.0 kg), program duration (3:48), and noise level (76 dB) for the Midea MF200W90B/E.
Figure 8.2: Product Information Sheet. This document provides detailed technical data and compliance information for the Midea MF200W90B/E washing machine, including rated capacity, energy efficiency, water consumption, spin speed, and noise emissions.
9. Garantia i Suport
9.1 Informació de la garantia
This Midea washing machine comes with a 1 any de garantia des de la data de compra. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia. La garantia cobreix defectes de fabricació en condicions d'ús normals.
9.2 Atenció al client
For technical assistance, spare parts, or warranty service, please contact Midea customer support. You can find contact details on the official Midea weblloc web o a través del vostre distribuïdor.
Official Midea Weblloc: https://www.midea-group.com/
