EASEHOLD Rechargeable Tri-Fold LED Vanity Mirror (Model: Easehold) Instruction Manual

1. Introducció

The EASEHOLD Tri-Fold LED Vanity Mirror is designed to provide optimal lighting and magnification for makeup application and personal grooming. It features 116 LEDs, multiple magnification options (1X, 2X, 3X), three adjustable color lighting modes, and a powerful 5000 mAh rechargeable battery for cordless operation. Its adjustable design allows for versatile viewing angles and portability.

2. Informació de seguretat

Potential breakage hazard: Handle with care. Do not use if glass is broken or damaged.
Mantenir fora de l'abast dels nens i mascotes.
Always mount securely to prevent falling.
Do not expose the mirror to excessive moisture or direct sunlight for prolonged periods.
Feu servir només el cable de càrrega tipus C proporcionat o un cable certificat compatible.

3. Contingut del paquet

EASEHOLD Tri-Fold LED Vanity Mirror
Mirall d'augment 10X desmuntable
Cable de càrrega USB tipus C
Manual d'usuari
Drap de neteja

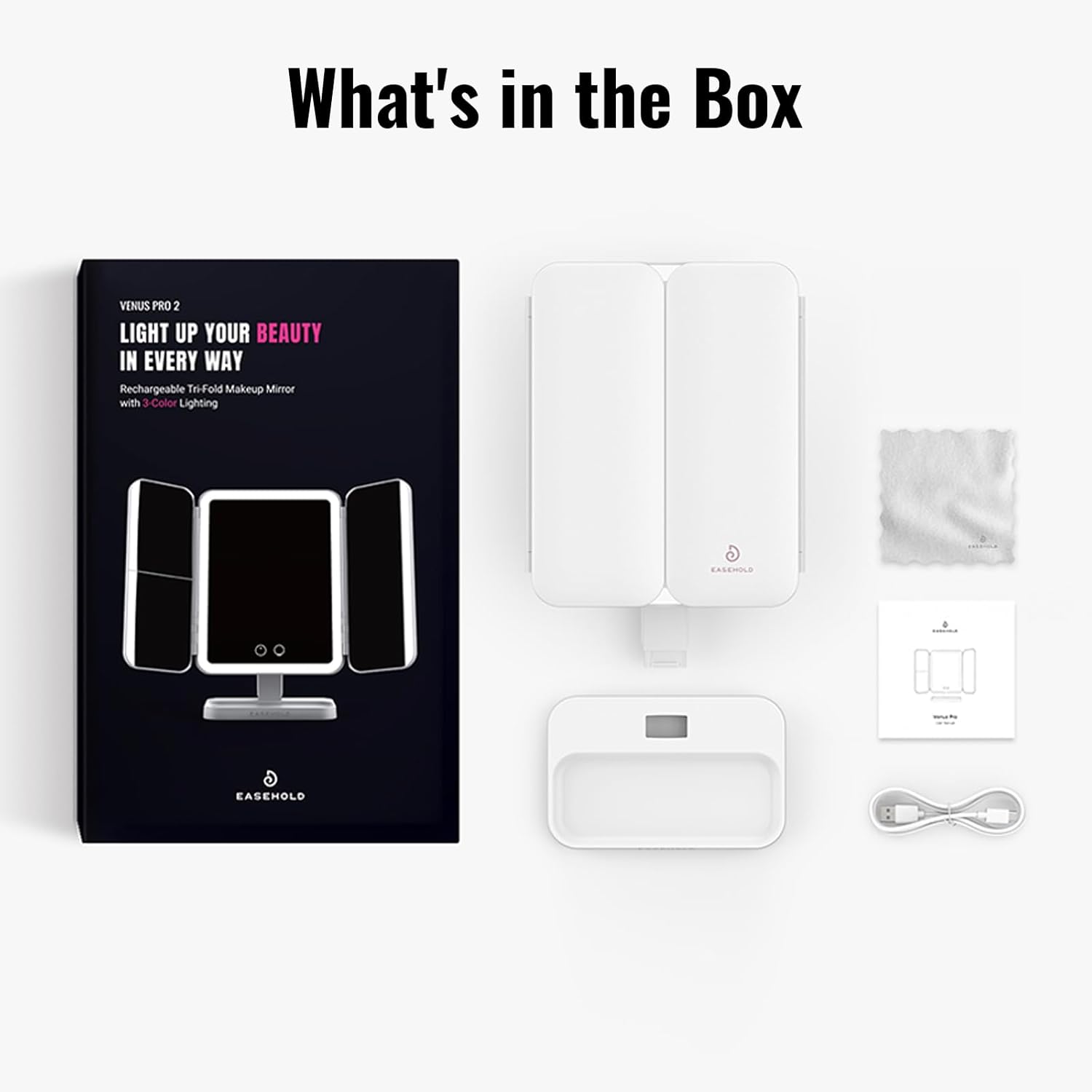

Contents of the EASEHOLD Tri-Fold LED Vanity Mirror box, including the mirror, detachable base, charging cable, and cleaning cloth. — Image: Contents of the EASEHOLD Tri-Fold LED Vanity Mirror box. The image displays the folded mirror, a detachable base, a Type-C charging cable, a cleaning cloth, and a user manual.

4. Configuració

Desembalatge: Traieu amb cura tots els components de l'embalatge.
Muntatge: The mirror comes pre-assembled with a foldable design. No additional assembly is required for the mirror panels. The base is detachable for easy storage and transport. To attach the mirror to the base, align the mirror's stand with the slot on the base and gently push down until it clicks into place.
Càrrec inicial: Before first use, fully charge the mirror using the provided Type-C USB cable. Connect the cable to the Type-C port on the back of the mirror and plug the other end into a compatible USB power source (e.g., wall adapter, computer USB port). The charging indicator light will show red while charging and turn blue when fully charged.

Back of the EASEHOLD mirror showing the Type-C charging port and battery indicator lights. — Image: The back of the EASEHOLD mirror, highlighting the Type-C charging port and the battery indicator lights (red for charging, green for sufficient battery).

Video: This video demonstrates the delicate design details, the flowing light on the rose gold casing, the detachable design, and the one-touch button for operation. It also shows the 180° rotation and 90° up & down rotation, as well as the convenient Type-C charging cable and base tray for storage.

5. Instruccions de funcionament

5.1 Engegada/Apagada i Ajust de la Brillantor

Encès/apagat: Press the power button located on the back of the mirror to turn it on or off. Alternatively, opening the mirror panels will automatically turn on the lights, and closing them will turn them off.
Ajust de brillantor (atenuació continua): Once the mirror is on, gently press and hold the touch sensor button (represented by a circle icon) on the main mirror panel to adjust the brightness. Release when the desired brightness level is achieved.

EASEHOLD mirror showing stepless brightness adjustment via touch sensor. — Image: The main mirror panel of the EASEHOLD mirror, illustrating the touch sensor for stepless brightness adjustment. A finger is shown pressing the sensor.

5.2 modes d'il·luminació de color

The mirror offers three distinct color lighting modes to suit various environments and makeup needs:

Llum freda: Ideal for office or professional settings, providing a bright, clear illumination.
Llum càlida: Suitable for evening or party looks, offering a softer, warmer glow.
Llum natural: Best for daily makeup application, mimicking natural daylight for accurate color representation.

To switch between these modes, short press the touch sensor button (represented by a light bulb icon) on the main mirror panel.

EASEHOLD mirror displaying three different color lighting modes: cold, neutral, and warm light. — Image: The EASEHOLD mirror showcasing the three available color lighting modes: Cold light, Neutral light, and Warm light, each suitable for different makeup looks and environments.

5.3 Magnification Options

The mirror features multiple magnification levels for detailed grooming:

Ampliació 1X: The main mirror panel provides a true-to-life reflection.
2X and 3X Magnification: Located on the left side panel, these mirrors are ideal for tasks requiring slightly more detail, such as applying eyeliner or mascara.
10X Detachable Magnifying Mirror: For extreme close-up work like tweezing eyebrows or precise makeup application, attach the small round 10X magnifying mirror to the main panel using its suction cups.

EASEHOLD mirror showing 1X, 2X, 3X, and 10X magnification options. — Image: The EASEHOLD mirror demonstrating its multi-magnification capabilities, including 1X, 2X, 3X, and a detachable 10X mirror for detailed tasks.

5.4 angles ajustables

The mirror offers flexible adjustments for optimal viewing:

Rotació horitzontal de 180°: The side panels can be adjusted up to 180 degrees horizontally, allowing you to view your face from different angles.
Rotació vertical de 90°: The main mirror can be tilted 90 degrees vertically, enabling you to find the perfect height and angle whether standing or sitting.

5.5 Safata d'emmagatzematge

The base of the mirror features a convenient storage tray, perfect for holding small makeup items, jewelry, or accessories while you get ready.

EASEHOLD mirror with a convenient storage tray at its base. — Image: The EASEHOLD mirror with its base featuring a convenient storage tray, ideal for small beauty gadgets or accessories.

6. Manteniment

Neteja: Use the provided cleaning cloth or a soft, lint-free cloth to wipe the mirror surfaces. For stubborn smudges, lightly dampen the cloth with water or a mild glass cleaner. Avoid abrasive cleaners or harsh chemicals.
Cura de la bateria: To prolong battery life, avoid fully discharging the mirror frequently. Recharge the mirror when the battery indicator shows low power. If storing for an extended period, charge the battery to about 50% and recharge every few months.
Emmagatzematge: Fold the mirror panels inward to protect the mirror surfaces when not in use or during travel. The detachable base can be removed for more compact storage.

7. Solució De Problemes

Problema	Causa possible	Solució
Els llums no s'encenen.	La bateria està baixa o esgotada.	Charge the mirror using the Type-C USB cable.
Les llums són tènues o parpellejant.	Bateria baixa.	Recharge the mirror.
Mirror is unstable or falls over.	Base not securely attached or uneven surface.	Ensure the mirror stand is fully inserted into the base. Place the mirror on a flat, stable surface.
Touch sensor is unresponsive.	Finger is wet or dirty; temporary software glitch.	Ensure your finger is clean and dry. Try turning the mirror off and on again.

8. Especificacions

Característica	Detall
Número de model	Easehold
Quantitat de LED	116 unitats
Capacitat de la bateria	Polímer de liti de 5000 mAh (inclosa)
Ampliació	1X, 2X, 3X, 10X (detachable)
Modes d'il·luminació	3-Color (Cold, Warm, Natural)
Brillantor	Adjustable (300-1,500 lux)
Rotació	180° horitzontal, 90° vertical
Port de càrrega	Tipus-C
Material	Acrilonitril butadiè estirè (ABS)
Dimensions (L x A)	12.6"L x 8.3"W (main mirror)
Pes	3.68 lliures

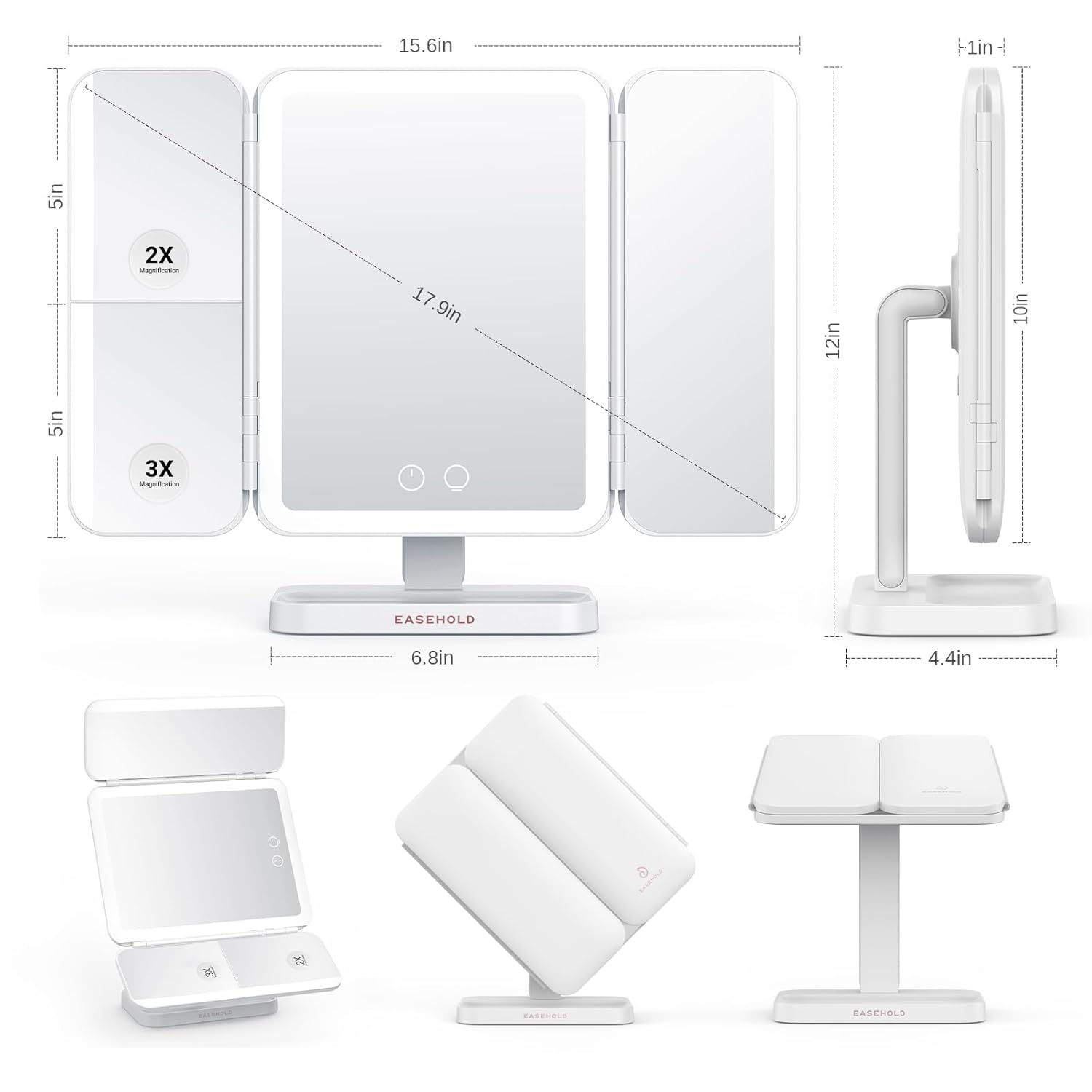

Detailed dimensions of the EASEHOLD Tri-Fold LED Vanity Mirror. — Image: A diagram illustrating the dimensions of the EASEHOLD Tri-Fold LED Vanity Mirror, including its height, width, and depth when folded and unfolded.

9. Garantia i Suport

EASEHOLD is committed to customer satisfaction. For any product-related inquiries, technical support, or warranty claims, please contact EASEHOLD customer support. Professionals are available to assist you within 24 hours.

Consulteu la documentació de compra per conèixer els termes específics de la garantia i la informació de contacte.
