1. Introducció
The TOPENS RK700T Automatic Sliding Gate Opener is engineered to provide reliable and convenient automation for heavy-duty sliding gates. This system is designed to smoothly operate gates weighing up to 1600 pounds and measuring up to 40 feet in length. It is suitable for various gate types, including those made of steel, wood, vinyl, and shaped as tube, panel, or chain-link. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your gate opener.
Image: The TOPENS RK700T gate opener shown installed with various types of sliding gates, demonstrating its versatility for different materials and designs.
2. Característiques clau
- Motor potent: Equipped with a 2/5 HP (300W) AC motor, capable of driving gates up to 1600 lbs and 40 ft.
- Aplicació àmplia: Compatible with all types of driveway sliding gates, including steel, wood, and vinyl. Ideal for residential, commercial, courtyard, farm, and ranch applications.
- Seguretat avançada: Features TOPENS code technology to prevent unauthorized access and includes a safety stop-and-reverse module for obstruction detection.
- Funcionament intel·ligent: Offers a 'midway mode' for partial gate opening and an 'auto-close' function for enhanced security. The open/close direction can be easily switched.
- Construcció duradora: Utilizes a durable gear-wheel made from commercial-grade material for stable and long-lasting performance.
- Disseny impermeable: Rated for outdoor use, operating effectively in temperatures from 0°F to 120°F.
- Funcionament silenciós: Operates at a sound level of less than 50 dB.
Imatge: Un diagrama il·lustratiu que mostraasing the internal components and key features of the RK700T, including the motor, gear racks, remote controls, and safety mechanisms.
3. Contingut del paquet
En desempaquetar, comproveu que tots els components següents estiguin inclosos al paquet:
- 1 x TOPENS RK700T Gate Opener Unit
- 12 x Nylon Gear Rack Sections (Total 13 ft.)
- 2 transmissors de control remot M12
- 1 x Emergency Release Key
- 1 x Conjunt complet de maquinari d'instal·lació necessari
Image: A visual representation of the main components included in the RK700T product package, showing the gate opener, gear racks, and remote controls.
4. Guia d'instal·lació
The RK700T is designed for DIY installation, requiring commonly available tools and no extra welding. Follow the step-by-step instructions provided in the comprehensive user manual (not included in this digital summary) for proper setup.
- Requisits d'alimentació: The gate opener is powered exclusively by AC 110-120V electricity. A power supply cord is required but not included in the package.
- Muntatge: Ensure a stable and level mounting surface for the gate opener. Proper alignment of the gear rack along the entire length of the gate is crucial for smooth operation and to prevent issues like slipping.
- Gate Compatibility: The system is compatible with various gate materials and designs. Ensure your gate's weight and length are within the specified limits (max 1600 lbs, max 40 ft).
- Ajust del commutador de límit: The electromagnetism limit switch allows for simple adjustment of the gate's open and close positions.
Image: A simplified diagram illustrating the power connection for the RK700T, indicating it operates on 110-120VAC only.
5. Funcionament
Operating your TOPENS RK700T gate opener is straightforward:
- Comandament a distància: Simply press the button on the M12 remote control to open or close the gate. The remote has an operation range of up to 65 feet.
- Mode a mig camí: Activate the unique 'midway mode' to open the gate partially, ideal for pedestrian access or smaller vehicles.
- Funció de tancament automàtic: For added security, the gate can be set to automatically close after a preset delay.
- Direction Switching: The gate opener's open/close direction can be easily switched to accommodate left or right-opening gates.
- Alliberament manual: En cas d'una potènciatage or if the remote control is lost, use the provided emergency release key to manually operate the gate.

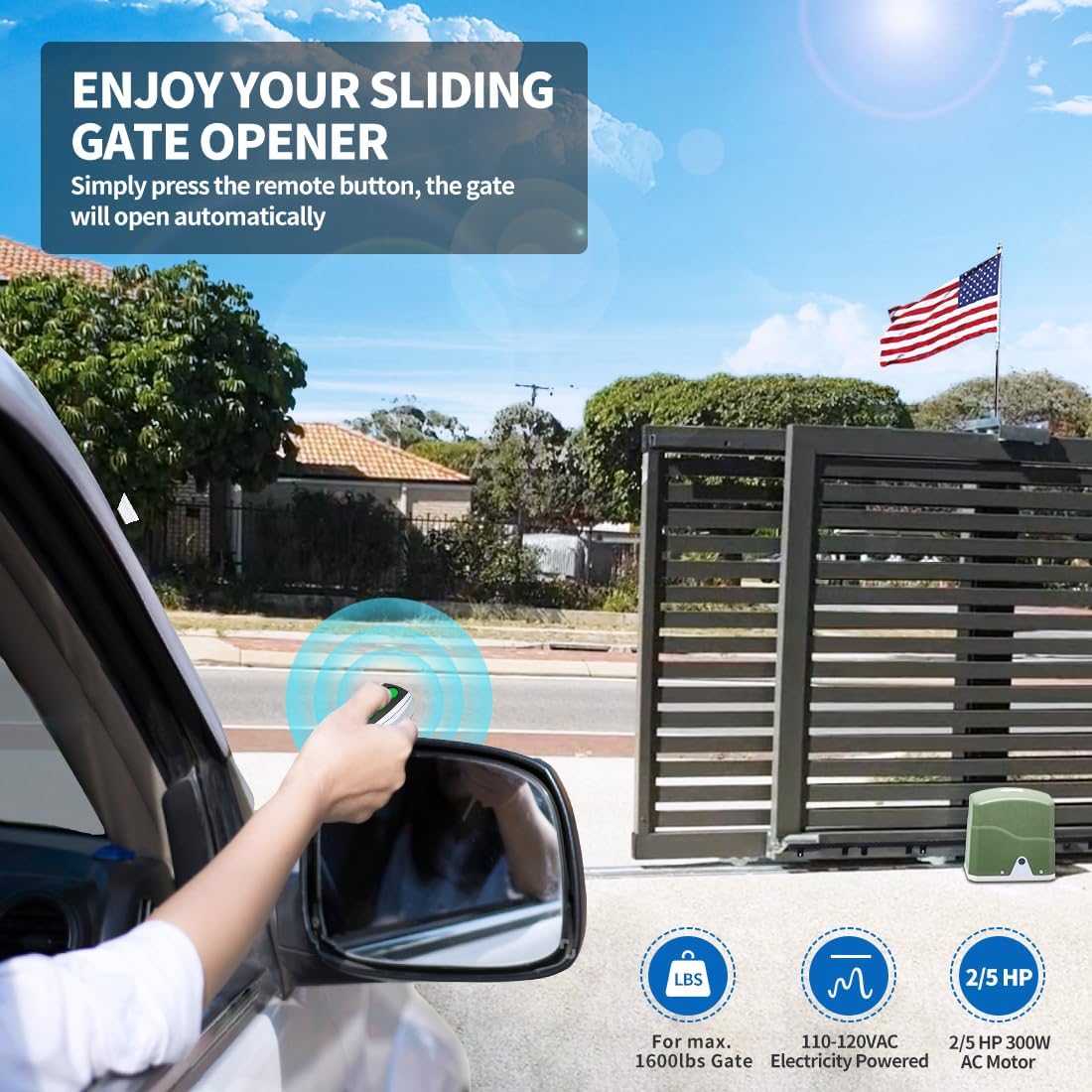

Image: A user operating the sliding gate opener with a remote control from their vehicle, emphasizing the convenience of automatic gate operation.
Images: Visual explanations of the self-closing, midway, and obstacle detection features, along with diagrams showing how the gate can be configured for left or right opening.
6. Seguretat i protecció
The TOPENS RK700T incorporates several features to ensure safe operation:
- Stop-and-Reverse Module: If the gate encounters an obstruction during opening or closing, the safety stop-and-reverse module will activate, preventing damage or injury.
- Secure Remote Coding: Advanced TOPENS code technology ensures that only authorized remote controls can operate the gate, preventing unauthorized access.
- Alliberament manual: The emergency release key provides a failsafe mechanism to operate the gate manually in situations where automatic operation is not possible.
7. Manteniment
To ensure the longevity and optimal performance of your TOPENS RK700T gate opener, regular maintenance is recommended:
- Inspecció periòdica: Periodically check the gate and the opener system for any signs of wear, damage, or loose connections.
- Neteja: Keep the gear rack and the area around the gate opener free from debris, dirt, and obstructions that could impede smooth operation.
- Lubricació: Refer to the full user manual for specific lubrication requirements for moving parts, if any.
8. Solució De Problemes
If you encounter issues with your gate opener, consider the following common troubleshooting steps. For detailed solutions, always refer to the complete user manual.
- La porta no es mou: Check power supply, ensure the emergency release is not engaged, and verify remote control battery.
- Gate Stops or Reverses Unexpectedly: This often indicates an obstruction. Clear the gate path and inspect the gear rack for proper alignment and any foreign objects. Issues with the circuit board or precise track adjustment can also cause this.
- Problemes de control remot: Ensure remotes are properly programmed and within range. Replace batteries if necessary.
If problems persist after basic troubleshooting, it is recommended to contact TOPENS customer support for professional assistance.
9. Especificacions tècniques
| Especificació | Valor |
|---|---|
| Fabricant | TOPENS |
| Número de part | RK700T |
| Pes de l'article | 31.2 lliures |
| Dimensions del producte | 9.92 x 6.65 x 9.84 polzades |
| Número de model de l'article | RK700T |
| Piles necessàries | Yes (6 CR2 batteries included) |
| Color | Verd |
| Font d'alimentació | AC |
| Voltage | 110 Volts |
| Wattage | 300 watts |
| Cavalls de força | 0.4 CV |
| Capacitat màxima de pes | 700 quilograms (aprox. 1543 lliures) |
| Nivell de so | 50 dB |
| Ús | Finalitat General |
| Data de primera disponibilitat | 20 d'abril de 2021 |
Image: A diagram illustrating the physical dimensions of the RK700T gate opener, providing measurements in both inches and millimeters.
Image: A comparative table detailing specifications for the RK700T alongside other TOPENS sliding gate opener models (RK990T, RK1200T), highlighting differences in capacity and features.
10. Accessoris compatibles
The TOPENS RK700T is compatible with a range of optional accessories to enhance its functionality and convenience. These accessories are available separately from the TOPENS Online Store.
- Comandaments a distància: Additional M12 Remote Control Transmitters.
- Teclats: TC188 Universal Keypad, TC175P Wired Keypad, TKP3 Wireless Keypad.
- Sensors: TRF3 Reflection Photocell Sensor, TC102 Photo Eye Beam Sensor, TEW3 Vehicle Sensor Exit Wand.
- Dispositius de control: TC136 Tuya WiFi Remote Control, TC148 Waterproof Wall Push Button, TC147 Wall Push Button, TC173 Wireless Push Button, HLR01 Homelink Remote Control Kit.
- Seguretat i advertència: JD110VY Warning Light.
- Receptors: ERM12 External Receiver.
- Gear Racks: RNH2 Heavy Duty Nylon Gear Rack, RNH4 Heavy Duty Nylon Gear Rack.
Image: A visual display of various optional accessories that can be integrated with the TOPENS RK700T, such as keypads, sensors, and additional remote controls.
11. Garantia i atenció al client
TOPENS is committed to providing high-quality products and excellent customer service.
- Garantia: The TOPENS RK700T comes with a 12-month warranty from the date of purchase.
- Devolucions i canvis: TOPENS offers a 30-day exchange and return policy.
- Suport tècnic: Professional and timely technical support is available. For assistance, visit the TOPENS weblloc to download the full user manual, watch installation videos, and access customized service.
Image: An icon symbolizing customer support, indicating that assistance is available via email.
