ROCKBROS V9M-1000/US 1000 Lumen USB Rechargeable Bike Headlight Instruction Manual

Introducció

Thank you for choosing the ROCKBROS V9M-1000/US 1000 Lumen USB Rechargeable Bike Headlight. This high-performance front bike light is designed to enhance your visibility and safety during night rides. Featuring a super bright LED, multiple lighting modes including a smart mode, and a durable IPX6 waterproof aluminum alloy casing, this headlight is built for reliability and convenience. Please read this manual thoroughly before use to ensure proper operation and maintenance.

Image: The ROCKBROS V9M-1000/US 1000 Lumen Bike Headlight, showcasing its sleek black aluminum alloy body and front LED lens.

Producte acabatview

The ROCKBROS V9M-1000/US headlight is engineered for optimal performance and user-friendliness. Its compact design houses powerful illumination and intelligent features.

Característiques principals:

• Sortida de 1000 lúmens: Provides super bright illumination up to 656ft (200m).
• 5 modes d'il·luminació: Super (1000lm), High (500lm), Medium (200lm), Low (100lm), and Flash.
• Mode intel·ligent: Automatically adjusts brightness based on ambient light (Flash in bright conditions, High in dark conditions) and enters dormant state after 120 seconds of motionlessness.
• USB recarregable: Convenient charging from any USB port.
• Pantalla d'energia de la bateria: Clear indicators for battery level (Blue: >60%, Yellow: 20-60%, Red Flash: <20%).
• Construcció duradora: Made of aluminum alloy with excellent heat dissipation.
• IPX6 Impermeable: Withstands rain and splashes, suitable for various weather conditions.
• Angle de feix ample: 118° wide light brightens a broad area.
• Fàcil instal·lació: 360-degree rotating mount for quick attachment and removal.

Configuració i instal·lació

Muntatge del far:

The ROCKBROS V9M-1000/US headlight comes with a 360-degree rotating mount for easy and secure attachment to your bicycle handlebars.

1. Identify the handlebar mount. It typically consists of a clamp and a quick-release mechanism.
2. Position the mount on your handlebar at the desired location. Ensure it does not obstruct your view or interfere with brake/gear levers.
3. Apretar el clamp securely around the handlebar using the provided tool (if applicable) until the mount is firm and does not rotate freely.
4. Slide the headlight unit onto the mount until it clicks into place. The 360-degree rotation allows you to adjust the beam direction as needed.
5. To remove the headlight, press the release tab on the mount and slide the unit off.

Image: The ROCKBROS V9M-1000/US headlight detached from its mount, showing the mounting interface.

Image: The ROCKBROS V9M-1000/US headlight securely mounted on a bicycle handlebar, ready for use.

Càrrega del far:

The headlight is equipped with a 4000mAh large capacity battery and is USB rechargeable.

1. Locate the USB charging port on the headlight, usually covered by a rubber flap for waterproofing.
2. Open the rubber flap and insert the provided USB charging cable into the port.
3. Connect the other end of the USB cable to a power source such as a computer, power bank, or USB wall adapter.
4. The battery indicator light will show the charging status. A full charge typically takes about 3 hours.
5. Once fully charged, disconnect the cable and ensure the rubber flap is securely closed to maintain waterproofing.

Image: Close-up of the ROCKBROS V9M-1000/US headlight showing the USB charging port with a cable inserted, indicating its rechargeable nature.

Instruccions de funcionament

Encès/apagat:

• To turn on the headlight, press and hold the power button for approximately 2 seconds.
• To turn off the headlight, press and hold the power button for approximately 2 seconds.

Canvi de modes d'il·luminació:

Once the headlight is on, short press the power button to cycle through the 5 available lighting modes:

1. Super brillant: 1000 Lumens (approx. 1.5 hours runtime)
2. Alt: 500 Lumens (approx. 3 hours runtime)
3. Mitjà: 200 Lumens (approx. 7 hours runtime)
4. Baix: 100 Lumens (approx. 14 hours runtime)
5. Flash: Flashing mode (approx. 14 hours runtime)

Image: A chart illustrating the reliable data for runtime in hours for each of the 5 lighting modes, along with visual representations of low, medium, high, and super high light beams.

Mode intel·ligent:

The smart mode automatically adjusts the light output for optimal visibility and battery efficiency.

• Activació: Long press the 'Smart Mode' button to activate.
• Bright Conditions (>100 lux): The light will operate in Flash mode, acting as a daytime warning light.
• Dark Conditions (<100 lux): The light will switch to High mode (500lm) for continuous illumination.
• Motionless State (after 120 seconds): The light will enter a dormant state to conserve battery. It will reactivate upon detecting motion.

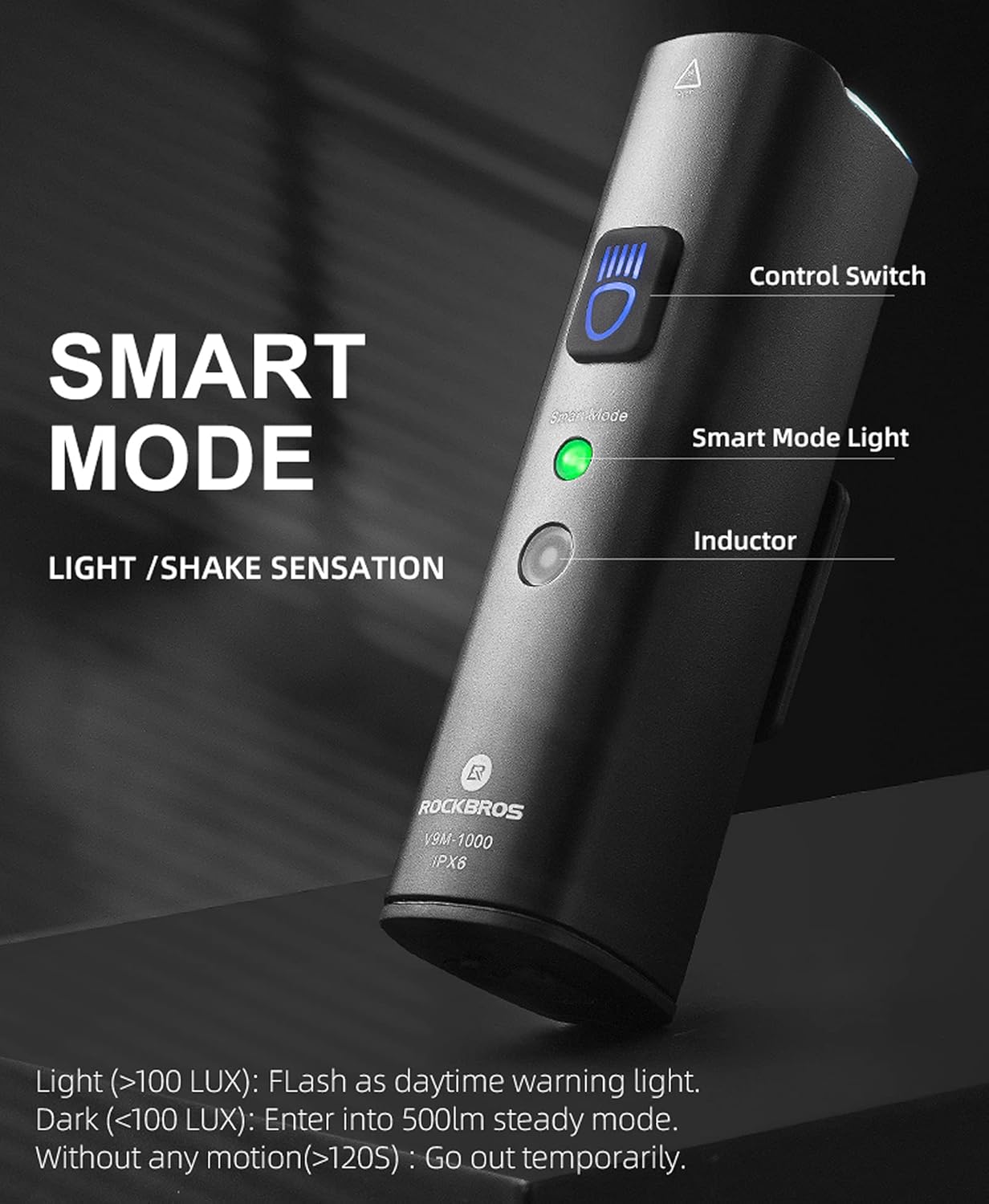

Image: Diagram illustrating the 'Smart Mode' functionality, showing the control switch, smart mode light, and inductor, with explanations for light, dark, and motionless conditions.

Indicador de bateria:

The headlight features a clear battery indicator to keep you informed of the remaining power:

• Llum blava: El nivell de bateria és superior al 60%.
• Llum groga: El nivell de la bateria està entre el 20% i el 60%.
• Llum vermella intermitent: Battery level is below 20%, indicating it's time to recharge.

Image: Close-up of the ROCKBROS V9M-1000/US headlight showing the battery indicator light, which changes color to reflect the remaining battery percentage.

Característiques del feix:

The headlight provides a wide 118° beam, ensuring excellent peripheral vision and illuminating a broad path ahead.

Image: A visual representation of the 118-degree wide light beam produced by the ROCKBROS V9M-1000/US headlight, showing its broad coverage.

Manteniment

• Neteja: Wipe the light body and lens with a soft, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Càrrega: Recharge the battery regularly, especially if the light has not been used for an extended period, to prolong battery life. Avoid completely draining the battery.
• Emmagatzematge: Store the headlight in a cool, dry place when not in use. If storing for a long time, charge the battery to about 50-70% capacity every few months.
• Impermeabilització: Always ensure the USB port's rubber flap is securely closed to maintain the IPX6 waterproof rating.

Resolució de problemes

• La llum no s'encén:
  • Check the battery level. If the indicator is red or off, charge the headlight.
  • Ensure the power button is pressed and held for the required 2 seconds.
• Light does not hold a charge:
  • Ensure the charging cable is properly connected to both the light and the power source.
  • Proveu un cable USB o una font d'alimentació diferent.
  • If the issue persists, the battery may need replacement or there might be an internal fault. Contact customer support.
• Smart mode not functioning correctly:
  • Ensure smart mode is activated by long-pressing its dedicated button.
  • Check for any obstructions covering the light sensor.

Especificacions

Informació de seguretat

• Do not look directly into the light beam when it is on, as it can cause temporary vision impairment.
• Ensure the light is securely mounted before riding to prevent it from falling off.
• Always use appropriate lighting modes for your riding conditions to avoid dazzling oncoming traffic or pedestrians.
• Keep the light away from extreme temperatures and direct sunlight.
• Do not attempt to disassemble or modify the light, as this may void the warranty and cause damage.

Garantia i suport

Garantia:

ROCKBROS products are designed for quality and durability. For specific warranty details, please refer to the warranty card included with your product or contact ROCKBROS customer service. Generally, products are covered against manufacturing defects for a specified period from the date of purchase.

Atenció al client:

If you encounter any issues or have questions regarding your ROCKBROS V9M-1000/US Bike Headlight, please do not hesitate to contact our customer support team. We are committed to providing excellent after-sale service.

You can find contact information and additional resources on the official ROCKBROS weblloc web o a través del vostre distribuïdor.
