Zanussi ZYG10113WL 10 Liter Digital Gas Water Heater User Manual

1. Informació important de seguretat

Please read this entire manual carefully before installing, operating, or performing maintenance on your Zanussi ZYG10113WL gas water heater. Failure to follow these instructions could result in property damage, personal injury, or death.

• Instal·lació professional: Installation and servicing must be performed by a qualified installer or service agency. Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury, or loss of life.
• Seguretat del gas: This appliance uses gas. Ensure proper ventilation and check for gas leaks after installation. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Temperatura de l'aigua: Hot water can cause severe burns. Exercise caution when using hot water, especially with children or individuals with reduced physical, sensory, or mental capabilities.
• Ventilació: Ensure the appliance is installed in a well-ventilated area as specified in local codes and this manual.
• Seguretat elèctrica: If the unit requires electrical power for ignition or controls, ensure it is properly grounded and connected according to local electrical codes.

2. Producte acabatview

The Zanussi ZYG10113WL is a 10-liter digital tankless gas water heater designed to provide on-demand hot water. Its compact design and digital controls offer efficient and convenient operation.

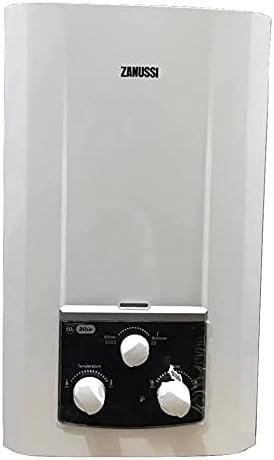

Figura 2.1: Frontal view of the Zanussi ZYG10113WL Digital Gas Water Heater, showing the digital display and control knobs.

2.1 Components i controls

• Pantalla digital: Shows current water temperature, error codes, and operational status.
• Pom de control de temperatura: Adjusts the desired hot water temperature.
• Water Flow Control Knob: Regulates the water flow rate through the heater.
• Botó d'encesa/mode: Used to turn the unit on/off and select operating modes.
• Entrada de gas: Connection point for the gas supply.
• Entrada d'aigua freda: Connection point for the cold water supply.
• Sortida d'aigua calenta: Connection point for the hot water delivery.
• Exhaust Vent: For expelling combustion gases.

Figura 2.2: lateral view of the Zanussi ZYG10113WL Digital Gas Water Heater, illustrating its compact profile.

3. Configuració i instal·lació

Installation of this gas water heater must be performed by a qualified and licensed professional in accordance with all local and national codes and regulations. Improper installation can lead to serious hazards.

3.1 Comprovacions prèvies a la instal·lació

• Verify that the gas type (Natural Gas or LPG) matches the appliance's specifications.
• Ensure adequate water pressure and flow rate are available at the installation site.
• Confirm that the installation location provides proper ventilation and clearance from combustible materials.
• Check for a suitable exhaust vent connection point.

3.2 Installation Steps (Professional Only)

1. Muntatge: Securely mount the water heater to a sturdy wall using appropriate hardware.
2. Connexions d'aigua: Connect the cold water inlet and hot water outlet pipes. Ensure all connections are watertight.
3. Connexió de gas: Connect the gas supply line to the gas inlet. Perform a leak test using a non-corrosive leak detection solution.
4. Sistema de ventilació: Install the exhaust vent pipe according to manufacturer guidelines and local codes to ensure safe expulsion of combustion byproducts.
5. Instal·lació de la bateria: Open the battery compartment (usually located at the bottom or side) and insert two D-cell batteries (not included) for ignition. Ensure correct polarity.
6. Ompliment inicial d'aigua: Open a hot water tap to allow water to flow through the heater, purging air from the system before turning on the gas.

4. Instruccions de funcionament

Once installed and checked by a professional, operating your Zanussi gas water heater is straightforward.

1. Activar: Ensure the gas supply valve is open. Turn the Power/Mode knob to the 'ON' position. The digital display should illuminate.
2. Ajustar el cabal d'aigua: Use the Water Flow Control knob to set the desired water flow rate. A higher flow rate may result in slightly lower temperatures, while a lower flow rate allows for hotter water.
3. Temperatura establerta: Use the Temperature Control knob to select your desired hot water temperature. The digital display will show the set temperature or the current outlet temperature.
4. Initiate Hot Water: Open any hot water tap in your home. The heater will automatically ignite and begin heating water as it flows through the unit. The digital display will show the real-time outlet water temperature.
5. Apagar: Close the hot water tap. The heater will automatically turn off. For extended periods of non-use, turn the Power/Mode knob to 'OFF' and close the main gas supply valve.

4.1 Indicadors de pantalla digital

• Lectura de temperatura: Displays the current hot water outlet temperature.
• Codis d'error: In case of a malfunction, an error code will be displayed. Refer to the Troubleshooting section for common codes.
• Flame Indicator: May show an icon indicating that the burner is active.

5. Manteniment

Regular maintenance ensures the longevity and efficient operation of your water heater. Some tasks can be performed by the user, while others require a qualified technician.

5.1 Manteniment de l'usuari

• Neteja exterior: Netegeu l'exterior casing amb un suau, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Substitució de la bateria: If the digital display fades or the igniter fails to spark, replace the D-cell batteries in the battery compartment.

5.2 Professional Maintenance (Annual Recommended)

• Gas Connection Inspection: A technician should inspect all gas connections for leaks and ensure proper gas pressure.
• Burner and Heat Exchanger Cleaning: Over time, dust and debris can accumulate. Professional cleaning ensures optimal combustion and heat transfer.
• Water Filter Cleaning/Replacement: If your unit has an inline water filter, it should be cleaned or replaced to prevent sediment buildup.
• Descalcificació: In areas with hard water, mineral deposits can build up in the heat exchanger, reducing efficiency. A professional can perform descaling.
• Comprovació del sistema de ventilació: Ensure the exhaust vent is clear and free of obstructions.

6. Solució De Problemes

Abans de contactar amb el servei d'atenció al client, review els següents problemes comuns i les seves solucions.

Avís: For any issues involving gas or persistent malfunctions, immediately turn off the gas supply to the unit and contact a qualified service technician. Do not attempt repairs yourself.

7. Especificacions

8. Garantia i Suport

Zanussi products are manufactured to high-quality standards and come with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration of coverage.

For technical support, service requests, or to inquire about replacement parts, please contact Zanussi customer service or an authorized service center in your region. Contact information can typically be found on the product packaging, warranty card, or the official Zanussi weblloc.
