Lasko BD-VP-15-BK

Lasko BlueDri Portable Mini Air Mover BD-VP-15-BK Instruction Manual

Model: BD-VP-15-BK

1. Introducció

The Lasko BlueDri Portable Mini Air Mover (Model BD-VP-15-BK) is a compact and powerful utility fan designed for various drying, ventilation, and air circulation tasks. Its robust construction and versatile design make it suitable for both home and professional use, efficiently moving air to dry carpets, floors, and hard-to-reach areas.

Lasko BlueDri Portable Mini Air Mover, front view showing the control switch and BlueDri logo.

Figura 1: Davant view of the Lasko BlueDri Portable Mini Air Mover.

2. Característiques clau

Illustration showing the roto-molded impact resistant housing of the air mover.

Figura 2: Roto-molded impact resistant housing.

Image highlighting the ergonomic handle of the Lasko BlueDri air mover.

Figura 3: Ergonomic handle for easy transport.

3. Instruccions de configuració

The Lasko BlueDri Mini Air Mover requires no assembly. Follow these steps for initial setup:

  1. Desempaquetar la unitat: Carefully remove the air mover from its packaging.
  2. Inspeccionar per danys: Check the unit for any signs of damage during shipping. If damaged, do not operate and contact customer support.
  3. Posicioneu la unitat: Place the air mover on a stable, flat surface in the area requiring drying or ventilation. Ensure the intake and exhaust vents are clear of obstructions.
  4. Connectar: Connect the power cord to a grounded 120V AC electrical outlet.

4. Instruccions de funcionament

The air mover offers adjustable speed and position settings for optimal performance.

4.1 Ajust de la velocitat

Use the switch located on the side of the unit to select the desired fan speed:

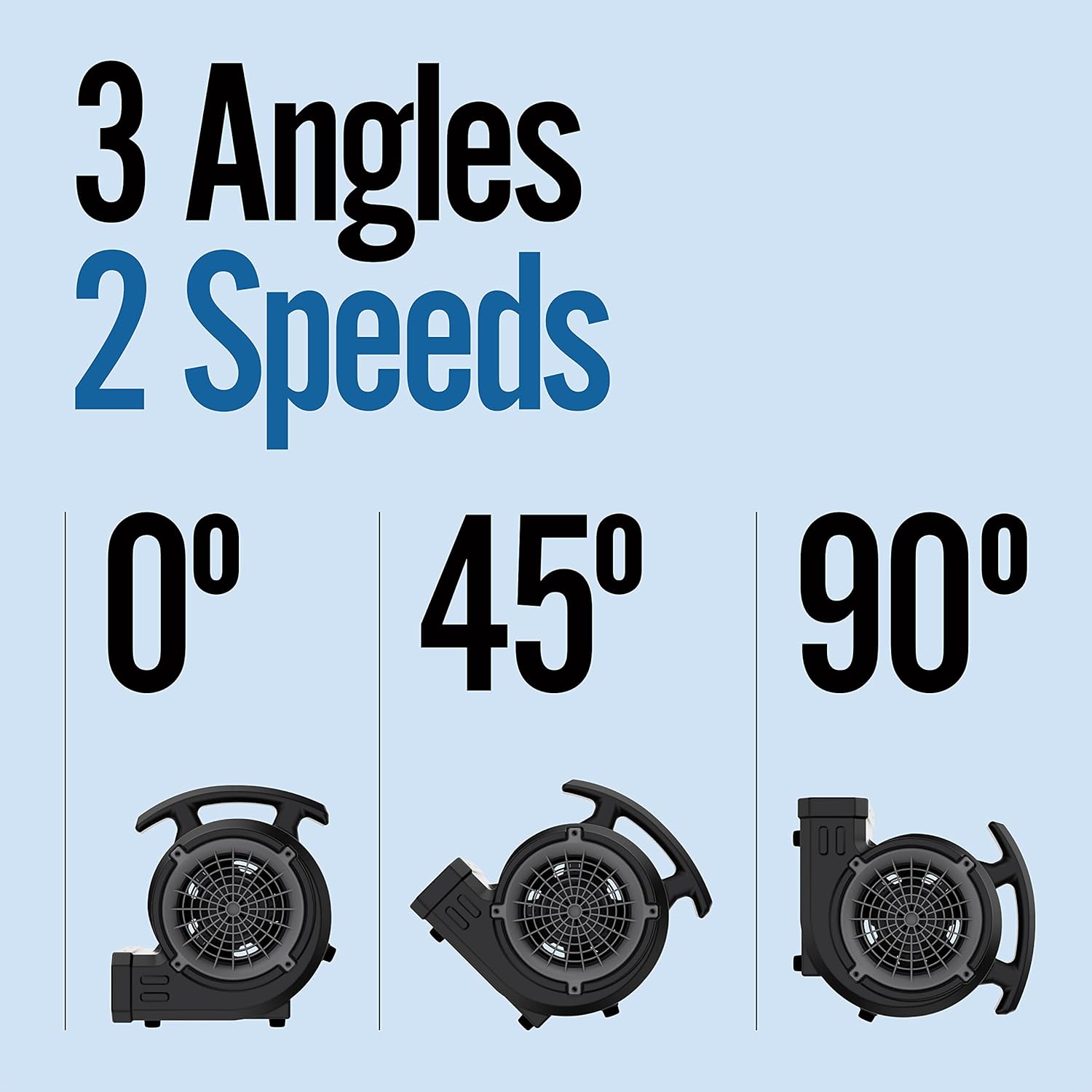

4.2 Adjusting Position

The unit can be operated in three different positions to direct airflow:

Diagram showing the three adjustable angles (0, 45, 90 degrees) for the Lasko BlueDri air mover.

Figura 4: Three adjustable operating positions.

5. Pautes de manteniment

Regular maintenance ensures optimal performance and extends the lifespan of your air mover.

  1. Neteja de l'habitatge: The roto-molded housing is washable. Use a damp cloth to wipe down the exterior. Avoid using harsh chemicals or abrasive cleaners.
  2. Reixetes de ventilació transparents: Periodically check and clear any dust, debris, or obstructions from the air intake and exhaust vents to maintain efficient airflow.
  3. Emmagatzematge: When not in use, store the air mover in a cool, dry place. The ergonomic handle also serves as a cord wrap for convenient storage.

6. Solució De Problemes

If you encounter issues with your Lasko BlueDri Mini Air Mover, refer to the following common solutions:

ProblemaCausa possibleSolució
La unitat no s'encénNo power to the unit; Power switch is off; Circuit breaker tripped.Ensure the unit is plugged into a live, grounded outlet. Turn the power switch to 'High' or 'Low'. Check and reset the circuit breaker if necessary.
Flux d'aire reduïtBlocked air intake/exhaust; Unit operating on 'Low' speed.Clear any obstructions from the vents. Switch the unit to 'High' speed for maximum airflow.
Sorolls o vibracions inusualsDebris inside the unit; Unit not on a stable surface.Disconnect power and carefully inspect for debris. Place the unit on a firm, level surface.

7. Especificacions

MarcaPlegar
Nom del modelBlueDri ONE-15 1/8 HP Mini Air Mover Blower Fan
Número de modelBD-VP-15-BK
ColorNegre
Font d'alimentacióAC
Voltage120 Volts
Wattage150 watts
Capacitat de cabal d'aire600 peus cúbics per minut
Pes de l'article8.4 lliures
Dimensions del producte11.4 cm de llargada x 9.7 cm d'amplada x 12.7 cm d'alçada
MaterialPlàstic
Muntatge obligatoriNo
Components inclososCordó
Diagram showing the dimensions of the Lasko BlueDri air mover: 11.4 inches length, 9.7 inches width, 12.7 inches height.

Figura 5: Dimensions del producte.

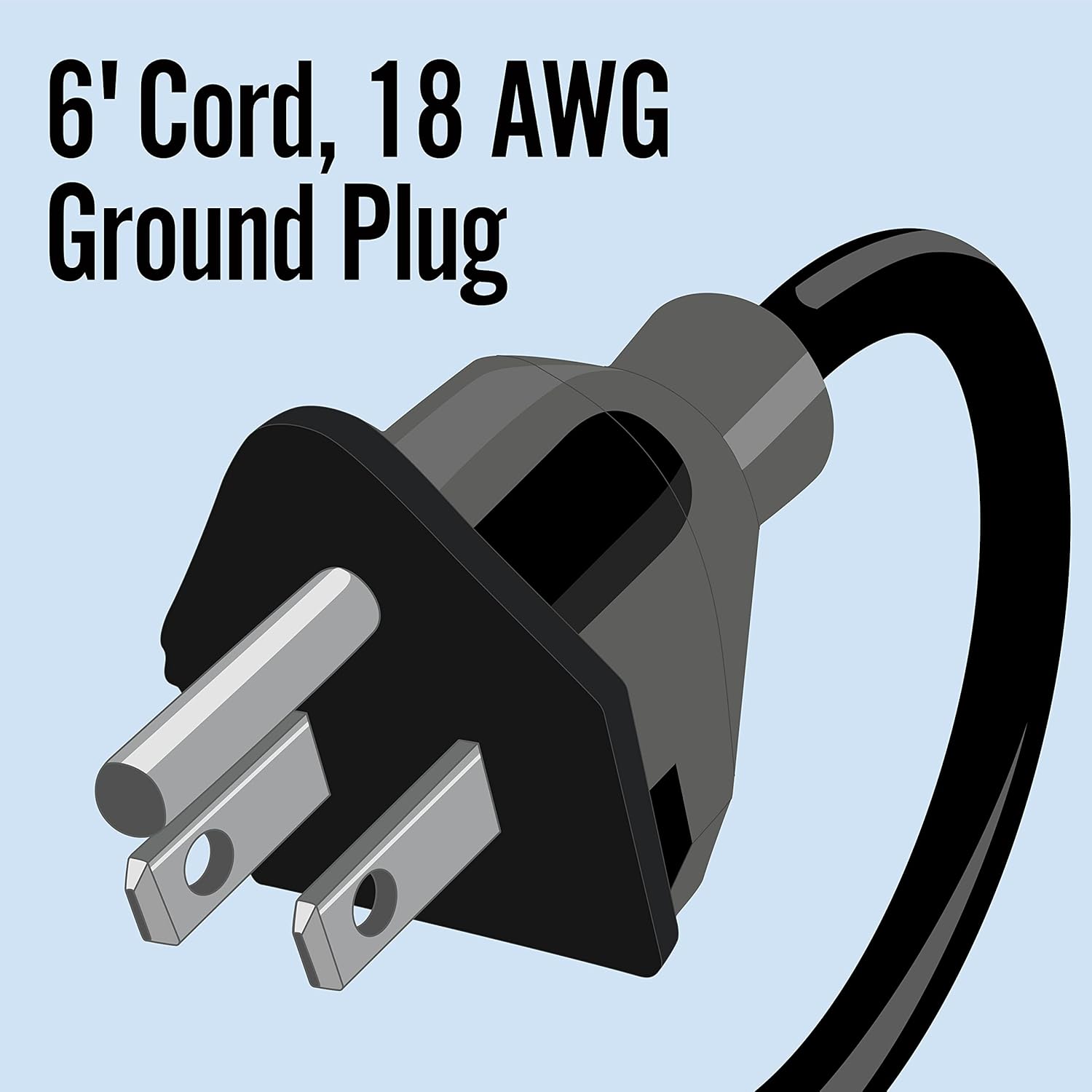

Close-up of the 6-foot, 18 AWG grounded power plug for the air mover.

Figura 6: 6-foot, 18 AWG grounded power plug.

8. Garantia i Suport

8.1 Informació de la garantia

This Lasko BlueDri Portable Mini Air Mover comes with a 1 any de garantia des de la data de compra. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia. La garantia cobreix defectes de materials i fabricació en condicions d'ús normal.

8.2 Atenció al client

For technical assistance, warranty inquiries, or to order replacement parts, please contact Lasko customer support. Refer to the contact information provided in your product packaging or visit the official Lasko weblloc.
