EMKE Illuminated Bathroom Mirror User Manual

1. Introducció

Thank you for choosing the EMKE Illuminated Bathroom Mirror. This manual provides essential information for the safe installation, operation, and maintenance of your new mirror. Please read these instructions carefully before installation and retain them for future reference.

2. Instruccions de seguretat importants

• Seguretat elèctrica: Installation must be carried out by a qualified electrician in accordance with local wiring regulations. Ensure the power supply is disconnected at the main circuit breaker before any installation or maintenance work.
• Aigua i humitat: This mirror is designed for bathroom use but should not be directly exposed to water spray. Avoid installing near showers or bathtubs where direct water contact is likely.
• Manipulació: Els miralls són fràgils. Manipuleu-los amb cura per evitar que es trenquin. No apliqueu una força excessiva ni impactes.
• Neteja: Utilitzeu només suaus, damp cloths and mild, non-abrasive cleaners. Avoid harsh chemicals that may damage the mirror surface or frame.
• Nens: Keep packaging materials and small parts away from children. This product is not a toy.

3. Contingut del paquet

Please check that all components are present and undamaged before proceeding with installation:

• 1 x EMKE LED Bathroom Mirror (800x600mm)
• 1 x Manual d'usuari (aquest document)
• 1 (set) x Screw Accessory (mounting hardware)

4. Característiques del producte

Your EMKE Illuminated Bathroom Mirror is equipped with several advanced features for convenience and functionality:

• Il·luminació LED integrada: Energy-efficient back-lit LED lights provide optimal illumination.
• Interruptor tàctil intel·ligent: A discreet touch sensor controls the LED lighting.
• Built-in Demister Pad: An anti-fog function ensures a clear reflection, separately controlled.
• Mirall d'ampliació 3X: A dedicated magnified area for detailed tasks like makeup application or shaving.
• Endoll per afaitar: An independent 2-pin shaver socket for charging electric shavers or toothbrushes.

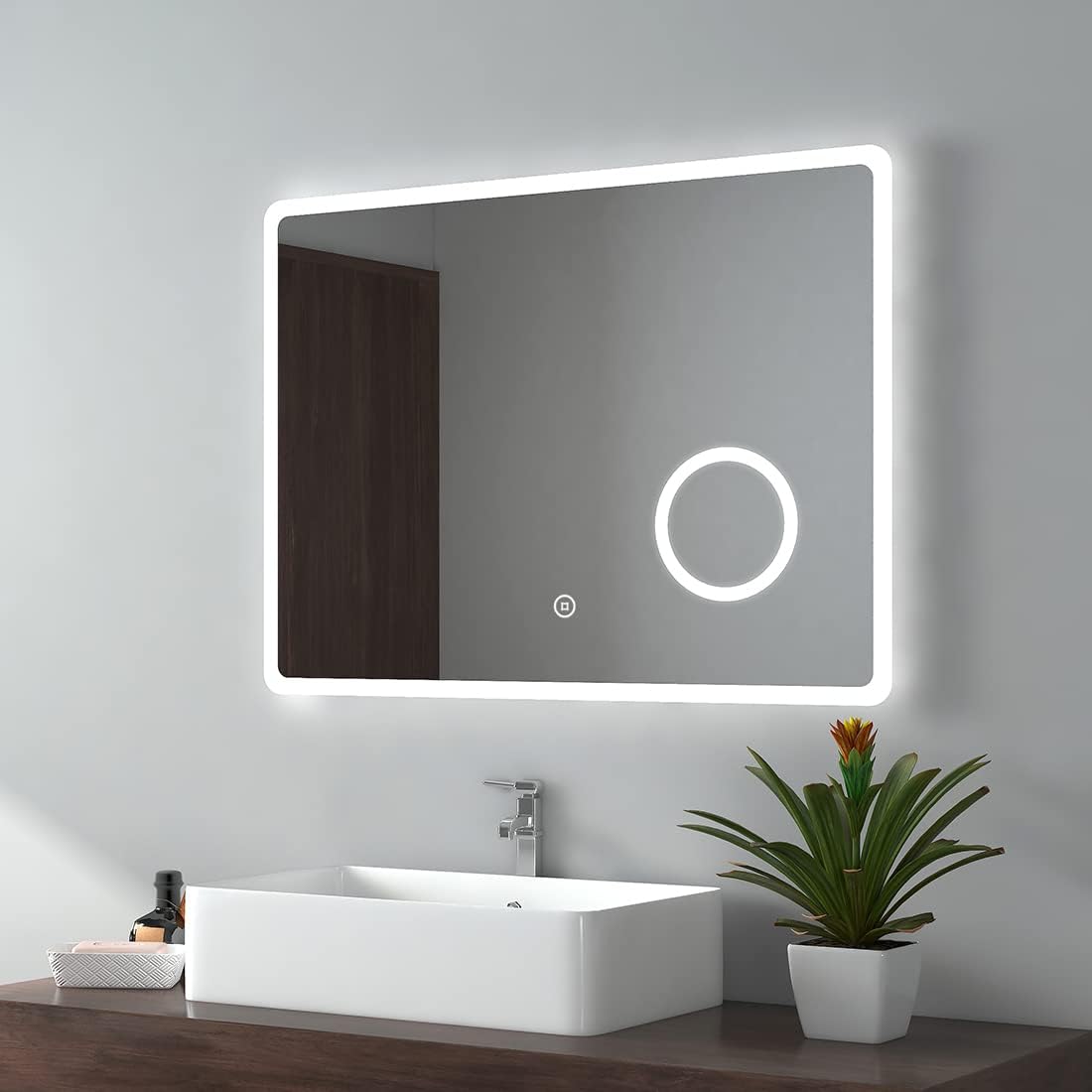

Image: The EMKE Illuminated Bathroom Mirror with its LED lights activated, showcasing el seu disseny modern.

Image: Illustration of the smart touch switch, demonstrating how to turn the mirror lights on and off with a simple touch.

Image: Visual representation of the demister pad actively clearing fog from the mirror surface, ensuring a clear reflection.

Image: A person using the integrated 3X magnification mirror for applying makeup, highlighting its utility for detailed tasks.

Imatge: Primer pla view of the independent 2-pin shaver socket located on the side of the mirror, suitable for charging bathroom appliances.

5. Configuració i instal·lació

5.1 Abans de començar

• Unpack the mirror carefully and inspect for any damage. Report any issues immediately.
• Ensure you have the necessary tools: drill, spirit level, measuring tape, pencil, screwdriver.
• Confirm the installation location is suitable, considering electrical connections and wall structure.

5.2 Muntatge del mirall

The mirror is designed for wall mounting with horizontal fitting options. Refer to the included screw accessory set for specific mounting hardware.

1. Measure and mark the desired position for the mirror on the wall, ensuring it is level.
2. Drill holes at the marked positions, suitable for the provided wall plugs and screws.
3. Introduïu taps de paret als forats perforats.
4. Secure the mounting brackets (if separate) or screws into the wall plugs, leaving a small gap for the mirror's hanging mechanism.
5. Carefully lift the mirror and hang it onto the secured screws/brackets. Ensure it is stable and level.

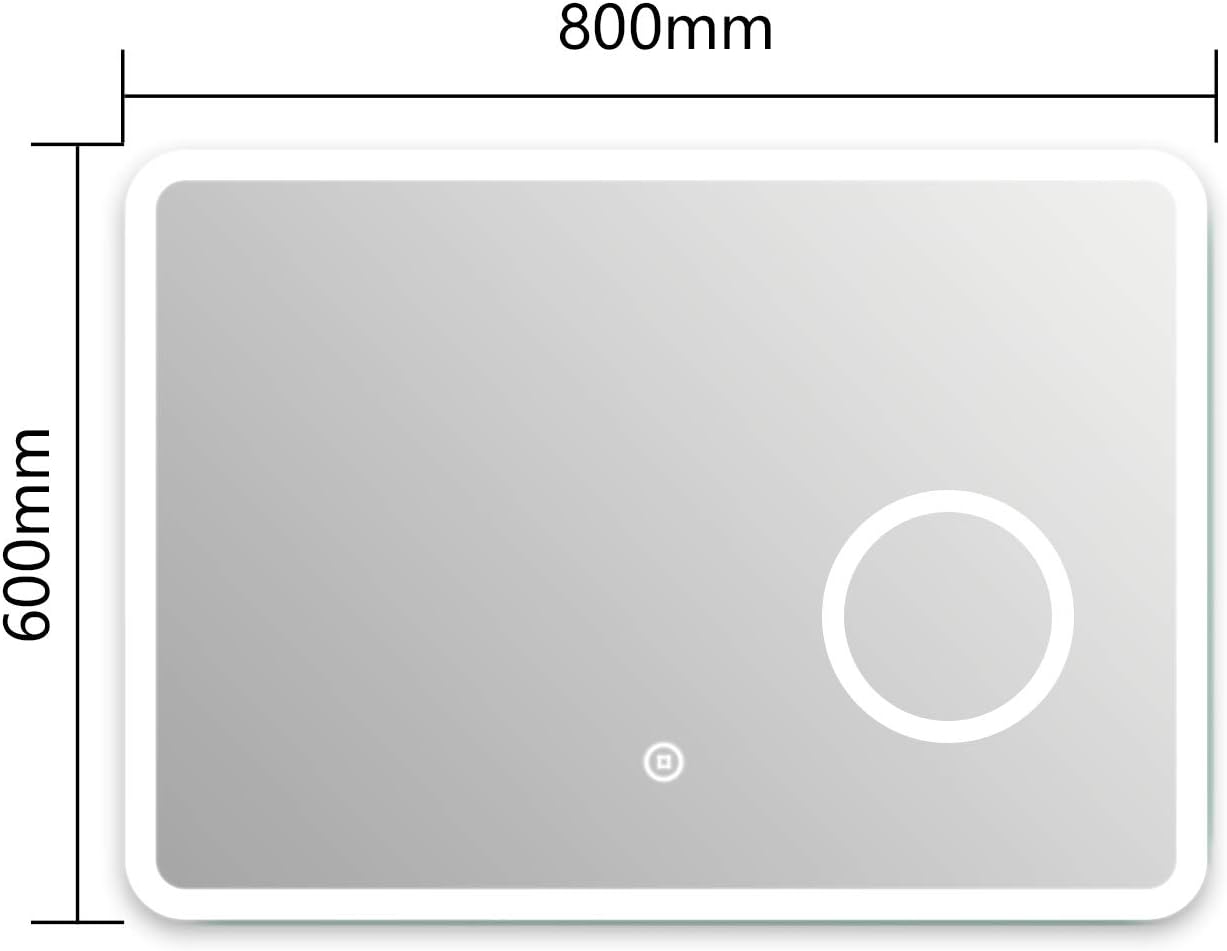

Image: Diagram showing the mirror's dimensions, 800mm width by 600mm height, crucial for planning installation space.

5.3 Connexió elèctrica

The mirror requires a mains connection. For safety and compliance with electrical regulations, the electrical connection must be performed by a qualified electrician.

• Ensure the main power supply to the installation area is switched off.
• Connect the mirror's electrical wiring to the designated mains supply according to the wiring diagram provided by the electrician and local codes.
• Once connected, restore power and test all functions.

Image: The EMKE mirror seamlessly integrated into a modern bathroom environment, demonstrating its aesthetic appeal and functional placement.

6. Instruccions de funcionament

6.1 Il·luminació LED

To activate the LED lighting, gently touch the designated touch switch icon on the mirror surface. Touch again to turn off the lights.

6.2 Demister Function

The demister pad is controlled by a separate touch button. Tap this switch to activate the anti-fog function. The demister will begin to clear condensation from the mirror surface. Tap again to turn off.

6.3 3X Magnification Mirror

The integrated 3X magnification mirror provides an enlarged reflection for detailed tasks. For optimal clarity and to avoid distortion, use this area at a distance of approximately 15cm from your face.

Endoll per afaitar 6.4

The independent 2-pin shaver socket is located on the side of the mirror. It is designed for charging electric shavers, toothbrushes, and other compatible 2-pin bathroom appliances. Ensure the appliance is suitable for the socket's voltage i valoració actual.

7. Manteniment

7.1 Neteja de la superfície del mirall

• Desconnecteu sempre l'alimentació abans de netejar.
• Utilitzeu un drap suau i sense pelusa dampamb aigua o un netejador suau de vidre.
• Spray cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into the electrical components.
• Wipe the mirror surface gently. Avoid abrasive materials or harsh chemicals.

7.2 Neteja del marc

• Netegeu el marc d'alumini amb un drap suau iamp tela.
• Do not use abrasive cleaners or solvents that could damage the finish.

8. Solució De Problemes

If you encounter any issues with your EMKE mirror, please refer to the following common problems and solutions:

• Els llums LED no s'encenen:
  • Check if the main power supply to the mirror is active.
  • Ensure the electrical connection was performed correctly by a qualified electrician.
  • Gently touch the switch icon to ensure proper contact.
• Demister Pad Not Activating:
  • Verify that the separate demister touch switch is pressed.
  • Allow a few minutes for the demister to heat up and begin clearing fog.
• Shaver Socket Not Providing Power:
  • Ensure the mirror's main power supply is active.
  • Check if the appliance being charged is correctly plugged in and functional.

If these steps do not resolve the issue, please contact EMKE customer support for further assistance.

9. Especificacions

10. Garantia i atenció al client

EMKE products are manufactured to high-quality standards. In the unlikely event that you experience any issues with your mirror, or if the item does not meet your expectation, please contact EMKE customer support. Our team is available to assist with troubleshooting, replacements, or refunds as applicable. Please refer to your purchase documentation for specific warranty terms and contact details.

11. Protecció i eliminació del medi ambient

This product contains electrical and electronic components. Do not dispose of it with general household waste. Please take it to a designated collection point for the recycling of electrical and electronic equipment (WEEE) in accordance with local regulations. Proper disposal helps prevent potential negative consequences for the environment and human health.
