1. Introducció
Thank you for choosing the Bosch WAV28GA9II HomeProfessional Washing Machine. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read these instructions carefully before using the washing machine and keep them for future reference.
2. Informació de seguretat
Seguiu sempre les següents pautes de seguretat per evitar lesions personals o danys a l'aparell:
- Ensure the appliance is correctly installed and grounded by a qualified technician.
- No permeteu que els nens juguin amb la rentadora ni la facin funcionar.
- No forceu mai la porta durant el funcionament.
- Desendolleu l'aparell de la xarxa elèctrica abans de netejar-lo o fer-ne el manteniment.
- Do not wash items that have been cleaned in, washed with, soaked in, or spotted with combustible or explosive substances such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.
- Mantingueu les mascotes allunyades de l'aparell.
3. Configuració i instal·lació
3.1 Desembalatge
Carefully remove the washing machine from its packaging. Inspect for any damage during transit. The package includes 1X LAVATRICE (1X Washing Machine).
3.2 Col·locació
Place the washing machine on a firm, level surface. Ensure adequate space around the appliance for ventilation and maintenance. The dimensions of the product are approximately 84.8 cm (height) x 59.8 cm (width) x 84.8 cm (depth).
lateral view of the Bosch WAV28GA9II washing machine, showing its compact design.
Technical drawing illustrating the width dimension of the washing machine (598mm).
Technical drawing illustrating the depth and height dimensions of the washing machine.
3.3 Connexió d'aigua i electricitat
Connect the water inlet hose to a cold water tap and the drain hose to a suitable drain. Plug the power cord into a grounded electrical outlet. Refer to the detailed installation guide provided with your appliance for specific instructions.
3.4 Anivellació de l'aparell
Use a spirit level to ensure the washing machine is perfectly level. Adjust the feet as necessary to prevent excessive vibration during operation, especially during the spin cycle.
4. Instruccions de funcionament
4.1 Tauler de control acabatview
The control panel features a program selection dial, touch controls for various options, and a digital display. Familiarize yourself with these components before first use.

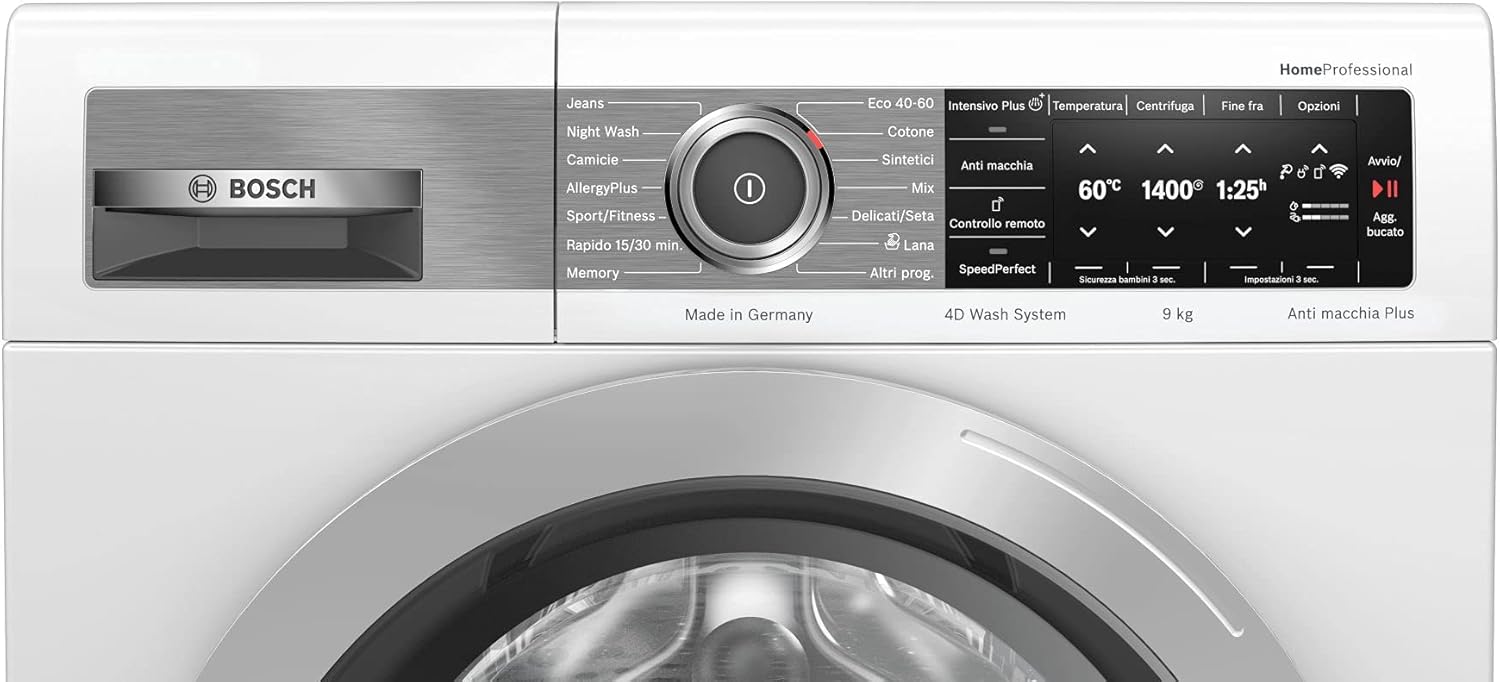

Acabatview of the Bosch WAV28GA9II washing machine control panel and front.
Close-up of the program selection dial on the Bosch WAV28GA9II.
4.2 Càrrega de la roba
Open the washing machine door and load laundry into the drum. Do not overload the machine; the maximum capacity is 9 kg. Ensure no items are caught in the door seal before closing.
The washing machine with its door open, ready for loading laundry.

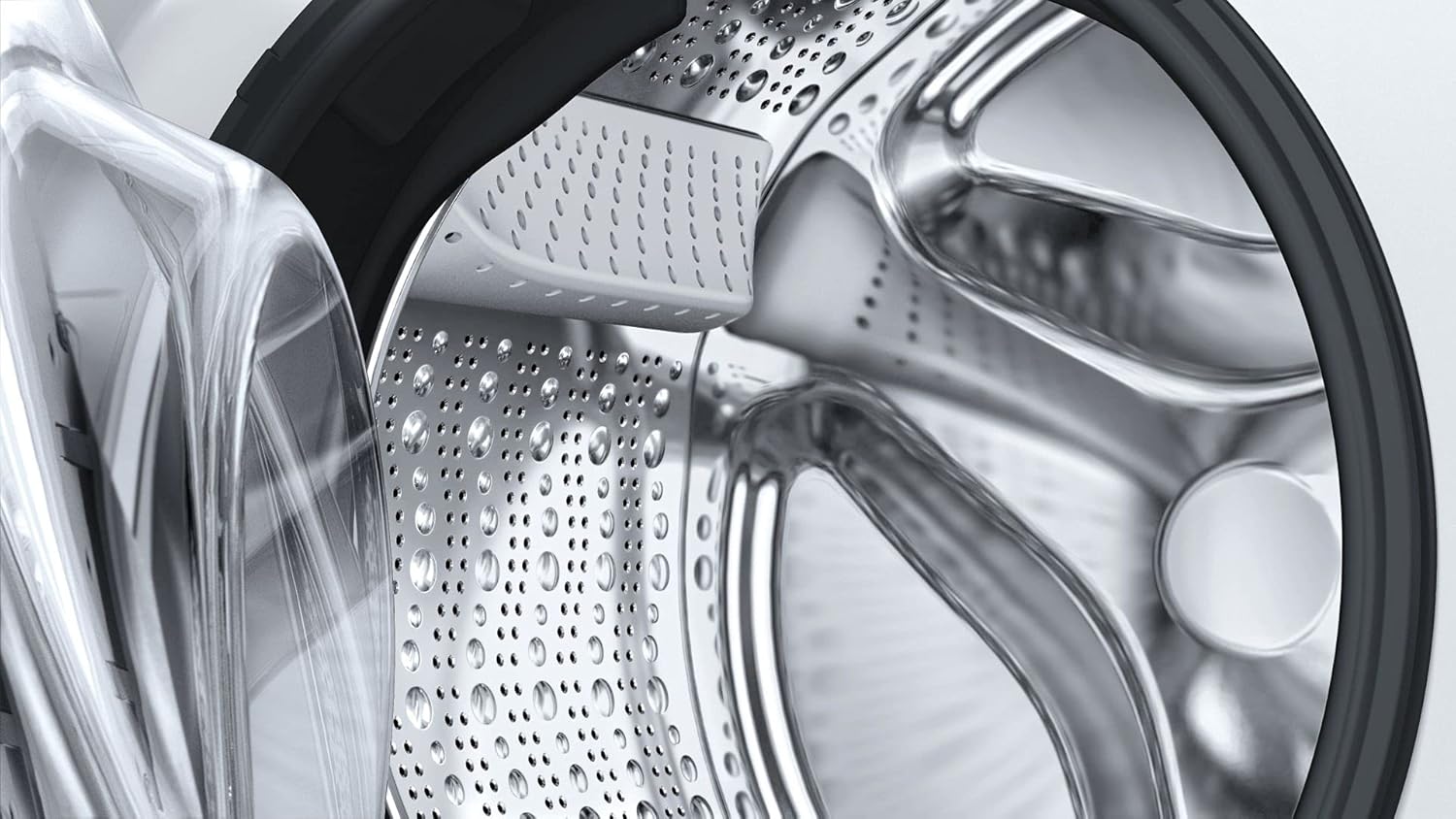

Un detallat view of the interior drum of the Bosch WAV28GA9II washing machine.
4.3 Addició de detergent
Add the appropriate amount of detergent and fabric softener to the dispenser drawer. Consult your detergent packaging for recommended dosages based on load size and water hardness.
4.4 Selecció de programes
Turn the program selection dial to choose the desired wash program. Available programs include:
- Eco 40-60
- Cotone (Cotton)
- Sintetici (sintètics)
- Barrejar
- Delicati/Seta (Delicates/Silk)
- Lana (Wool)
- Texans
- Rentat nocturn
- Camicie (Camisetes)
- AllergyPlus
- Esport/Fitness
- Rapido 15/30 min. (Quick 15/30 min.)
- Memòria
- Altri prog. (Other programs)
4.5 Característiques especials
- AntiStain Plus: Effectively removes 16 common and stubborn stain types without pre-treatment.
- 4D Wash System: Ensures efficient water and detergent distribution for thorough cleaning.
- Home Connect: Connect your appliance for remote control and smart features via the Home Connect app.
- EcoSilence Drive: Features a quiet and efficient inverter motor.
- AllergyPlus: A specific program designed for individuals with allergies.
The Home Connect app on a smartphone, demonstrating remote control capabilities for the washing machine.
The Bosch WAV28GA9II washing machine with laundry, highlighting its advanced wash features like AntiStain Plus.
4.6 Inici d'un cicle de rentat
After selecting the program and any desired options (e.g., temperature, spin speed), press the Start/Pause button to begin the cycle. The touch controls are responsive and require a firm, brief touch.
4.7 Fi de cicle
The machine will signal when the cycle is complete. Open the door and remove your laundry promptly to prevent wrinkles.
5. Manteniment
5.1 Neteja del tambor
Regularly run a drum cleaning cycle (if available) or a hot wash with no laundry and a descaling agent to prevent odors and residue buildup.
5.2 Neteja del dispensador de detergent
Remove the detergent dispenser drawer and rinse it under running water to remove any detergent or softener residue. Clean the housing of the dispenser as well.
5.3 Neteja del filtre
Periodically clean the fluff filter, usually located at the bottom front of the machine. Refer to the full manual for exact location and procedure to avoid water spillage.
5.4 Cura de l'exterior
Netegeu les superfícies exteriors amb un damp drap. Eviteu productes de neteja abrasius o dissolvents que puguin danyar l'acabat.
6. Solució De Problemes
If you encounter issues with your washing machine, consult the following common solutions:
- La màquina no arrenca: Ensure the power cord is securely plugged in, the door is fully closed, and the Start/Pause button has been pressed correctly. Check if the child lock is activated.
- Excessive vibration during spin: Verify that the machine is perfectly level and that the transport bolts have been removed during installation. Ensure the load is balanced inside the drum.
- L'aigua no s'escorre: Check if the drain hose is kinked or blocked. Clean the fluff filter.
- Codis d'error: If an error code appears on the display, refer to the comprehensive user manual for specific meanings and troubleshooting steps.
For persistent problems, contact Bosch customer service.
7. Especificacions
| Característica | Especificació |
|---|---|
| Marca | Bosch |
| Nom del model | WAV28GA9II |
| Dimensions del producte | 84.8 x 59.8 x 84.8 cm |
| Pes de l'article | 72 quilos |
| Capacitat | 9 quilos |
| Velocitat màxima de gir | 1400 RPM |
| Classificació d'eficiència energètica | A |
| Localització d'accés | Càrrega frontal |
| Color | Blanc |
| Tipus de control | Toca |
| Mode de funcionament | Automàtic |
8. Garantia i Suport
Your Bosch WAV28GA9II washing machine comes with a standard manufacturer's warranty. Additionally, the EcoSilence Drive motor is covered by a 10-year assistance warranty. For detailed warranty terms and conditions, please refer to the warranty card included with your appliance or visit the official Bosch weblloc.
For technical support, service requests, or spare parts, please contact Bosch customer service. You can find contact information on the Bosch website or in your product documentation. For more information about Bosch products, visit the Botiga Bosch.
