Real Flame 592LP-SHL

Real Flame Riverside 58" Oval Propane Fire Pit Bowl Instruction Manual

Model: 592LP-SHL | Brand: Real Flame

1. Introducció

This manual provides essential information for the safe assembly, operation, and maintenance of your Real Flame Riverside 58" Oval Propane Fire Pit Bowl. Please read all instructions carefully before use and retain this manual for future reference.

Real Flame Riverside 58 inch Oval Propane Fire Pit Bowl in Shale color, lit with flames, placed on a patio with outdoor seating.

Image: The Real Flame Riverside 58" Oval Propane Fire Pit Bowl, showcasing its design and flame.

2. Informació de seguretat

Your safety and the safety of others are paramount. Always follow all safety warnings and instructions provided. This product is CSA certified, ensuring it meets recognized safety standards.

  • Advertència de la proposta 65: Aquest producte us pot exposar a substàncies químiques, inclòs el monòxid de carboni, que l'estat de Califòrnia sap que causa defectes de naixement o altres danys reproductius. Per a més informació aneu a www.P65Warnings.ca.gov.
  • Assegureu-vos d'una ventilació adequada durant el funcionament.
  • Mantingueu els nens i les mascotes allunyats de la foguera durant el funcionament.
  • Do not use in enclosed spaces.
Safety features of the fire pit, including CSA certification, 1-year limited warranty, safe for use on a wood deck, and weather resistant MGO material.

Image: Visual representation of key safety features and certifications.

3. Què s'inclou

Desembaleu amb cura tots els components i assegureu-vos que heu rebut els articles següents:

  • Fire bowl with leveling feet
  • 28" linear stainless steel burner
  • Gray pumice stone
  • Seient del dipòsit
  • 10' LP hose with regulator
  • Vinyl storage cover
  • Battery for ignition

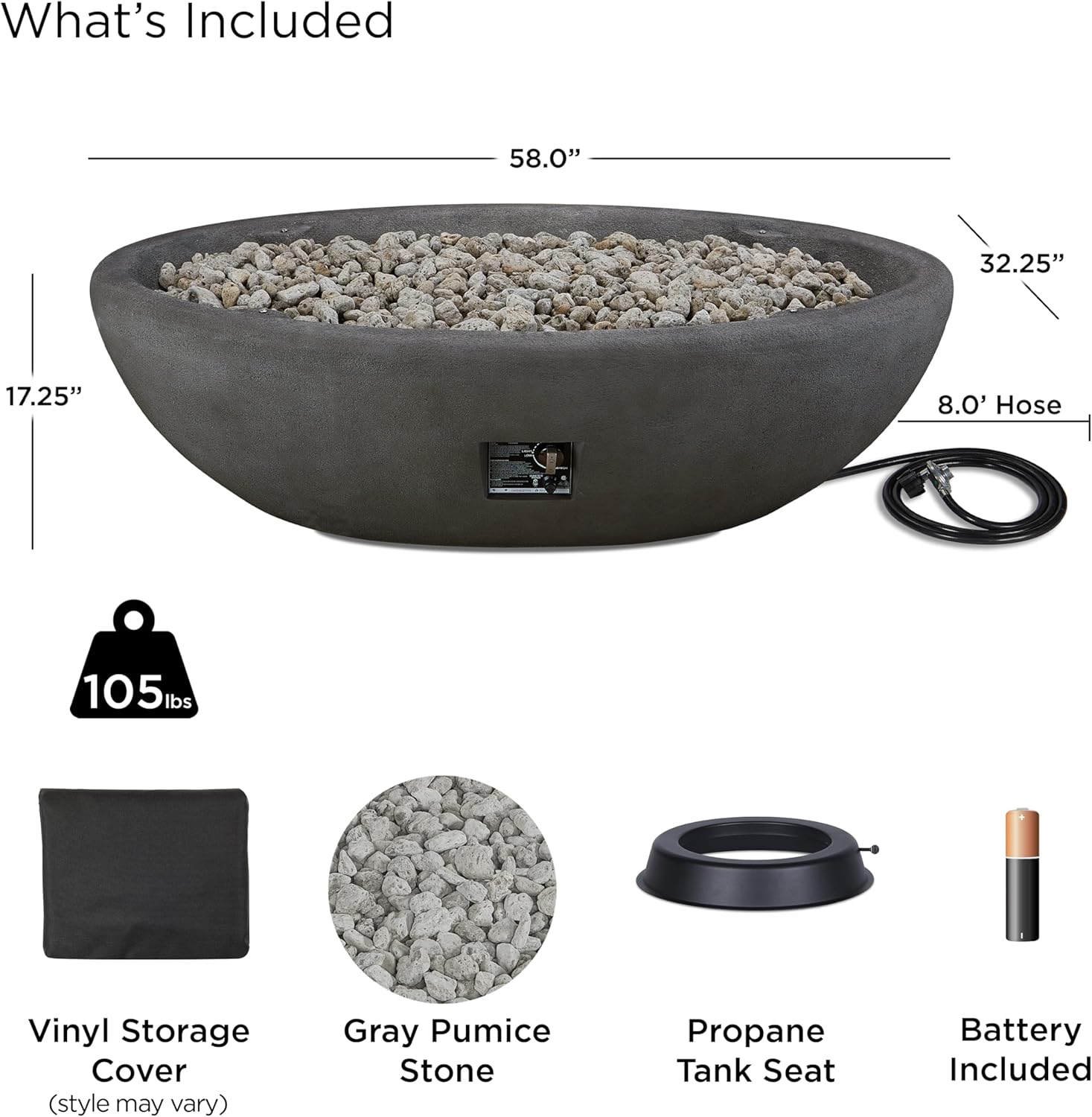

Diagram showing all included components: fire pit bowl, 105 lbs weight, vinyl storage cover, gray pumice stone, propane tank seat, and battery.

Image: An illustration detailing all parts included with the fire pit.

4. Muntatge i muntatge

Basic assembly is required for this fire pit. Please follow the detailed instructions provided in the full product manual for step-by-step guidance. Ensure all connections are secure before use.

Technical drawing of the fire pit with dimensions: 58.0 inches length, 32.25 inches width, 17.25 inches height, and an 8.0 foot hose.

Image: Dimensions of the fire pit, crucial for planning placement and assembly.

5. Instruccions de funcionament

To operate your Real Flame Riverside Fire Pit Bowl:

  1. Connect the 10' LP hose with regulator to a 20 lb LP tank.
  2. Place the tank on the provided tank seat.
  3. Ensure the battery for the push-button ignition is correctly installed.
  4. Turn on the gas supply at the LP tank.
  5. Press and hold the push-button ignition while turning the control knob to the 'ON' position.
  6. Adjust the flame height using the control knob to achieve your desired heat output (up to 50,000 BTUs).

A 20 lb LP tank provides approximately 8 hours of burn time on a high setting and up to 26 hours on a low setting.

Close-up images highlighting the stainless steel burner, push-button ignition, gray pumice stone, and 50,000 BTU heat output.

Image: Key operational components including the burner and ignition system.

For visual guidance on operation, please refer to the official product videos or the complete manual.

6. Manteniment

To ensure the longevity and optimal performance of your fire pit:

  • The fire pit is crafted from durable MGO and is weather and UV resistant.
  • Use the included vinyl storage cover to protect the fire pit from the elements when not in use.
  • Regularly inspect the hose and connections for any signs of wear or damage.
  • Clean the exterior with a soft cloth and mild detergent as needed.

7. Solució De Problemes

If you encounter any issues with your fire pit, please consult the comprehensive troubleshooting section in the full product manual. Common issues and their solutions are typically covered there.

8. Especificacions

CaracterísticaDetall
Número de model592LP-SHL
MaterialMetal (MGO)
Dimensions del producte32.25 "P x 57.99" W x 17.25" H
Pes de l'article105 lliures
Tipus de combustibleGas de petroli liquat (LP)
Sortida de calor50,000 BTU
Mida del cremador28" linear stainless steel
Burn Area Dimensions52"L x 26W" x 3.25"D
Tipus d'encesaBattery operated push button
Conversion OptionCan be converted to natural gas with Real Flame conversion kit G0002-11 (not included), by a certified gas technician.
CertificacionsCertificat CSA

9. Garantia i Suport

This Real Flame product comes with a Garantia limitada d'1 any. For warranty claims, technical assistance, or any other inquiries, please contact Real Flame Customer Support. Refer to the original product packaging or the Real Flame weblloc web per obtenir dades de contacte específiques.

Recursos en línia: For additional information, FAQs, and support, visit the official Real Flame weblloc.
