1. Introducció
This manual provides essential information for the safe and efficient use of your AT&T USB-C Wall Charger. Designed for fast charging, this power adapter features foldable prongs for travel convenience and is compatible with a wide range of USB-C devices, including iPhones, iPads, Samsung Galaxy, and Google Pixel phones.
Característiques principals:
- Sortida potent: USB-C power delivery provides up to 80% faster charging compared to standard chargers, ideal for rapidly charging phones, tablets, and other USB-C devices.
- Compatibilitat universal: Works seamlessly with compatible iPhone, iPad, Samsung Galaxy, Google Pixel, and other USB-C enabled devices, delivering optimal charging speeds.
- Disseny preparat per a viatjar: Compact form factor with foldable prongs makes this charger ideal for travel, weighing only 0.14 pounds for ultimate portability.
- Protecció avançada: Built-in safeguards prevent over-voltage, over-current, and overheating, ensuring safe, reliable charging for all your devices.
- Qualitat assegurada: Backed by a 1-year limited warranty, providing peace of mind while the durable construction ensures long-lasting performance.
2. Configuració i connexió
Follow these steps to set up and connect your AT&T USB-C Wall Charger:
- Desplegueu les pues: Estireu suaument les pues plegables del cos del carregador fins que encaixin al seu lloc.
- Connecteu el cable USB-C: Insert one end of your USB-C charging cable (not included, unless specified by product packaging) into the USB-C port on the charger. Ensure it is fully inserted.
- Connecteu-vos a la presa de corrent: Introduïu les puntes del carregador a una presa de corrent estàndard.
- Connecta't al dispositiu: Connect the other end of the USB-C charging cable to your compatible device (e.g., smartphone, tablet). Your device should indicate that it is charging.
Image: The AT&T USB-C Wall Charger in white, showing its compact design and extended foldable prongs.
Image: A close-up of the AT&T USB-C Wall Charger, highlighting its foldable prongs for easy storage and travel.

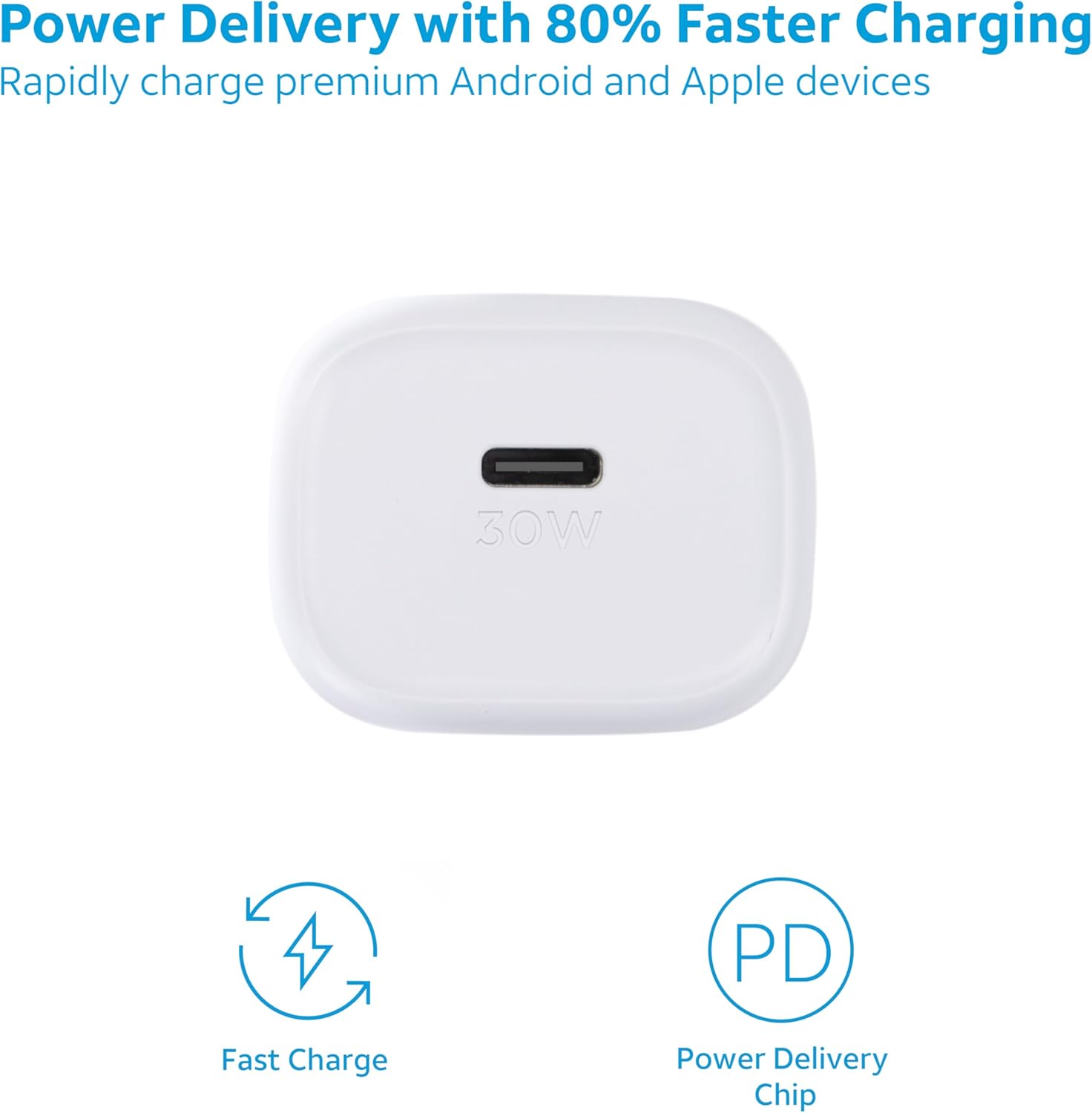

Imatge: La part frontal view of the AT&T USB-C Wall Charger, clearly showing the 30W USB-C charging port.
3. Instruccions de funcionament
This charger is designed for optimal performance and fast charging. Once connected, the charger automatically detects your device's power requirements and delivers the fastest possible charge safely.
Capacitat de càrrega ràpida:
The USB-C Power Delivery (PD) technology allows for significantly faster charging speeds compared to conventional chargers. For best results, use a high-quality USB-C to USB-C or USB-C to Lightning cable that supports Power Delivery.
Image: A visual representation of the charger's fast charging capabilities and integrated Power Delivery chip.
Image: An illustration demonstrating the charger's universal compatibility with various devices like phones, tablets, and smartwatches.
Característiques de seguretat:
The charger incorporates multiple protection features to ensure safe operation:
- Sobrevoltage protecció
- Protecció contra sobreintensitat
- Protecció contra sobreescalfament
- Protecció contra curtcircuits

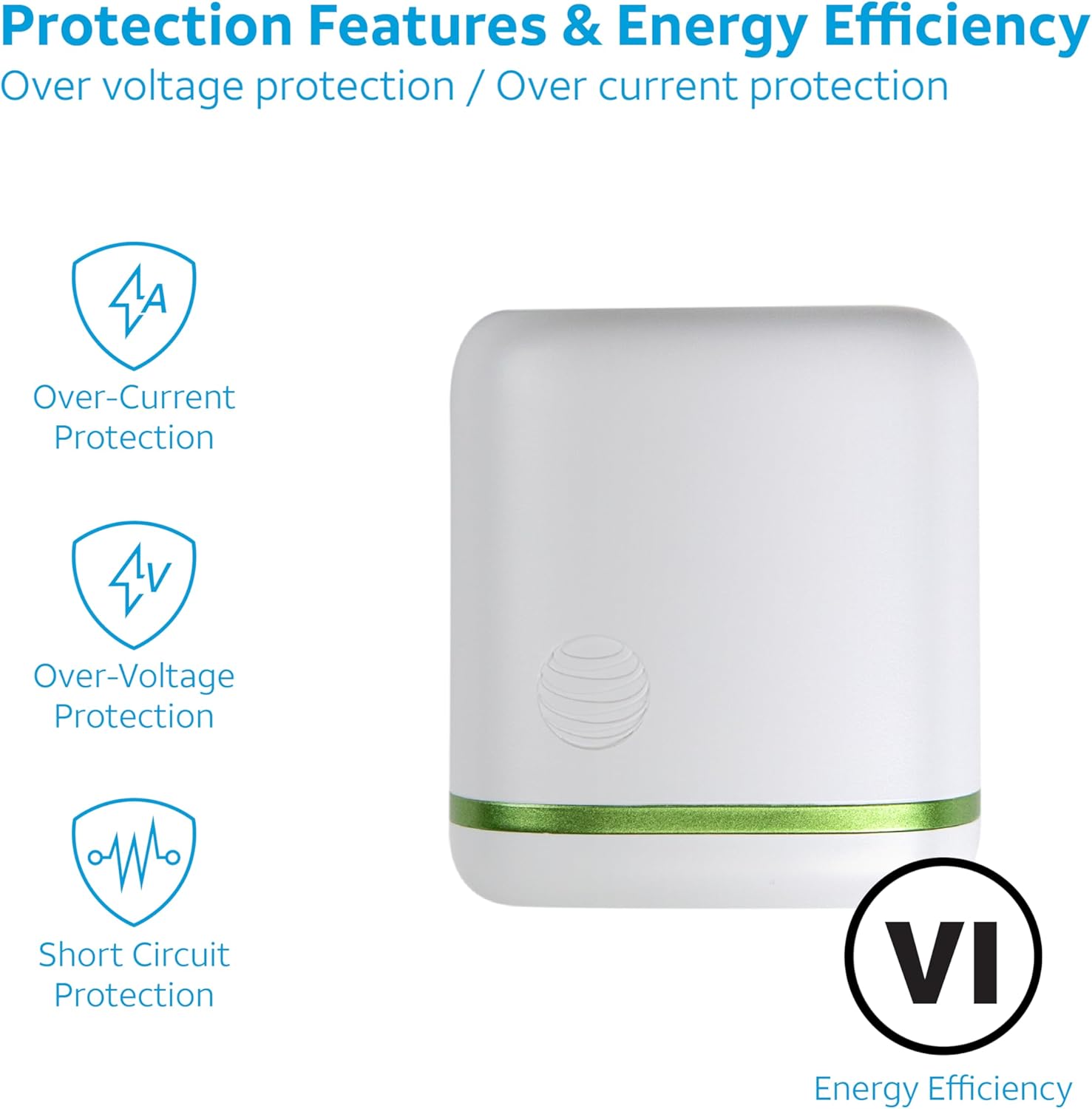

Image: A graphic detailing the charger's built-in safety mechanisms, including protection against over-current, over-voltage, and short circuits, along with its energy efficiency rating.
4. Manteniment
Per garantir la longevitat i el rendiment òptim del carregador, seguiu aquestes pautes de manteniment:
- Keep the charger dry. Do not expose it to moisture or liquids.
- Netegeu el carregador amb un drap suau i sec. Eviteu utilitzar productes químics agressius o materials abrasius.
- Guardeu el carregador en un lloc fresc i sec quan no l'utilitzeu.
- Eviteu deixar caure el carregador ni sotmetre'l a impactes forts.
- Ensure the foldable prongs are fully retracted when storing or traveling to prevent damage.
5. Solució De Problemes
If you encounter issues with your AT&T USB-C Wall Charger, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El dispositiu no es carrega. | Loose connection, faulty cable, power outlet issue, incompatible device. | Ensure cable is securely connected to both charger and device. Try a different USB-C cable. Test the outlet with another device. Verify device compatibility. |
| Càrrega lenta. | Cable not supporting Power Delivery, device not supporting fast charging, background apps. | Use a USB-C cable rated for Power Delivery. Ensure your device supports fast charging. Close unnecessary background applications on your device. |
| El carregador està calent. | Normal operation, excessive load, poor ventilation. | A slight warmth is normal during fast charging. Ensure the charger is in a well-ventilated area and not covered. If excessively hot, disconnect immediately and contact support. |
6. Especificacions
| Característica | Detall |
|---|---|
| Número de model | 06535 |
| Marca | AT&T |
| Color | 30W Blanc |
| Tecnologia de connectivitat | USB |
| Tipus de connector | USB tipus C |
| Dispositius compatibles | Cellular Phones (Apple iPhone, Samsung Galaxy, Google Pixel) |
| Característica especial | Càrrega ràpida |
| Pes de l'article | 2.08 unces |
| Dimensions del paquet | 4.13 x 2.99 x 1.65 polzades |
| Fabricant | AT&T |
| País d'origen | Xina |
| Primer disponible | 25 de juliol de 2023 |
7. Garantia i Suport
Your AT&T USB-C Wall Charger is backed by a Garantia limitada d'1 any. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.
For warranty claims, technical support, or any inquiries regarding your product, please contact AT&T customer support through their official channels or visit their weblloc per obtenir més informació.
Video: An official product video from AT&T Accessories showcasing the AT&T Fast Wall Chargers, highlighting their features and benefits.
