Soozier Foldable Exercise Bike (Model A90-192RD) Instruction Manual

1. Introducció

This manual provides essential information for the safe and effective use of your Soozier Foldable Exercise Bike, Model A90-192RD. Please read all instructions carefully before assembly and operation. Retain this manual for future reference.

Informació important de seguretat

• Consulteu un metge abans de començar qualsevol programa d'exercici.
• Mantingueu els nens i les mascotes lluny de l'equip durant l'ús.
• Col·loqueu la bicicleta estàtica sobre una superfície plana i estable.
• Assegureu-vos que tots els cargols i femelles estiguin ben ajustats abans de cada ús.
• Porteu roba i calçat adequats per fer exercici.
• Deixa de fer exercici immediatament si et sents dèbil, marejat o tens dolor.
• Maximum user weight capacity: 110 kg (242 lbs).

2. Contingut del paquet

Upon opening the package, verify that all components are present and undamaged. The package should contain the main frame of the exercise bike, seat, backrest, pedals, handlebars, LCD monitor, and necessary assembly hardware and tools.

Image: The Soozier Foldable Exercise Bike, showcasinel seu disseny compacte i els seus components clau.

3. Muntatge i muntatge

Follow these steps to assemble and prepare your exercise bike for use:

1. Desplegant el marc: Carefully unfold the main frame of the exercise bike until it locks into the upright position. Ensure the locking pin is securely engaged.
2. Attaching Stabilizers: Secure the front and rear stabilizer bars to the main frame using the provided bolts and nuts.
3. Instal·lació de pedals: Attach the left and right pedals to their respective cranks. Note that the left pedal typically tightens counter-clockwise.
4. Mounting Seat and Backrest: Secure the seat and backrest to the seat post.
5. Attaching Handlebars and Monitor: Install the handlebars and then attach the LCD monitor to the designated slot on the handlebars. Connect any necessary sensor wires.
6. Ajust de l'alçada del seient: Adjust the seat to one of the five available height settings (28.75" - 32.75") to ensure a comfortable and ergonomic riding position. Secure the adjustment knob firmly.

Image: Illustration of the 5-position seat adjustment mechanism, allowing users to find their most comfortable seat height.

Assembly and Usage Demonstration Video

Video: A visual guide demonstrating the assembly process, seat adjustment, and basic operation of the Soozier Foldable Exercise Bike.

4. Instruccions de funcionament

Your Soozier Foldable Exercise Bike is designed for effective cardio workouts. Familiarize yourself with its features for optimal use.

Magnetic Resistance Adjustment

The bike features 8 levels of magnetic resistance. To adjust the resistance, turn the tension control knob located below the handlebars. Turn clockwise to increase resistance for a more challenging workout, and counter-clockwise to decrease resistance.

Imatge: Una imatge detallada view of the 8-level magnetic resistance dial, indicating low to high tension control.

Funcions del monitor LCD

The integrated LCD monitor tracks your workout data. It displays the following metrics:

• Hora: Durada del teu entrenament actual.
• Velocitat: Velocitat ciclista actual.
• Distància: Distància recorreguda durant l'entrenament actual.
• Calories cremades: Estimated calories expended.
• Heart Rate (Pulse): Your current heart rate, measured via sensors on the handlebars.
• Escaneig: Passa automàticament per totes les funcions de la pantalla.

Press the red button on the monitor to cycle through the display modes or to reset the values. Hold the button to reset all values.

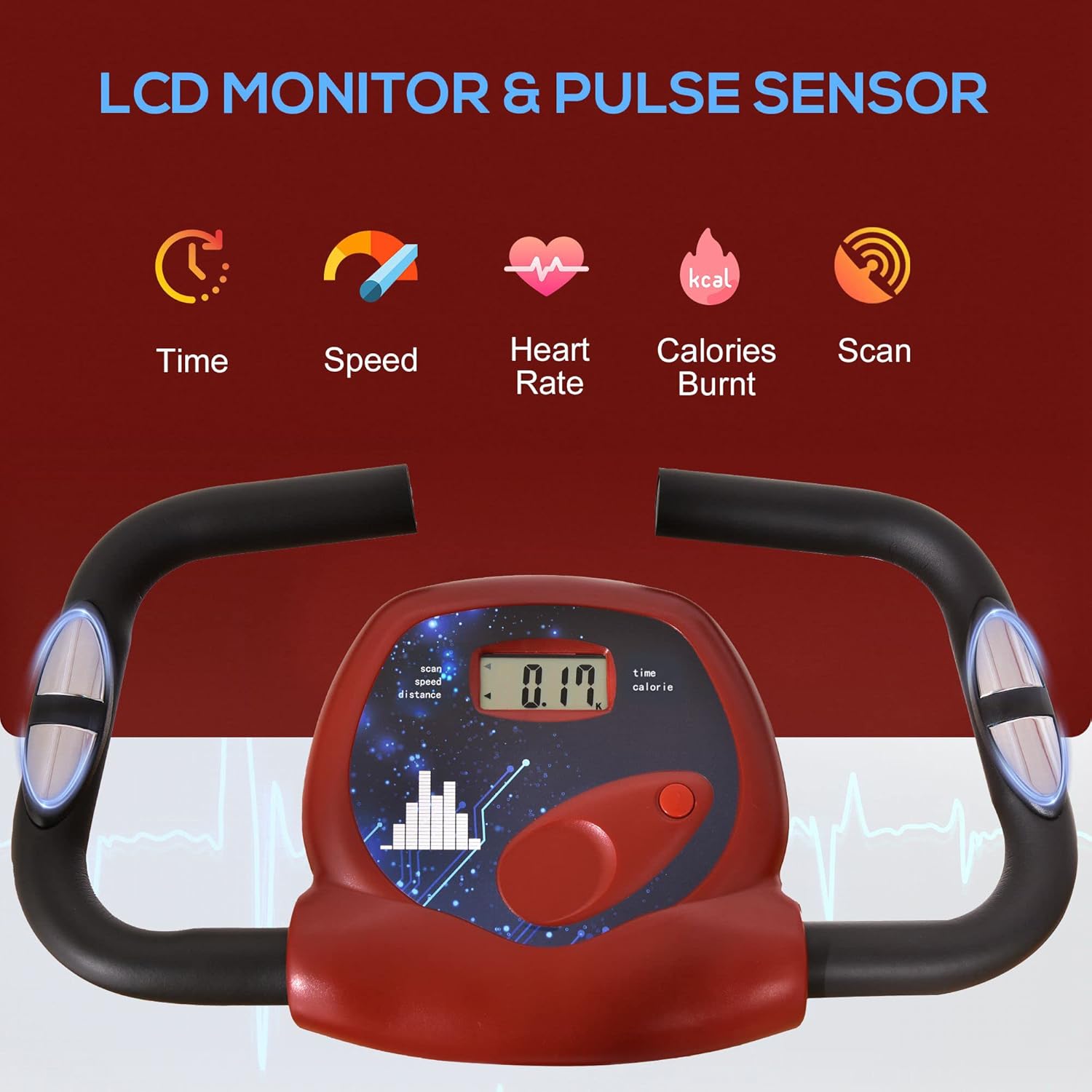

Image: The LCD monitor showing various workout metrics such as time, speed, distance, calories burned, and pulse.

Característiques detallades acabadesview Vídeo

Video: A comprehensive demonstration of the Soozier Foldable Exercise Bike's features, including resistance adjustment, monitor usage, and overall functionality.

5. Manteniment

Un manteniment regular garanteix la longevitat i el funcionament segur de la teva bicicleta estàtica.

• Neteja: Netegeu la bicicleta amb un anunciamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
• Inspecció de connexions: Reviseu periòdicament tots els cargols, femelles i peces mòbils per assegurar-vos que estiguin ben fixats. Estrenyeu-los si cal.
• Lubricació: No cal lubricació específica per al sistema de resistència magnètica.
• Emmagatzematge: Guarda la bicicleta en un lloc sec i fresc, allunyat de la llum solar directa i de temperatures extremes.

6. Solució De Problemes

If you encounter issues with your exercise bike, refer to the following common solutions:

• El monitor LCD no mostra: Check if the batteries are correctly installed and have sufficient charge. Replace batteries if needed. Ensure all sensor wires are securely connected.
• Resistència que no canvia: Verify that the tension control cable is properly connected and not kinked. Ensure the resistance knob is turning freely.
• Sorolls inusuals: Check all assembly points for loose bolts or components. Ensure the bike is on a level surface.
• Funcionament inestable: Confirm that the bike is fully unfolded and the locking pin is engaged. Adjust the leveling caps on the stabilizer bars if the floor is uneven.

7. Especificacions

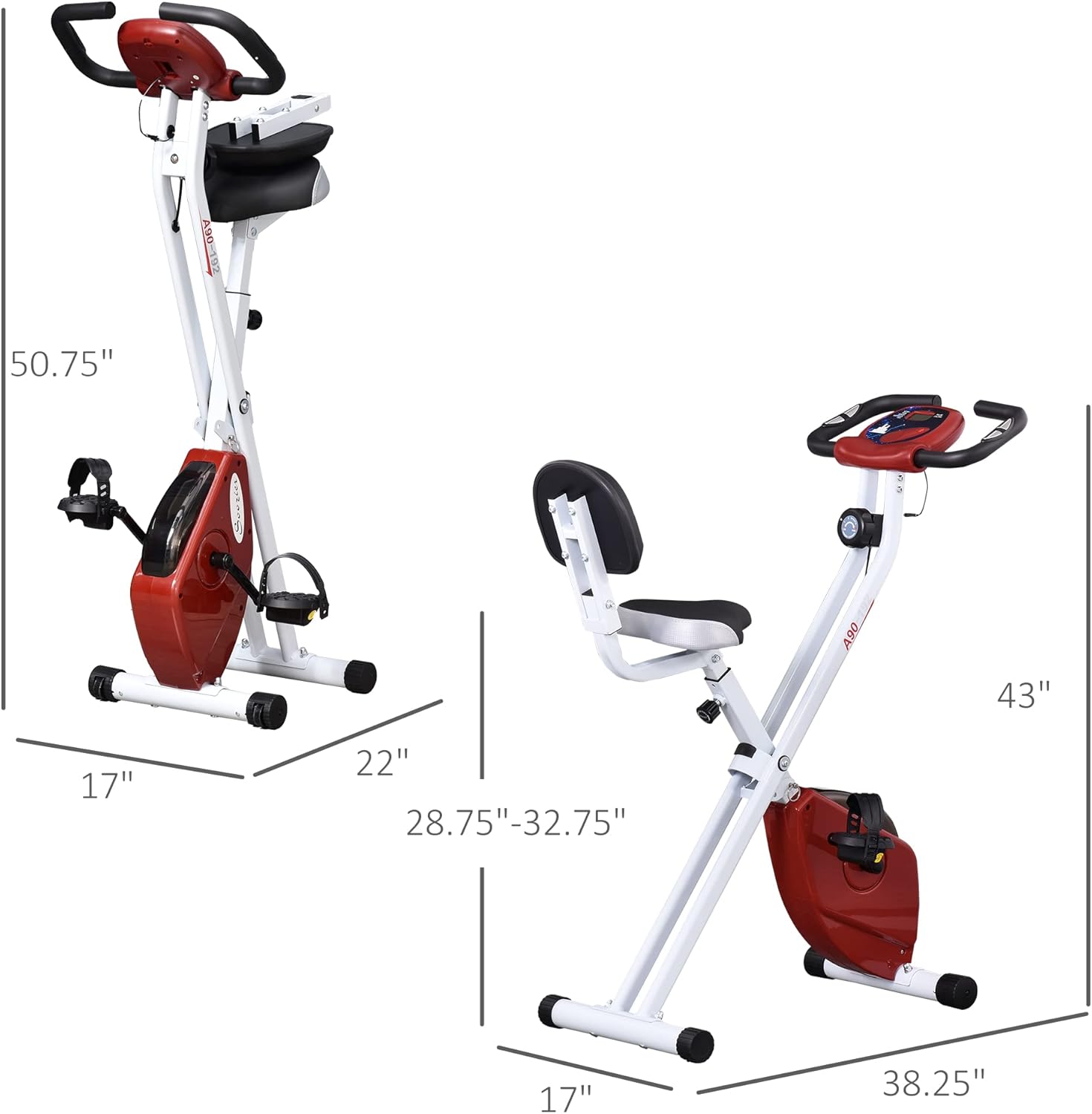

Image: Visual representation of the exercise bike's dimensions when unfolded and folded, highlighting its compact storage capability.

8. Plegable i emmagatzematge

To fold your exercise bike for compact storage:

1. Ensure the bike is on a stable surface.
2. Locate the locking pin or knob that secures the frame in the unfolded position.
3. Disengage the locking mechanism.
4. Carefully fold the frame inwards until it reaches its compact storage position.
5. The bike is equipped with two front wheels for easy movement once folded. Tilt the bike and roll it to your desired storage location.

Image: A user demonstrating the ease of moving the folded exercise bike using its integrated transport wheels.

9. Garantia i Suport

For warranty information, technical support, or to order replacement parts, please contact Soozier customer service. Refer to your purchase documentation for specific contact details or visit the official Soozier weblloc.
