Introducció
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your CHONCHOW 401J Gaming Keyboard and Mouse Combo. Please read this manual thoroughly to ensure optimal performance and longevity of your product.

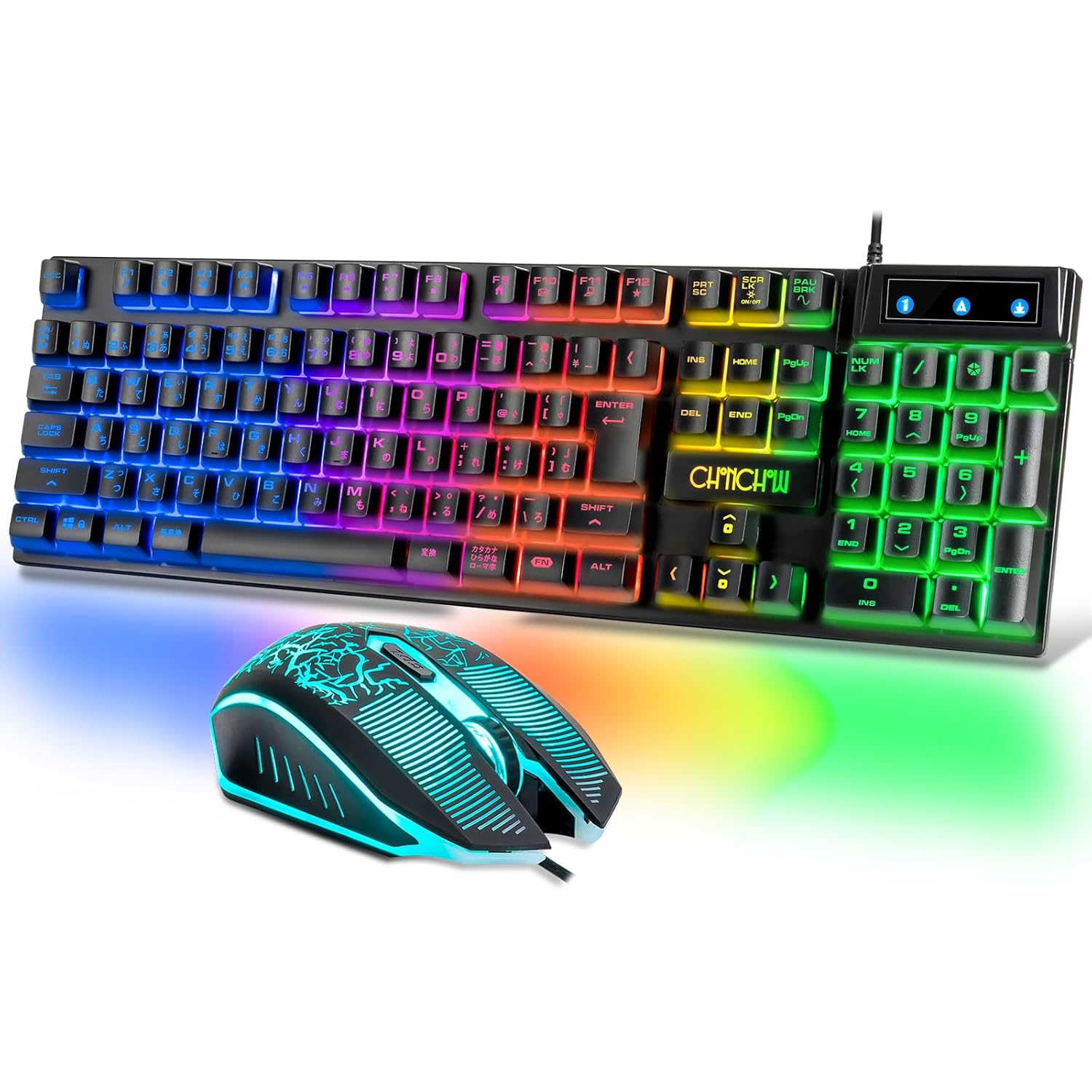

Image: The CHONCHOW 401J Gaming Keyboard and Mouse Combo, featuring a black keyboard with multi-color RGB backlighting and a matching black gaming mouse with blue LED accents.
Contingut del paquet
Verifiqueu que tots els elements que s'enumeren a continuació siguin presents al vostre paquet:
- 1 x CHONCHOW 401J Gaming Keyboard
- 1 x CHONCHOW Gaming Mouse
- 1 x USB Connection Cable (integrated)
Configuració
- Connecta't al dispositiu: Plug the integrated USB cable from the keyboard and mouse into an available USB port on your computer or compatible gaming console (PS4/PS5).
- Instal·lació del controlador: The keyboard and mouse are plug-and-play devices. No additional drivers are required for Windows 10, Windows 8, Windows 7, Windows XP, Windows VISTA, or Mac OS.
- Ús inicial: The devices should be recognized automatically by your operating system within a few seconds and will be ready for use.
Instruccions de funcionament
Funcions del teclat
- Japanese Layout: The keyboard features a standard Japanese 108-key layout, including 'No Conversion' and 'Conversion' keys for Japanese input methods.
- 19-Key Anti-Collision: Up to 19 keys can be pressed simultaneously without conflict, ensuring accurate input during intense gaming sessions.
Image: Close-up of the CHONCHOW 401J keyboard highlighting the Japanese key layout and indicating the 19-key anti-collision feature.
Multimèdia i tecles de drecera
Utilitzeu el FN key in combination with the F1-F12 keys for various multimedia and system shortcuts:

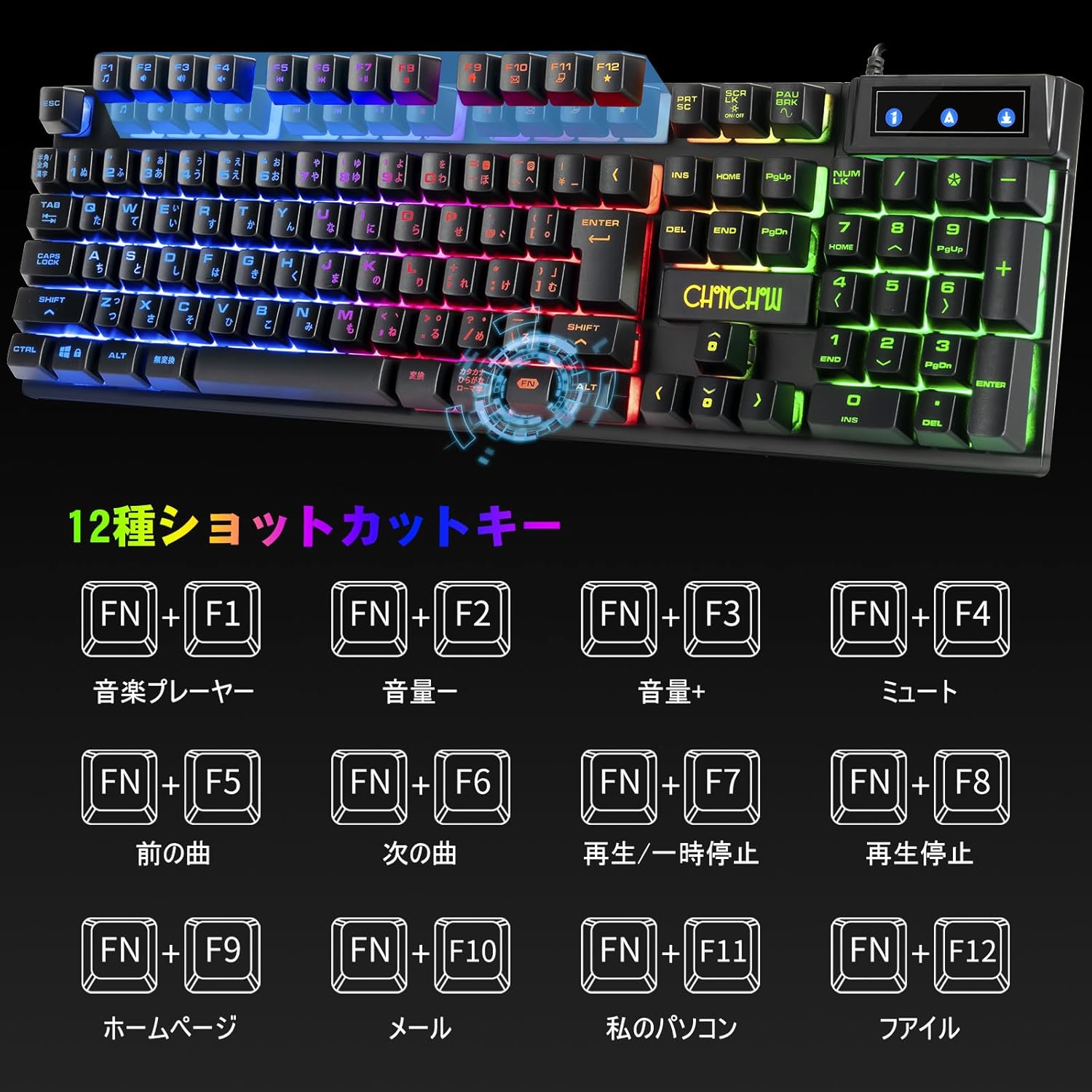

Image: Diagram illustrating the 12 shortcut key combinations on the CHONCHOW 401J keyboard using the FN key.
- FN + F1: Reproductor multimèdia
- FN + F2: Baixa el volum
- FN + F3: Puja el volum
- FN + F4: Silenciar
- FN + F5: Pista anterior
- FN + F6: Pista següent
- FN + F7: Reproduir/Pausa
- FN + F8: Atureu-vos
- FN + F9: Pàgina d'inici
- FN + F10: Correu
- FN + F11: El meu ordinador
- FN + F12: Calculadora
Keyboard Backlight Control
Image: Diagram showing key combinations for controlling the keyboard's RGB backlight features.
- FN + PAU BRK: Toggle Breathing Mode
- FN + ↑ / ↓: Adjust Backlight Brightness (Up/Down)
- FN + ☀: Turn Backlight ON/OFF
- FN + ← / →: Change Breathing Mode Speed (Slower/Faster)
Funcions del ratolí
- Botons: The mouse features 6 buttons: Left Click, Right Click, Wheel Click, DPI Cycle Button, Forward Button, and Backward Button.
- Ajust de DPI: Cycle through 4 DPI levels (800, 1600, 2400, 3200) using the DPI Cycle Button to adjust sensitivity.
- 7-Color RGB Breathing Light: The mouse features an automatic 7-color LED backlight (Red, Green, Blue, Purple, White, Orange, Navy Blue) that cycles through a breathing effect.
Característiques
Illuminating Backlight
The keyboard offers a 16.78 million color RGB backlight with various modes and adjustable breathing effects. The mouse features a 7-color RGB breathing light, enhancing the gaming atmosphere.
Disseny durador i impermeable
Constructed from high-quality ABS material, the keyboard and mouse are designed for durability, resisting shock and wear. The keycaps utilize ABS technology to prevent fading. The keyboard includes three drain holes and waterproof material to protect against accidental spills. In case of liquid exposure, simply wipe it dry.
Image: The CHONCHOW 401J keyboard with water splashing over it, demonstrating its waterproof design, and a close-up of a drain hole on the back.
Disseny ergonòmic
Both the keyboard and mouse are ergonomically designed for comfortable use over extended periods. The keyboard features a solid stand for adjustable typing angles and a non-slip bottom for stability.

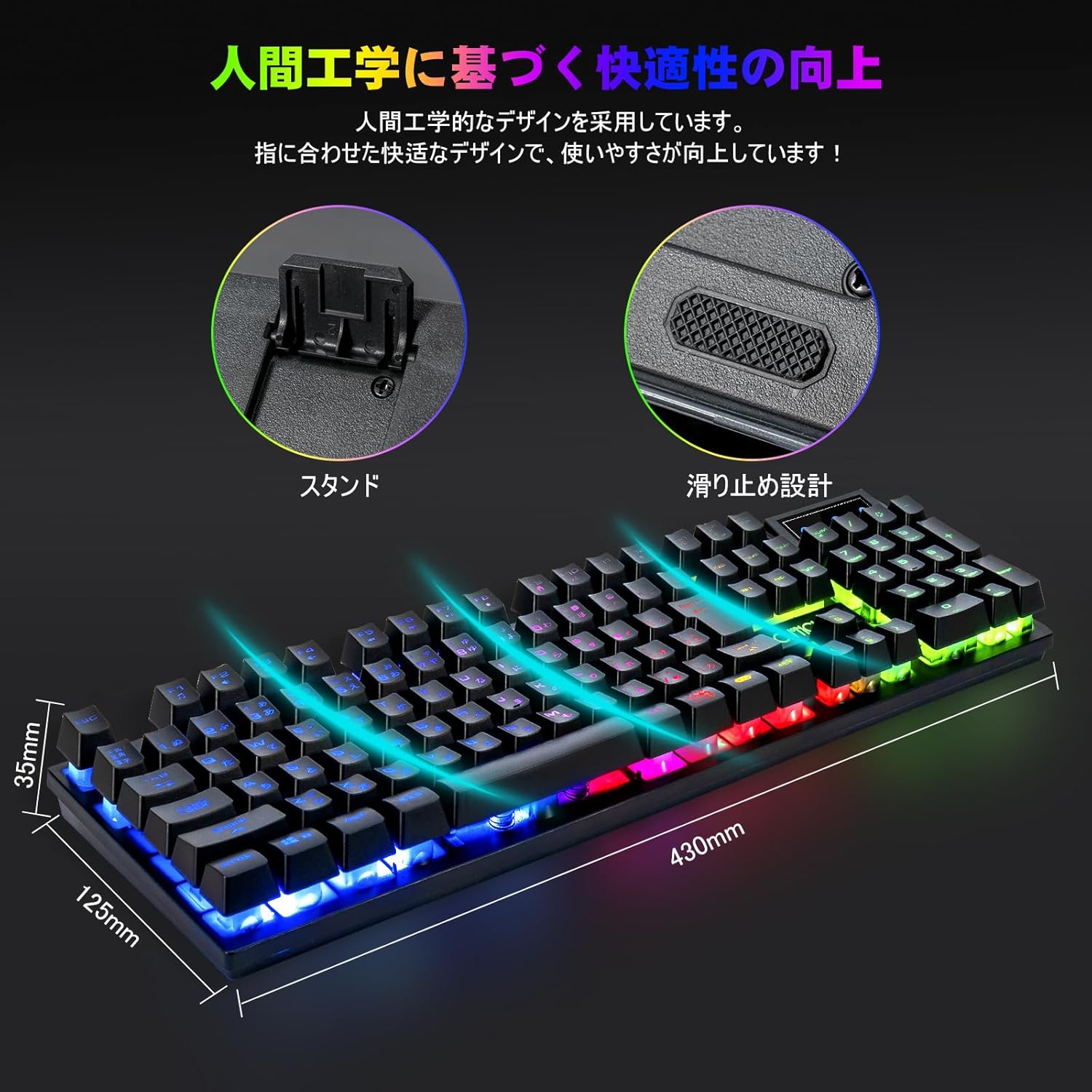

Image: Visual representation of the CHONCHOW 401J keyboard's ergonomic stand, non-slip base, and overall dimensions (430mm length, 125mm width, 35mm height).
Manteniment
- Neteja de les tecles: The keycaps are removable for easy cleaning. Use a soft brush or compressed air to remove dust and debris.
- Neteja de superfícies: Wipe the surface of the keyboard and mouse with a soft, damp tela. Eviteu utilitzar productes químics o materials abrasius.
- Vessaments de líquids: In case of accidental liquid spills on the keyboard, disconnect it immediately, drain any liquid, and allow it to dry completely before reconnecting.
Resolució de problemes
- El dispositiu no respon: Ensure the USB cable is securely connected to your device. Try plugging it into a different USB port.
- La llum de fons no funciona: Check the backlight control key combinations (FN + ☀ to turn ON/OFF, FN + ↑ / ↓ for brightness).
- Claus que no es registren: If specific keys are not working, try cleaning around the keycap. For persistent issues, contact customer support.
- Mouse Cursor Erratic: Ensure the mouse sensor is clean and free from obstructions. Use on a suitable mouse pad or surface.
Especificacions
| Característica | Detall |
|---|---|
| Marca | CHONCHOW |
| Número de model | 1910B (also known as 401J) |
| Tecnologia de connectivitat | USB per cable |
| Disposició del teclat | Japanese, 108 Keys |
| Keyboard Anti-Collision | 19 claus |
| Il·luminació de fons del teclat | 16.78 milions de colors RGB |
| Nivells de DPI del ratolí | 800, 1600, 2400, 3200 |
| Botons del ratolí | 6 (Left, Right, Wheel, DPI Cycle, Forward, Backward) |
| Retroil·luminació del ratolí | 7-Color RGB Breathing |
| Material | ABS |
| Compatibilitat | PC (Windows 10/8/7/XP/VISTA), Mac OS, PS4, PS5 |
| Dimensions del producte (teclat) | 43 x 12.5 x 3.5 cm |
| Pes de l'article | 800 g |
| Longitud del cable USB | 1.5 m (4.9 peus) |
Garantia i Suport
Aquest producte ve amb un 12 mesos de garantia from the date of purchase. If you encounter any issues or have questions regarding your CHONCHOW 401J Gaming Keyboard and Mouse Combo, please contact CHONCHOW customer support for assistance.
