Manual d'usuari

1. Introducció

This manual provides essential information for the installation, operation, and maintenance of your Forte 56 Side by Side Refrigeration Pair. This appliance consists of two independent units: the Forte F14ARESSS 28 Inch All Refrigerator and the Forte F14UFESSS 28 Inch All Freezer. Both units are designed for freestanding counter-depth placement and feature a convertible function, allowing either unit to operate as a refrigerator or a freezer.

Please read this manual thoroughly before using the appliance to ensure safe and efficient operation. Keep this manual for future reference.

2. Informació de seguretat

La vostra seguretat i la dels altres són molt importants. Hem proporcionat molts missatges de seguretat importants en aquest manual i al vostre aparell. Llegiu i obeïu sempre tots els missatges de seguretat.

• Seguretat elèctrica: Ensure the appliance is connected to a properly grounded electrical outlet. Do not use extension cords or ungrounded adapters.
• Ventilació: Allow adequate space around the appliance for proper ventilation to prevent overheating. Refer to installation instructions for specific clearances.
• Seguretat infantil: Supervise children near the appliance. Old refrigerators and freezers are dangerous if left unattended. Remove doors before disposal.
• Materials inflamables: No emmagatzemeu substàncies explosives com ara llaunes d'aerosol amb un propulsor inflamable en aquest aparell.
• Neteja: Desconnecteu sempre l'aparell abans de netejar-lo o fer-ne el manteniment.

3. Característiques del producte

The Forte 56 Side by Side Refrigeration Pair is equipped with advanced features designed for optimal food preservation and user convenience:

• Tecnologia sense escarxament: This feature prevents frost build-up on the inner walls of both units, eliminating the need for periodic manual defrosting.
• Multi-Air Flow System: Maintains optimal humidity levels and ensures an even temperature distribution throughout the interior, keeping your food fresher for longer periods.
• Il·luminació LED: Bright and energy-efficient LED lights illuminate the interior, making it easy to find items quickly.
• Reversible Door Swing: Both the refrigerator and freezer units feature field-reversible doors, allowing you to adjust the door swing direction to best suit your kitchen layout.
• Funcionalitat convertible: Each 13.5 cu. ft. unit can be conveniently converted between a refrigerator and a freezer, offering flexible storage solutions.
• 5 Configuracions de temperatura: Both the refrigerator and freezer configurations offer 5 distinct temperature settings, allowing you to find the ideal temperature for your stored items.

Imatge: Interior view of both units with doors open, showcasing the spacious design and adjustable glass shelves.

4. Configuració i instal·lació

Proper installation is crucial for the performance and longevity of your appliance. It is recommended to have these units installed by a qualified technician.

4.1 Desembalatge

Carefully remove all packaging materials. Inspect the units for any shipping damage. Report any damage immediately to your retailer.

4.2 Col·locació

Place the units on a flat, stable surface away from direct sunlight or heat sources. Ensure adequate clearance around the units for proper air circulation. The recommended dimensions for the pair are approximately 56 inches wide (28 inches per unit), 30.31 inches deep, and 73.03 inches high.

Image: Dimensional diagram of a single Forte unit.

4.3 Anivellació

Adjust the leveling feet at the bottom of each unit to ensure they are stable and level. This helps with door alignment and efficient operation.

4.4 Inversió de porta

Both units come with a right hinge but feature field-reversible doors. If you wish to change the door swing direction, refer to the detailed instructions provided in the separate installation guide or consult a qualified technician.

Imatge: Frontal view of the Forte Side by Side Refrigeration Pair.

5. Instruccions de funcionament

5.1 Inici inicial

After installation, plug in the units. Allow them to run for at least 4-6 hours before loading with food. This allows the interior to reach the set temperature.

5.2 Converting Between Refrigerator and Freezer

Each unit can be converted between a refrigerator and a freezer. Locate the control panel, typically inside the unit. Use the designated controls to select the desired mode (refrigerator or freezer) and temperature setting from the 5 available options. Refer to the specific unit's internal diagram for exact control locations.

Image: Interior of a Forte unit configured as a refrigerator, showing food storage.

5.3 Control de temperatura

The 5 temperature settings allow for precise control. For optimal food preservation, maintain refrigerator temperatures between 34°F and 40°F (1°C and 4°C) and freezer temperatures at 0°F (-18°C) or colder.

5.4 Pautes d'emmagatzematge d'aliments

Utilize the glass shelves and door bins for organized storage. The Multi-Air Flow system ensures consistent temperatures, but avoid blocking air vents with food items.

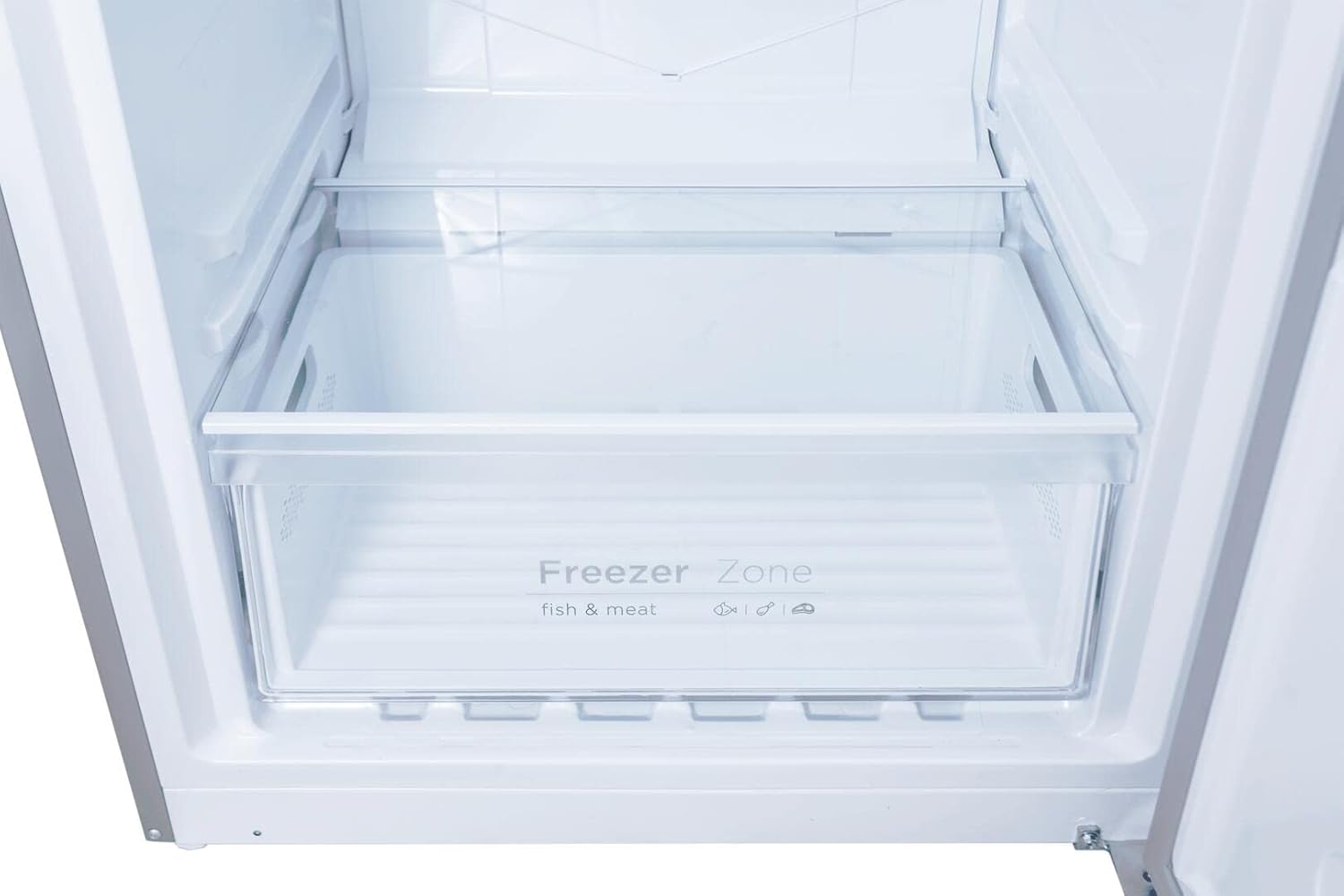

Image: Close-up of the freezer zone drawer, ideal for fish and meat.

6. Manteniment

6.1 Neteja

Regular cleaning helps maintain the appearance and efficiency of your appliance. Unplug the units before cleaning.

• Interior: Wipe down interior surfaces, shelves, and drawers with a mild detergent and warm water. Rinse and dry thoroughly.
• Exterior: Clean the stainless steel exterior with a soft cloth and a stainless steel cleaner. Avoid abrasive cleaners.
• Juntes de la porta: Netegeu les juntes de les portes regularment per assegurar-ne un segellat hermètic.

6.2 Descongelació

The Forte refrigeration pair features No Frost technology, which automatically prevents ice build-up, eliminating the need for manual defrosting.

7. Solució De Problemes

Abans de contactar amb el servei d'atenció al client, review els següents problemes i solucions habituals:

• Appliance Not Operating: Check if the power cord is securely plugged into a live electrical outlet. Verify the circuit breaker has not tripped.
• Temperature Too Warm: Ensure the door is fully closed and the gasket is sealing properly. Check if the temperature setting is appropriate. Avoid overloading the unit, which can restrict airflow.
• Sorolls inusuals: Some operational noises (e.g., refrigerant flowing, fan running) are normal. Ensure the unit is level and not touching walls or other appliances.
• Excessive Frost (if applicable): Although equipped with No Frost technology, ensure the door is not left open frequently or for extended periods.

If problems persist after checking these points, please contact Forte customer support.

8. Especificacions

Detailed specifications for the Forte F14ARESSS and F14UFESSS units:

Image: EnergyGuide label, indicating Energy Star certification and estimated energy consumption.

9. Garantia i Suport

This Forte refrigeration pair comes with a 1 any de garantia. For warranty claims, technical support, or service inquiries, please contact Forte customer service. Ensure you have your model number (F14ARESSS-F14UFESSS) and proof of purchase available when contacting support.
