Neewer RGB190 LED Video Light Kit User Manual

1. Introducció

Thank you for choosing the Neewer RGB190 LED Video Light Kit. This manual provides essential information for the safe and effective operation of your new lighting equipment. Please read these instructions carefully before use and retain them for future reference.

2. Informació de seguretat

Per evitar danys al producte o lesions a vostè o a altres persones, observeu les següents precaucions de seguretat:

• Do not expose the light to rain or moisture.
• Do not disassemble or modify the product. Unauthorized repairs will void the warranty.
• Keep the light away from flammable materials and excessive heat.
• Use only the specified power adapter (DC 12-15V, not included) or NP-F550 batteries.
• Avoid direct eye exposure to the LED light, especially at high brightness settings.
• Ensure the light stands are stable before mounting the lights.

3. Contingut del paquet

Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:

• 2 x RGB190 LED Video Light with White Diffuser
• 2 x Carrying Bag for LED Light
• 1 x F550 Battery Charger
• 2 x NP-F550 Battery
• 1 x cable de càrrega USB
• 2 x adaptador de muntatge de sabates fredes
• 2 x Suport de llum

Figure 3.1: Kit Contents Overview

4. Producte acabatview

4.1. Light Panel Features

• Perles LED: 192 (64 warm, 64 cool, 64 RGB)
• Índex de reproducció del color (CRI): 97+ for accurate color reproduction.
• Rang de temperatura del color: 2600K to 5600K (CCT Mode).
• Hue (HSI Mode): 0-360° full-color adjustment.
• Saturation (HSI Mode): 0-100% adjustment.
• Brillantor: 0-100% dimmable.
• Potència màxima: 12W.
• Opcions d'alimentació dual: NP-F550 battery (included) or DC 12-15V power adapter (not included).
• Control: On-board controls and mobile APP control via Bluetooth.
• Efectes especials: 9 built-in RGB lighting effects.

Figure 4.1: RGB190 LED Light Panel Controls and Modes

4.2. Tripod Stands

• Material: Construcció metàl·lica duradora.
• Alçada ajustable: From 79cm (31.1in) to 190cm (74.8in).
• Muntatge: 1/4-inch universal interface with fast locking mechanism.

Figure 4.2: Product Dimensions and Tripod Stand Adjustments

5. Configuració

5.1. Assembling the Light Stands

1. Unfold the legs of the light stand until they are fully extended and stable.
2. Loosen the locking knobs on the stand sections and extend the stand to your desired height. Tighten the knobs securely to lock the sections in place.

5.2. Mounting the LED Lights

1. Attach the cold shoe mount adapter to the top of the light stand. Secure it by tightening the screw.
2. Slide the RGB190 LED video light onto the cold shoe mount adapter. Ensure it is firmly seated and tighten the locking ring on the adapter.
3. Adjust the angle of the light using the tilt mechanism on the cold shoe mount adapter and tighten it.

5.3. Powering the Lights

The RGB190 LED lights offer dual power options:

• Potència de la bateria: Insert a charged NP-F550 battery into the battery compartment on the back of the light panel. Ensure it clicks into place.
• Potència CC: Connect a DC 12-15V power adapter (not included) to the power input port on the side of the light.

Figure 5.1: Dual Power Options

5.4. Càrrega de les bateries

Use the included F550 Battery Charger and USB charging cable to charge the NP-F550 batteries. Connect the USB cable to a suitable USB power source (e.g., wall adapter, computer USB port). The charger will indicate charging status.

6. Instruccions de funcionament

6.1. Control manual

1. Encès/apagat: Press the power button on the side of the light to turn it on or off.
2. Selecció del mode: Press the 'M' (Mode) button to cycle through different lighting modes: CCT (Color Temperature), HSI (Hue, Saturation, Intensity), and Scene Effects.
3. Paràmetres d'ajust: Use the 'FN MAX' and 'FN MIN' buttons or the adjustment dial to change brightness, color temperature, hue, or saturation depending on the selected mode. The LCD display will show the current settings.

6.2. Control APP

The Neewer RGB190 LED light can be controlled wirelessly via the Neewer app on your smartphone (Android 4.3 / iOS 11.1 or above).

1. Descarrega l'aplicació: Cerca "Neewer" in your device's app store (Apple App Store or Google Play Store) and install the application.
2. Activa el Bluetooth: Assegureu-vos que el Bluetooth estigui habilitat al vostre telèfon intel·ligent.
3. Connect to Light: Open the Neewer app. The app should automatically detect nearby Neewer devices. Select "RGB190" from the device list to connect.

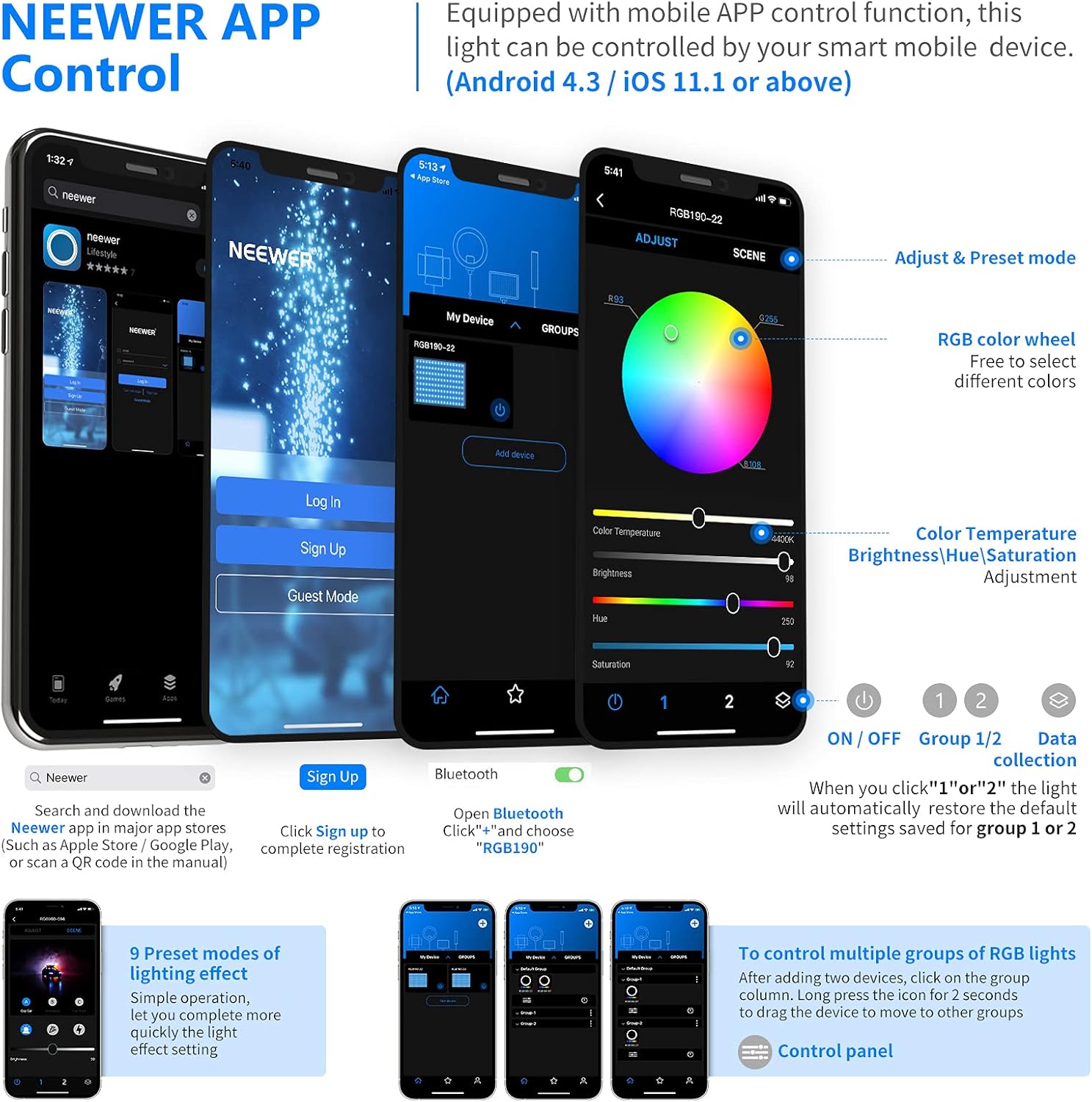

4. Funcions de control: Within the app, you can adjust brightness, color temperature, hue, and saturation using intuitive sliders and color wheels. You can also select from 9 preset lighting scenes (e.g., Cop Car, Ambulance, Fireworks, Party, etc.).
5. Control de grup: The app allows you to control multiple RGB190 lights simultaneously by creating groups.

Figure 6.1: Neewer App Control Interface

6.3. Scene Effects

The RGB190 features 9 special lighting effects to enhance your creative projects:

• Cotxe de policia
• Ambulància
• Camió de bombers
• Focs artificials
• festa
• Llum de les espelmes
• Llamp
• Paparazzi
• Pantalla de TV

Figure 6.2: Available Scene Modes

7. Manteniment

7.1. Neteja

Wipe the light panel and stand with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the light is powered off and disconnected from any power source before cleaning.

7.2. Cura de la bateria

• Guardeu les piles en un lloc fresc i sec quan no les utilitzeu.
• No exposeu les piles a temperatures extremes.
• Si emmagatzema les bateries durant períodes prolongats, carregueu-les fins a aproximadament un 50% de la seva capacitat.

7.3. Emmagatzematge

When not in use, store the LED lights and accessories in their carrying bags to protect them from dust and damage. Disassemble the light stands and store them in a safe place.

8. Solució De Problemes

La llum no s'encén:

Ensure the battery is charged and correctly inserted, or that the DC power adapter is properly connected and providing power.

Problemes de connectivitat de l'aplicació:

Check if Bluetooth is enabled on your smartphone and the light. Restart the app and the light. Ensure your phone's operating system meets the minimum requirements (Android 4.3 / iOS 11.1 or above).

Sortida de llum inconsistent:

Check battery level. If using DC power, ensure the adapter is providing stable power. Clean the LED surface if dust or debris is present.

9. Especificacions

10. Garantia i Suport

For warranty information and technical support, please refer to the official Neewer weblloc web o contacteu directament amb el seu servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra.
