Introducció
This manual provides essential information for the safe and effective use of your Dripex Magnetic Rowing Machine. Please read this manual thoroughly before assembly, operation, or maintenance. Keep this manual for future reference.
Image: The Dripex Magnetic Rowing Machine, a compact and efficient fitness equipment for home use.
Informació important de seguretat
- Consulteu un metge abans de començar qualsevol programa d'exercici.
- Assegureu-vos que totes les peces estiguin ben subjectes abans de cada ús.
- Mantingueu els nens i les mascotes lluny de la màquina durant el funcionament.
- Col·loqueu la màquina sobre una superfície plana i estable.
- Porteu calçat i roba esportiva adequats.
- Deixa de fer exercici immediatament si sents dolor, marejos o dificultat per respirar.
- No supereu la capacitat màxima de pes de 350 lliures (158 kg).
Muntatge i muntatge
The Dripex Magnetic Rowing Machine is designed for straightforward assembly. Follow the included assembly guide for detailed step-by-step instructions. Ensure all bolts, nuts, and washers are correctly installed and tightened.
Desembalatge
- Traieu amb cura tots els components de l'embalatge.
- Verify all parts are present against the parts list in the separate assembly guide.
- Retain packaging materials until assembly is complete.
Col·locació
Place the rowing machine on a level surface with adequate space around it for safe operation. Consider the machine's dimensions for both use and storage.
Image: Product dimensions for placement planning. The machine measures 161.5 cm in length, 53 cm in width, and 87 cm in height when expanded.
Instruccions de funcionament
Ajust de resistència
The Dripex Magnetic Rowing Machine features 16 levels of adjustable magnetic resistance. Turn the resistance knob located on the main unit to increase or decrease the workout intensity. Higher numbers indicate greater resistance.
- Levels 1-5 (Light): Suitable for aerobic exercise and cardio training.
- Levels 6-10 (Middle): Ideal for burning calories and weight loss.
- Levels 11-16 (Strong): Designed for high-intensity workouts and strength training.
Image: Close-up of the resistance adjustment knob, showing settings from 1 to 16.
Using the Smart LCD Monitor
The integrated LCD monitor tracks your workout progress. It displays key metrics such as Time, Distance, Count (strokes), Total Count, and Calories burned. The monitor typically activates automatically when you begin rowing or by pressing a button.
- Hora: Durada del teu entrenament actual.
- Distància: Distància estimada recorreguda.
- Recompte: Nombre de braçades realitzades durant la sessió actual.
- Nombre total: Cumulative number of strokes from all sessions.
- Calories: Calories cremades estimades.
Imatge: Detallada view of the product, highlighting the LCD monitor, comfortable seat, adjustable foot pedals, and built-in transport wheels.
Tècnica de rem
For an effective and safe workout, maintain proper rowing form:
- Captura: Sit with knees bent, shins vertical, arms extended forward, and back straight.
- Condueix: Push off with your legs, then lean back slightly and pull the handle towards your abdomen.
- Acabat: Legs extended, handle at your abdomen, slight lean back.
- Recuperació: Extend arms forward, then bend knees to slide forward to the catch position.
The machine's silent and smooth aluminum structure ensures a quiet workout experience.
Image: Illustration of the internal mechanical system and aluminum sliding track, emphasizing quiet operation.
Emmagatzematge i portabilitat
The Dripex Rowing Machine is designed for easy storage. It can be stored upright to save space. Built-in transport wheels allow for convenient movement.
- Ensure the machine is clean and dry before storing.
- Lift the rear stabilizer to engage the transport wheels.
- Carefully roll the machine to your desired storage location.
- For upright storage, lift the front of the machine until it rests vertically. Ensure it is stable and not prone to tipping.
Image: The rowing machine shown in its upright, space-saving storage position, highlighting its portability features.
Manteniment
Regular maintenance ensures the longevity and optimal performance of your rowing machine.
- Neteja: Netegeu la màquina amb un anunciamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
- Inspeccions: Comproveu periòdicament tots els cargols, femelles i peces mòbils per assegurar-vos que estiguin ben ajustats i que no estiguin desgastats. Estrenyeu qualsevol element de fixació solt.
- Neteja de carrils: Keep the aluminum slide rail clean and free of debris to ensure smooth seat movement.
- Emmagatzematge: Store the machine in a dry, cool place away from direct sunlight and extreme temperatures.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El monitor no mostra dades | Low or dead batteries; loose connection. | Replace batteries (if applicable); check cable connections to the monitor. |
| Resistance feels inconsistent or too easy/hard | Resistance knob not properly adjusted; internal mechanism issue. | Ensure the resistance knob is set to the desired level. If issues persist, contact customer support. |
| Sorolls inusuals durant el funcionament | Loose fasteners; debris on the slide rail; worn components. | Check and tighten all bolts and nuts. Clean the slide rail. If noise continues, contact customer support. |
| Seat does not slide smoothly | Debris on the slide rail; dirty seat wheels. | Clean the aluminum slide rail and the seat wheels thoroughly. |
Especificacions del producte
| Marca | Dripex |
| Model | B098L87FFN |
| Dimensions del producte (ampliades) | 161.5 x 53 x 87 cm |
| Dimensions del producte (plegat) | 77.5 x 53 x 16.5 cm |
| Pes de l'article | 24.2 kg (53.3 lliures) |
| Pes net / pes brut | 20.8 KG / 24.2 KG |
| Capacitat màxima de pes | 350 lliures (158 kg) |
| Mecanisme de resistència | Magnètic |
| Nivells de resistència | 16 nivells ajustables |
| Material del marc | Alumini |
| Tipus de visualització | LCD |
| Font d'alimentació | Funciona amb bateria |
| Pes del volant | 3 KG |

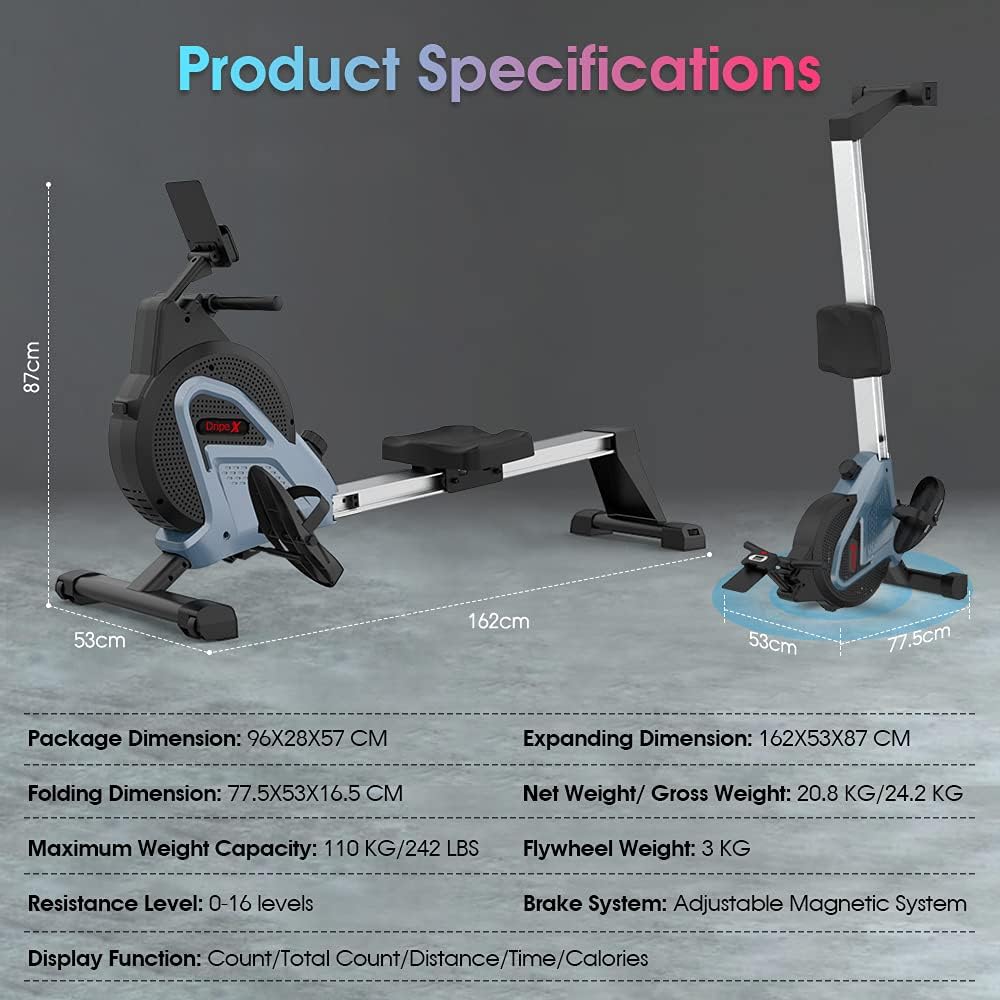

Image: Diagram illustrating the product dimensions and key specifications.
Informació de la garantia
Dripex is committed to product quality. For specific warranty details regarding your Magnetic Rowing Machine, please refer to the warranty card included with your product or contact Dripex customer support directly. Warranty terms typically cover manufacturing defects under normal use.
Atenció al client
Should you have any questions, require assistance with assembly, operation, or encounter any issues with your Dripex Magnetic Rowing Machine, please contact our customer service team. We are dedicated to providing thoughtful and considerate support.
- Marca Weblloc: Visit the Dripex Store on Amazon
- Informació de contacte: Refer to the product packaging or the official Dripex weblloc web per obtenir les dades de contacte del servei d'atenció al client més actualitzades.
