1. Introducció
Thank you for choosing the VASAGLE 5-Tier Corner Shelf Stand. This manual provides essential information for the safe assembly, proper use, and maintenance of your new corner shelf. Please read these instructions carefully before assembly and retain them for future reference.

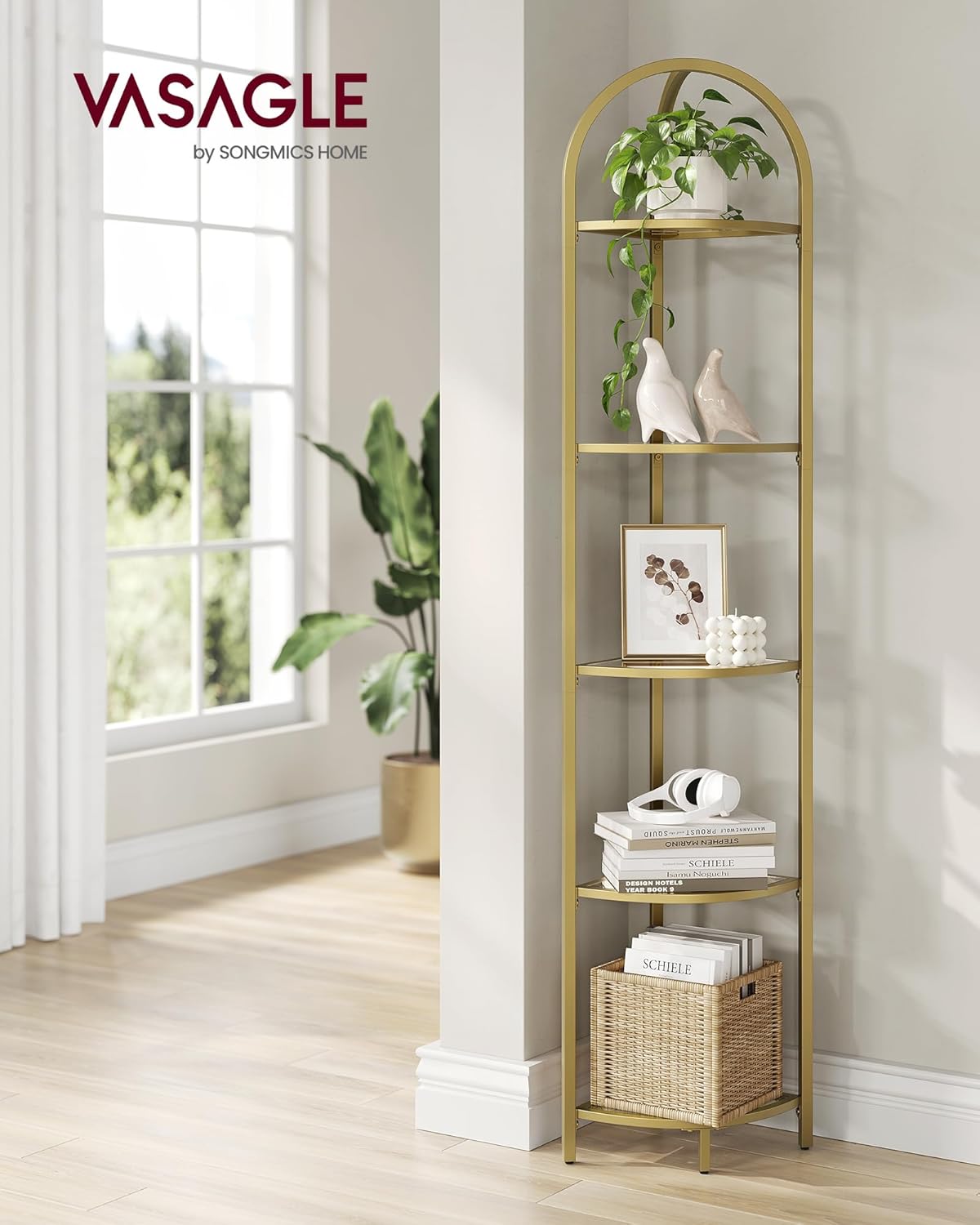

Image 1.1: The VASAGLE 5-Tier Corner Shelf Stand, Metallic Gold.
2. Informació de seguretat
To ensure safe use of this product, please observe the following:
- Kit antibolcada: Always attach the shelf to the wall using the included anti-tip kit to prevent accidental tipping and potential injury.
- Seguretat dels nens: Children are not allowed to climb or play with the product. Keep small parts away from children during assembly.
- Capacitat de pes: Do not exceed the maximum static load capacity of 11 lb (5 kg) per shelf. Overloading can cause damage or collapse.
- Superfície estable: Place the shelf on a flat, stable, and level surface. Use the adjustable feet to ensure stability and prevent wobbling.
- Manipulació del vidre: Tempered glass shelves are durable but can break if subjected to sharp impacts. Handle with care during assembly and use.
Image 2.1: The anti-tip kit should be securely fastened to the wall for safety.
3. Contingut del paquet
Please check that all parts are present and in good condition before beginning assembly. If any parts are missing or damaged, please contact customer support.
- 1 x Corner Shelf Frame (Steel components)
- 5 x Prestatges de vidre temperat
- 1 x Anti-Tip Kit (Wall anchor, strap, screws)
- 1 x Assembly Kit (Screws, Allen key, small parts)
- 1 x manual d'instruccions
4. Instruccions de muntatge
Assembly is straightforward. It is recommended to have a second person assist for easier installation. Do not fully tighten screws until all components are loosely assembled to allow for adjustments.
Muntatge pas a pas
- Desempaquetar i identificar: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Identify each part using the provided diagram.
- Muntar les seccions del marc: Connect the vertical steel frame sections (A, B, E, F) according to the diagram. Secure them loosely with the provided screws and Allen key.
- Inserir prestatges de vidre: Place the tempered glass shelves (C, D) into their designated slots within the frame. Ensure the buffer pads are correctly positioned to absorb shock and reduce noise.
- Fixeu els peus ajustables: Screw the adjustable feet (G, H) into the bottom of the frame.
- Ajustament final: Once all parts are in place and the shelf is upright, gradually tighten all screws until secure.
- Instal·leu el kit antivuelco: Securely attach the anti-tip kit to the top rear of the shelf and to a solid wall stud or using appropriate wall anchors.
Image 4.1: Assembly diagram with labeled components (A, B, C, D, E, F, G, H).
Image 4.2: Visual guide for connecting shelf panels and frames.
5. Ús i col·locació
The VASAGLE 5-Tier Corner Shelf Stand is designed to maximize corner space and provide versatile storage and display options. Its compact triangular shape fits perfectly into 90-degree corners.
- Col·locació versàtil: Ideal for living rooms, bedrooms, bathrooms, entryways, or offices.
- Elements de visualització: Use it to display books, decorative items, plants, photos, or toiletries.
- Peus ajustables: Use the adjustable feet at the bottom to compensate for uneven floors and ensure the shelf remains level and stable.
Image 5.1: The corner shelf stand utilized in a living room setting.
Image 5.2: The corner shelf stand providing storage in a bedroom.
6. Manteniment i cura
Proper care will ensure the longevity and appearance of your VASAGLE corner shelf.
- Neteja: Wipe the steel frame and tempered glass shelves with a soft, dry cloth. For glass, a mild glass cleaner can be used, followed by a dry wipe to prevent streaks.
- Eviteu productes químics durs: Do not use abrasive cleaners or harsh chemicals, as these can damage the finish of the steel or the glass.
- Comprovacions periòdiques: Reviseu periòdicament tots els cargols i connexions per assegurar-vos que romanen ajustats. Torneu a apretar-los si cal.
Image 6.1: Tempered glass shelves are easy to clean with a soft cloth.
7. Solució De Problemes
Si teniu algun problema amb el prestatge de la cantonada, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| El prestatge està inestable o trontolla. | Uneven floor; loose screws; anti-tip kit not installed. | Adjust the leveling feet at the bottom of the frame. Ensure all screws are tightened. Install the anti-tip kit securely to the wall. |
| Les peces no s'alineen durant el muntatge. | Cargols apretats massa aviat; orientació incorrecta de les peces. | Loosen all screws slightly, adjust the alignment of the parts, then gradually tighten. Double-check the instruction diagram for correct part orientation. |
| Falten peces. | Error d'embalatge. | Review the package contents list. If parts are genuinely missing, contact customer support with your model number and purchase details. |
Image 7.1: Adjustable feet help stabilize the shelf on uneven surfaces.
8. Especificacions del producte
Detailed specifications for the VASAGLE 5-Tier Corner Shelf Stand:
| Característica | Detall |
|---|---|
| Nom del model | ULGT810A01 |
| Color | Or metàl·lic |
| Material | Acer, Vidre temperat |
| Dimensions del producte (L x A x A) | 11 x 11 x 62.2 polzades (27.9 x 27.9 x 158 cm) |
| Distance Between Each Shelf | 11.8 polzades (30 cm) |
| Pes del producte | 11.7 lliures (5.3 kg) |
| Capacitat màxima de càrrega estàtica per prestatge | 11 lliures (5 kg) |
| Tipus de muntatge | Suport al terra (amb kit antibolcada per fixació a la paret) |
| Muntatge obligatori | Sí |
| Instruccions de cura | Netegeu amb un drap sec |
Image 8.1: Product dimensions and shelf spacing.
9. Garantia i Suport
For warranty information, missing parts, or any product-related inquiries, please contact VASAGLE customer support through your retailer or the official VASAGLE website. Please have your model number (ULGT810A01) and purchase details ready when contacting support.
