DieseRC DC 12V Wireless Relay Remote Control Switch User Manual

1. Producte acabatview

The DieseRC DC 12V Wireless Relay Remote Control Switch is a versatile 4-channel RF receiver board designed for remote control applications. It operates on a 433MHz frequency and comes with two transmitters, offering convenient control over various electrical devices.

Figure 1: Wireless Relay Receiver Board and Transmitters

Característiques principals:

• 433MHz RF Wireless Control: Provides stable and reliable performance with high reception sensitivity.
• Interval estès: Can be controlled within 50 meters in open areas, with signals passing through walls, floors, and doors.
• Múltiples modes de funcionament: Supports Momentary, Toggle, and Latched modes, along with mixed configurations for diverse applications.
• Independent Relays: Features four independent relays, each with Normally Open (NO), Common (COM), and Normally Closed (NC) terminals.
• Alta capacitat: Each receiver can store up to 20 transmitters, and one transmitter can control multiple receivers.
• Components duradors: High-quality relays designed for over 100,000 uses, with 10A current capacity for stable operation.

Aplicacions:

This versatile remote control switch is suitable for a wide range of applications in homes, farms, factories, offices, laboratories, and supermarkets. Common uses include controlling truck trunks, garage doors, electric doors, shutter doors, extension doors, electric curtains, fans, lamps, lighting systems, and ventilation devices.

Figura 2: Àmplia gamma d'aplicacions

2. Components

The product package includes the 4-channel relay receiver board, a protective plastic enclosure, and two remote control transmitters. Familiarize yourself with the key parts of the receiver board and the remote control.

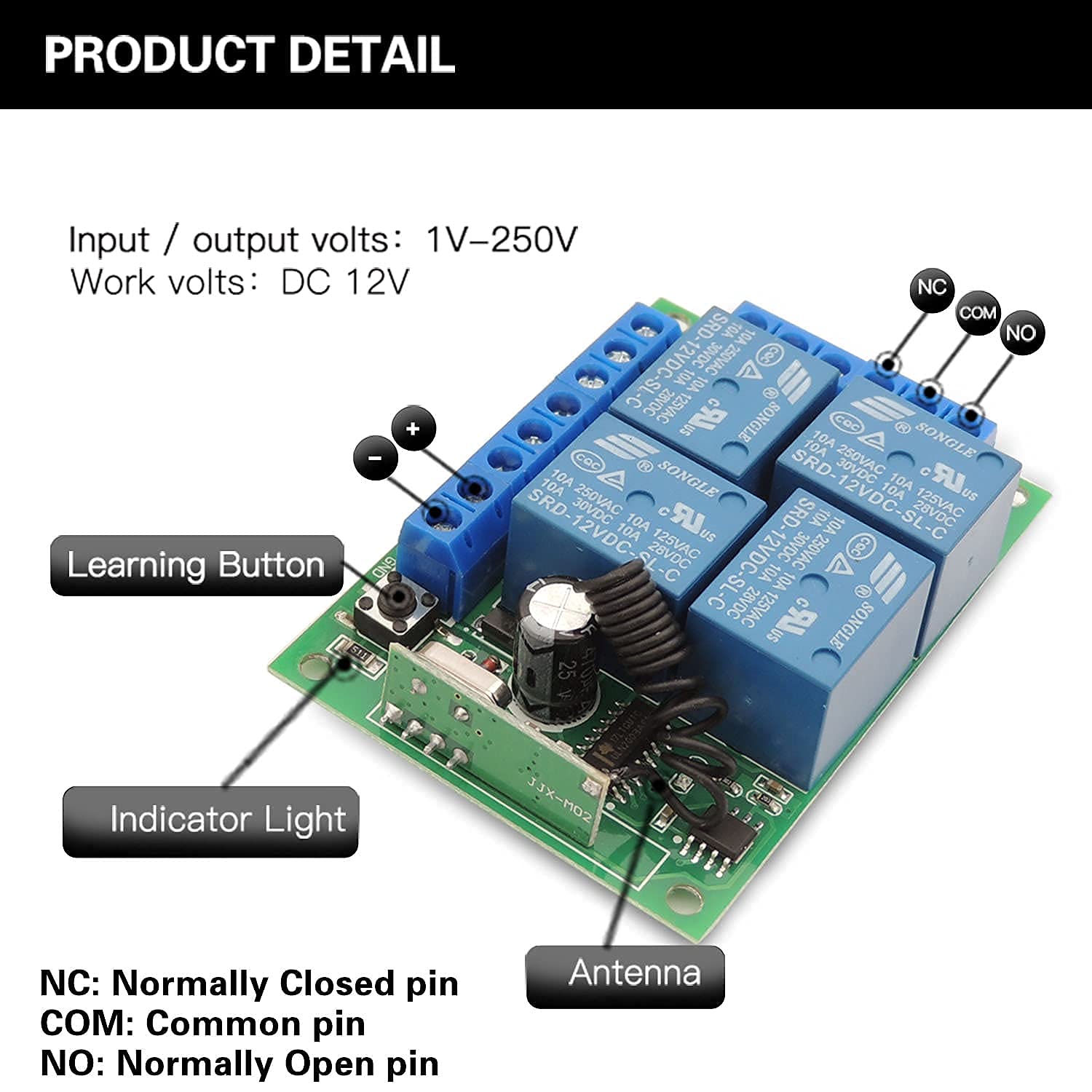

Figure 3: Receiver Board Details

• Learning Button: Used for pairing transmitters and changing operating modes.
• Llum indicadora: Provides visual feedback during operation and programming.
• Antena: Enhances signal reception.
• Terminals de cargol: For connecting input power and output devices. Each relay has Normally Closed (NC), Common (COM), and Normally Open (NO) terminals.

Figura 4: Detalls del comandament a distància

• Buttons A, B, C, D: Control the corresponding relays on the receiver board.
• Llum indicadora: S'il·lumina quan es prem un botó.
• Clauer metàl·lic: Per a un transport còmode.

3. Especificacions tècniques

4. Configuració i cablejat

Proper wiring is crucial for the safe and effective operation of your wireless relay switch. Always ensure power is disconnected before making any wiring connections.

Esquemes de cablejat:

The receiver board supports various wiring configurations to suit different applications. Below are common examples for connecting lamps, curtain motors, and garage motors.

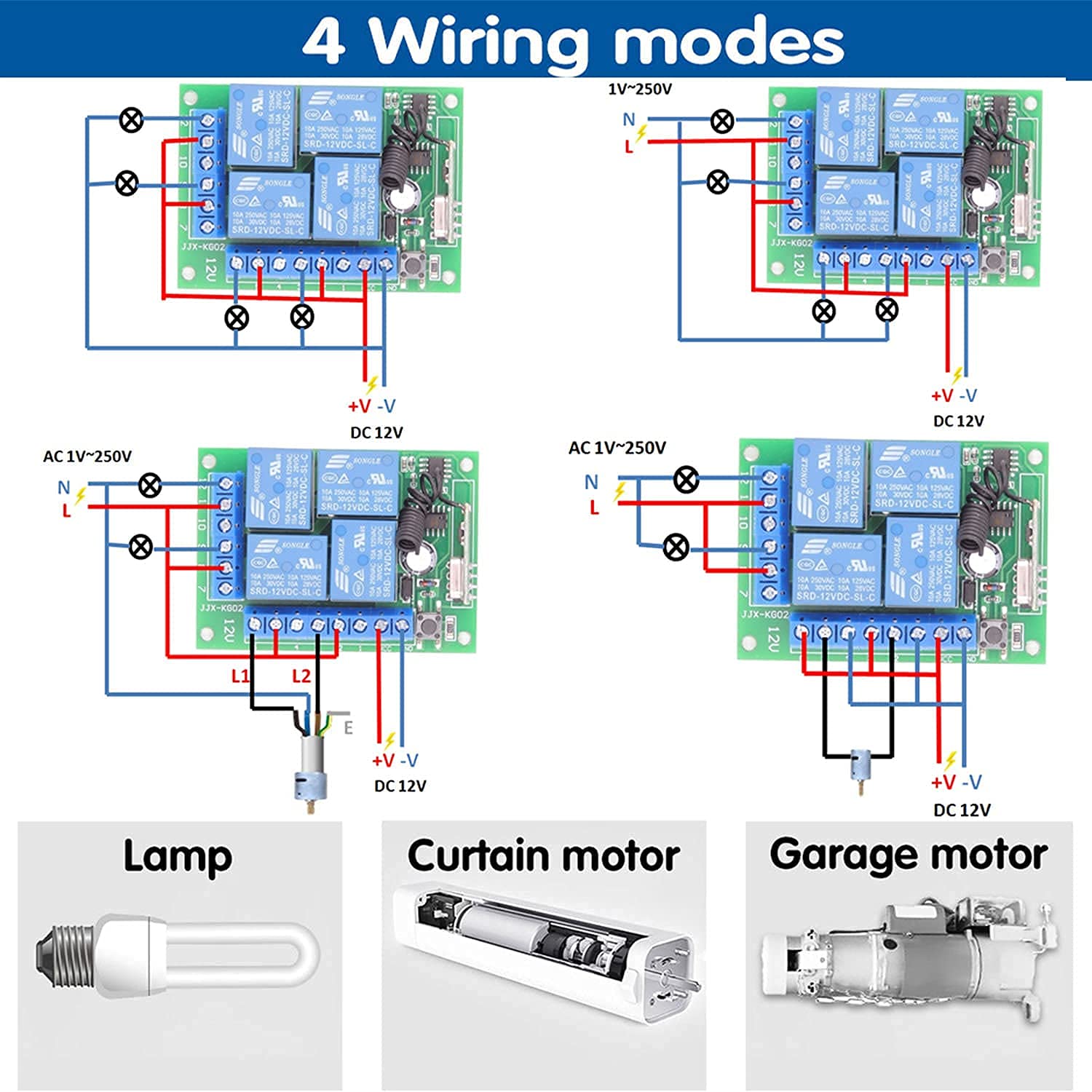

Figure 5: Common Wiring Modes

For specific applications like controlling lights and electric curtains, refer to the detailed connection diagram below.

Figure 6: Remote Control for Lights and Electric Curtains

Emparellament de transmissors:

To pair a transmitter with the receiver board, follow these steps based on your desired operating mode. The receiver can store approximately 20 transmitters.

Figure 7: How to Program Operating Modes

1. Momentary Mode (Press 1 time): Press the learning button on the receiver board once. The indicator light will turn on. Then, press the desired button on your remote control (e.g., 'A'). The indicator light will flash, confirming successful pairing for momentary mode.
2. Toggle Mode (Press 2 times): Press the learning button on the receiver board twice. The indicator light will turn on. Then, press the desired button on your remote control. The indicator light will flash, confirming successful pairing for toggle mode.
3. Latched Mode (Press 3 times): Press the learning button on the receiver board three times. The indicator light will turn on. Then, press the desired button on your remote control. The indicator light will flash, confirming successful pairing for latched mode.
4. Mixed Mode (Press 4, 5, or 6 times): For advanced mixed modes (e.g., 2 momentary, 2 toggle; or 2 momentary, 2 latched; or 2 toggle, 2 latched), press the learning button 4, 5, or 6 times respectively. Then, press the corresponding remote buttons as instructed by the specific mixed mode configuration.

For a visual guide on programming the remote control switch, please watch the video below:

5. Modes de funcionament

The DieseRC wireless relay switch offers three primary operating modes, which can also be combined into mixed modes, providing flexibility for various control needs.

Figure 8: Operating Mode Explanations

• Mode momentani: The relay remains activated only while the remote button is pressed and held. Releasing the button deactivates the relay. This is ideal for applications requiring temporary activation, such as a doorbell or a momentary gate opener.
• Commuta el mode: Each press of the remote button toggles the state of the corresponding relay. Press once to activate, press again to deactivate. This mode is suitable for lights or fans where you want to switch them on/off with a single button.
• Mode tancat: Pressing one button activates its corresponding relay and simultaneously deactivates any other active relays in the latched group. For example, pressing button 'A' activates Relay 1, and pressing button 'B' activates Relay 2 while turning off Relay 1. This is useful for selecting between multiple states, like opening or closing a garage door.
• Mixed Modes: The device can be configured to combine different modes across its four channels. For instance, two channels can operate in momentary mode, and the other two in toggle mode, providing highly customized control.

See the relay remote control switch in action, demonstrating its functionality with AC and DC motors, and light control:

6. Manteniment

To ensure the longevity and optimal performance of your DieseRC Wireless Relay Remote Control Switch, consider the following maintenance tips:

• Mantenir net: Regularly wipe the receiver board and remote controls with a dry, soft cloth to prevent dust and debris accumulation.
• Eviteu la humitat: Protect the device from water and high humidity, as moisture can damage electronic components.
• Substitució de la bateria: If the remote control's range decreases or its indicator light dims, replace the CR2 batteries. Ensure correct polarity.
• Connexions segures: Periodically check all screw terminal connections to ensure they are tight and secure, preventing loose wires and potential electrical issues.
• Entorn de funcionament: Use the device within its specified temperature and humidity ranges to prevent premature wear.

7. Solució De Problemes

If you encounter issues with your DieseRC Wireless Relay Remote Control Switch, refer to the following common problems and their solutions:

• El control remot no respon:
  • Comproveu la pila del comandament a distància. Substituïu-la si cal.
  • Ensure the remote is within the effective operating range (up to 50 meters in open areas).
  • Verify that the receiver board is powered on and its indicator light is active.
  • Re-pair the transmitter with the receiver board following the instructions in Section 4.
• Relay Not Activating/Deactivating Correctly:
  • Confirm that the wiring connections to the relay terminals (NO, COM, NC) are correct for your application.
  • Check the operating mode programmed for the relay (Momentary, Toggle, Latched). Incorrect mode can lead to unexpected behavior.
  • Ensure the connected device is functioning properly and its power supply is adequate.
• Short Range or Signal Interference:
  • Ensure the receiver's antenna is not obstructed or damaged.
  • Minimize obstacles (thick walls, metal structures) between the transmitter and receiver.
  • Avoid placing the receiver near other strong RF signal sources that might cause interference.
• Reinicialització del receptor: If persistent issues occur or you wish to clear all paired transmitters, press the learning button on the receiver board 8 times. The indicator light will flash, confirming the reset. After a reset, all transmitters must be re-paired.

8. Garantia i Suport

DieseRC is committed to providing high-quality products and excellent customer service. Your product is covered by a 1 any de garantia from the date of purchase, ensuring peace of mind regarding its quality and performance.

For any technical assistance, troubleshooting, or warranty claims, please contact our support team:

• Correu electrònic del servei: dieseelectronic@163.com

This document provides a simplified HTML version of the user manual. For the official PDF user manual, please refer to the link provided with your product or on the product's Amazon page.
