The Steinel L 22 N (Model 065782) is an anthracite-colored outdoor wall light designed for durability and energy efficiency. It features an integrated twilight sensor that automatically switches the light on at dusk and off at dawn, providing convenient and inviting ambient lighting for your home's exterior.
This fixture is built with robust, impact-resistant materials (IK07) and is rated IP44 for protection against splashing water and solid objects larger than 1mm, making it suitable for various outdoor environments such as entrances, facades, gardens, terraces, or balconies.
Image 1.1: The Steinel L 22 N outdoor wall light providing ambient illumination.
2. Configuració i instal·lació
La seguretat primer: Electrical installation should only be performed by a qualified electrician in accordance with national wiring regulations and local safety standards. Always disconnect power at the main circuit breaker before beginning any installation work.
2.1. Contingut del paquet
- Steinel L 22 N Wall Light
- Material de muntatge (cargols, tacs de paret)
- Manual d'instruccions
- Nota: La bombeta no està inclosa.
2.2. Muntatge del dispositiu
- Choose a suitable mounting location on a wall, ensuring it is within reach of the electrical supply (220 - 240 V / 50 - 60 Hz).
- Mark the drilling points on the wall using the mounting plate as a template.
- Perfora forats i insereix els tacs de paret proporcionats.
- Secure the mounting plate to the wall using the screws.
2.3. Connexió elèctrica
- Connect the electrical wires from your mains supply to the terminal block inside the fixture. Ensure correct polarity (Live, Neutral, Earth).
- Carefully tuck the wires into the housing and attach the light fixture to the mounting plate.
2.4. Instal·lació de bombetes
- Unscrew the diffuser cover.
- Insert an E27 bulb into the socket. The fixture supports incandescent bulbs up to 60W or energy-saving/LED bulbs up to 20W.
- Securely reattach the diffuser cover.

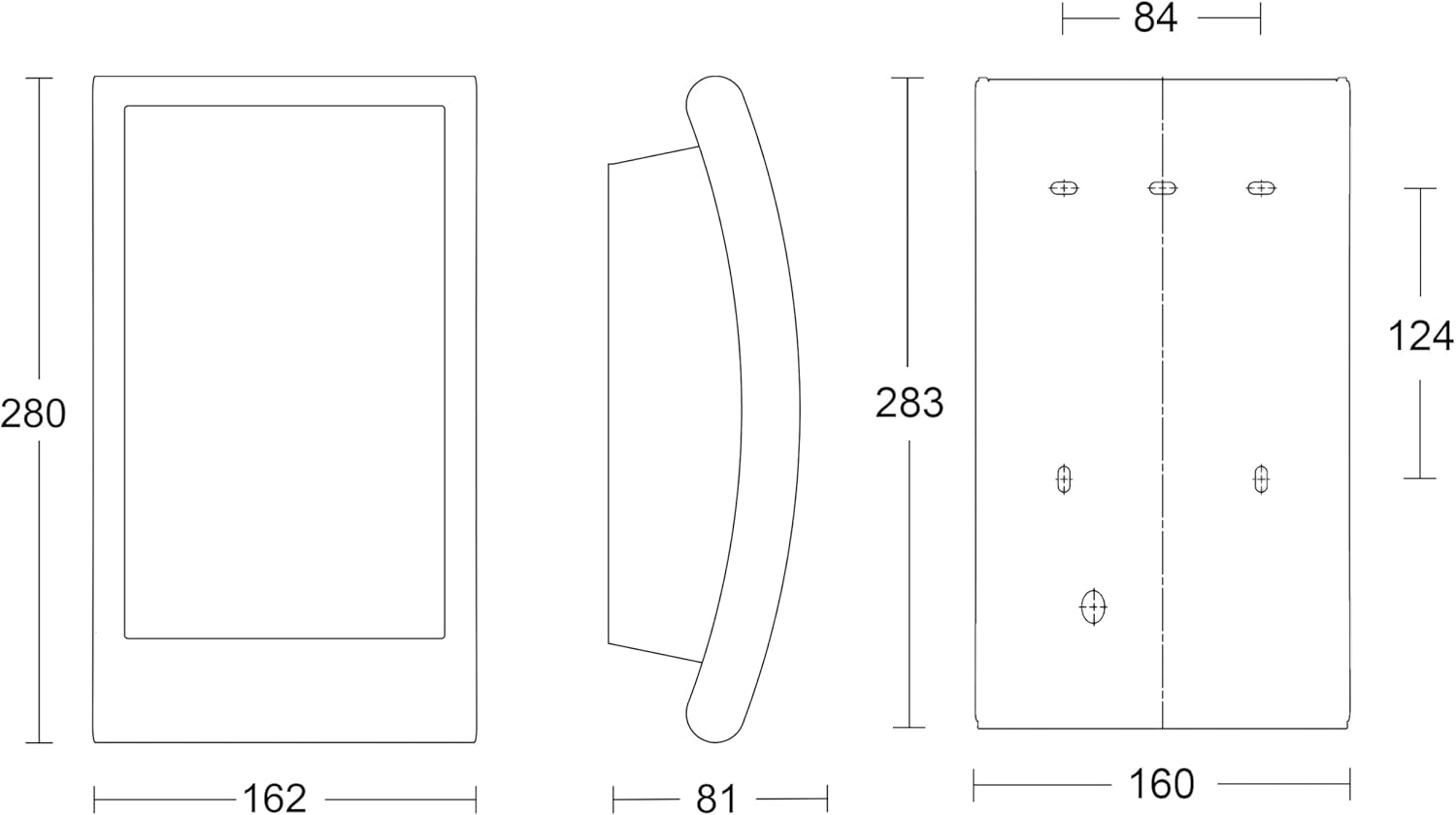

Imatge 2.1: Dimensions del producte per a la planificació de la instal·lació.
3. Instruccions de funcionament
The Steinel L 22 N features an integrated twilight sensor for automatic operation and an eco-mode for optimized energy consumption.
3.1. Automatic Twilight Function
The light is equipped with a twilight sensor that detects ambient light levels. It will automatically switch on when the surrounding light drops below a set threshold (adjustable between 2 - 50 lux) and switch off again when it becomes bright enough in the morning.
3.2. Adjusting Twilight Sensor and Eco-Mode
The light sensitivity and eco-mode settings are typically adjusted via two small screws located near the sensor on the fixture. These adjustments allow you to fine-tune when the light activates and how it behaves during the night.
- Twilight Sensor Adjustment: One screw controls the lux level (brightness threshold) at which the light turns on. Turn clockwise for higher sensitivity (turns on earlier in dim light) or counter-clockwise for lower sensitivity (turns on later in darker conditions).
- Eco-Mode Adjustment: The second screw controls the eco-mode functionality. This mode is designed to save energy by potentially turning the light off for a period during the night or adjusting its behavior. Refer to the detailed diagram below for visual guidance. Adjusting this setting requires careful observation to achieve desired results.
Image 3.1: Eco-mode operation diagram.
Nota important: The adjustment screws are delicate. Use appropriate tools and apply minimal force to avoid damage. Experiment with settings over a few nights to find the optimal configuration for your specific environment.

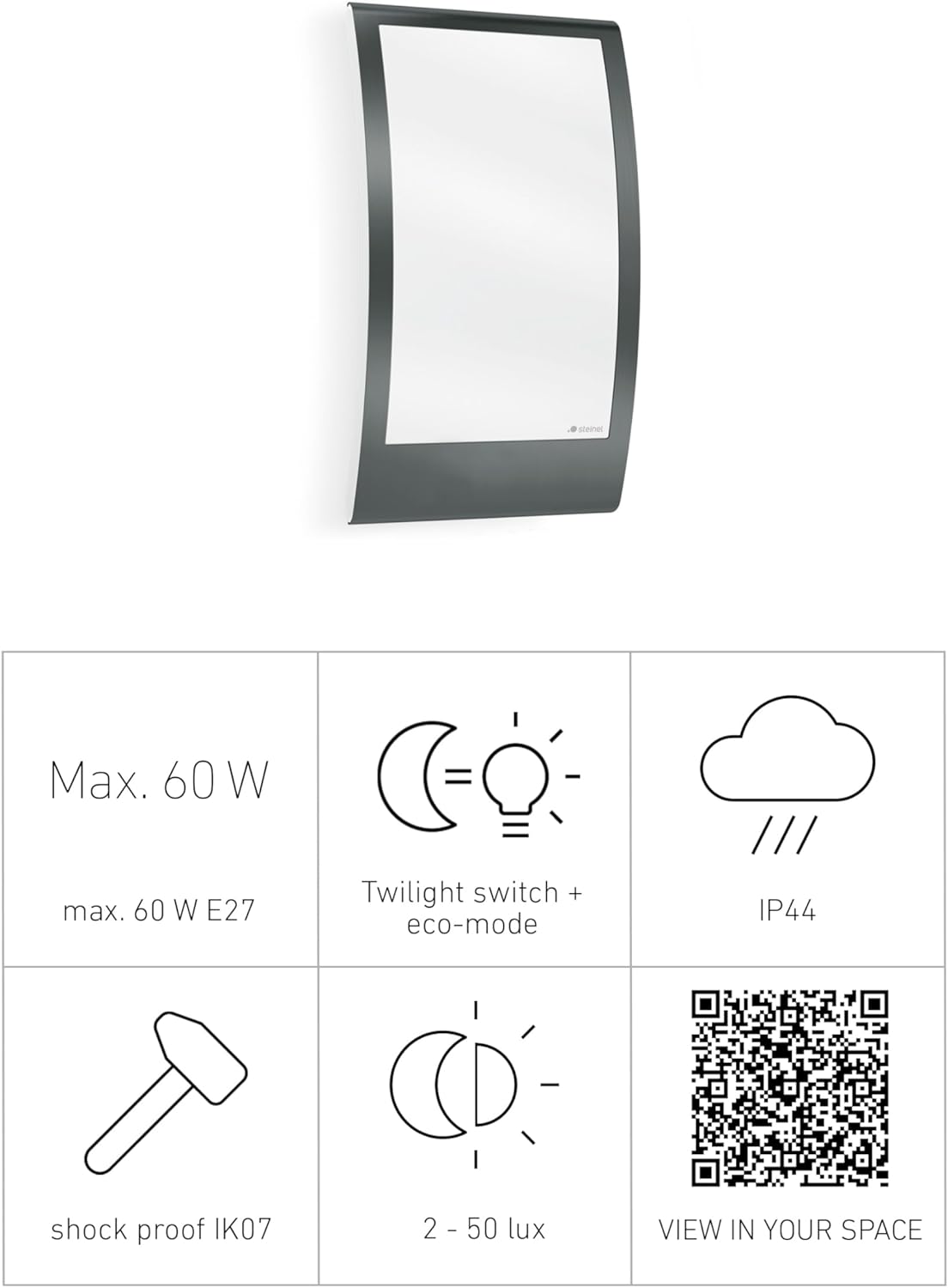

Imatge 3.2: acabatview of product features including twilight sensor and eco-mode.
For an augmented reality view of the product, scan the QR code in the image above or visit: Steinel AR View
4. Manteniment
The Steinel L 22 N is designed for long-lasting performance with minimal maintenance.
4.1. Neteja
- Ensure the power supply to the light is disconnected before cleaning.
- Netegeu les superfícies exteriors amb un damp tela.
- No utilitzeu netejadors abrasius, dissolvents ni productes químics agressius, ja que poden danyar l'acabat o els components de plàstic.
- Regularly clean the twilight sensor lens to ensure accurate light detection.
4.2. Material Durability
The fixture is constructed from robust, UV-resistant plastic and stainless steel finishes, providing IK07 impact resistance. This ensures durability against environmental factors and minor impacts.
5. Solució De Problemes
If you encounter issues with your Steinel L 22 N light, please refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s'encén al capvespre. | No power supply; faulty bulb; twilight sensor set too low (too dark); sensor obstructed. | Check circuit breaker. Replace bulb. Adjust twilight sensor sensitivity (increase lux setting). Clear any obstructions from the sensor. |
| La llum es manté encesa durant el dia. | Twilight sensor set too high (too bright); sensor obstructed or dirty. | Adjust twilight sensor sensitivity (decrease lux setting). Clean the sensor lens. Ensure no artificial light source is directly hitting the sensor during the day. |
| Light turns on/off erratically or cycles. | Twilight sensor interference; eco-mode misconfiguration; faulty sensor. | Ensure no other light sources (e.g., car headlights, other outdoor lights) are interfering with the sensor. Re-adjust eco-mode settings. If problem persists, contact support. |
| Light turns off in the middle of the night. | Eco-mode is activated and set to turn off after a certain period. | Adjust the eco-mode setting to disable this feature or extend the illumination period. Refer to section 3.2. |
If these solutions do not resolve the issue, please contact Steinel customer support.
6. Especificacions tècniques
- Número de model: 065782
- Dimensions (LxWxH): 81 x 162 x 280 mm
- Pes: 0.99 kg
- Connexió d'alimentació: 220 - 240 V / 50 - 60 Hz
- Classificació IP: IP44 (Protection against splashing water and solid objects > 1mm)
- Resistència a l'impacte: IK07
- Socket de la bombeta: E27
- Màx. Aigua de la bombeta incandescenttage: 60 W
- Max. LED/Energy-Saving Bulb Wattage: 20 W
- Twilight Sensor Range: 2 - 50 lux
- Materials: Stainless steel, UV-resistant Plastic
- Color: Antracita
7. Informació de la garantia
For detailed warranty terms and conditions, please refer to the official Steinel website or the warranty documentation provided with your purchase. Warranty periods and coverage may vary by region and product type.
8. Atenció al client
Should you require technical assistance, have questions about installation, or need to report a fault, please contact Steinel customer service.
