Jebao MLW-20 Smart Wave Maker User Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Jebao MLW-20 Smart Wave Maker. The MLW-20 is designed to create various wave patterns in saltwater aquariums, enhancing the aquatic environment. It features a unique control system with an LCD display, wireless control capabilities, and a low-voltage DC brushless electronic motor for safe and stable performance.

Característiques principals:

• 2.4G Wi-Fi connectivity for iOS and Android devices, alongside a manual LCD display controller.
• Sine wave technology for ultra-quiet operation and high stability.
• No exposed copper elements, making it suitable for both marine and freshwater environments.
• Super quiet motor with a maximum flow rate of 2641 GPH (10000 L/H).
• Compact dimensions: 1.75" x 2.75" diameter, operating at 24V with 20-watt power consumption.

2. Instruccions de seguretat

Please read all safety instructions carefully before operating the device. Failure to follow these instructions may result in product damage, injury, or electric shock.

• Ensure the power supply is disconnected before performing any installation, maintenance, or cleaning.
• Aquest dispositiu està dissenyat només per a ús en interiors.
• The wave maker operates on 24 Volts DC. Use only the provided power adapter.
• Do not operate the pump dry. Always ensure the pump is fully submerged in water.
• Mantingueu totes les connexions elèctriques seques i allunyades de l'aigua.
• Regularly inspect the power cord and pump for any damage. Do not use if damaged.
• Precaució: The openings of the wave maker are large. If you have small fish or other small aquatic inhabitants, ensure they cannot be drawn into the pump. Consider using protective measures if necessary to prevent injury to smaller organisms.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents i no estiguin danyats en obrir l'envàs.

• Jebao MLW-20 Wave Maker Pump
• LCD Display Controller
• Adaptador d'alimentació
• Base Magnètica
• Manual d'usuari (aquest document)

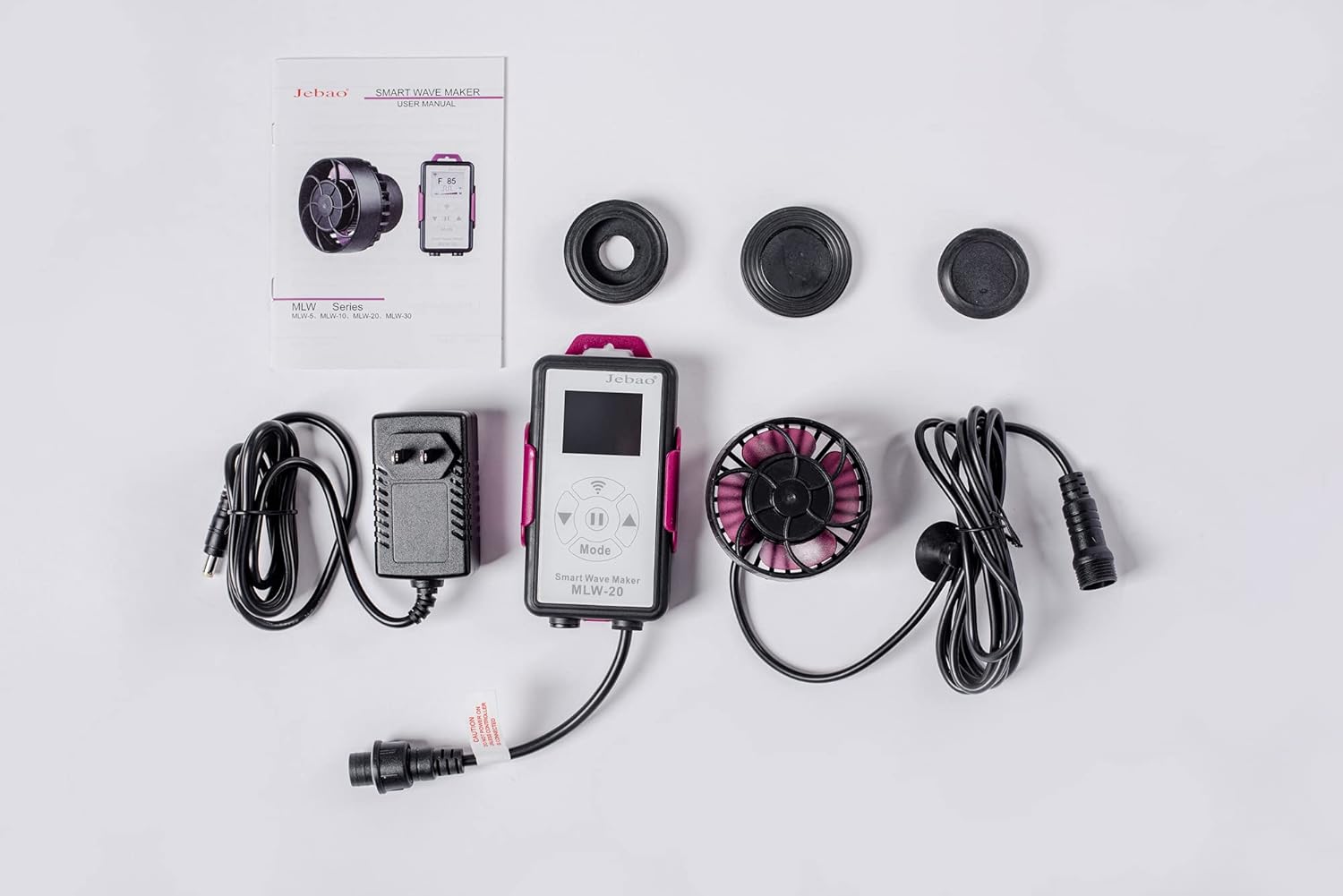

Image: All components included in the Jebao MLW-20 Smart Wave Maker package, laid out on a white surface. This includes the wave maker pump, the LCD display controller, a power adapter, and various mounting accessories.

4. Configuració

4.1 Instal·lació física

1. Positioning the Wave Maker: Select a location in your aquarium that allows for optimal water movement without disturbing substrate or corals. The wave maker should be fully submerged.
2. Attaching the Magnetic Base: Place the wave maker inside the tank at the desired location. Align the external magnet on the outside of the tank glass with the internal magnetic base of the wave maker. Ensure a secure attachment.
3. Connexió del controlador: Connect the wave maker pump cable to the designated port on the LCD display controller.
4. Connexió d'alimentació: Connect the power adapter to the controller, then plug the adapter into a suitable electrical outlet. Ensure a drip loop is formed with the power cord to prevent water from reaching the outlet.

Imatge: Un professional lateralfile view of the Jebao MLW-20 wave maker pump, highlighting its compact design and the protective cage around the impeller.

Imatge: Un front directe view of the Jebao MLW-20 wave maker pump, clearly showing the internal impeller blades and the protective grate.

4.2 Wi-Fi Setup (App Control)

The MLW-20 supports 2.4G Wi-Fi for app control. Follow these steps to connect your device:

1. Descarrega l'aplicació: Cerca the official Jebao app on your iOS or Android app store and install it.
2. Prepare your Network: Ensure your Wi-Fi router is broadcasting a 2.4GHz network. Some modern routers combine 2.4GHz and 5GHz bands; you may need to temporarily disable the 5GHz band or move further from the router to ensure your device connects to the 2.4GHz band during setup.
3. Inicia l'aparellament: Follow the in-app instructions to add a new device. The app will guide you through the pairing process, which may involve putting the controller into a specific pairing mode (e.g., AP mode).
4. Resolució de problemes de connexió: If you experience difficulty connecting, ensure your Wi-Fi password is correct and that your network security protocol is compatible (older WPA/WPA2 modes are generally supported). If using a Wi-Fi 6 network, compatibility issues may arise; consult Jebao support if problems persist.

5. Instruccions de funcionament

The Jebao MLW-20 can be operated via its LCD display controller or through the dedicated mobile application.

5.1 LCD Display Controller

The LCD controller allows for direct adjustment of wave patterns, flow intensity, and other settings. Refer to the controller's interface for specific button functions and menu navigation.

• Botó de mode: Cycles through available wave patterns (e.g., constant flow, pulse, random).
• Fletxes amunt/avall: Adjusts flow intensity or other parameters within a selected mode.
• Mode d'alimentació: Activates a temporary shutdown for feeding, typically for 10 minutes, to prevent food from being swept away.

5.2 Aplicació mòbil

The mobile app provides advanced control and scheduling capabilities.

• Wave Styles: Select from various pre-programmed wave styles or customize your own.
• Ajust de cabal: Precisely control the pump's output percentage.
• Programació: Set daily or weekly schedules for different modes and intensities, including on/off cycles and feeding modes.
• Sincronització: If you have multiple Jebao wave makers, the app allows for synchronized operation.

6. Manteniment

Regular maintenance ensures optimal performance and longevity of your Jebao MLW-20 Smart Wave Maker.

1. Cleaning the Impeller: Periodically remove the wave maker from the tank and disassemble the front cage to access the impeller. Clean any algae, debris, or calcium buildup from the impeller and its housing using a soft brush and warm water or a mild vinegar solution. Rinse thoroughly before reassembly.
2. Inspecting Cables and Connections: Regularly check all cables and connections for signs of wear, damage, or corrosion.
3. Muntatge magnètic: Ensure the magnetic mount remains clean and free of debris to maintain a strong hold on the tank glass.

7. Solució De Problemes

If you encounter issues with your MLW-20, refer to the following common problems and solutions:

• La bomba no funciona:
  • Check if the power adapter is securely plugged into both the controller and the wall outlet.
  • Ensure the pump cable is firmly connected to the controller.
  • Verify that the pump is not in feed mode or scheduled off via the app.
  • Inspect the impeller for obstructions or damage.
• Weak Flow/Underpowered:
  • Clean the impeller and pump housing to remove any buildup that may restrict flow.
  • Ensure the flow intensity setting on the controller or app is at the desired level.
• Problemes de connexió Wi-Fi:
  • Confirm your router is broadcasting a 2.4GHz Wi-Fi signal.
  • Temporarily disable the 5GHz band on your router during setup if you have a dual-band router.
  • Ensure your mobile device is connected to the same 2.4GHz network during the pairing process.
  • Verify the Wi-Fi password entered is correct.
  • Try resetting the controller and attempting the Wi-Fi setup again.
• Soroll inusual:
  • Check for debris caught in the impeller.
  • Ensure the pump is securely mounted and not vibrating against the tank glass.

8. Especificacions

9. Garantia i Suport

Jebao products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Jebao weblloc web. Conserveu el rebut de compra com a comprovant de compra.

For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact Jebao customer service through their official weblloc web o la informació de contacte proporcionada amb el vostre producte.
