LifePlus Full Automatic Washing Machine User Manual

1. Introducció

Thank you for choosing the LifePlus Full Automatic Washing Machine. This appliance is designed to provide efficient and convenient laundry solutions for your home, apartment, or dorm. With its compact size and advanced features, it simplifies your washing tasks. Please read this manual thoroughly before operating the machine to ensure safe and optimal performance.

2. Informació de seguretat

Your safety and the safety of others are very important. Please read all instructions before using the appliance and follow all safety precautions.

• Always ensure the washing machine is placed on a stable, level surface to prevent vibration and noise.
• Do not operate the machine if the power cord is damaged. Contact qualified service personnel for repair.
• Mantingueu els nens i les mascotes lluny de la màquina durant el funcionament.
• Do not wash items that are soiled with flammable liquids or explosive substances.
• Desendolleu la màquina de la presa de corrent abans de netejar-la o fer-ne cap manteniment.
• Ensure proper water supply and drainage connections are made to prevent leaks.
• The machine features a child lock function. Activate it to prevent accidental operation by children.
• During fast spinning, if the lid is opened, the machine will stop and emit a warning sound to prevent injury.

3. Producte acabatview

Familiarize yourself with the main components and control panel of your LifePlus washing machine.

Figura 3.1: LifePlus Full Automatic Washing Machine. This image shows the compact design of the washing machine next to a laundry basket, highlighting its suitability for smaller living spaces.

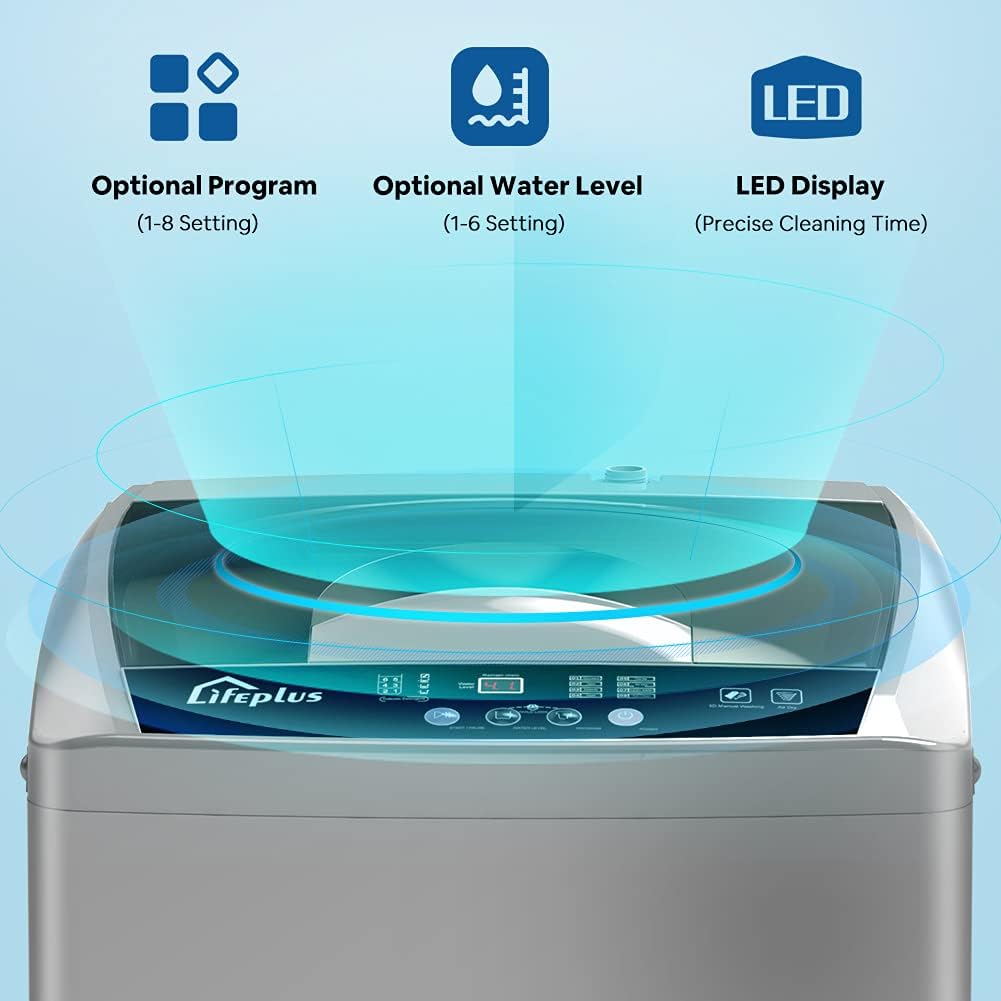

Figura 3.2: Tauler de control acabatview. The control panel features an LED display for precise cleaning time, along with buttons for selecting 8 optional programs and 6 optional water levels.

Funcions del tauler de control:

• Selecció del programa: Choose from 8 different washing programs tailored for various fabric types and soil levels.
• Ajust del nivell d'aigua: Select from 6 water levels to match the load size, optimizing water usage.
• Pantalla LED: Shows remaining time and current program status.
• Botó d'inici/pausa: Initiates or temporarily stops the washing cycle.
• Bloqueig per a nens: Engages a safety feature to prevent accidental changes to settings.

4. Configuració i instal·lació

Una instal·lació correcta és crucial per al rendiment i la longevitat de la vostra rentadora.

4.1 Desembalatge

• Traieu amb cura tots els materials d'embalatge.
• Inspect the machine for any shipping damage. If damaged, do not operate and contact customer support.
• Ensure all accessories, including the drain pump and faucet adaptor, are present.

4.2 Col·locació

• Col·loqueu la rentadora sobre una superfície ferma i anivellada.
• Assegureu-vos que hi hagi prou espai al voltant de la màquina per a la ventilació i l'accés.
• The machine's feet are adjustable; use them to level the appliance and prevent shaking during operation.


Figura 4.1: Product Dimensions. The image illustrates the compact dimensions of the washing machine: 19.7 inches (width) x 19.7 inches (depth) x 34.3 inches (height), making it suitable for various spaces.

4.3 Connexió d'aigua

• Connect the water inlet hose to a cold water faucet.
• Use the provided faucet adaptor. Note that the adaptor is suitable only for 3/4" faucets.
• If your faucet has internal threads, you may need to add two rubber gaskets to prevent water leakage. If it has external threads, no gasket is needed.
• Assegureu-vos que totes les connexions estiguin ajustades per evitar fuites.

4.4 Connexió de desguàs

• Position the drain hose into a sink or standpipe. Ensure the hose is securely fastened to prevent it from falling out during drainage.
• The drain hose should be at an appropriate height to allow for proper water flow.

4.5 Connexió d'alimentació

• Plug the power cord into a grounded 110V / 60Hz electrical outlet.
• No utilitzeu cables d'extensió ni adaptadors.

5. Instruccions de funcionament

Follow these steps to operate your LifePlus washing machine.

5.1 Càrrega de la roba

• Ordena la roba per tipus de teixit, color i nivell de sòl.
• Open the top lid and load clothes loosely into the tub. Do not overload the machine. The maximum capacity is 12 lbs (1.8 cu.ft).


Figura 5.1: Laundry Capacity Guide. This image provides a visual guide for the machine's capacity, indicating it can hold approximately 20 long-sleeve shirts, 25 short T-shirts, or 10 pairs of jeans.

• Add appropriate detergent to the dispenser.
• Tanqueu la tapa amb seguretat.

5.2 Selecting Program and Water Level

• Enceneu la màquina.
• Select one of the 8 available washing programs based on your laundry needs. Programs are designed for optimal cleaning of different fabrics.
• Choose one of the 6 water levels. This allows you to adjust the water volume according to the load size, saving water and energy.

Figura 5.2: Efficient Washing Features. This graphic highlights the machine's capabilities for quick wash cycles, water saving, and power saving, contributing to an efficient laundry process.

5.3 Inici del cicle de rentat

• Press the "Start/Pause" button to begin the cycle.
• The machine will automatically fill with water, wash, rinse, and spin according to the selected program.
• The LED display will show the remaining time.

5.4 Funció de bloqueig infantil

• To activate the child lock, press and hold the designated button (refer to control panel diagram in Figure 3.2) for a few seconds until the indicator light appears.
• This will lock the control panel, preventing accidental changes to settings during operation.
• To deactivate, press and hold the button again.

Figura 5.3: Safe Child Lock Feature. This image demonstrates the child lock function, which secures the control panel to prevent unintended operation by children, enhancing household safety.

6. Manteniment i cura

Un manteniment regular garanteix la longevitat i l'eficiència de la teva rentadora.

6.1 Neteja de l'exterior

• Netegeu l'exterior amb un suau, damp tela.
• No utilitzeu netejadors abrasius ni dissolvents.

6.2 Neteja de la banyera

• The machine features an auto tub cleaning function. Refer to your control panel for instructions on activating this cycle.


Figura 6.1: Auto Tub Cleaning Function. This image shows the interior of the washing machine tub with water and bubbles, illustrating the automatic tub cleaning feature designed to maintain hygiene and performance.

• Periodically run a cleaning cycle with a washing machine cleaner or a mixture of vinegar and baking soda to remove residue and odors.

6.3 Neteja del filtre de borrissol

• Locate the lint filter (usually inside the tub or near the top rim).
• Remove and clean it regularly to ensure efficient drainage and prevent lint buildup on clothes.

6.4 Hivernació (emmagatzematge)

• If storing the machine in an unheated area, drain all water from the hoses and pump to prevent freezing and damage.
• Desconnecteu les mànegues d'aigua i el cable d'alimentació.

7. Solució De Problemes

Abans de contactar amb el servei d'atenció al client, consulteu la taula següent per veure els problemes habituals i les seves solucions.

8. Especificacions

Detailed technical specifications for the LifePlus Full Automatic Washing Machine.

9. Garantia i Suport

LifePlus is committed to providing the best shopping experience.

• For any product issues or inquiries, please contact LifePlus customer support.
• Consulteu la documentació de compra per conèixer els termes i condicions específics de la garantia.
• Conserveu el vostre comprovant de compra per a reclamacions de garantia.
