Jamara Volvo L50 1:16 2.4GHz RC Wheel Loader Instruction Manual

1. Introducció

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Jamara Volvo L50 1:16 2.4GHz RC Wheel Loader. Please read this manual thoroughly before first use and retain it for future reference.

The Jamara Volvo L50 is a detailed remote-controlled wheel loader featuring realistic articulated steering, motor sounds, a reverse warning signal, and a horn. Its functions include lifting, lowering, and tilting the shovel, making it suitable for various play scenarios.

2. Informació de seguretat

Avís:

• Utilitzar sota la supervisió directa d'un adult.
• No apte per a nens menors de 36 mesos a causa de les peces petites. Risc d'asfixia.
• Mantenir fora de l'abast dels nens quan no estigui en ús.
• Do not operate near people, animals, or obstacles to prevent injury or damage.
• Assegureu-vos que les piles estiguin inserides amb la polaritat correcta.
• No barregeu piles velles i noves, o diferents tipus de piles.
• Remove batteries from the toy and remote control when not in use for extended periods.

3. Contingut del paquet

Please check the contents of your package upon unpacking:

• Jamara Volvo L50 1:16 RC Wheel Loader
• Comandament a distància de 2.4 GHz
• Manual d'instruccions (aquest document)

Nota: Les piles no estan incloses i s'han de comprar per separat.

4. Configuració

4.1 Instal·lació de la bateria

The Jamara Volvo L50 RC Wheel Loader requires batteries for both the vehicle and the remote control. Ensure you have fresh alkaline batteries.

1. Comandament a distància: Locate the battery compartment on the back of the remote control. Open the cover, insert 6 x AA 1.5V alkaline batteries, ensuring correct polarity (+/-). Close the battery cover securely.
2. Wheel Loader: Locate the battery compartment on the underside or side of the wheel loader. Open the cover, insert the required batteries (refer to the compartment for specific type and quantity, typically AA or a rechargeable pack if included, though this model specifies AA for remote). Close the battery cover securely.

Imatge: Lateral view of the wheel loader, indicating a possible battery compartment location.

4.2 Emparellament del control remot

The 2.4 GHz remote control automatically pairs with the wheel loader upon power-up. Follow these steps:

1. Ensure fresh batteries are installed in both the remote control and the wheel loader.
2. Turn on the wheel loader using its power switch.
3. Engegueu el comandament a distància amb el seu interruptor d'alimentació.
4. The remote control and wheel loader should automatically connect. An indicator light on the remote control may change from flashing to solid once connected.

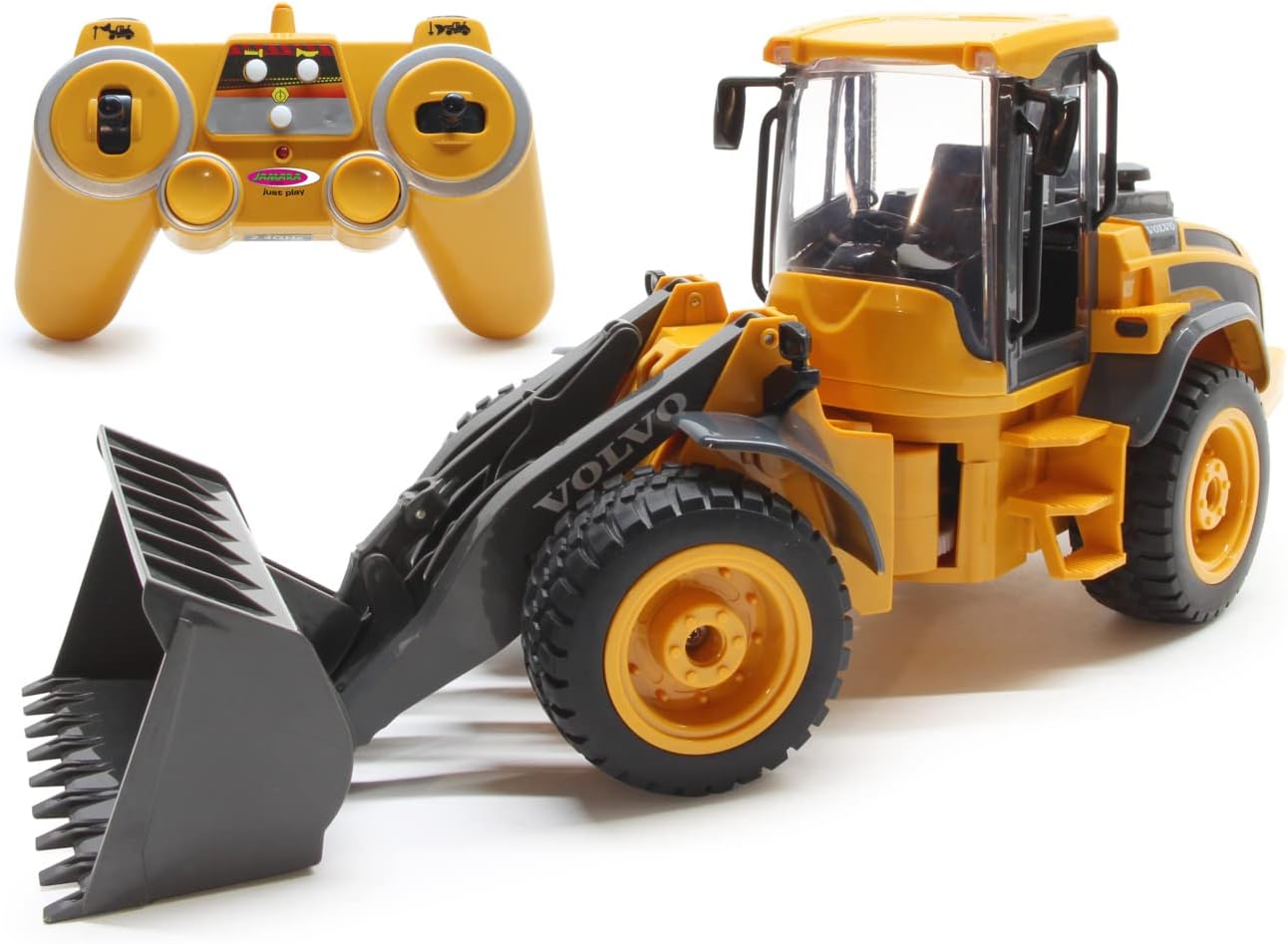

Image: The Jamara Volvo L50 RC Wheel Loader and its remote control.

5. Instruccions de funcionament

Familiarize yourself with the remote control layout and functions before operating the wheel loader.

5.1 Controls bàsics

• Endavant/Enrere: Use the left joystick (or designated lever) to move the loader forward or backward.
• Direcció esquerra/dreta: Use the right joystick (or designated lever) to steer the loader left or right. The loader features realistic articulated steering.
• Atura: Releasing the controls will bring the loader to a stop.

5.2 Shovel Functions

The remote control includes dedicated buttons or levers for operating the shovel:

• Shovel Up/Down: Use the designated button/lever to raise or lower the shovel arm.
• Shovel Tilt (Dump/Scoop): Use the designated button/lever to tilt the shovel for dumping material or scooping it up.

Image: The wheel loader demonstrating its dumping function.

5.3 Característiques especials

• Realistic Motor Sound: The loader produces realistic engine sounds during operation. This feature can usually be switched off via a button on the remote control.
• Reverse Warning Sound: An audible warning signal sounds when the loader is moving in reverse.
• Trompa: A dedicated button on the remote control activates the horn.
• Blinkers: The loader is equipped with functional blinkers for added realism.
• Auto-Standby Mode: To conserve battery life, the loader may enter an auto-standby mode after a period of inactivity. Reactivate by moving the controls.

6. Manteniment

6.1 Neteja

• Wipe the wheel loader and remote control with a soft, dry cloth.
• Do not use chemical cleaners or solvents, as they may damage the plastic.
• Avoid exposing the product to water or excessive moisture.

6.2 Emmagatzematge

• Store the wheel loader and remote control in a cool, dry place away from direct sunlight.
• Remove all batteries from both devices if storing for an extended period to prevent leakage.

6.3 Cura de la bateria

• Always use fresh, high-quality alkaline batteries.
• Eliminar les bateries usades de manera responsable d'acord amb la normativa local.

7. Solució De Problemes

If you encounter issues with your Jamara Volvo L50, refer to the following common problems and solutions:

• Problema: The wheel loader does not respond to the remote control.
  Solució:
  1. Ensure both the loader and remote control are switched ON.
  2. Check if batteries are correctly installed and have sufficient power in both devices. Replace if necessary.
  3. Ensure the devices are paired correctly (refer to Section 4.2).
  4. Move closer to the loader; ensure no strong interference sources (e.g., other 2.4GHz devices) are nearby.
• Problema: Shovel functions are not working.
  Solució:
  1. Comproveu els nivells de bateria.
  2. Ensure no obstructions are preventing the shovel from moving freely.
• Problema: Loader moves slowly or erratically.
  Solució:
  1. Replace batteries in both the loader and remote control.
  2. Ensure the operating surface is smooth and free of debris.

8. Especificacions

9. Garantia

Specific warranty information for this product may vary by region and retailer. Please retain your proof of purchase for any warranty claims. For detailed warranty terms, refer to the documentation provided at the time of purchase or contact Jamara customer support.

10. Suport

For further assistance, technical support, or inquiries regarding your Jamara Volvo L50 RC Wheel Loader, please contact Jamara directly:

• Correu electrònic: info@jamara.com
• Please visit the official Jamara weblloc web per obtenir recursos addicionals i opcions de contacte.
