Timoom M8 32GB MP3 Player User Manual

1. Producte acabatview

The Timoom M8 is a versatile 32GB MP3 player designed for a wide range of audio and multimedia functions. It features a 2.4-inch touchscreen, Bluetooth 5.0 connectivity, and expandable storage up to 128GB. This device is ideal for music playback, video viewing, e-book reading, and various utility functions.

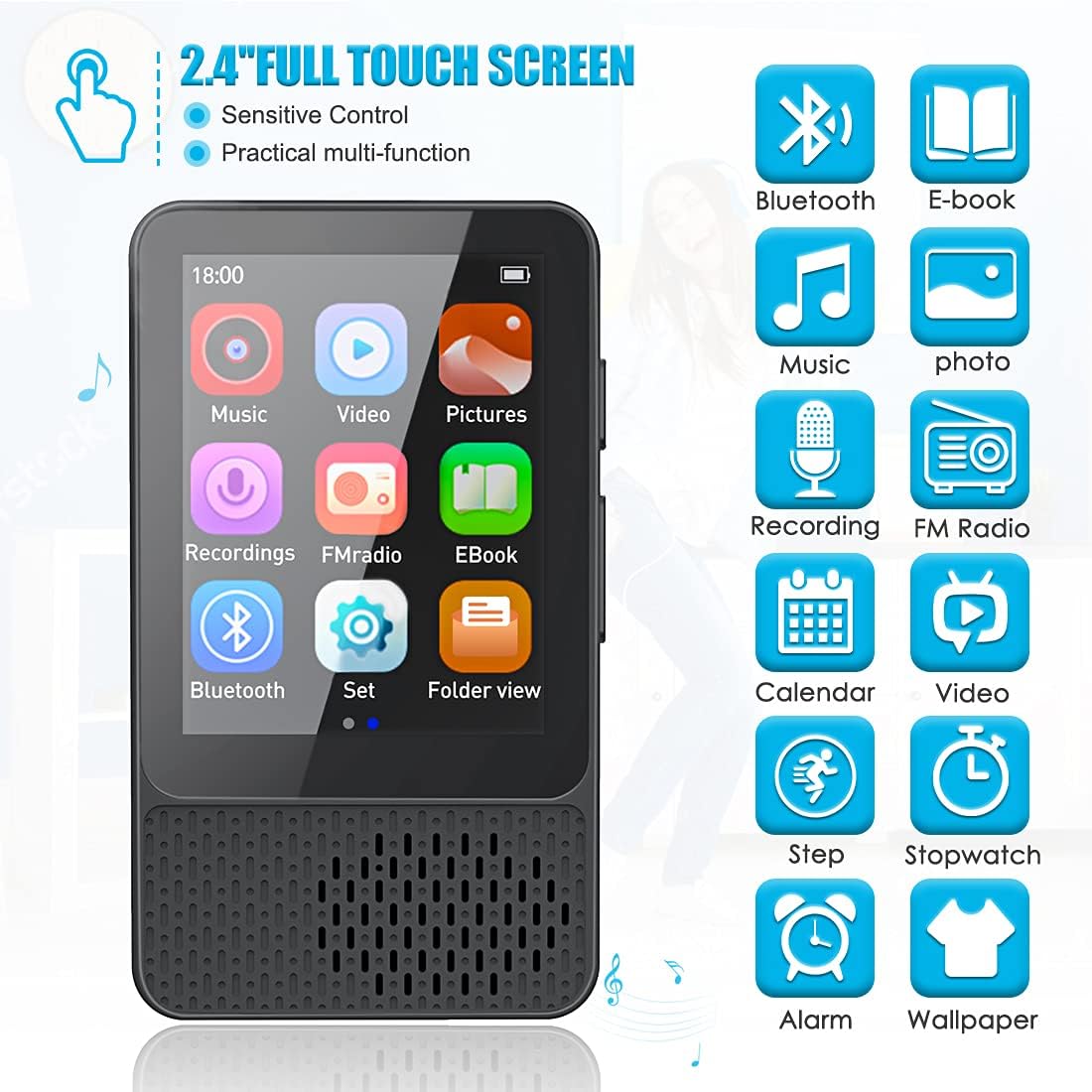

Figure 1: Timoom M8 MP3 Player User Interface. The 2.4-inch full touchscreen provides sensitive control and multi-functional access to various features including music, video, pictures, recordings, FM radio, e-book, Bluetooth, settings, and folder view.

Característiques principals:

• Tecnologia Bluetooth 5.0: Offers higher transmission speed and stable connection for wireless audio streaming to headphones or speakers.
• Gran capacitat d'emmagatzematge: 32GB internal storage, expandable up to 128GB via Micro SD card (not included), allowing storage of thousands of songs, videos, photos, and e-books.
• High Fidelity Sound Quality: Utilizes professional intelligent digital sound reduction chips for clear audio, supporting popular formats like MP3, WMA, APE, FLAC, WAV, DRM, and ACELP.
• Reproducció multimèdia: Supports music, video (720p, 1080p HD playback without format conversion for AVI, MKV, MPG, MPEG, RM, RMVB, VOB, MOV, FLV, ASF, DAT, MP4, 3GP), image browsing, and e-book reading.
• FM Radio & Voice Recorder: Built-in FM radio tuner (requires wired headphones as antenna) and voice recording function.
• Funcions addicionals: Includes pedometer, alarm clock, stopwatch, calendar, and wallpaper changer.
• Llarga vida útil de la bateria: Equipped with a durable 400mAh battery, providing up to 16 hours of average use (music), 4 hours of video playback (wired), 8 hours of wired music playback, 12 hours of Bluetooth music, and 48 hours of recording. Fast charging via USB 2.0.

2. Contingut del paquet

Si us plau, comproveu el contingut del paquet en desembalar-lo per assegurar-vos que tots els articles hi són i estan en bon estat.

Figure 2: Included items in the Timoom M8 MP3 Player package. The package contains the M8 MP3 player, a USB charging cable, a user manual, and a pair of earphones.

• Timoom M8 MP3 Player
• Cable de càrrega USB
• Manual d'usuari
• Auriculars

3. Configuració

3.1. Càrrega del dispositiu

Before first use, fully charge the Timoom M8 MP3 player. Use the provided USB cable to connect the device to a computer's USB port or a compatible USB wall adapter (5V, 0.5-1A). The charging indicator will show the charging status. A full charge typically takes about 3 hours.

3.2. Encès / apagat

• Per encendre: Press and hold the power button (usually located on the side) until the screen illuminates.
• Per apagar: Press and hold the power button until a power-off option appears on the screen, then confirm. Alternatively, a long press may directly power off the device.

3.3. Expanding Storage (Optional)

The device comes with 32GB of internal storage. If more space is needed, you can insert a Micro SD (TF) card up to 128GB. Locate the Micro SD card slot on the device and gently insert the card until it clicks into place. Ensure the card is inserted in the correct orientation.

Figure 3: Memory expansion for the Timoom M8. The device features 32GB of internal memory and supports expandable memory up to 128GB via a TF (Micro SD) card, which is not included.

4. Instruccions de funcionament

4.1. Navegació per la interfície de pantalla tàctil

The Timoom M8 features a full touchscreen for intuitive navigation. Tap icons to open applications, swipe to scroll through lists or pages, and use gestures as indicated on screen for specific functions.

4.2. Connectivitat Bluetooth

The MP3 player supports Bluetooth 5.0 for connecting to wireless headphones or speakers.

1. From the main menu, tap the "Bluetooth" icon.
2. Activa el Bluetooth.
3. Assegureu-vos que els vostres auriculars o altaveu Bluetooth estiguin en mode d'emparellament.
4. El reproductor buscarà els dispositius disponibles. Seleccioneu el vostre dispositiu de la llista per emparellar-lo.
5. Once paired, audio will be routed to the connected Bluetooth device.

Figure 4: Bluetooth 5.0 connectivity. The Timoom M8 MP3 player supports stable and fast transmission via Bluetooth 5.0, allowing connection to Bluetooth headsets, earphones, and speakers.

4.3. Reproducció de música

To play music, tap the "Music" icon from the main menu. You can browse by artist, album, genre, or all songs. The player supports MP3, WMA, APE, FLAC, WAV, DRM, and ACELP formats.

Figure 5: Hi-Fi Sound experience. The Timoom M8 MP3 player delivers high-fidelity sound and supports various audio formats including MP3, WMA, APE, FLAC, and WAV.

4.4. Reproducció de vídeo

Tap the "Video" icon to access video files. The player supports 720p and 1080p high-definition video playback for formats such as AVI, MKV, MPG, MPEG, RM, RMVB, VOB, MOV, FLV, ASF, DAT, MP4, and 3GP without the need for format conversion.

4.5. Ràdio FM

To use the FM Radio, connect wired earphones to the 3.5mm jack, as they serve as the antenna. Tap the "FM Radio" icon, then use the on-screen controls to scan for stations or tune manually.

4.6. Enregistrament de veu

Select the "Recordings" icon to start a voice recording. The built-in microphone will capture audio. You can save and manage your recordings within this section.

4.7. Lectura de llibres electrònics

Tap the "EBook" icon to open text files. The player supports e-book formats, allowing you to read on the go.

4.8. Pedometer Function

The Timoom M8 includes a pedometer. Tap the "Step" or "Pedometer" icon to activate it. You can track your step count, distance, and time during physical activities.

Figure 6: Pedometer function in use. The Timoom M8 MP3 player allows users to check their step count, time, and distance, making it suitable for sports and fitness tracking.

4.9. Rellotge despertador

Set alarms using the "Alarm" icon. You can configure multiple alarms with custom times and sounds. The device features a high-power speaker for audible alarms.

Figure 7: Alarm clock feature. The Timoom M8 MP3 player includes an alarm clock function and a high-power speaker for clear alerts.

4.10. Altres funcions

Explore other utilities such as the stopwatch, calendar, and wallpaper changer available through the device's interface.

5. Manteniment

• Neteja: Feu servir un drap suau i sec per netejar el dispositiu. No utilitzeu netejadors líquids ni aerosols.
• Emmagatzematge: Guardeu el reproductor en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Cura de la bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Carregueu el dispositiu regularment, fins i tot si no l'utilitzeu durant períodes prolongats.
• Actualitzacions de programari: Comproveu el del fabricant weblloc web periòdicament per a les actualitzacions de firmware disponibles per garantir un rendiment òptim.

6. Solució De Problemes

7. Especificacions

8. Garantia i Suport

This product is covered by a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including the warranty period and coverage details.

For technical support, troubleshooting assistance, or warranty claims, please contact HOCO customer service through their official website or the contact information provided in your product documentation. When contacting support, please have your product model (M8) and purchase details ready.

For the most up-to-date information and support resources, visit the official HOCO weblloc.
