1. Introducció
This manual provides comprehensive instructions for the assembly, operation, and maintenance of the SIRUBA DL720-M1 High-Speed Single Needle Lockstitch Direct Drive Industrial Sewing Machine. Please read this manual thoroughly before operating the machine to ensure safe and efficient use.
The SIRUBA DL720-M1 is designed for high-speed, single-needle lockstitch sewing, featuring a direct drive motor for efficient and precise stitching. It is suitable for various industrial sewing applications.
2. Instruccions de seguretat
WARNING: Always disconnect power before performing maintenance or adjustments.
- Assegureu-vos que la màquina estigui correctament connectada a terra.
- Keep hands and fingers away from the needle and moving parts during operation.
- Utilitzeu una protecció ocular adequada.
- No feu funcionar la màquina si alguna peça està danyada o falta.
- Mantenir la zona de treball neta i ben il·luminada.
- Només personal qualificat ha de realitzar les reparacions.
3. Components del producte i mésview
The SIRUBA DL720-M1 sewing machine comes with several key components, including the machine head, table, and stand. Familiarize yourself with these parts before assembly and operation.
Figura 3.1: Complete assembly of the SIRUBA DL720-M1 industrial sewing machine, showing the machine head mounted on the table with the thread stand and foot pedal.
Figura 3.2: Detallada view of the SIRUBA DL720-M1 machine head, highlighting the control panel with digital display and adjustment buttons.

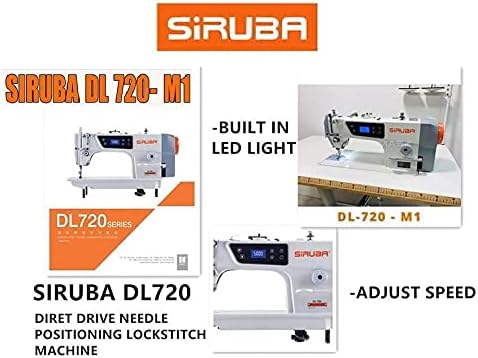

Figura 3.3: Diagram illustrating key features of the SIRUBA DL720-M1, including built-in LED light and speed adjustment capabilities.
Figura 3.4: Technical specifications and features of the SIRUBA DL720-M1, including stitch length, presser foot lift, needle type, and maximum speed (4,000 RPM).
4. Muntatge i muntatge
The SIRUBA DL720-M1 requires assembly of the machine head, table, and stand. Follow these steps carefully.
4.1 Desembalatge
Carefully unpack all components. Verify that all parts listed in the packing list are present.
Figura 4.1: Packaging of the sewing machine, indicating separate boxes for the machine head and the stand/table components.
4.2 Muntatge del suport
Assemble the "L" shaped legs of the stand according to the diagram. Ensure all bolts are securely tightened.
Figura 4.2: Diagram showing the assembly of the "L" shaped legs for the machine stand, with dimensions indicating adjustable height (24.5 to 34 inches) and width (33 inches).
4.3 Attaching the Table Top
Place the table top onto the assembled stand. Secure it using the provided screws. Ensure the table is level.
Figura 4.3: The sewing machine table top, showing the cutout for the machine head and the integrated foot pedal linkage.
4.4 Installing the Machine Head
Carefully place the machine head into the designated opening in the table top. Connect the motor and control panel cables as instructed in the separate wiring diagram (not included in this manual, refer to manufacturer's specific wiring guide).
5. Instruccions de funcionament
5.1 Engegada i controls bàsics
Connect the machine to a suitable power outlet. Use the main power switch to turn the machine on. The digital display on the machine head will illuminate.
The control panel allows for speed adjustment and other settings. Refer to the specific functions of each button:
- Botó P: Program/Parameter settings.
- Botó S: Stitch selection/Start.
- Fletxes amunt/avall: Adjust values (e.g., speed, stitch length).
Figura 5.1: Primer pla view of the machine's control panel, showing the digital display and control buttons for speed and settings.
5.2 Enfilar la màquina
Follow the threading path indicated on the machine. Ensure the thread is correctly seated in all tension discs and guides before passing it through the needle eye.
5.3 Adjusting Stitch Length and Speed
Use the adjustment dial on the side of the machine head to set the desired stitch length. Speed can be adjusted via the control panel using the up/down arrow buttons.
Vídeo 5.1: Demonstration of the SIRUBA DL720-M1 in operation, showing the needle stitching fabric and the built-in LED light illuminating the work area. This video highlights the machine's smooth operation and the visibility provided by the integrated lighting.
Figura 5.2: Diagram illustrating key features of the SIRUBA DL720-M1, including built-in LED light and speed adjustment capabilities.
5.4 Using the Presser Foot
The presser foot holds the fabric firmly in place during sewing. The machine features a standard presser foot suitable for various materials.
Figura 5.3: Primer pla view of the presser foot and needle mechanism during sewing, showing the needle penetrating fabric. This image highlights the precision of the stitching process.
6. Manteniment
Regular maintenance ensures the longevity and optimal performance of your SIRUBA DL720-M1 sewing machine.
6.1 Neteja
- Clean lint and dust from the bobbin case and feed dog area daily.
- Wipe down the machine exterior with a soft, dry cloth.
6.2 Lubricació
Apply sewing machine oil to designated lubrication points as indicated in the machine's specific lubrication guide (refer to manufacturer's specific guide). Frequency depends on usage, typically daily for heavy use.
6.3 Substitució de l'agulla
Replace the needle regularly, especially if it becomes bent, dull, or if stitches are skipping. Use DBX1 #11-#14 needles as specified.
7. Solució De Problemes
Aquesta secció ofereix solucions a problemes comuns que podeu trobar.
| Problema | Causa possible | Solució |
|---|---|---|
| Punts saltats | Incorrect needle, bent needle, improper threading, incorrect tension. | Replace needle, re-thread machine, adjust tension. |
| Trencament del fil | High tension, poor quality thread, burrs on thread path, incorrect needle. | Reduce tension, use quality thread, check thread path for rough spots, replace needle. |
| La màquina no arrenca | No power, main switch off, safety mechanism engaged. | Check power connection, turn on main switch, ensure presser foot is down. |
8. Especificacions
| Característica | Detall |
|---|---|
| Model | DL720-M1 |
| Tipus | High-Speed Single Needle Lockstitch Direct Drive Industrial Sewing Machine |
| Longitud màxima de la puntada | 0-4 mm |
| Presser Foot Lift (Hand/Knee) | 5.5 mm / 13 mm |
| Tipus d'agulla | DBX1 #11-#14 |
| Màx. Velocitat | 4,000 RPM |
| Pes de l'article | 70 pounds (machine head only, table/stand weight not included) |
| Font d'alimentació | Direct Drive Motor (Electric) |
9. Garantia i Suport
For warranty information and technical support, please contact your authorized SIRUBA dealer or visit the official SIRUBA weblloc web. Conserveu el rebut de compra com a comprovant de compra.
Customer Support information is typically provided by the seller. For specific inquiries, refer to the contact details provided at the point of purchase.
