1. Introducció
This manual provides essential information for the installation, operation, and maintenance of your SonicWall NSA 4700 Secure Upgrade Plus - Advanced Edition 2YR. Please read this manual thoroughly before using the device to ensure proper setup and optimal performance. The SonicWall NSA 4700 is a next-generation firewall designed to provide comprehensive network security services.
2. Configuració
2.1 Desembalatge i inspecció inicial
Carefully remove the SonicWall NSA 4700 device and its accessories from the packaging. Inspect all components for any signs of damage. If any damage is found, contact your vendor immediately.
2.2 Instal·lació física
The SonicWall NSA 4700 can be installed in a standard 19-inch rack. Ensure adequate ventilation around the device. Connect the power cable to the device and a suitable power source. Connect your network cables to the appropriate LAN and WAN ports.

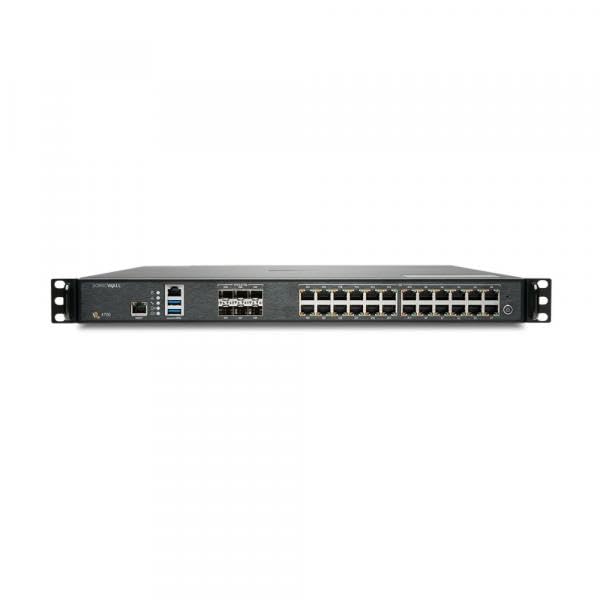

Figure 1: SonicWall NSA 4700 Front Panel. This image displays the front of the SonicWall NSA 4700, highlighting its network interfaces and LED indicators for status monitoring.
2.3 Configuració inicial
After physical installation, power on the device. Access the management interface via a web browser using the default IP address (refer to the Quick Start Guide for details). Follow the on-screen prompts to complete the initial setup, including setting up network parameters and administrative credentials.
3. Funcionament
3.1 Acabatview of Security Services
The SonicWall NSA 4700, with the Secure Upgrade Plus - Advanced Edition, provides a comprehensive suite of security services:
- Capture Advanced Threat Protection Service: Provides multi-engine sandboxing to detect and block advanced threats, including ransomware and zero-day attacks.
- Gateway Anti-Virus and Anti-Spyware: Scans incoming and outgoing traffic for known malware signatures.
- Servei de Prevenció d'Intrusions (IPS): Protects against network-based attacks by detecting and preventing intrusions.
- Control d'aplicacions: Enables granular control over network applications to optimize bandwidth and enhance security.
- Content Filtering Service: Manages and controls access to inappropriate or unproductive web contingut.
- Comprehensive Anti-Spam: Filters out unwanted email, protecting against phishing and spam.
- NSM Essential with Management & 7-Day Reporting: Provides centralized management and reporting capabilities.
3.2 Accés a la interfície de gestió
Obre a web browser and enter the IP address of your SonicWall device. Log in with your administrative credentials. The dashboard provides an overview of the system status, network activity, and security threats.
3.3 Configuring Security Policies
Navigate to the 'Security Services' section to configure and fine-tune your security policies. This includes setting up firewall rules, VPN connections, and customizing threat protection settings. Refer to the SonicWall documentation portal for detailed configuration guides.
4. Manteniment
4.1 actualitzacions de microprogramari
Regularly check for and apply firmware updates to ensure your device has the latest security patches and features. Firmware updates can be performed through the management interface under 'System > Firmware'.
4.2 Còpia de seguretat i restauració de la configuració
It is recommended to regularly back up your device configuration. This allows for quick recovery in case of misconfiguration or system failure. Configuration backups can be managed under 'System > Settings'.
4.3 Monitoring System Status
Utilize the dashboard and logging features to monitor the device's health, network traffic, and security events. This helps in proactive identification and resolution of potential issues.
5. Solució De Problemes
5.1 Sense poder
- Verify the power cable is securely connected to both the device and a working power outlet.
- Comproveu si hi ha algun indicador lluminós a la font d'alimentació.
5.2 Sense connectivitat de xarxa
- Ensure all Ethernet cables are properly connected to the correct ports.
- Check the status LEDs on the device and connected network equipment.
- Verify network configuration settings (IP addresses, subnet masks, gateways) in the management interface.
5.3 Security Service Issues
- Confirm that your Secure Upgrade Plus - Advanced Edition license is active and not expired.
- Review the security service logs for specific error messages.
- Ensure that the device has proper internet connectivity to update threat signatures.
6. Especificacions
| Característica | Especificació |
|---|---|
| Número de model | 02-SSC-9552 |
| Dimensions del paquet | 28 x 24 x 8 polzades |
| Pes de l'article | 30 lliures |
| Bateries | Calen piles específiques del producte. |
| Fabricant | SonicWall |
| Primer disponible | 12 d'agost de 2021 |
7. Garantia i Suport
7.1 Informació de la garantia
This product includes a 2-year Secure Upgrade Plus - Advanced Edition, which typically covers hardware warranty and access to software updates and technical support during the subscription period. For detailed warranty terms and conditions, please refer to the official SonicWall warranty policy available on their weblloc.
7.2 Suport tècnic
SonicWall provides 24x7 technical support for registered products. For assistance, visit the official SonicWall support portal or contact their customer service. Ensure you have your product serial number and registration details ready when seeking support.
Recursos en línia: For additional documentation, knowledge base articles, and community forums, please visit the official SonicWall weblloc.
