SonicWall NSa6700 Gen 7 Firewall Instruction Manual

1. Producte acabatview

The SonicWall NSa 6700 Gen 7 Firewall is an enterprise-grade next-generation firewall appliance designed for large organizations and service providers requiring high scalability and robust security. This unit provides advanced threat prevention and network management capabilities.

Les característiques clau inclouen:

• High throughput: 36 Gbps firewall throughput and 19 Gbps threat prevention.
• Extensive connection support: Up to 8 million concurrent connections.
• Advanced threat protection: Utilizes Capture ATP sandboxing, RTDMI inspection, Intrusion Prevention System (IPS), and Deep Packet Inspection for SSL (DPI-SSL) for defense against malware and encrypted threats.
• Flexible port configuration: Includes 40 GbE, 25 GbE, 10 GbE, and 1 GbE options for diverse network deployments.
• Scalability: Supports thousands of VPN tunnels and remote users.
• High availability: Features redundant power supplies and clustering support for continuous operation.

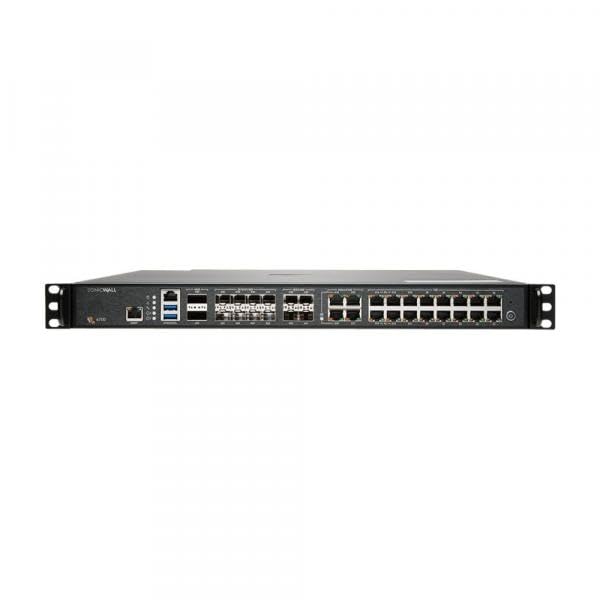

Imatge 1.1: Frontal view of the SonicWall NSa6700 Gen 7 Firewall appliance, showcasing its port configuration and indicators.

2. Configuració i instal·lació

2.1 Desembalatge i inspecció

Carefully unpack the SonicWall NSa6700 appliance and its accessories. Verify that all components listed in the packing slip are present and inspect the unit for any physical damage. Report any damage or missing items to your vendor immediately.

2.2 Instal·lació física

The NSa6700 is designed for rack-mounting in a standard 19-inch equipment rack. Ensure adequate ventilation around the unit to prevent overheating. Connect the power cables to the redundant power supply units and then to appropriate power sources. Connect network cables to the desired interfaces (WAN, LAN, DMZ, etc.) according to your network design.

2.3 Configuració inicial

To perform initial configuration:

1. Connect a management workstation to the management interface (typically X0 or MGMT port) using an Ethernet cable.
2. Configure your workstation's IP address to be on the same subnet as the firewall's default management IP (refer to the Quick Start Guide for default IP).
3. Obre a web browser and navigate to the firewall's management IP address.
4. Log in using the default credentials (refer to the Quick Start Guide). You will be prompted to change the default password upon first login.
5. Seguiu les instruccions de l'assistent de configuració que apareixen en pantalla per configurar els paràmetres bàsics de xarxa, la zona horària i les contrasenyes d'administrador.

For users participating in the SonicWall Secure Upgrade Plus program, ensure your qualifying device information is ready for registration and activation of the service subscription.

3. Funcionament del tallafocs

3.1 SonicOS Management Interface

The SonicWall NSa6700 operates on SonicOS, providing a comprehensive web-based management interface. This interface allows for configuration of all firewall features, monitoring, and reporting.

3.2 Configuració de la xarxa

Configure network zones, interfaces, routing, and VPN tunnels through the Network section of the management interface. The NSa6700 supports various VPN types, including site-to-site and remote access VPNs, to secure communications across distributed environments.

3.3 Security Services

Activate and configure the Advanced Protection Service Suite (APSS) features:

• Gateway Anti-Virus: Analitza el trànsit entrant i sortint per detectar signatures de programari maliciós conegut.
• Sistema de prevenció d'intrusions (IPS): Protects against network-based attacks and exploits.
• Control d'aplicacions: Manages and restricts application usage on the network.
• Filtret de contingut: Blocks access to inappropriate or malicious webllocs.
• Capture ATP (Advanced Threat Protection): Provides multi-engine sandboxing for zero-day threat detection.
• RTDMI (Real-Time Deep Memory Inspection): Analyzes memory for advanced malware.
• DPI-SSL: Inspects encrypted traffic for hidden threats.

Regularment review and update security policies to ensure optimal protection.

3.4 Seguiment i elaboració d'informes

Utilize the dashboard and logging features within SonicOS to monitor network activity, security events, and system performance. Generate reports to analyze traffic patterns and threat landscapes.

4. Manteniment

4.1 actualitzacions de microprogramari

Periodically check for and apply the latest firmware updates from the SonicWall support portal. Firmware updates often include security patches, new features, and performance enhancements. Always back up your configuration before performing a firmware update.

4.2 Còpia de seguretat i restauració de la configuració

Regularly back up your firewall configuration to an external location. This allows for quick recovery in case of configuration errors or system failures. The SonicOS interface provides options to export and import configuration files.

4.3 Hardware Health Check

Monitor the system status indicators on the front panel of the appliance. Ensure that cooling fans are operating correctly and that the environment temperature remains within specified limits. Clean dust from air vents as needed to maintain proper airflow.

4.4 Service Subscription Management

Ensure your Advanced Protection Service Suite (APSS) subscription is active and up-to-date to receive continuous threat intelligence updates and access to support services.

5. Solució De Problemes

5.1 Basic Connectivity Issues

• Verify physical cable connections to all interfaces.
• Check interface status in the SonicOS management interface.
• Confirm IP address configurations and routing tables.
• Use diagnostic tools like ping and traceroute from the firewall's command line interface (CLI) or diagnostic page.

5.2 Performance Degradation

• Monitor CPU, memory, and connection usage from the SonicOS dashboard.
• Review security service logs for high threat activity or excessive scanning.
• Ensure firmware is up-to-date.

5.3 Accessing Logs and Diagnostics

The SonicOS management interface provides detailed logs for system events, security services, and network traffic. These logs are crucial for identifying the root cause of issues. The diagnostic tools section offers packet capture, network monitoring, and other utilities.

5.4 Contactar amb l'assistència

If you are unable to resolve an issue, contact SonicWall Technical Support. Have your product serial number, support contract details, and a description of the problem ready. Your 2-year Advanced Protection Service Suite includes 24x7 support.

6. Especificacions

7. Garantia i Suport

This SonicWall NSa6700 unit includes a 2-Year Advanced Protection Service Suite (APSS) as part of the SecureUpgradePlus program. This suite provides comprehensive security services and 24x7 technical support.

7.1 Advanced Protection Service Suite (APSS)

The APSS includes:

• Gateway Anti-Virus, Intrusion Prevention, Application Control, and Content Filtering.
• Capture ATP (Advanced Threat Protection) for sandboxing.
• Real-Time Deep Memory Inspection (RTDMI).
• Assistència tècnica 24 hores al dia, 7 dies a la setmana.
• Firmware updates and hardware warranty.

For detailed terms and conditions of your warranty and support services, please refer to the official SonicWall weblloc web o el vostre contracte de compra.

7.2 Recursos en línia

Additional documentation, knowledge base articles, and support tools are available on the official SonicWall support portal: https://www.sonicwall.com/support
