1. Producte acabatview
The Zemismart Smart Curtain Robot is an intelligent device designed to automate the opening and closing of your curtains. It offers multiple control options including the Tuya App, RF remote control, and voice commands via smart assistants like Alexa, Google Assistant, and Siri. This device is compatible with various curtain track types, providing convenience and smart home integration.

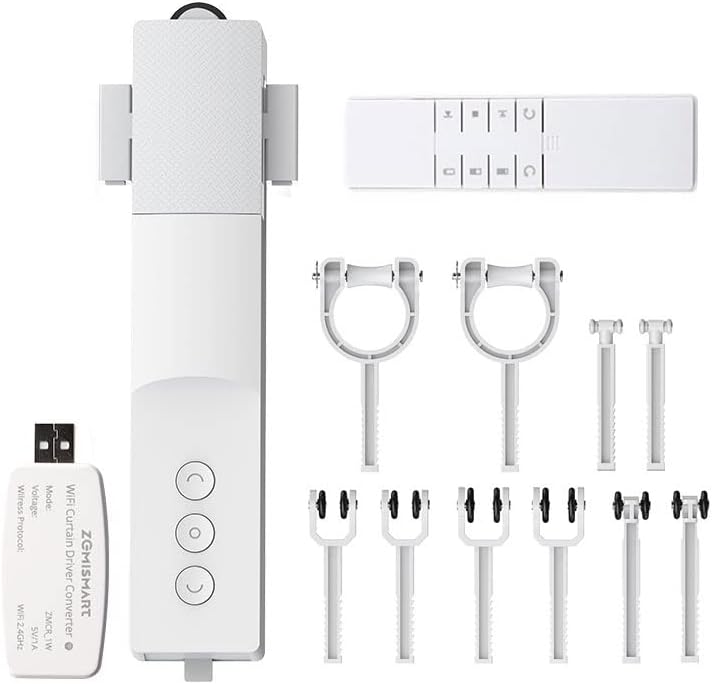

Image 1.1: The Zemismart Smart Curtain Robot, including the main unit, remote control, and various adapters for different curtain rails.
Característiques principals:
- Fàcil instal·lació: No screws or complex tools required.
- Múltiples opcions de control: Tuya App/Smart Life App, RF 433 remote control, Voice Control (Alexa, Google Assistant, Siri).
- Bateria integrada: 3000mAh lithium battery for long standby time.
- Solar Panel Support: Optional solar panel for continuous charging (sold separately).
- Strong Load-Bearing: Supports curtains up to 10 kg.
- Àmplia compatibilitat: Suitable for Roman rods (20-28mm), I-rails (width 12.8-14mm, height ≥12mm), and U-rails (width >15mm, height >12.7mm, gap width 6.5-8mm).
- Funció de temporitzador: Schedule curtain opening and closing times.
- Position Memory: Remembers preferred open/close positions.
2. Informació de seguretat
Si us plau, llegiu i comprengui totes les instruccions de seguretat abans de la instal·lació i l'ús. Si no segueix aquestes instruccions, es poden produir descàrregues elèctriques, incendis o lesions greus.
- Mantingueu el dispositiu allunyat de l'aigua i la humitat elevada.
- Do not attempt to disassemble, repair, or modify the device. Contact customer support for assistance.
- Ensure the curtain track is securely installed and can support the weight of the curtains plus the device.
- Keep children and pets away from moving curtains and the device during operation.
- Feu servir només els accessoris de càrrega especificats.
- No exposeu el dispositiu a temperatures extremes.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents al vostre paquet:
- Smart Curtain Robot Main Unit
- Comandament a distància RF
- USB WiFi Dongle (for App control)
- Adapters for Roman Rods
- Adapters for U-Rails
- Adapters for I-Rails
- Manual d'usuari (aquest document)
4. Configuració i instal·lació
The Zemismart Smart Curtain Robot is designed for quick and easy installation, typically taking around 30 seconds per unit.
Comprovació de compatibilitat:
Ensure your curtain track or rod is compatible with the device. Refer to the specifications below:
- Roman Rods: Diàmetre 20-28 mm
- I-Rails: Width 12.8-14mm, Height ≥12mm
- U-Rails: Width >15mm, Height >12.7mm, Gap Width 6.5-8mm
Nota: This motor is not compatible with telescopic rods.

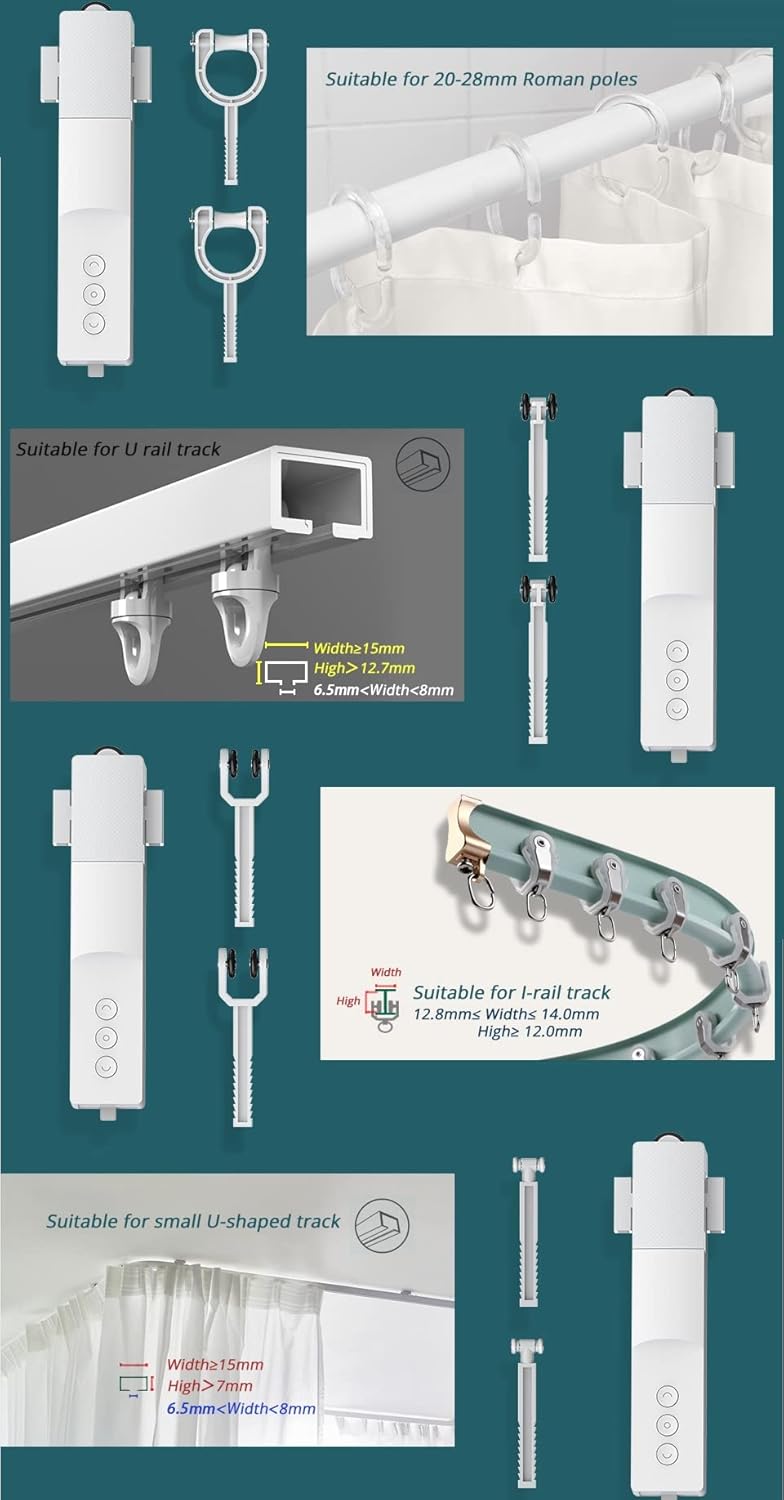

Image 4.1: Visual guide for compatible curtain rod and rail dimensions.
Passos d'instal·lació:
- Select Appropriate Adapters: Based on your curtain type (Roman rod, U-rail, or I-rail), choose the correct set of adapters from the package.
- Attach Adapters to Robot: Securely attach the chosen adapters to the main unit of the Smart Curtain Robot.
- Mount the Robot: Gently clip or slide the robot with its adapters onto your curtain rod or rail. Ensure it is firmly in place and can move freely along the track.
- Encesa inicial: Premeu el botó d'engegada del robot per encendre-lo.
- Pairing (Optional): If using the Tuya App, plug in the WiFi dongle and follow the app's instructions to pair the device.
Image 4.2: The installation process is quick and straightforward for various rail types.
5. Funcionament
Càrrega del dispositiu:
The Smart Curtain Robot has a built-in 3000mAh lithium battery. Charge the device using the provided USB cable. For continuous power, an optional solar panel can be connected (sold separately).
Image 5.1: The device features a 3000mAh battery, offering extended standby time on a single charge.
Image 5.2: The Smart Curtain Robot can be powered by an optional solar panel, eliminating the need for frequent charging.
Mètodes de control:
The Smart Curtain Robot offers versatile control options:
- Tuya App / Smart Life App: Download the Tuya or Smart Life app from your smartphone's app store. Follow the in-app instructions to add and control your device. The app allows remote control, timer settings, and percentage-based opening/closing.
- Control remot RF: Use the included RF remote to open, close, or stop the curtains. The remote supports continuous movement or inching mode, and can control multiple robots simultaneously or individually.
- Control de veu: Integrate the device with Alexa, Google Assistant, or Siri for hands-free operation. Once connected, you can use voice commands like "Alexa, open the living room curtains."
Image 5.3: Voice control integration with smart assistants like Google, Alexa, and Siri for convenient operation.

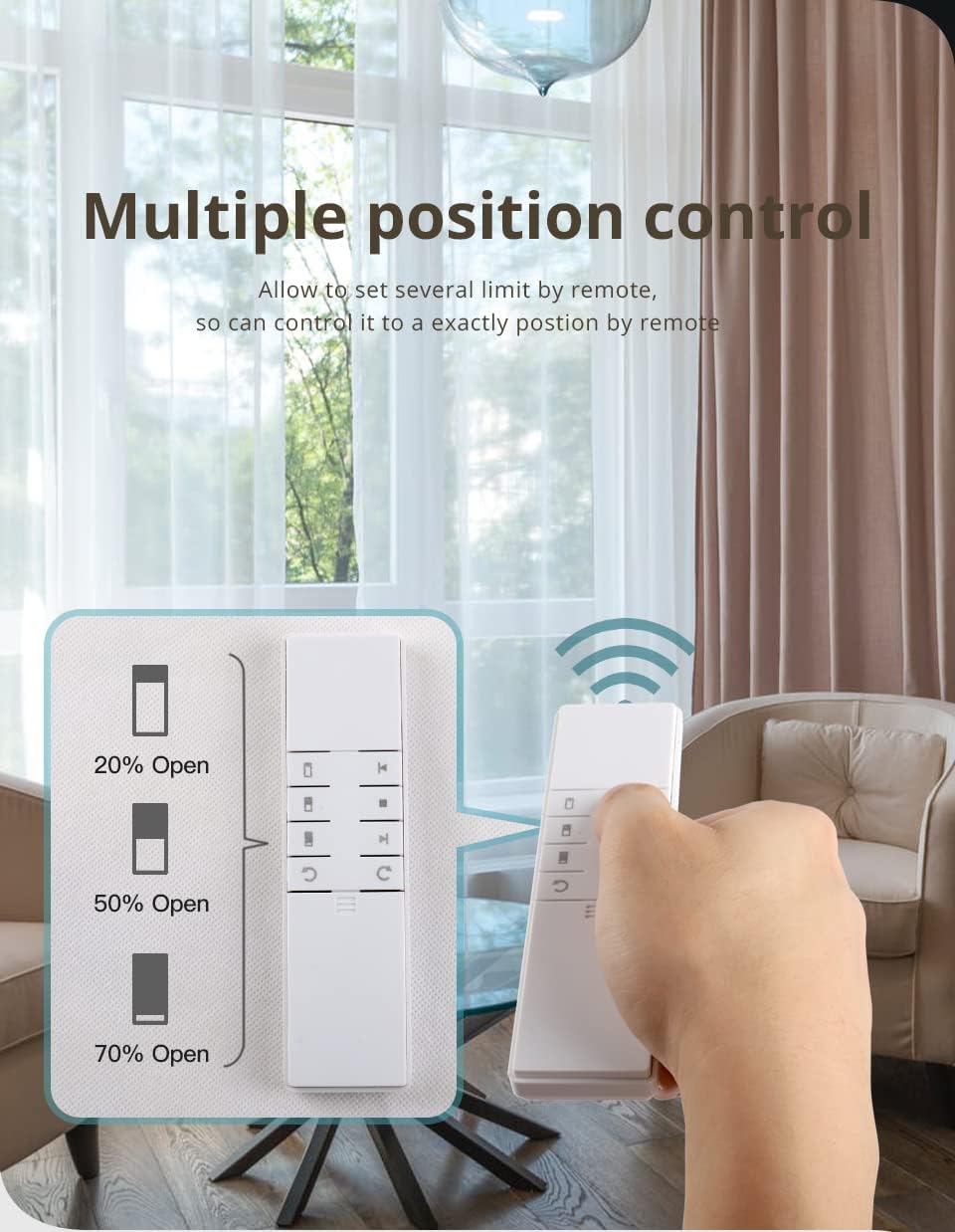

Image 5.4: The RF remote allows for precise control, including setting multiple intermediate open positions.
Curtain Opening Modes:
- Single Open: For curtains that open from one side (e.g., left to right). One robot unit is sufficient.
- Double Open (Center Open): For curtains that open from the middle. This requires two robot units. Install them oppositely so they move away from each other.
Image 5.5: The robot supports both single-sided and double-sided curtain opening configurations.
Timer and Position Settings:
Utilize the Tuya/Smart Life app to set schedules for your curtains. You can program them to open at sunrise and close at sunset, or any specific time. The device also features position memory, allowing you to set and recall specific open percentages (e.g., 20%, 50%, 70% open).
Image 5.6: Set custom timers via the app for automated curtain operation.
6. Manteniment
To ensure optimal performance and longevity of your Zemismart Smart Curtain Robot, follow these maintenance guidelines:
- Neteja: Netegeu el dispositiu amb un drap suau i sec. No utilitzeu productes de neteja abrasius ni dissolvents.
- Cura de la bateria: Recharge the battery when indicated by the device or app. If using the solar panel, ensure it is clean and exposed to sufficient sunlight.
- Inspecció de la via: Periodically check your curtain track or rod for any obstructions or damage that might impede the robot's movement.
- Actualitzacions de firmware: Check the Tuya/Smart Life app for any available firmware updates to ensure your device has the latest features and bug fixes.
7. Solució De Problemes
If you encounter issues with your Smart Curtain Robot, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El robot no es mou. | Low battery, obstruction, incorrect installation. | Charge the battery. Check for any physical obstructions on the track. Re-install the robot ensuring it's securely attached. |
| El comandament a distància no funciona. | Remote battery low, not paired, out of range. | Replace remote battery. Re-pair the remote with the robot (refer to pairing instructions). Ensure you are within range. |
| El control de l'aplicació no funciona. | WiFi dongle not connected, poor WiFi signal, device offline in app. | Ensure the WiFi dongle is plugged in and powered. Check your home WiFi connection. Verify the device status in the Tuya/Smart Life app. Re-pair if necessary. |
| Curtains do not open/close fully. | Limits not set correctly, track obstruction. | Reset and re-calibrate the open/close limits via the app or remote. Check the curtain track for any resistance. |
If the problem persists, please contact Zemismart customer support for further assistance.
8. Especificacions
| Característica | Especificació |
|---|---|
| Marca | zemismart |
| Model | Robot de cortina intel·ligent |
| ASIN | B09CKY2WL8 |
| Pes | 233 grams |
| Material | Acrilonitril butadiè estirè (ABS) |
| Color | Blanc |
| Tipus de bateria | Ió de liti |
| Capacitat de la bateria | 3000 mAh |
| Capacitat de càrrega màxima | 10 kg |
| Roman Rod Compatibility | Diàmetre 20-28 mm |
| I-Rail Compatibility | Width 12.8-14mm, Height ≥12mm |
| U-Rail Compatibility | Width >15mm, Height >12.7mm, Gap Width 6.5-8mm |
9. Garantia i Suport
Zemismart is committed to providing quality products and customer satisfaction. If you require assistance with installation, operation, or encounter any issues with your product, please contact our customer support team.
- All inquiries will receive a response within 12 hours, accounting for time differences.
- We offer a 100% refund if the product has a verifiable problem.
For support, please refer to the contact information provided with your purchase or visit the official Zemismart weblloc.
