Cook's Essentials Electric Mandoline Slicer and Dicer K-45550 User Manual

1. Introducció

Gràcies per la compraasing the Cook's Essentials Electric Mandoline Slicer and Dicer. This appliance is designed to simplify food preparation by quickly and efficiently slicing, shredding, and dicing various fruits, vegetables, and cheeses. This manual provides essential information for the safe and effective operation, maintenance, and care of your new electric mandoline slicer.

2. Instruccions de seguretat importants

Quan utilitzeu aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat per reduir el risc d'incendi, descàrrega elèctrica i/o lesions a les persones, incloses les següents:

• Llegiu totes les instruccions abans d’utilitzar l’aparell.
• Do not touch moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from blades during operation to prevent injury and/or damage to the appliance.
• Always use the food pusher when feeding food into the chute. Never use fingers or other utensils.
• Desendolleu la presa de corrent quan no estigui en ús, abans de posar o treure peces i abans de netejar.
• No submergiu la base del motor en aigua o altres líquids.
• Avoid contact with sharp blades. Handle blades with extreme care.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi caigut o s'hagi danyat de cap manera.
• L'ús d'accessoris no recomanats o venuts pel fabricant pot provocar incendis, descàrregues elèctriques o lesions.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
• Aquest aparell només és per a ús domèstic.

3. Llista de peces

The Cook's Essentials Electric Mandoline Slicer and Dicer includes the following components:

• Electric Mandoline Slicer Base
• Food Chute with Food Pusher
• 2-Quart Storage Container
• Seven (7) Interchangeable Blades:
  • Thick Slice Blade
  • Extra-Thick Slice Blade
  • Thin Slice Blade
  • Shred/Grate Blade
  • Cube Blade
  • Julienne Blade
  • Fine-Julienne Blade
• Raspall de neteja
• Cube Insert Cleaner

Imatge 3.1: acabatview of the Cook's Essentials Electric Mandoline Slicer and Dicer with its various components, including the main unit, collection container, and several blades.

4. Configuració

1. Desempaquetar components: Traieu amb cura totes les peces de l'embalatge. Conserveu l'embalatge per a futurs emmagatzematges o transports.
2. Neteja abans del primer ús: Wash all removable parts (blades, food pusher, chute, storage container) in warm, soapy water. Rinse thoroughly and dry completely. Wipe the motor base with a damp tela.
3. Posicionar la base: Place the electric mandoline slicer base on a clean, dry, and stable surface. Ensure the suction feet are firmly attached to the countertop for stability during operation.
4. Attach Storage Container: Slide the 2-quart storage container into position beneath the slicing mechanism until it clicks securely into place. This container will collect the processed food.
5. Insert Desired Blade: Select the appropriate blade for your desired cut. Carefully insert the blade into the designated slot on the top of the unit. Ensure it is seated firmly and correctly. Refer to Section 5 for blade selection.
6. Attach Food Chute: Place the food chute onto the top of the unit, aligning it with the blade and securing it in place.
7. Connectar l'alimentació: Plug the power cord into a standard electrical outlet. The appliance is now ready for use.

5. Instruccions de funcionament

5.1 Blade Selection and Insertion

The mandoline slicer comes with seven distinct blades, each designed for a specific type of cut. Always handle blades by their plastic edges to avoid injury.

• Thick Slice Blade: For thicker slices of vegetables like potatoes or onions.
• Extra-Thick Slice Blade: For very thick slices, suitable for hearty vegetables.
• Thin Slice Blade: For delicate, thin slices of cucumbers, carrots, or radishes.
• Shred/Grate Blade: For shredding cheese, cabbage, or grating carrots.
• Cube Blade: For uniform cubes of vegetables like potatoes, onions, or bell peppers.
• Julienne Blade: For thin, matchstick-like strips of vegetables.
• Fine-Julienne Blade: For very fine, delicate matchstick strips.

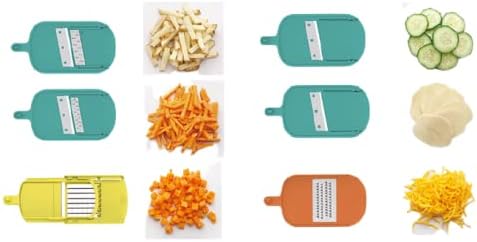

Image 5.1: Illustration of the different blade types and the resulting cuts, including slices, shreds, and cubes.

5.2 Preparació d'aliments

• Wash and peel fruits or vegetables as required.
• Cut food items into pieces that fit comfortably into the feeding chute. Do not force large pieces into the chute.
• For best results, ensure food items are firm. Softer items may require chilling.

5.3 Slicing and Dicing Process

1. With the desired blade and food chute in place, and the appliance plugged in, place the prepared food item into the feeding chute.
2. Place the food pusher on top of the food item in the chute.
3. Press and hold the power button located on the side of the unit. The powerful 150W motor will activate, moving the sliding carriage back and forth.
4. Gently apply downward pressure on the food pusher to guide the food through the blade. Do not apply excessive force.
5. Continue until all food is processed. The sliced or diced food will collect in the 2-quart storage container below.
6. Release the power button to stop the appliance.
7. Unplug the appliance from the power outlet before removing the container or changing blades.

6. Neteja i Manteniment

Proper cleaning and maintenance will ensure the longevity and optimal performance of your electric mandoline slicer.

1. Desconnectar: Always ensure the appliance is unplugged from the power outlet before cleaning.
2. Desmuntar: Carefully remove the food pusher, food chute, blade, and storage container from the motor base.
3. Neteja les peces extraïbles: Wash the food pusher, food chute, blades, and storage container in warm, soapy water. Use the provided cleaning brush to remove any food residue from the blades and crevices. For the cube blade, use the cube insert cleaner to dislodge trapped food. Rinse thoroughly and dry immediately to prevent rust on metal blades.
4. Base del motor neta: Netegeu l'exterior de la base del motor amb anunciamp drap. No submergiu mai la base del motor en aigua ni en cap altre líquid.
5. Emmagatzematge: Once all parts are clean and dry, reassemble the unit or store the blades safely in their protective covers. Store the appliance in a dry, safe place away from children.

7. Solució De Problemes

8. Especificacions

• Número de model: K-45550
• Potència del motor: 150W
• Dimensions (Mandoline): Approximately 13" (H) x 14.5" (L) x 6.25" (W)
• Pes: Approximately 5 lbs, 4 oz
• Longitud del cable: 41 polzades
• Storage Container Capacity: 2 quarts
• Material de la fulla: Metall
• Mode de funcionament: Electric, Push-button

9. Garantia i Suport

For warranty information or product support, please refer to the documentation included with your purchase or contact Cook's Essentials customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
