1. Introducció
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your MENNEKES Amtron Professional 22 C2 Wallbox. Please read this manual thoroughly before installation or use and retain it for future reference.
The Amtron Professional 22 C2 Wallbox is designed for reliable and robust electrical equipment applications, ensuring durable performance.
2. Informació de seguretat
Instruccions importants de seguretat:
- La instal·lació ha de ser realitzada per un electricista qualificat d'acord amb tots els codis elèctrics locals i nacionals.
- No intenteu obrir ni reparar el dispositiu vosaltres mateixos. Envieu totes les tasques de manteniment a personal de servei qualificat.
- Ensure the power supply is disconnected before any installation, maintenance, or cleaning procedures.
- Manteniu el dispositiu allunyat de l'aigua, la humitat i les temperatures extremes.
- Use only original or approved accessories and spare parts.
3. Contingut del paquet
Verifiqueu que tots els elements siguin presents i no estiguin danyats en desempaquetar-los:
- MENNEKES Amtron Professional 22 C2 Wallbox unit
- Maquinari de muntatge (cargols, ancoratges)
- User Instruction Manual (this document)
- Plantilla d'instal·lació (si escau)
4. Configuració i instal·lació
The Amtron Professional 22 C2 Wallbox is designed for wall-mounted installation. Professional installation is highly recommended.
- Selecció del lloc: Choose a suitable indoor or outdoor location that is protected from direct impact and extreme weather conditions, and is easily accessible for operation.
- Desconnexió d'alimentació: Ensure the main power supply to the installation area is completely disconnected before proceeding.
- Muntatge:
- Use the provided mounting template (if included) to mark drilling points on the wall.
- Perfora forats i insereix els ancoratges de paret adequats.
- Securely mount the wallbox to the wall using the provided screws.
- Connexió elèctrica:
- Open the wallbox enclosure (refer to specific diagrams in the full installation guide for access).
- Connect the main power supply cables to the designated terminals inside the unit, following the wiring diagram. Ensure proper grounding.
- Close and secure the enclosure.
- Engegada inicial: Once installation is complete and verified by a qualified electrician, restore power to the unit. Observe indicator lights for proper operation.

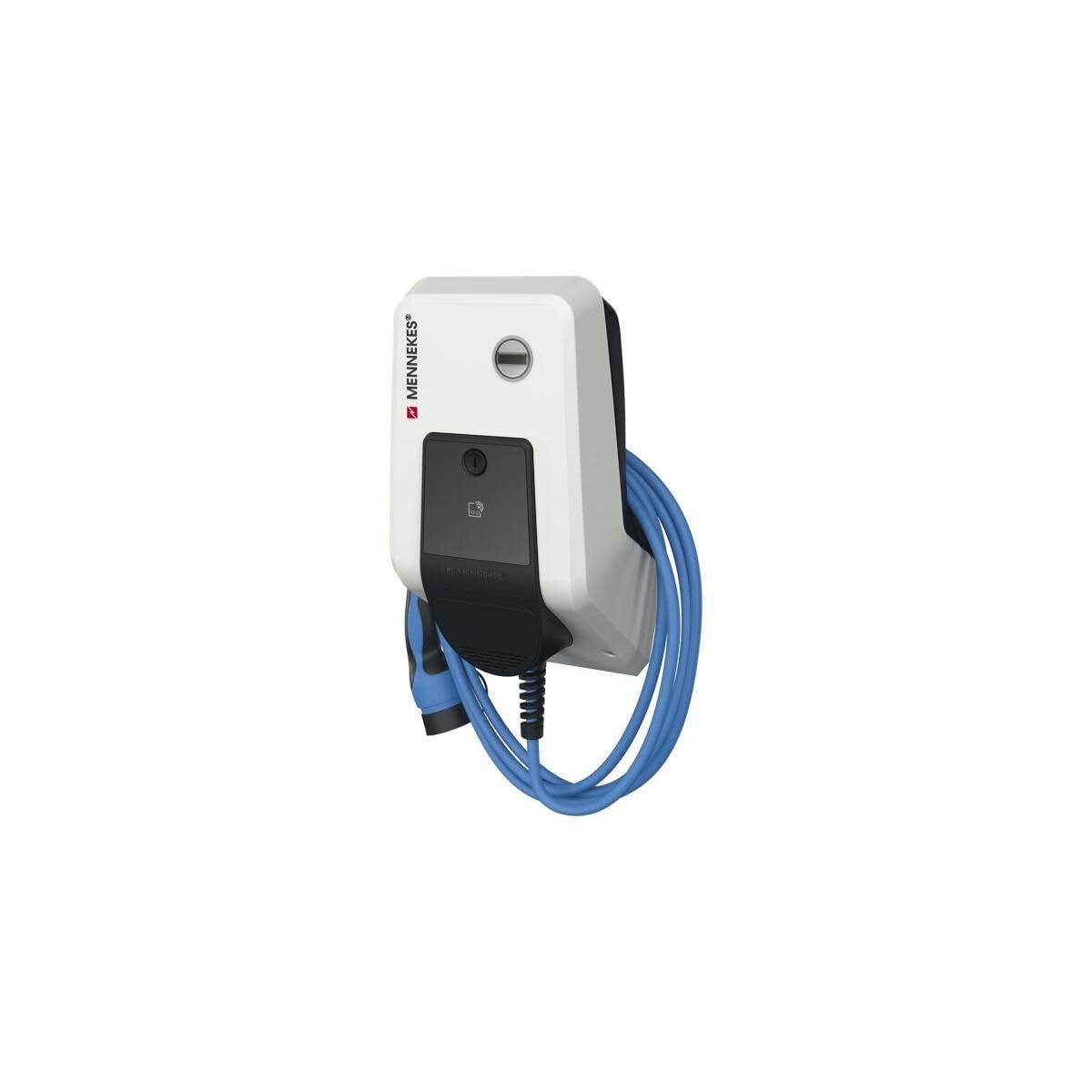

Figure 1: The Amtron Professional 22 C2 Wallbox, showing its compact design and integrated charging cable. This image illustrates the typical appearance of the unit when installed.
5. Instruccions de funcionament
Operating the Amtron Professional 22 C2 Wallbox is straightforward:
- Preparació: Ensure the wallbox is powered on and its status indicator shows readiness (e.g., green light).
- Connexió: Take the charging cable from the wallbox and securely insert the connector into the vehicle's charging port.
- Càrrec inicial: The charging process typically starts automatically once the connection is established and the vehicle requests power. Some models may require authentication (e.g., RFID card) before charging begins. Refer to your specific model's detailed operating guide for authentication procedures.
- Seguiment: Observeu els indicadors d'estat del wallbox i del tauler de control del vehicle per controlar el progrés de la càrrega.
- Càrrec final: To stop charging, follow your vehicle's instructions (e.g., unlock the charging port). Disconnect the cable from the vehicle first, then from the wallbox.
- Storing Cable: Coil the charging cable neatly around the wallbox or use the integrated cable management features to prevent damage and tripping hazards.
6. Manteniment
Regular maintenance ensures the longevity and safe operation of your Amtron Professional 22 C2 Wallbox:
- Neteja: Clean the exterior of the wallbox periodically with a soft, damp cloth. Do not use abrasive cleaners, solvents, or excessive water. Ensure the unit is powered off before cleaning.
- Inspecció del cable: Regularly inspect the charging cable and connectors for any signs of wear, damage, cracks, or discoloration. If any damage is found, discontinue use immediately and contact qualified service personnel.
- Ventilació: Ensure that ventilation openings (if present) are not blocked by dust or debris to prevent overheating.
- Inspecció professional: It is recommended to have the unit inspected by a qualified electrician at least once a year to ensure all electrical connections are secure and the unit is functioning correctly.
7. Solució De Problemes
Aquesta secció tracta els problemes habituals que podeu trobar. Per a problemes que no figuren aquí, poseu-vos en contacte amb l'atenció al client.
| Problema | Causa possible | Solució |
|---|---|---|
| Wallbox not powering on | No power supply; tripped circuit breaker; internal fault. | Check main power supply and circuit breaker. If problem persists, contact a qualified electrician. |
| La càrrega no comença | Cable not fully inserted; vehicle not ready to charge; authentication required; vehicle fault. | Ensure cable is securely connected. Check vehicle status. Perform authentication if necessary. Consult vehicle manual. |
| Indicator light shows error | Internal fault; overcurrent; ground fault. | Disconnect power for 5 minutes, then reconnect. If error persists, contact qualified service personnel. |
8. Especificacions
| Característica | Detall |
|---|---|
| Model de producte | Amtron Professional 22 C2 Wallbox |
| Fabricant | MENNEKES |
| Número de model | 271224 |
| Dimensions (L x A x A) | 22 x 35 x 12 cm |
| Pes | 9 quilograms |
| Material | Plàstic |
| ASIN | B09D3X5WJW |
| Color | NA |
9. Garantia i Suport
For warranty information, technical support, or service requests, please contact MENNEKES customer service or your authorized dealer. Keep your purchase receipt and product model number (271224) readily available when contacting support.
Fabricant: MENNEKES
Weblloc: www.mennekes.com (Note: This is a placeholder link, please refer to official MENNEKES documentation for precise contact details and weblloc.)
