Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your zemismart Wi-Fi Wall Switch for Roller Shutters. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Imatge: Frontal view of the zemismart Wi-Fi Wall Switch for Roller Shutters. The switch is white with a glass-like finish and three touch-sensitive icons: a left arrow (open), an equals sign (stop), and a right arrow (close).
Informació de seguretat
ADVERTIMENT: Electrical installation should only be performed by a qualified electrician. Ensure power is disconnected at the circuit breaker before beginning any installation work. Failure to follow these instructions can result in electric shock, fire, or serious injury.
- No instal·leu amb les mans mullades.
- No instal·leu a damp ambients.
- Ensure the power supply matches the switch's specifications (110V-240V).
- Es necessita un cable neutre per a la instal·lació.
Especificacions
| Característica | Detall |
|---|---|
| Model | DS-151 |
| Voltage | AC100-240V |
| Freqüència | 50/60Hz |
| Màx. Carrega | 1800W |
| Tipus sense fil | Wi-Fi |
| Dimensions | 87 mm x 87 mm x 27 mm (L x A x P) |
| Certificacions | CE, RoHS |
| Característiques especials | UV Protection, Weather Resistant |
Image: Detailed diagram showing the dimensions of the switch (87mm x 87mm x 27mm) and its wiring connections. The wiring diagram indicates connections for Live (L), Neutral (N), and motor lines (L1, L2, L3, L4).
Instal·lació i Configuració
1. Instruccions de cablejat
- Desconnecteu l'alimentació: Before starting, turn off the main power supply at your circuit breaker to avoid electric shock.
- Identificar els cables: Identify the Live (L), Neutral (N), and motor control wires (L1, L2, L3, L4) from your roller shutter system. A neutral wire is required for this switch.
- Connecteu els cables: Connect the wires to the corresponding terminals on the zemismart Wi-Fi Wall Switch as shown in the wiring diagram.
- Connecteu el cable en fase al terminal 'L'.
- Connecteu el cable neutre al terminal 'N'.
- Connect the motor control wires to the 'L1', 'L2', 'L3', 'L4' terminals as per your motor's requirements (typically L1/L2 for up/down, L3/L4 for limit switches if applicable). Refer to your motor's manual for specific wiring.
- Muntar l'interruptor: Securely mount the switch into the wall box.
- Restaura l'alimentació: Once all connections are secure and the switch is mounted, restore power at the circuit breaker.
2. Configuració del control d'aplicacions mòbils
The zemismart Wi-Fi Wall Switch supports control via the Smart Life or Tuya Smart app on Android and iOS devices.
- Descarregar l'aplicació: Download and install the "Smart Life" or "Tuya Smart" app from your device's app store.
- Registra't/Inici de sessió: Obre l'aplicació i registra't per obtenir un compte nou o inicia la sessió si ja en tens un.
- Afegeix un dispositiu:
- Ensure your Wi-Fi switch is powered on and in pairing mode (usually indicated by a blinking light).
- A l'aplicació, toca la icona "+" per afegir un dispositiu nou.
- Select "Curtain Switch" or "Roller Shutter Switch" from the device list.
- Follow the in-app instructions to connect the switch to your 2.4GHz Wi-Fi network.
- Control and Schedule: Once connected, you can control your roller shutters (Open, Stop, Close) and set schedules or timers directly from the app.
Image: Three mobile phone screens displaying the Smart Life/Tuya app interface. The first shows the home screen with various smart devices, the second shows the curtain switch control interface with Open, Stop, and Close buttons, and the third shows the timer scheduling interface.
Funcionament
1. Control manual
The touch-sensitive buttons on the switch allow for direct control of your roller shutters:
- Fletxa esquerra («): Tap to open the roller shutter.
- Equals Sign (=): Tap to stop the roller shutter at its current position.
- Fletxa dreta (»): Tap to close the roller shutter.
2. Control per veu
The switch supports voice control through Amazon Alexa and Google Home when integrated with the Smart Life/Tuya app.
- Comptes d'enllaç: In your Alexa or Google Home app, link your Smart Life/Tuya account.
- Descobriu els dispositius: Discover new devices in your smart home app. Your zemismart switch should appear.
- Comandaments de veu: Utilitzeu ordres com ara:
- "Alexa, open the curtain."
- "Hey Google, turn on the curtain." (Note: "turn on" might be interpreted as "open" for curtains/shutters)
- "Alexa, close the curtain."
- "Hey Google, stop the curtain."

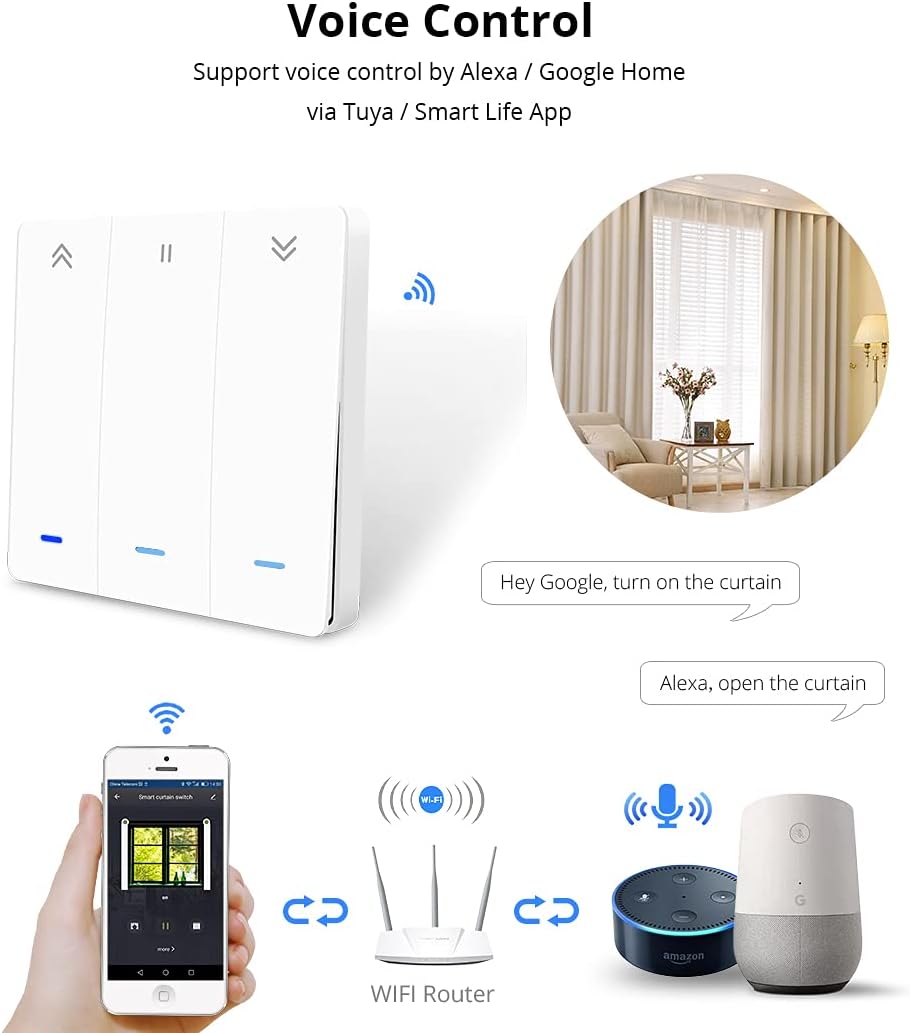

Image: A diagram showing a smartphone, a Wi-Fi router, an Amazon Echo device, and a Google Home device, all connected to the smart curtain switch. Speech bubbles indicate voice commands like "Hey Google, turn on the curtain" and "Alexa, open the curtain."
3. Backlight Function Key
The backlight function of the switch can be activated or deactivated via the mobile app to save power or suit preference.
- Open the Smart Life/Tuya app and navigate to the curtain switch control interface.
- Look for a "Backlight" option or similar setting within the device's settings to toggle it on or off.
Image: A mobile phone screen showing the curtain switch app interface with a "Backlight" button highlighted. To the right, two sets of switch images illustrate the backlight being off (no red light) and on (red light visible).
Manteniment
- Neteja: Desconnecteu l'alimentació abans de netejar-lo. Feu servir un drap suau i sec per netejar la superfície de l'interruptor. No utilitzeu productes de neteja abrasius ni dissolvents.
- Actualitzacions de firmware: Periodically check the Smart Life/Tuya app for available firmware updates for your switch to ensure optimal performance and security.
- Condicions ambientals: Ensure the switch is not exposed to extreme temperatures or humidity, as this can affect its lifespan and functionality.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Switch not responding / No power | Sense subministrament d'alimentació; Cablejat incorrecte; Interruptor automàtic saltat. | Check circuit breaker. Verify wiring connections (Live, Neutral, Motor). Ensure power is restored. |
| No es pot connectar a la Wi-Fi / aplicació | Incorrect Wi-Fi password; Not 2.4GHz Wi-Fi; Switch not in pairing mode; Router too far. | Ensure 2.4GHz Wi-Fi. Re-enter password. Put switch into pairing mode (refer to app instructions). Move router closer or use a Wi-Fi extender. |
| Roller shutter not moving or moving incorrectly | Incorrect motor wiring; Motor limits not set; Motor malfunction. | Verify motor wire connections (L1, L2, L3, L4). Consult your roller shutter motor manual for limit setting procedures. Contact a professional if motor malfunction is suspected. |
| El control de veu no funciona | Smart Life/Tuya account not linked; Device not discovered; Incorrect voice command. | Ensure Smart Life/Tuya account is linked in Alexa/Google Home app. Redo device discovery. Use correct voice commands. |
Informació de la garantia
Specific warranty details for the zemismart Wi-Fi Wall Switch are typically provided at the point of purchase or on the official zemismart website. Please retain your proof of purchase for warranty claims. The product is certified CE and RoHS, indicating compliance with European safety and environmental standards.
Atenció al client
For further assistance, technical support, or inquiries regarding your zemismart Wi-Fi Wall Switch, please visit the official zemismart website or contact their customer service department. You can often find support contact information on the product packaging or through the Smart Life/Tuya app's help section.
