MZEIBO KY-2020D Bluetooth Sound Bar Home Theater Audio System User Manual

Introducció

This manual provides detailed instructions for the setup, operation, and maintenance of your MZEIBO KY-2020D Bluetooth Sound Bar Home Theater Audio System. Please read this manual thoroughly before using the product to ensure proper function and longevity.

Image: The MZEIBO KY-2020D Bluetooth Sound Bar, remote control, and vertical speaker bases.

Què hi ha a la caixa

Desembaleu amb cura tots els components i verifiqueu que heu rebut els articles següents:

• 1 x TV Sound Bar (KY-2020D)
• 1 x comandament a distància
• 1 x adaptador de corrent
• 1 x cable HDMI
• 1 x cable òptic
• 1 x cable RCA
• 1 x cable AUX
• 1 x Manual d'usuari (aquest document)
• 2 x Bases (left & right, for vertical setup)

Image: All components included in the MZEIBO KY-2020D Sound Bar package.

Configuració

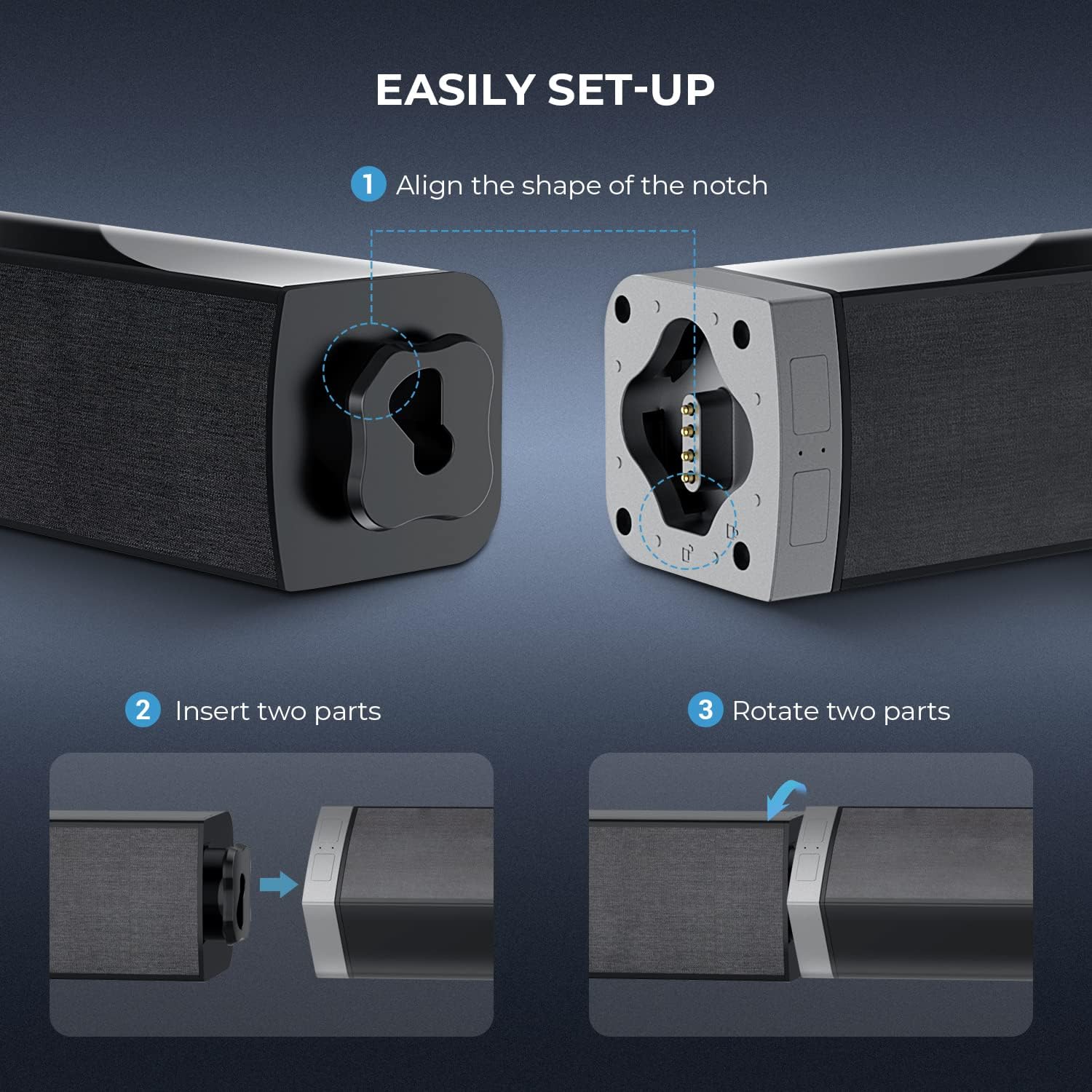

1. Assembly (Detachable Design)

The MZEIBO KY-2020D Sound Bar features a detachable design, allowing it to be used as a single horizontal sound bar or two vertical tower speakers. Follow these steps for assembly:

1. Align the Notches: Locate the connection points on both halves of the sound bar. Align the shape of the notch on one part with the corresponding connector on the other.
2. Insert and Connect: Gently insert the two parts together, ensuring the electrical contacts meet securely.
3. Gira per bloquejar: Once inserted, rotate one part slightly to lock the two halves together. You should feel a secure connection.

Image: Step-by-step guide for assembling the detachable sound bar.

Image: Illustration of the sound bar assembly process.

2. Opcions de col·locació

The sound bar can be placed in two configurations:

• Horizontal Sound Bar: Place the assembled sound bar horizontally below your television.
• Vertical Tower Speakers: Attach the included bases to each half of the sound bar and place them vertically on either side of your television.

Imatge: Examples of horizontal sound bar placement and vertical tower speaker placement.

3. Connexió a l'alimentació

Connect the provided power adapter to the DC IN port on the sound bar and then plug it into a standard electrical outlet.

4. Connexions d'àudio

The MZEIBO KY-2020D Sound Bar offers multiple connectivity options. Choose the method best suited for your device:

• HDMI (ARC): Connect an HDMI cable from the HDMI ARC port on the sound bar to the HDMI ARC port on your TV. This allows for audio return channel functionality.
• Òptic: Connect an optical cable from the OPT port on the sound bar to the optical output on your TV or audio source.
• AUX: Use the AUX cable to connect the sound bar's AUX port to the 3.5mm audio output on your device.
• RCA: Connect the RCA cable to the RCA ports on the sound bar and your audio source.
• Bluetooth: For wireless connection, refer to the Bluetooth Pairing section under Operating.

Image: Rear panel connections of the sound bar, highlighting various input options.

Instruccions de funcionament

1. Encendre/apagar

Premeu el botó Poder botó del comandament a distància o de la barra de so per encendre o apagar la unitat.

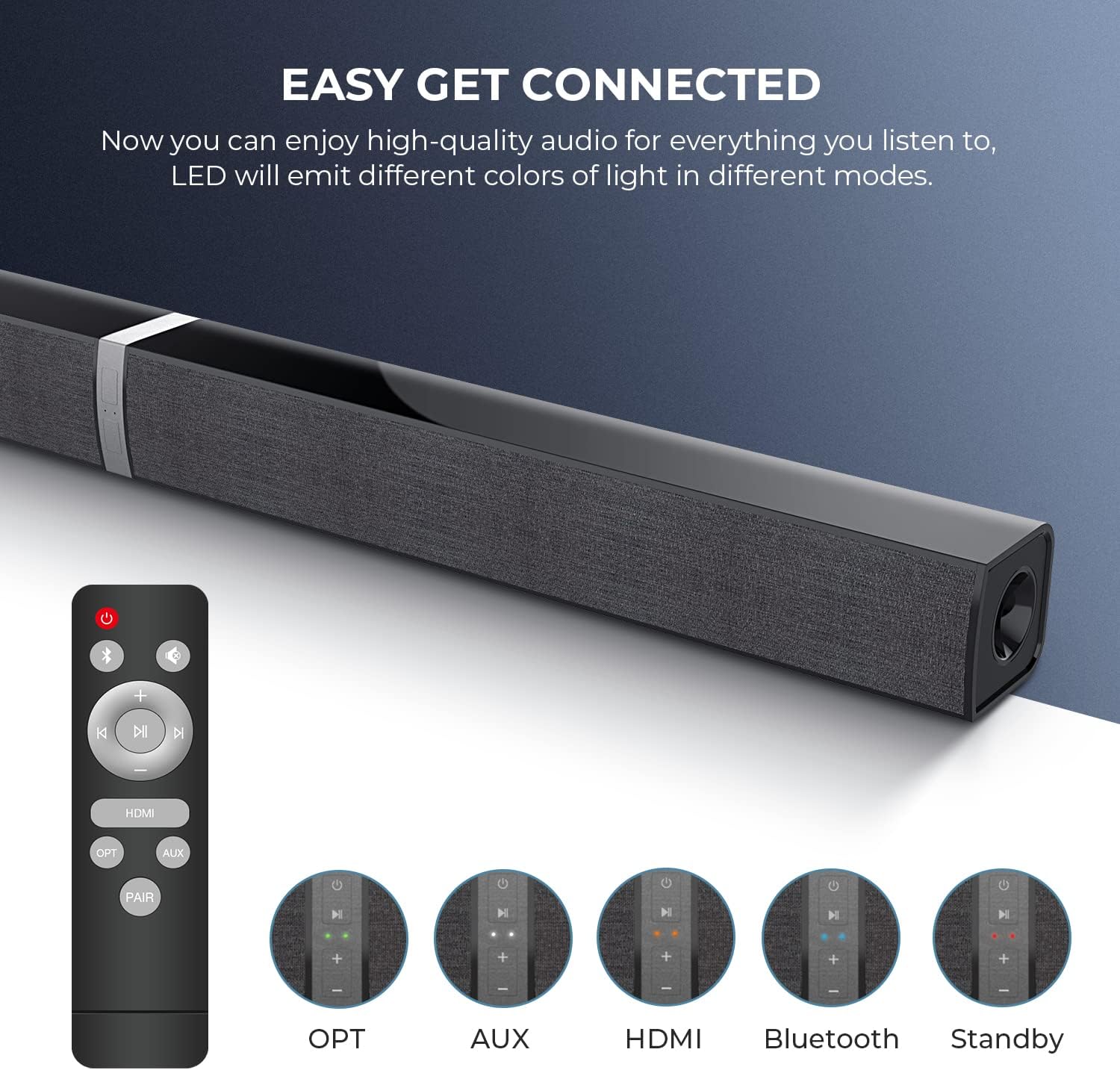

2. Selecció del mode d'entrada

Press the corresponding input button on the remote control (e.g., HDMI, OPT, AUX, PARELLA for Bluetooth) to switch between audio sources. The LED indicator on the sound bar will change color to reflect the active mode.

Image: Remote control and visual indicators for selecting audio input modes.

3. Control de volum

Utilitza el + i - buttons on the remote control or the sound bar to adjust the volume. The sound bar has a maximum output power of 50 Watts.

4. Emparellament Bluetooth

1. Enceneu la barra de so.
2. Premeu el botó PARELLA button on the remote control or the Bluetooth button on the sound bar. The LED indicator will flash, indicating it is in pairing mode.
3. On your Bluetooth-enabled device (e.g., smartphone, tablet, laptop), search for available Bluetooth devices.
4. Select "MZEIBO KY-2020D" from the list.
5. Un cop connectat, l'indicador LED deixarà de parpellejar i romandrà fix.

The sound bar supports Bluetooth 5.0 for stable wireless audio streaming.

Manteniment

To ensure the longevity and optimal performance of your MZEIBO KY-2020D Sound Bar, follow these maintenance guidelines:

• Neteja: Use a soft, dry cloth to wipe the surfaces of the sound bar. Avoid using liquid cleaners, aerosols, or abrasive materials, as these can damage the finish or internal components.
• Col·locació: Place the sound bar on a stable, flat surface. Ensure adequate ventilation around the unit to prevent overheating. Avoid placing it near heat sources or in direct sunlight.
• Emmagatzematge: If storing the sound bar for an extended period, disconnect it from power and store it in a cool, dry place, preferably in its original packaging.
• Exposició a l'aigua: This product is not waterproof. Avoid exposing it to water or excessive moisture.

Resolució de problemes

If you encounter issues with your MZEIBO KY-2020D Sound Bar, refer to the following common problems and solutions:

Especificacions

Informació de la garantia

The MZEIBO KY-2020D Sound Bar comes with a Garantia limitada. Please refer to the warranty card included in your package for specific terms, conditions, and duration of coverage. Keep your proof of purchase for warranty claims.

Atenció al client

For further assistance, technical support, or inquiries regarding your MZEIBO KY-2020D Sound Bar, please contact MZEIBO customer service. Contact details can typically be found on the official MZEIBO weblloc web o en els materials d'embalatge.

You can also visit the official MZEIBO store for more product information: MZEIBO Store on Amazon
