1. Producte acabatview
The OSRAM LED Star GLOBE125 is a spherical LED lamp designed for mains voltage. It offers high-quality light with a color rendering index (CRI) of 80 and consistent chromaticity. This lamp is an energy-efficient replacement for conventional 150W incandescent bulbs, providing instant illumination and a long lifespan.
Característiques principals:
- Designed for mains voltage operació.
- Non-dimmable functionality.
- Extended lifespan of up to 15,000 hours.
- Wide beam angle of up to 360 degrees.
- Constructed with a glass bulb.
2. Instruccions de seguretat
Please read and understand all safety instructions before installing or using the product. Failure to follow these instructions may result in electric shock, fire, or other injuries.
- Risc de descàrrega elèctrica: Always disconnect power before installing or replacing the bulb. Ensure your hands are dry when handling the bulb.
- No regulable: Aquesta bombeta és NO dimmable. Do not use it with dimmer switches, as this may damage the bulb or the dimmer.
- Ús interior: Primarily designed for domestic applications and general lighting. Outdoor use is only permitted in suitable outdoor luminaires with a minimum IP65 rating.
- Temperatura: Do not expose the bulb to extreme temperatures or high humidity.
- Eliminació: Desfeu-vos de la bombeta d'acord amb la normativa local per a residus electrònics.
3. Configuració i instal·lació
Desembalatge:
Carefully remove the bulb from its packaging. Inspect the bulb for any visible damage before installation.
Passos d'instal·lació:
- Ensure the power to the light fixture is turned off at the main switch or circuit breaker.
- Allow the old bulb (if any) to cool down completely before removing it.
- Carefully screw the OSRAM LED Star GLOBE125 bulb into the E27 socket. Do not overtighten.
- Resta l'alimentació de la llum.
- Turn on the light switch to test the bulb.
4. Funcionament
Operating the OSRAM LED Star GLOBE125 is straightforward:
- Simply use your standard wall switch to turn the light fixture on or off.
- As noted in the safety instructions, this bulb is no regulable. It will operate at full brightness when power is supplied.
5. Manteniment
The OSRAM LED Star GLOBE125 requires minimal maintenance due to its long lifespan.
Neteja:
Before cleaning, ensure the power is off and the bulb has cooled down. Wipe the bulb with a soft, dry, lint-free cloth. Do not use liquid cleaners or abrasive materials, as they may damage the bulb's finish or internal components.
Substitució:
When the bulb reaches the end of its life, replace it following the installation steps outlined in Section 3. Ensure you replace it with a bulb of compatible specifications.
6. Solució De Problemes
If you encounter issues with your OSRAM LED Star GLOBE125, refer to the table below for common problems and solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| La bombeta no s'encén. | No hi ha energia a l’aparell. | Check the wall switch, circuit breaker, or fuse. |
| Bombeta no ben cargolada. | Apagueu l'alimentació i torneu a enroscar fermament la bombeta al portalàmpades. | |
| La bombeta és defectuosa. | Substituïu la bombeta per una de nova. | |
| La bombeta parpelleja. | Interruptor regulador d'intensitat incompatible. | This bulb is non-dimmable. Remove any dimmer switch and use a standard on/off switch. |
| Connexió fluixa. | Turn off power, then re-screw the bulb firmly. If flickering persists, consult a qualified electrician. |
7. Especificacions tècniques
Detailed specifications for the OSRAM LED Star GLOBE125:
| Especificació | Valor |
|---|---|
| Marca | OSRAM |
| Fabricant | LEDVANCE |
| Número de model | 4058075601901 (LED Retrofit CLASSIC GLOBE125) |
| Dimensions del producte (L x A x A) | 12.4 x 12.4 x 17.3 cm |
| Pes | 100 grams |
| Classificació IP | IP20 |
| Estil | Globe juliol |
| Color | Blanc fresc |
| Forma | Esfèric |
| Material | Vidre |
| Tipus d'acabat | Mat |
| Voltage | 220 Volts |
| Característiques especials | No Dimmable |
| Tipus de bombeta | LED |
| Cap Type / Base | E27 |
| Flux lluminós | 2452 lúmens |
| Wattage | 17 watts |
| Equivalent incandescent | 150 watts |
| Temperatura de color | 4000 Kelvin (blanc fred) |
| Índex de reproducció del color (CRI) | 80 |
| Vida mitjana | 15,000 hores |
| Classificació d'eficiència energètica | D |

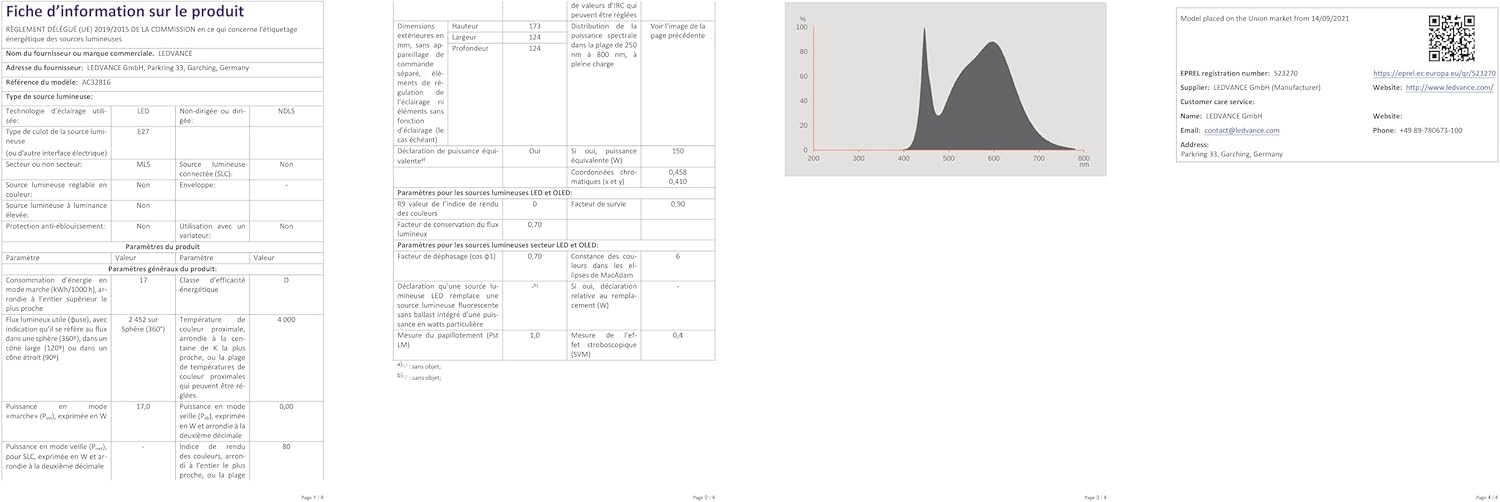

For more detailed product information and the official EPREL database entry, please visit: https://eprel.ec.europa.eu/qr/523270
8. Garantia i assistència
Informació de la garantia:
This OSRAM product is covered by the standard manufacturer's warranty. Please refer to the packaging or the official OSRAM website for specific warranty terms and conditions applicable in your region.
Atenció al client:
For technical assistance, product inquiries, or warranty claims, please contact OSRAM customer support directly. Contact information can typically be found on the product packaging or the official OSRAM weblloc.
