Manual d'instruccions del suport de TV de sobretaula Perlegear PGTVS02

Introducció

This instruction manual provides detailed guidance for the safe and proper assembly, operation, and maintenance of your Perlegear PGTVS02 Tabletop TV Stand. Please read all instructions carefully before installation to ensure correct setup and to prevent damage or injury. Keep this manual for future reference.

Imatge: Frontal view of the Perlegear PGTVS02 Tabletop TV Stand, showcasing its black finish and tempered glass base.

Informació de seguretat

Instruccions importants de seguretat:

• Verify that your TV's weight and VESA pattern are within the stand's specifications before installation. This stand supports TVs from 23 to 60 inches, weighing up to 99 lbs (45 kg), with VESA patterns from 75x75mm to 400x400mm.
• Do not exceed the maximum load capacity. Overloading can result in serious injury or property damage.
• Ensure all screws are securely tightened before use. Do not overtighten screws to avoid stripping.
• Install the stand on a stable, level surface. Uneven surfaces can cause instability.
• Mantingueu els nens i les mascotes allunyats de la zona de muntatge. Les peces petites poden ser un perill d'asfíxia.
• If any parts are missing or damaged, do not attempt to assemble. Contact Perlegear customer support for assistance.

Image: Illustrates the Perlegear stand's wider base (16.8 inches) for enhanced stability compared to a narrower alternative (11.4 inches).

Característiques del producte

• Construcció sòlida: Features a stable tempered-glass base and a reinforced metal frame for secure TV support. Includes safety screws to firmly attach the TV to the stand.
• Altura ajustable: Offers 9 height settings to position your TV at an optimal viewnivell.
• Àmplia compatibilitat: Designed for most 23''–60'' LCD, LED, and OLED TVs weighing up to 99 lbs (45 kg). Compatible with VESA mounting patterns ranging from 75x75mm to 400x400mm.
• Instal·lació sense trepant: Provides a simple setup process with included hardware and instructions, requiring no drilling.
• Gestió integrada de cables: Helps organize and conceal cables for a tidy appearance.

Image: Illustrates the wide compatibility of the stand for TVs between 23 and 60 inches, along with supported VESA mounting patterns.

Contingut del paquet

Please check to ensure all components are present and undamaged before beginning assembly. If any parts are missing or defective, please contact Perlegear customer support.

• Base de vidre temperat
• Columna de suport
• Placa de muntatge de TV
• TV Brackets (2 pcs)
• Hardware Kit (screws, washers, spacers, Allen key, wrench)
• Manual d'instruccions

Instruccions de configuració

Follow these steps carefully for a secure and stable installation.

1. Llista de verificació prèvia a la instal·lació

• Mida del televisor: Ensure your TV is between 23 and 60 inches.
• Pes del televisor: Confirm your TV weighs no more than 99 lbs (45 kg).
• Patró VESA: Check the four mounting holes on the back of your TV. Measure the horizontal and vertical distance between them. This stand supports VESA patterns from 75x75mm to 400x400mm.

Image: A visual guide to identifying and measuring your TV's VESA mounting pattern (horizontal x vertical distance).

2. Passos de muntatge

1. Muntar la base: Attach the support column to the tempered glass base using the provided screws and tools. Ensure it is firmly secured.
2. Fixeu la placa de muntatge del televisor: Secure the TV mounting plate to the top of the support column.
3. Fixeu els suports de TV al televisor: Select the appropriate screws, washers, and spacers from the hardware kit that fit your TV's VESA holes. Attach the two TV brackets to the back of your TV. Ensure the brackets are level and securely fastened.
4. Muntar el televisor al suport: Carefully lift your TV and hook the TV brackets onto the TV mounting plate. Secure the TV to the stand using the safety screws provided, typically located at the bottom of the TV brackets.
5. Gestió de cables: Route your TV cables through the integrated cable management system on the support column to keep them organized and out of sight.

Image: Visual representation of the straightforward installation process, highlighting that assembly hardware and detailed instructions are included, and no drilling is required.

Imatge: Detallada view of the stand's base, showing security screws for TV attachment, the thick steel column, and non-slip pads for stability.

Instruccions de funcionament

Ajust d'alçada

The Perlegear PGTVS02 stand offers 9 different height settings to optimize your viewing experience. To adjust the height:

1. Ensure the TV is securely mounted to the brackets.
2. With assistance, carefully lift the TV slightly to disengage it from its current height setting on the support column.
3. Adjust the TV to the desired height by aligning the mounting holes on the brackets with the corresponding holes on the support column.
4. Re-engage the safety screws to lock the TV in the new position. Always ensure the TV is stable after adjustment.

Image: Depicts a user enjoying a TV mounted on the stand, highlighting the ability to raise the TV to an ergonomic height with 9 available settings.

Gestió de cables

Utilize the integrated cable management clips or channels on the support column to route and conceal power cords and AV cables. This helps maintain a clean and organized entertainment area.

Manteniment

• Neteja: Wipe the stand with a soft, dry cloth. For stubborn marks on the tempered glass, use a mild glass cleaner. Avoid abrasive cleaners or solvents.
• Comprovacions periòdiques: Reviseu periòdicament tots els cargols i connexions per assegurar-vos que estiguin ben ajustats i segurs. Torneu a apretar-los si cal.
• Inspecció: Inspect the stand for any signs of wear, damage, or instability. If any issues are found, discontinue use and contact customer support.

Resolució de problemes

Si teniu algun problema, consulteu els següents problemes i solucions habituals:

• El televisor no està anivellat: Ensure the TV brackets are installed evenly on the back of the TV and that the stand's base is on a level surface. Adjust as needed.
• Stand feels wobbly: Double-check that all screws are tightened according to the assembly instructions. Ensure the stand is placed on a firm, level surface.
• El televisor no encaixa al suport: Verify your TV's size, weight, and VESA pattern against the specifications in this manual. If they do not match, the stand may not be compatible with your TV.
• Peces que falten: Do not proceed with assembly. Contact Perlegear customer support immediately for replacement parts.

Especificacions

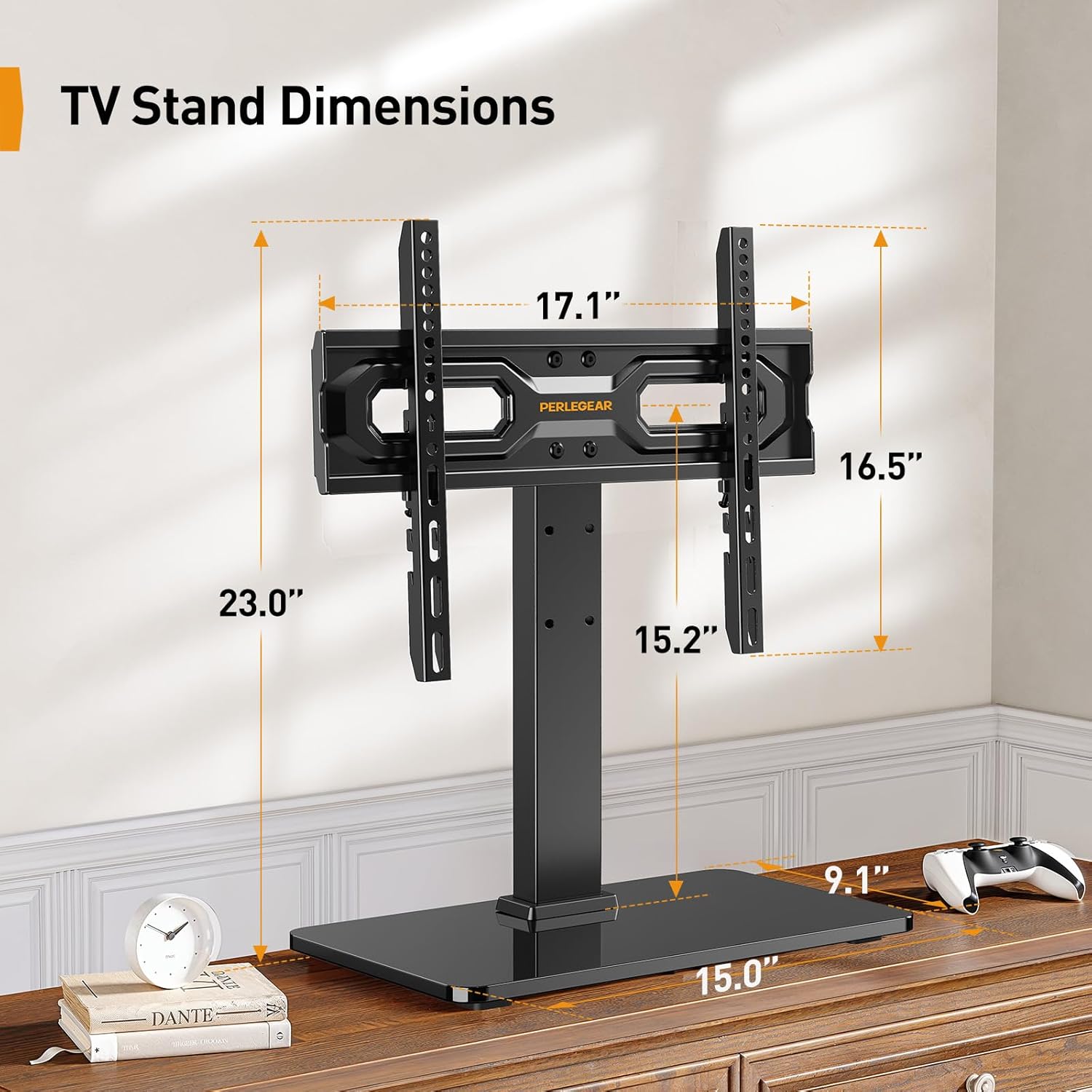

Image: Detailed dimensions of the Perlegear PGTVS02 TV stand, including height, width, and base measurements.

Garantia i Suport

Perlegear is committed to providing high-quality products. If you encounter any problems during installation or use, or if you have questions regarding your Perlegear PGTVS02 Tabletop TV Stand, please do not hesitate to contact our customer support team. We are available to assist you with any concerns.

For support, please visit the official Perlegear weblloc web o consulteu la informació de contacte proporcionada amb la vostra compra.
