1. Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Edge Audio Xtreme Series EDX5000.1FD-E0 Monoblock Amplifier. The EDX5000.1FD-E0 is a high-performance Class D full-bridge amplifier designed for powerful audio output. Please read this manual thoroughly before attempting installation or operation to ensure proper use and to prevent damage.
1.1 Precaucions de seguretat
- Always disconnect the vehicle's battery negative terminal before making any electrical connections.
- Assegureu-vos que tot el cablejat estigui correctament encaminat i fixat per evitar danys o curtcircuits.
- Use appropriate gauge wiring for power and ground connections as specified in this manual.
- Eviteu muntar el amplifier in locations exposed to moisture or excessive heat.
- Consulteu un instal·lador professional si teniu dubtes sobre alguna part del procés d'instal·lació.
2. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet abans de continuar amb la instal·lació.
- Edge Audio EDX5000.1FD-E0 Monoblock Ampmés viu
- Remote Bass Control Unit
- Wiring for Remote Bass Control

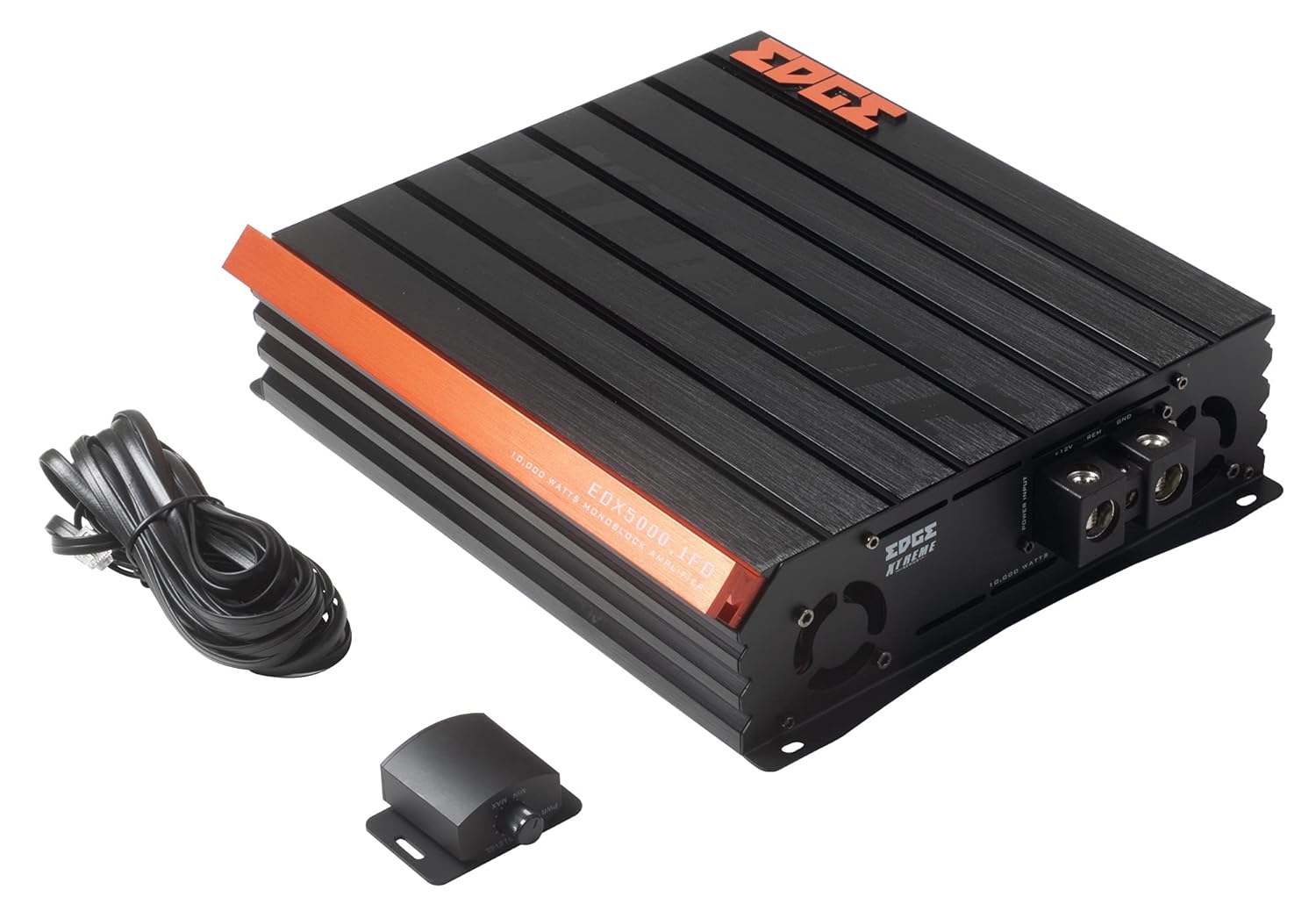

Image 2.1: Contents of the EDX5000.1FD-E0 package, including the amplifier, remote bass control, and connecting cable.
Image 2.2: The retail packaging for the Edge Audio EDX5000.1FD-E0 Monoblock Ampmés viu.
3. Característiques
The Edge Audio Xtreme Series EDX5000.1FD-E0 amplifier incorporates advanced features for optimal audio performance:
- Monoblock power amplifier design for dedicated subwoofer applications.
- Max Power: 10,000 watts.
- Built-in active crossovers (High-Pass Filter and Low-Pass Filter) for precise sound shaping.
- Adjustable Bass Boost circuit for enhanced low-frequency response.
- Ultra-efficient Class D topology for high power output with minimal heat generation.
- Wideband frequency response up to 20kHz.
- Full bridge technology for efficient power delivery.
- Compact footprint for versatile installation options.
- Dimensions (H x W x D): 2.5 x 10.4 x 9.1 inches (64 x 264 x 230mm).
Imatge 3.1: Part superior view of the EDX5000.1FD-E0 ampvidador, espectacleasing its compact design and heatsink fins.
4. Configuració i instal·lació
Una instal·lació correcta és crucial per al rendiment i la longevitat del vostre amplifier. Follow these guidelines carefully.
4.1 Ubicació de muntatge
Muntar el amplifier in a dry, well-ventilated area, away from direct sunlight or heat sources. Ensure sufficient airflow around the amplifier's heatsink. The ampEl lifer està dissenyat per a muntatge superficial.
4.2 Connexions de cablejat
All wiring should be securely connected and insulated to prevent short circuits. Use high-quality, appropriate gauge wiring.
4.2.1 Connexions d'alimentació
Connecteu el amplifier to the vehicle's electrical system as follows:
- +12V (Alimentació): Connect a heavy-gauge power cable (e.g., 4 AWG or larger for 10,000W max power) directly from the positive terminal of the vehicle's battery to the +12V terminal on the amplifier. Install an appropriate fuse (not supplied) within 18 inches of the battery.
- GND (terra): Connect a heavy-gauge ground cable of the same size as the power cable from the GND terminal on the amplifier to a clean, unpainted metal surface of the vehicle chassis. Ensure a solid electrical connection.
- REM (encesa remota): Connect a smaller gauge wire (e.g., 18 AWG) from the REM terminal on the amplifier to the remote turn-on output of your head unit. This wire turns the amplifier on and off with your audio system.
Image 4.1: Power input terminals (+12V, REM, GND) on the EDX5000.1FD-E0 ampmés viu.
4.2.2 Connexions d'entrada d'àudio
Connect your head unit's RCA outputs to the 'LOW INPUT' RCA jacks on the ampmés viu.
4.2.3 Connexions de sortida d'altaveus
Connecteu el(s) subwoofer(s) als terminals de sortida de l'altaveu del amplifier. Ensure correct polarity (+ to + and - to -) for optimal performance. Refer to your subwoofer's specifications for impedance matching.
Image 4.2: Rear panel of the EDX5000.1FD-E0 amplifier, showing low-level inputs, crossover controls, gain, bass boost, and speaker output terminals.
5. Instruccions de funcionament
Un cop instal·lat, ajusteu el amplifier settings for optimal sound quality.
5.1 Tauler de control acabatview
Refer to Image 4.2 for the location of the following controls:
- HPF (filtre de pas alt): Adjusts the high-pass crossover frequency. For subwoofer applications, this should typically be set to its minimum or off, as a low-pass filter is usually preferred.
- LPF (filtre de pas baix): Adjusts the low-pass crossover frequency (15Hz - 200Hz). This filters out frequencies above the set point, sending only low frequencies to the subwoofer. Set this according to your subwoofer and system requirements, typically between 60Hz and 100Hz.
- GUANY: Coincideix amb el amplifier's input sensitivity to the output level of your head unit. Start with the gain at minimum, then slowly increase it until you hear distortion, then back off slightly. Do not use the gain control as a volume knob.
- INTENSIFICACIÓ DELS SONS MÉS GREUS: Adjusts the level of bass enhancement (0dB - 12dB). Use sparingly to avoid distortion.
- FREQ (Bass Boost Frequency): Selects the center frequency for the bass boost (35Hz - 70Hz).
- COMANDAMENT: Port for connecting the wired remote bass control unit.
5.2 Remote Bass Control
The included remote bass control allows for convenient adjustment of the subwoofer output level from the driver's seat. Connect it to the 'REMOTE' port on the ampmés viu.
6. Manteniment
Un manteniment regular ajuda a garantir la longevitat i el rendiment del vostre ampmés viu.
- Neteja: Netegeu periòdicament el amplifier's exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure ventilation fins are free of dust and debris.
- Comprovació de la connexió: Annually inspect all power, ground, remote, and speaker connections for tightness and corrosion. Loose connections can cause performance issues or damage.
- Medi ambient: Assegureu-vos el amplifier remains in a dry, stable environment, protected from extreme temperatures.
7. Solució De Problemes
Si teniu problemes amb el vostre amplifier, refer to the following common problems and solutions before contacting support.
- Sense energia:
- Check the in-line fuse near the battery.
- Verify +12V, GND, and REM connections are secure and receiving power.
- Ensure the remote turn-on wire is connected to a switched 12V source.
- Sense so:
- Check all RCA input and speaker output connections.
- Verify head unit is powered on and outputting audio.
- Adjust the GAIN control.
- So distorsionat:
- Reduce the GAIN setting.
- Check speaker wiring for shorts or incorrect polarity.
- Assegureu-vos que la impedància dels altaveus coincideixi ampEspecificacions de l'activador.
- Reduce BASS BOOST if active.
- Ampsobreescalfament del lificador:
- Assegureu-vos una ventilació adequada al voltant ampmés viu.
- Check speaker impedance; running too low an impedance can cause overheating.
- Verify power and ground wire gauge is sufficient.
8. Especificacions
Technical specifications for the Edge Audio Xtreme Series EDX5000.1FD-E0 Monoblock Ampmés viu:
| Característica | Especificació |
|---|---|
| Número de model | EDX5000.1FD-E0 |
| Marca | BORDA |
| AmpTipus més viu | Monoblock, Class D, Full Bridge |
| Potència màxima | 10,000 watts |
| Resposta de freqüència | Fins a 20 kHz |
| Built-in Crossovers | Active (HPF, LPF) |
| Bass Boost | Adjustable (0-12dB) |
| Freqüència d'augment dels baixos | Adjustable (35Hz-70Hz) |
| Voltage | 230 volts (volum de funcionament)tage Range typically 12-14.4V DC for car audio) |
| Tipus de muntatge | Muntatge en superfície |
| Dimensions del producte (A x A x P) | 2.5 x 10.4 x 9.1 polzades (64 x 264 x 230 mm) |
| Pes del producte | 6.61 lliures |
9. Garantia i Suport
For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact your authorized Edge Audio dealer. Keep your proof of purchase for warranty claims.
