FlexSolar 40W Foldable Solar Panel Charger User Manual

1. Producte acabatview

The FlexSolar 40W Foldable Solar Panel Charger is a portable and efficient power solution designed for on-the-go and off-grid lifestyles. It features multiple output ports for versatile device charging and is built with durable, weather-resistant materials.

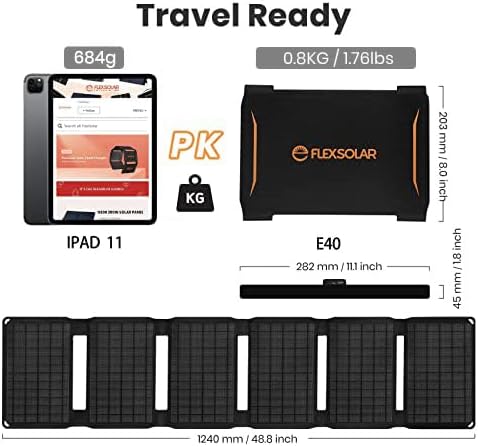

Figure 1: FlexSolar 40W Foldable Solar Panel Charger (folded view)

This 40W flexible solar charger is equipped with QC3.0 USB-A and PD2.0 USB-C ports, each capable of delivering up to 18W for fast charging of various devices such as phones, power banks, and tablets. It also includes a 19V DC port with a maximum output of 40W, suitable for directly powering small stations. The smart load distribution design prioritizes single-port use for optimal efficiency. Please note that this device is for instant energy conversion and does not store energy.

2. Característiques clau

• Dual Fast-Charging Ports: Equipped with QC3.0 USB-A and PD2.0 USB-C ports (18W max each) for simultaneous fast charging, plus a 19V DC port (40W max).
• Smart IC Chip Technology: Automatically detects connected devices to provide optimized charging. An integrated LED light indicates charging status. Includes overcurrent, overheating, and short-circuit protection.
• Ultra-Lightweight & Foldable Design: Compact folded dimensions of 8.0 x 11.1 x 1.8 inches and a featherlight 1.76 lbs (0.8 kg) for superior portability.
• High-Efficiency Conversion: Advanced monocrystalline cells deliver an industry-leading 24% solar conversion rate, maximizing energy output even in limited sunlight.
• IP67 Weatherproof Durability: Built to withstand rugged environments with IP67-rated dustproof/waterproof construction and ETFE laminate coating for superior resistance to rain, dust, and abrasion. (Note: The junction box is not fully waterproof and should be stored indoors during heavy rain).

3. Guia de configuració

3.1 Unfolding the Solar Panel

Carefully unfold the solar panel to its full length. The panel consists of six individual solar sections designed for maximum light exposure.

Figure 2: FlexSolar 40W Foldable Solar Panel Charger (unfolded view)

3.2 Positioning for Optimal Performance

For optimal charging efficiency, position the solar panel at a 45° angle facing direct sunlight. Shade or partial coverage may reduce performance by up to 70%. Ensure no objects are casting shadows on the panels.

Figure 3: Positioning the solar panel at a 45° angle towards direct sunlight for maximum efficiency.

3.3 Using Carabiners

The package includes two carabiners. These can be used to attach the solar panel to a backpack, tent, or other suitable anchor points, allowing for convenient charging while on the move or in a fixed outdoor setup.

4. Instruccions de funcionament

4.1 Connexió de dispositius

Locate the output ports on the integrated junction box. The charger features a QC3.0 USB-A port, a PD2.0 USB-C port, and a 19V DC port. Connect your devices using appropriate charging cables to the desired port(s).

Figura 4: Mésview of charging ports and compatible devices.

4.2 Indicador d'estat de càrrega

The integrated LED light on the junction box indicates the charging status. When the light is on, the panel is actively generating power and charging your connected devices.

4.3 Smart Load Distribution

The charger features smart load distribution. For peak efficiency, it is recommended to prioritize single-port use, especially when charging high-power devices. The total maximum output across all ports is 40W.

5. Manteniment

5.1 Neteja

To maintain optimal performance, keep the solar panels clean. Gently wipe the ETFE laminate coating with a soft, damp cloth to remove dust or dirt. Avoid using abrasive cleaners or materials that could scratch the surface.

5.2 Emmagatzematge

When not in use, fold the solar panel compactly and store it in a dry, cool place. While the panel itself is IP67 waterproof, the junction box is not fully waterproof. Ensure the junction box is protected from heavy rain or submersion. Avoid submerging the entire solar panel in water for over 30 minutes.

Figure 5: The solar panel offers IP67 dustproof and water-resistant protection.

6. Solució De Problemes

6.1 Reduced Charging Performance

• Check Sunlight Exposure: Ensure the panel is in direct sunlight and not obstructed by shadows from trees, buildings, or other objects.
• Ajust d'angle: Re-position the panel to a 45° angle towards the sun for maximum efficiency.
• Panells nets: Dust or dirt on the solar cells can reduce efficiency. Clean the surface as described in the Maintenance section.
• Connexió per cable: Ensure all cables are securely connected to both the solar panel and your device.

6.2 No Charging Indication

• Verify Sunlight: Confirm there is sufficient direct sunlight for the panel to generate power.
• Comproveu les connexions: Disconnect and reconnect all cables to ensure proper contact.
• Auto-Restart Feature: The smart IC chip includes an auto-restart function. If charging stops due to temporary shade, it should automatically resume once direct sunlight is restored.
• Compatibilitat del dispositiu: Ensure your device is compatible with the charger's output specifications.

7. Especificacions tècniques

8. Garantia i Suport

Your purchase includes the FlexSolar 40W Solar Panel, two carabiners, and a user manual. For detailed information regarding warranty, returns, or technical support, please refer to the official user manual included in your package or visit the FlexSolar official weblloc.

An electronic version of the Instructions for Use (IFU) is available for download: Descarrega el manual d'usuari (PDF)
