Introducció
Thank you for choosing the PowerTac Valor 800 Lumen Compact Flashlight. This high-performance EDC (Everyday Carry) light is designed for reliability and durability in various conditions. Please read this manual thoroughly to ensure proper use and maintenance of your flashlight.
The PowerTac Valor features an 800-lumen output, a 138-meter beam distance, and a robust aircraft-grade aluminum body with an IPX8 waterproof rating. It is equipped with both a tail switch and a side switch for intuitive operation and includes a memory function for convenience.
Contingut del paquet
- PowerTac Valor Flashlight
- Pocket Clip (pre-installed or included separately)
- Manual d'usuari
Diagrama del producte
Familiarize yourself with the components of your PowerTac Valor flashlight.
Image: The PowerTac Valor flashlight, showing its compact design and integrated pocket clip.

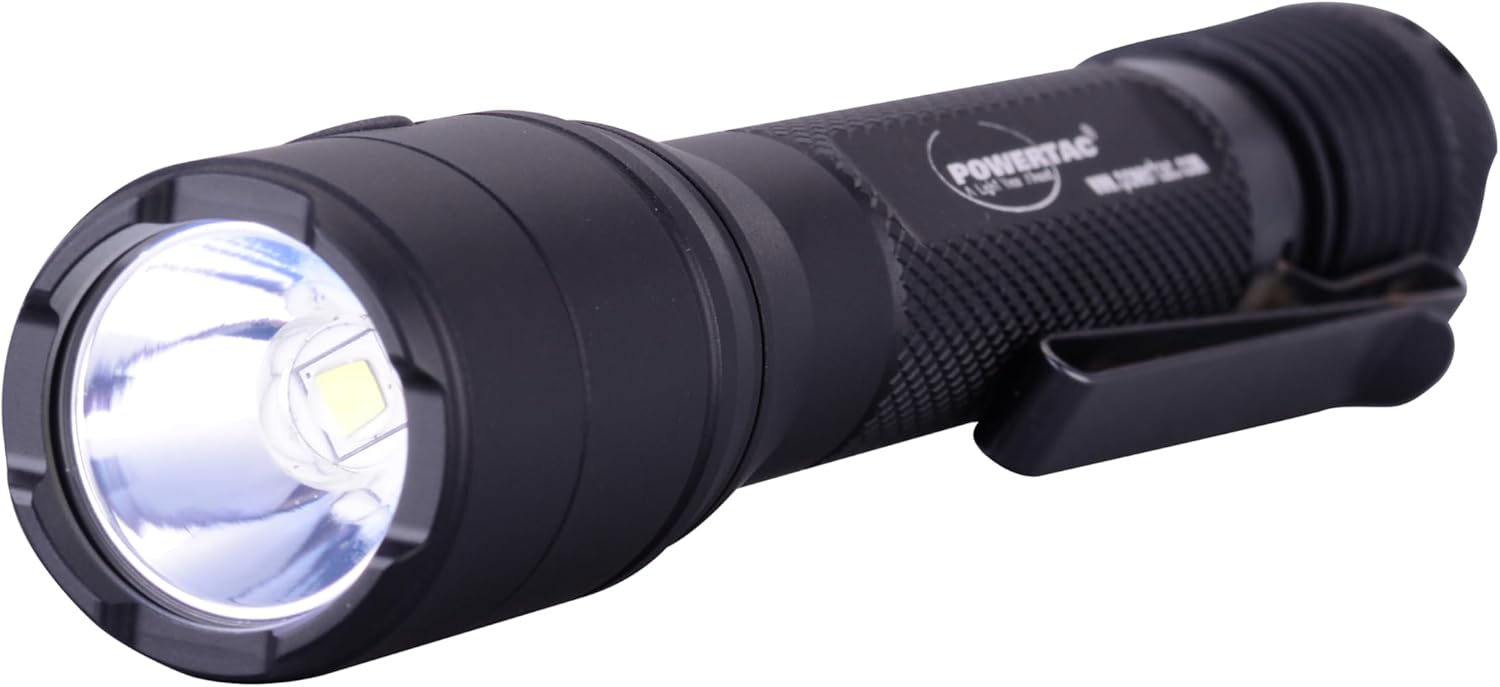

Imatge: Una imatge detallada view of the flashlight's head, lens, and textured body, highlighting the LED and overall construction.
Configuració
1. Instal·lació de la bateria
The PowerTac Valor uses two AA alkaline batteries (not included). Ensure correct polarity during installation to prevent damage.
- Desenrosqueu la tapa posterior de la llanterna girant-la en sentit antihorari.
- Insert two AA batteries with the positive (+) end facing towards the flashlight head.
- Screw the tail cap back on clockwise until it is securely tightened. This ensures proper electrical contact and maintains the waterproof seal.
Precaució: Incorrect battery installation can damage the device. Always observe polarity markings. Do not mix old and new batteries, or different types of batteries.
2. Attaching the Pocket Clip
The flashlight comes with a deep-carry bidirectional pocket clip, which may be pre-installed or included separately.
- If not pre-installed, slide the clip onto the flashlight body into the designated groove until it clicks securely into place.
- The bidirectional design allows for flexible attachment to pockets, belts, or gear.
Image: The PowerTac Valor flashlight shown with its pocket clip, ready for attachment to clothing or gear.
Instruccions de funcionament
1. Basic Operation (Tail Switch)
- Momentània activada: Lightly press and hold the tail switch for temporary illumination. Release to turn off.
- Constantment encès/apagat: Fully press the tail switch until it clicks to turn the flashlight on. Press again until it clicks to turn the flashlight off.
2. Changing Brightness Modes (Side Switch)
With the flashlight on, press the side switch to cycle through the available brightness modes (e.g., Low, Medium, High, Turbo). The flashlight features a memory function that will recall the last-used brightness level when turned on again.
3. Funcions avançades
- Funció de memòria: The flashlight automatically saves the last-used brightness level (excluding strobe/SOS, if applicable) and will activate in that mode when turned on again.
- Protecció de polaritat inversa: This feature prevents damage to the flashlight if batteries are inserted incorrectly.
Image: A gloved hand demonstrating the comfortable grip and accessibility of the PowerTac Valor flashlight during use.
Manteniment
- Neteja: Periodically clean the flashlight body with a soft, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Juntes tòriques: Inspect the O-rings (seals) for wear and tear. Lubricate them with silicone grease if necessary to maintain the waterproof rating. Replace damaged O-rings promptly.
- Substitució de la bateria: Replace batteries when the light output becomes dim or inconsistent. Always replace both batteries at the same time with new, identical batteries.
- Emmagatzematge: If storing the flashlight for an extended period, remove the batteries to prevent leakage and potential damage to the device.
Avís: Do not disassemble the flashlight head, as this may damage the LED and void the warranty.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llanterna no s'encén. |
|
|
| La sortida de llum és tènue o parpelleja. |
|
|
| Entrada d'aigua després de l'exposició. |
|
|
If the problem persists after attempting these solutions, please contact PowerTac customer support.
Especificacions
| Característica | Detall |
|---|---|
| Model | VALOR |
| Sortida de llum | 800 lúmens (màx.) |
| Distància del feix | 138 metres |
| Font de llum | LED |
| Font d'alimentació | 2 piles alcalines AA |
| Material | Alumini de qualitat aeronàutica |
| Resistència a l'aigua | IPX8 (Submergible fins a 2 metres) |
| Resistència a l'impacte | Fins a 2 metres |
| Dimensions (L x A x A) | 5.8" x 0.75" x 0.75" |
| Pes | 5.6 unces (sense piles) |
| Característiques especials | Adjustable Light Modes, High Power, Impact Resistant, Non-Slip Grip, Weatherproof, Auto Memorization, Reverse Polarity Protection |
Garantia i Suport
Informació de la garantia
PowerTac stands by its products with a no-hassle lifetime warranty. This warranty covers manufacturing defects and ensures the long-term reliability of your PowerTac Valor flashlight. Please retain your proof of purchase for warranty claims.
Atenció al client
For technical assistance, warranty claims, or any questions regarding your PowerTac Valor flashlight, please contact our friendly US-based customer service team.
Informació de contacte:
- Weblloc: www.powertac.com
- Correu electrònic: support@powertac.com (Example, actual email not provided in JSON)
- Telèfon: 1-800-XXX-XXXX (Example, actual phone not provided in JSON)
Please visit the official PowerTac weblloc web per obtenir les dades de contacte i la política de garantia més actualitzades.
