Manual d'instruccions dels estribos YITAMOTOR

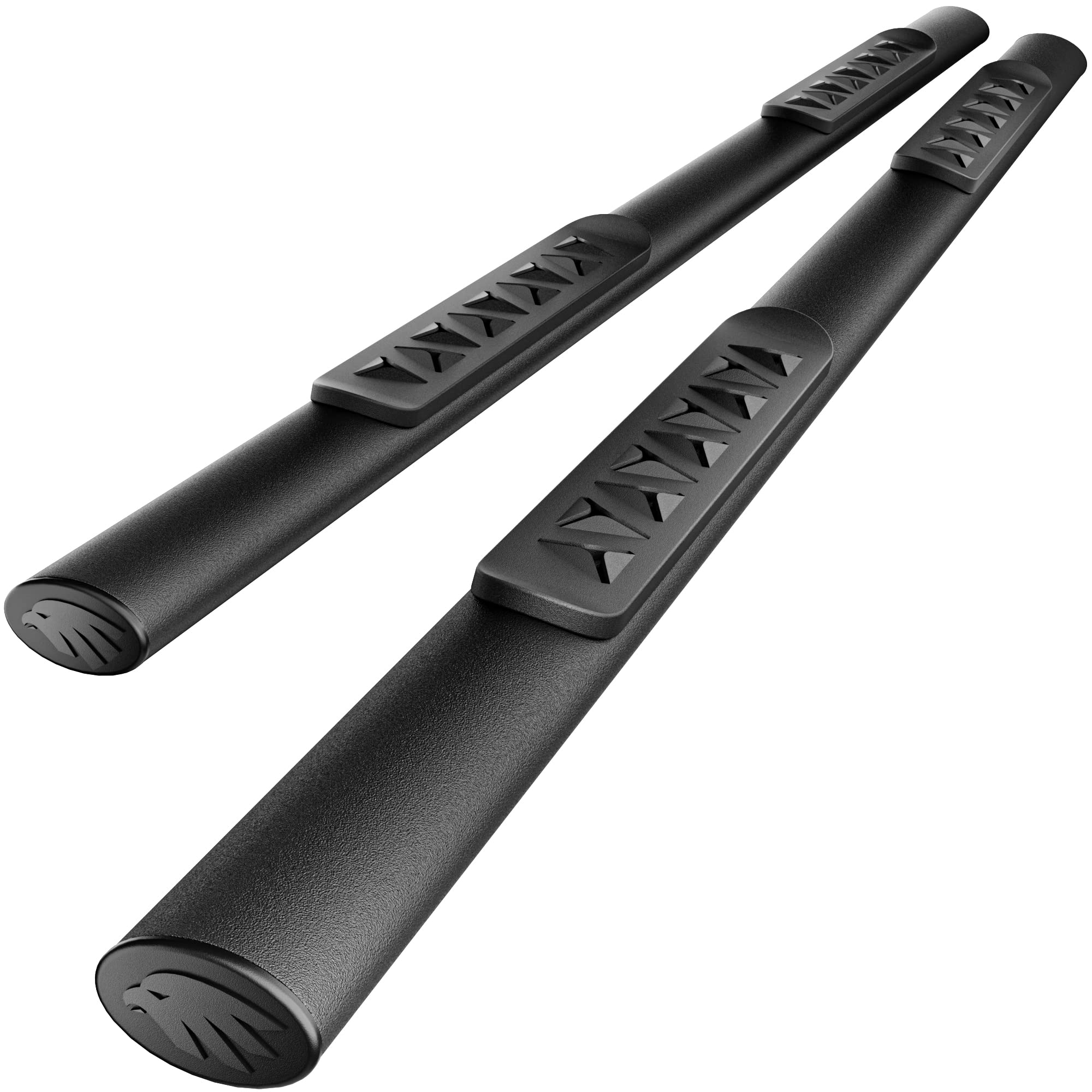

1. Producte acabatview

The YITAMOTOR Running Boards are designed to provide a convenient and safe step for entering and exiting your vehicle, while also offering enhanced side protection. These heavy-duty side steps feature a durable black powder-coated finish for corrosion resistance and a textured step pad for secure footing.

Image 1.1: YITAMOTOR Running Boards installed on a blue truck, showcasing their design and fit.

2. Compatibilitat

These running boards are precisely engineered for the following vehicle models:

• Dodge RAM 2009 Crew Cab 2018-1500
• 2019-2023 Dodge RAM 1500 Classic Crew Cab
• Dodge RAM 2010 Crew Cab 2023-2500
• Dodge RAM 2010 Crew Cab 2023-3500

Please confirm your vehicle's make, model, and cab type before installation to ensure proper fitment.

3. Característiques clau

• High-Performance Step Pads: Constructed from stamped stainless steel with a durable textured black powder coating for enhanced traction and corrosion resistance. The 3D pattern on the 3-inch step pads minimizes slippage.
• Construcció robusta: Heavy-duty all-steel nerf bars provide significant strength and additional rocker panel protection, reducing collision impact.
• Alta capacitat de càrrega: Each side step can support over 500 lbs.
• Resistència a la corrosió: Fine-textured powder coating ensures exceptional rust and corrosion resistance, suitable for various weather and road conditions.

Image 3.1: Cross-section diagram illustrating the multi-layer construction for durability and corrosion resistance.

Image 3.2: Visual representation of the running board's rust-resistant properties.

4. Què hi ha a la caixa

El vostre paquet ha de contenir els elements següents:

• 2 x Running Boards (Left and Right)
• Mounting Brackets and Hardware (not pre-welded to the nerf bars)

Please inspect all components upon receipt to ensure everything is present and undamaged.

5. Instruccions d'instal·lació

Professional installation is recommended for optimal safety and performance. The following steps provide a general overview of the installation process. Refer to the official installation video for detailed visual guidance.

1. Preparar el vehicle: Park your vehicle on a level surface and engage the parking brake. Ensure the area is well-lit and clear of obstructions.
2. Identificar els components: Lay out all running board components, brackets, and hardware. The running boards are marked 'L' for left (driver's side) and 'R' for right (passenger's side).
3. Col·loca els suports: Secure the appropriate mounting brackets to the designated locations on the vehicle's frame. The brackets are designed to align with existing factory mounting points. Do not fully tighten bolts at this stage.
4. Mount Running Boards: Carefully position the running boards onto the attached brackets. Align the holes on the running boards with the holes on the brackets.
5. Estribos segurs: Insert all necessary bolts and washers to secure the running boards to the brackets. Once all hardware is in place, gradually tighten all bolts to the manufacturer's specified torque settings, ensuring the running boards are level and secure.
6. Inspecció final: Double-check all connections to ensure they are tight and secure. Verify that the running boards are stable and do not wobble.

Guia de vídeo d'instal·lació

6. Instruccions de funcionament

To use your YITAMOTOR Running Boards:

• Step firmly onto the textured step pad when entering or exiting the vehicle. The textured surface is designed to provide maximum grip.
• Ensure your footwear is free of excessive mud or debris to maintain optimal traction.

7. Manteniment

Regular maintenance will extend the life and appearance of your running boards:

• Neteja: Wash the running boards regularly with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish.
• Inspecció: Periodically inspect all mounting hardware (bolts, nuts, brackets) for tightness. Re-tighten any loose fasteners to prevent rattling or instability.
• Comprovació de corrosió: Although designed for corrosion resistance, regularly check for any signs of rust or damage, especially in areas exposed to road salt or harsh weather. Address any issues promptly to prevent further deterioration.

8. Solució De Problemes

• Running Boards Feel Loose: Check all mounting bolts and nuts. Re-tighten them to ensure they are secure. Over time, vibrations can cause fasteners to loosen.
• Unusual Noises (Rattling/Squeaking): Inspect the contact points between the running boards, brackets, and vehicle frame. Ensure all components are properly aligned and tightened.
• Difficulty Stepping: Ensure the step pads are clean and free of debris. The textured surface provides grip, but excessive mud or ice can reduce traction.

9. Especificacions

10. Garantia i Suport

For any inquiries regarding your YITAMOTOR Running Boards, including warranty information, installation assistance, or replacement parts, please contact YITAMOTOR customer support directly. Refer to the product packaging or the official YITAMOTOR weblloc per obtenir dades de contacte.
