Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your GROHE QUICKFIX Start Basin Mixer Tap, Model 23746002. Please read this manual thoroughly before beginning installation or use to ensure proper function and longevity of your product. This tap features a smooth body, metal lever, 28mm ceramic cartridge, and a push-open pop-up waste set, designed for water and energy efficiency.
Davant view of the GROHE QUICKFIX Start Basin Mixer Tap, showcasing its chrome finish and sleek design.
Informació de seguretat
- Always shut off the main water supply before attempting any installation or maintenance.
- Utilitzeu equips de protecció personal adequats, com ara ulleres de seguretat i guants.
- Assegureu-vos que totes les connexions estiguin ben fixades per evitar fuites. No les apreteu massa.
- Si teniu dubtes sobre alguna part del procés d'instal·lació, consulteu un lampista qualificat.
- Protegiu el producte de les gelades.
Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- GROHE Start Basin Mixer Tap (Model 23746002)
- Push-Open Pop-Up Waste Set
- Flexible connection hoses (3/8 inch)
- Mounting hardware (washer, nut, threaded rod)
- GROHE QuickTool (3-in-1 installation tool)
- Manual d'instruccions

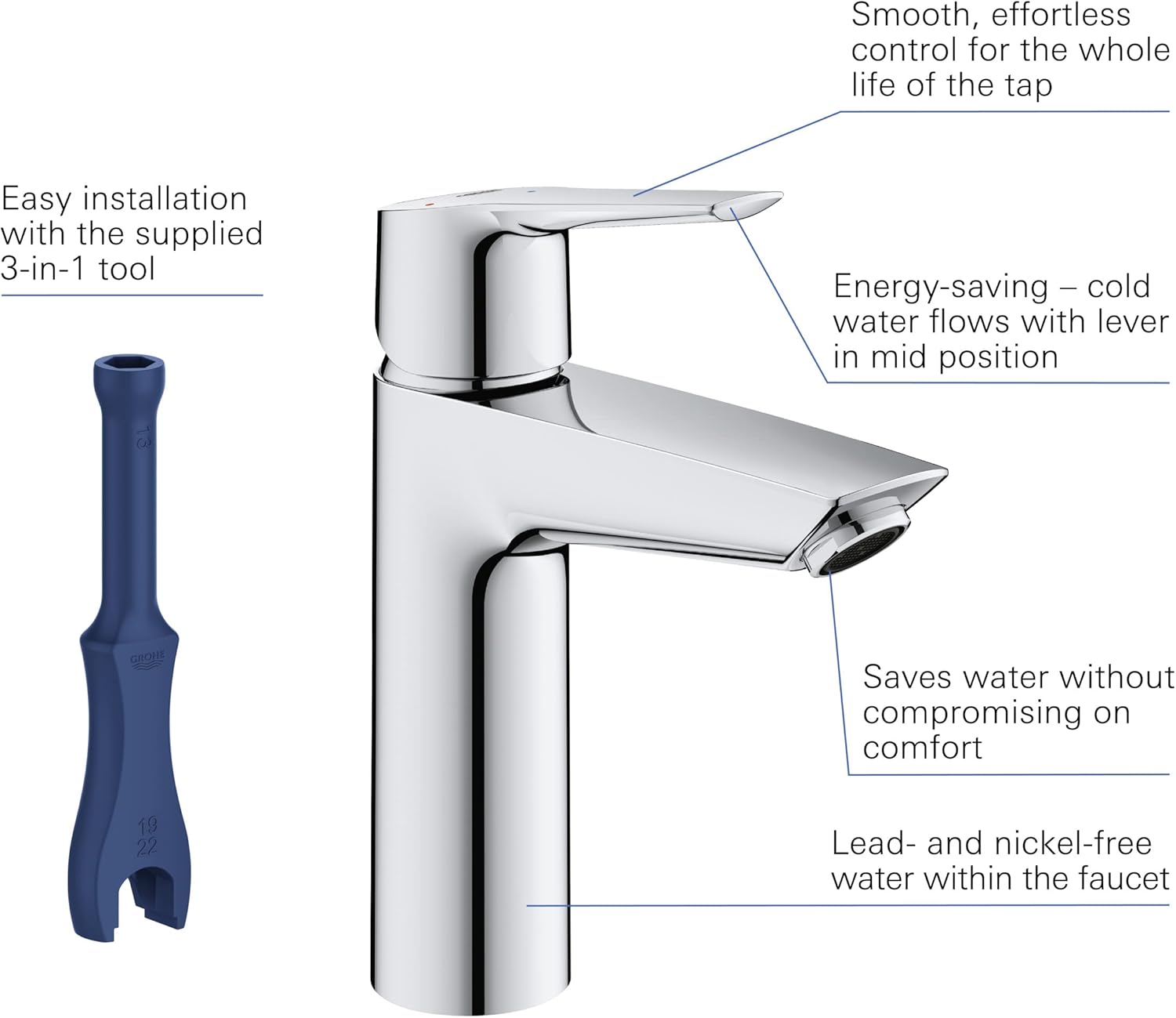

The GROHE Start Basin Mixer Tap shown with the specialized 3-in-1 installation tool, highlighting key features like energy-saving cold water flow in mid-position and water-saving capabilities.
Configuració i instal·lació
- Prepare the Basin: Ensure the mounting surface is clean and free of debris. The basin should have a standard faucet hole (typically 34mm diameter).
- Instal·leu l'aixeta: Insert the flexible connection hoses and the threaded rod into the base of the tap. Place the tap onto the basin hole, ensuring the rubber seal is correctly positioned.
- Assegura l'aixeta: Des de sota la basin, slide the metal washer and then the fixing nut onto the threaded rod. Use the supplied GROHE QuickTool to tighten the nut securely. Do not overtighten.
- Connectar el subministrament d'aigua: Connect the flexible hoses to the hot and cold water supply lines. The hoses are typically color-coded (red for hot, blue for cold) or marked. Ensure a watertight seal using appropriate plumbing tape or sealant if necessary.
- Install Pop-Up Waste Set: Follow the instructions provided with the push-open pop-up waste set for installation into the basin drain hole. Ensure all seals are correctly seated to prevent leaks.
- Prova de fuites: Slowly turn on the main water supply. Check all connections for leaks. Operate the tap to ensure proper water flow and temperature control.
Instruccions de funcionament
The GROHE QUICKFIX Start Basin Mixer Tap features a single lever for controlling both water flow and temperature.
- Flux d'aigua: Lift the lever upwards to increase water flow. Push it downwards to decrease or shut off the flow.
- Control de temperatura: Move the lever to the left for hot water and to the right for cold water. The tap is designed with GROHE EcoJoy technology, providing cold water when the lever is in the mid-position, saving energy.
- Funcionament suau: The GROHE SilkMove ceramic cartridge ensures smooth and precise control of water flow and temperature throughout the tap's lifespan.
- Pop-Up Waste: Per obrir o tancar la basin waste, simply press the top of the pop-up waste plug.
Manteniment
Regular cleaning and maintenance will ensure your GROHE tap remains in excellent condition.
- Neteja de l'acabat: Clean the chrome finish with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome. Avoid using abrasive sponges, scouring agents, or cleaners containing alcohol, acid, or ammonia, as these can damage the GROHE StarLight finish.
- Neteja de l'aireador: Periodically unscrew the aerator at the end of the spout and rinse it under running water to remove any mineral deposits or debris. This helps maintain optimal water flow.
- Manteniment del cartutx: The 28mm ceramic cartridge is designed for durability. If you experience persistent dripping or stiffness in the lever, the cartridge may need to be cleaned or replaced. This typically requires professional assistance.
- GROHE Zero: The internal waterways are designed to be lead and nickel-free, ensuring clean water delivery.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Baix cabal d'aigua | Clogged aerator or debris in supply lines | Clean or replace the aerator. Check supply line filters. |
| Water dripping from spout | Cartutx ceràmic desgastat o defectuós | Replace the ceramic cartridge. Contact a qualified plumber. |
| Fuita a les connexions | Connexions soltes o segells danyats | Tighten connections (do not overtighten). Inspect and replace seals if damaged. |
| Difficulty moving lever | Mineral buildup in cartridge | The ceramic cartridge may need cleaning or replacement. |
Especificacions
Technical drawing illustrating the dimensions and installation details of the GROHE Start Basin Mixer Tap.
- Nom del model: Inici 2021
- Número de peça: 23746002
- Marca: GROHE
- Tipus de muntatge: Muntanya de coberta
- Tipus d'acabat: Chrome (GROHE StarLight)
- Material: Ceramic (cartridge), Metal (body)
- Nombre de nanses: 1 (monopalanca)
- Recompte de forats: 1
- Tipus d'instal·lació: Einloch Deckmontage (Single-hole deck mount)
- Cabal màxim: 5.7 Liters Per Minute (GROHE EcoJoy)
- Alçada del broc: 15.5 centímetres
- Dimensions del producte: 5.12 cm de profunditat x 1.77 cm d'amplada x 7.48 cm d'alçada (aprox.)
- Pes de l'article: 1.85 quilos / 4.07 lliures
- Components inclosos: Basin mixer, Push-Open Pop-Up Waste Set, QuickTool
Garantia i Suport
GROHE products are manufactured to the highest standards and undergo rigorous quality checks. This product comes with an extended guarantee.
The GROHE 5+1 Years Extended Guarantee logo, indicating the product's warranty period.
For specific warranty terms and conditions, please refer to the official GROHE warranty documentation included with your purchase or visit the official GROHE website. For technical support, spare parts, or service inquiries, please contact GROHE customer service through their official channels.
