1. Introducció
This manual provides essential information for the proper installation, operation, and maintenance of your LKV 51mm Universal Motorcycle DB Killer Muffler Silencer Baffle. Please read these instructions carefully before installation and retain this manual for future reference.
2. Producte acabatview
The LKV DB Killer is a removable insert designed to reduce the sound levels of motorcycle exhaust systems. Constructed from high-grade stainless steel, it offers durability, corrosion resistance, and rust protection. Its universal design makes it compatible with most motorcycles featuring a 51mm (2-inch) exhaust pipe inlet diameter.
Image 2.1: The LKV 51mm Universal Motorcycle DB Killer Silencer Baffle, showing its perforated design and internal mesh.
Les característiques clau inclouen:
- Reducció de soroll: Effectively lowers DB sound levels from louder exhaust systems.
- Muntatge universal: Designed for most motorcycles with 51mm / 2-inch exhaust pipe inlets.
- Construcció duradora: Made from high-grade stainless steel for longevity and resistance to corrosion and rust.

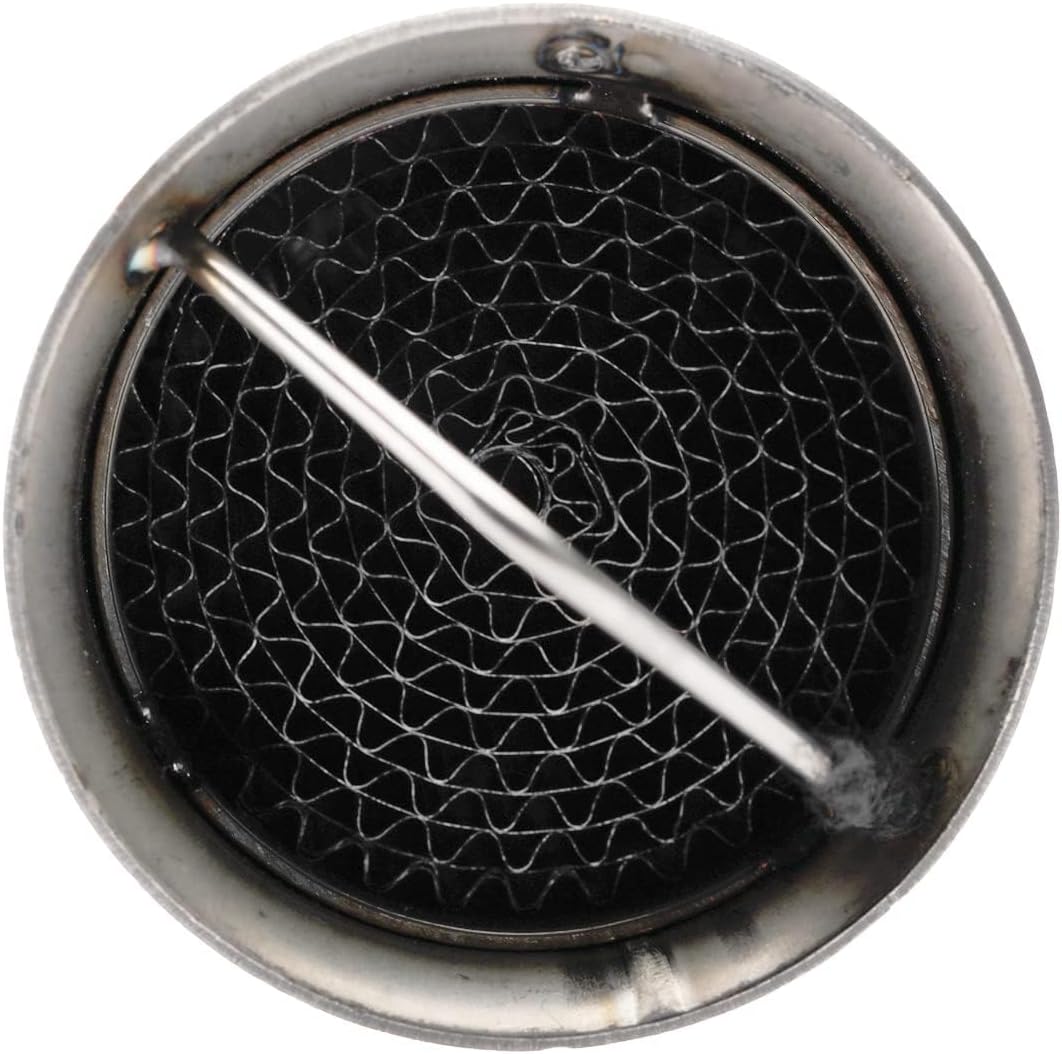

Imatge 2.2: Un primer pla view of the DB Killer's internal mesh, which helps in sound dampening.
3. Configuració i instal·lació
The LKV DB Killer is designed for straightforward installation, typically requiring no modifications to your existing exhaust pipe. Ensure your motorcycle's exhaust pipe has an inlet diameter of 51mm (2 inches) for proper fitment.
Passos d'instal·lació:
- Preparació: Ensure the motorcycle exhaust system is cool to the touch before beginning installation.
- Locate Exhaust Inlet: Identify the inlet opening of your motorcycle's muffler where the DB killer will be inserted.
- Insert DB Killer: Gently slide the LKV DB Killer into the exhaust pipe inlet. It should fit snugly.
- Segur (si escau): Some DB killers may have a small screw hole for securing it in place. If your model includes this, align the hole and insert the provided screw to prevent it from dislodging.
- Prova: Start the motorcycle and listen to the exhaust sound to confirm the desired noise reduction.
Nota: If the DB killer feels loose, it may not be the correct size for your exhaust, or additional securing methods may be required. Consult a professional if you are unsure.

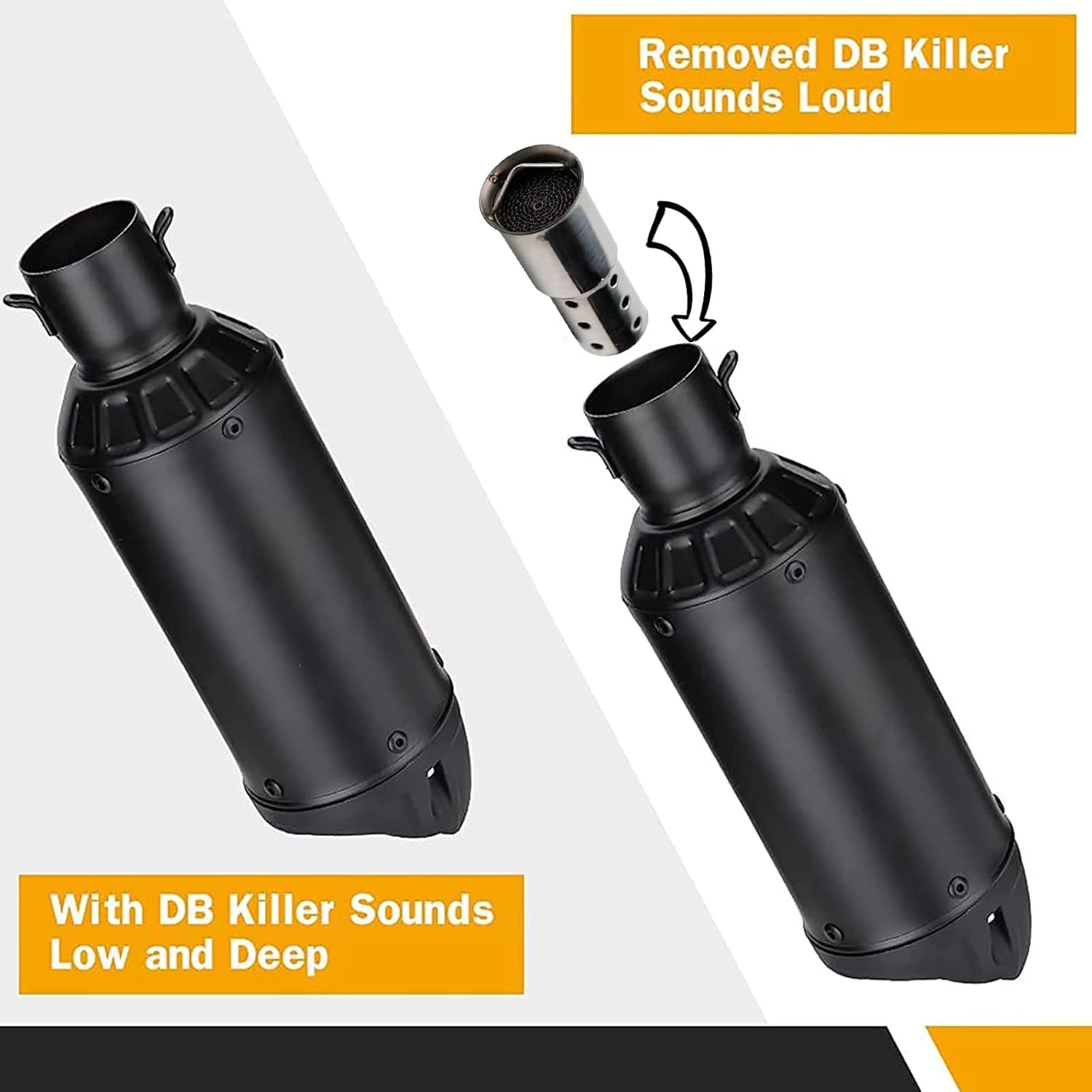

Image 3.1: Visual representation of the DB Killer being inserted into a motorcycle muffler, illustrating the reduction in sound level.
4. Informació operativa
Once installed, the LKV DB Killer functions passively to reduce exhaust noise. There are no active controls or adjustments required during operation. The primary effect will be a noticeable decrease in the loudness of your motorcycle's exhaust sound, contributing to a more subdued and compliant riding experience.
The DB Killer is designed to maintain optimal exhaust flow while dampening sound. Performance characteristics of your motorcycle should remain largely unaffected, though some riders may perceive a slight change in exhaust tone or back pressure.
Image 4.1: The LKV DB Killer is widely used across various motorcycle types, including racing, mountain, and commuter bikes with 51mm exhaust pipes.
5. Manteniment
The LKV DB Killer requires minimal maintenance due to its stainless steel construction.
- Neteja: Periodically inspect the DB killer for any carbon buildup or debris. If necessary, remove it from the exhaust pipe and clean it with a suitable degreaser or mild detergent and a brush. Rinse thoroughly and ensure it is dry before reinstallation.
- Inspecció: Check for any signs of damage, such as cracks or deformation, which could affect its performance or security. Replace the unit if significant damage is observed.
- Prevenció de l'òxid: While stainless steel is rust-resistant, extreme conditions or prolonged exposure to corrosive elements can still cause surface rust. Regular cleaning and occasional application of a metal polish can help maintain its appearance and integrity.
6. Solució De Problemes
If you encounter issues with your LKV DB Killer, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Insufficient noise reduction | DB Killer not fully seated; exhaust system leaks; DB Killer design not optimal for specific exhaust. | Ensure DB Killer is fully inserted and secured. Check exhaust system for leaks. Consider if a different style of DB killer might be more effective for your specific muffler. |
| DB Killer is loose or falls out | Incorrect size for exhaust inlet; securing screw not used or loose. | Verify exhaust inlet diameter (should be 51mm). Ensure the securing screw (if applicable) is properly installed and tightened. If still loose, the DB killer may be incompatible. |
| Reducció del rendiment del motor | Excessive back pressure due to DB Killer. | While designed to minimize impact, some exhaust systems may be more sensitive. If performance issues arise, consider removing the DB Killer or consulting a motorcycle mechanic. |
7. Especificacions
Detailed specifications for the LKV 51mm Universal Motorcycle DB Killer Silencer Baffle (Model 12EPS):
- Marca: LKV
- Número de model: 12EPS
- Material: High-grade Stainless Steel
- Mida de la connexió d'entrada: 51 mm
- Mida de la connexió de sortida: 51 mm
- Forma: Ronda
- Pes de l'article: Aproximadament 8.1 unces (230 grams)
- Dimensions del paquet: Aproximadament 5.91 x 2.83 x 2.6 polzades
- Tipus d'ajust per a automòbils: Ajuste universal
- Tipus de servei de vehicles: Motocicleta

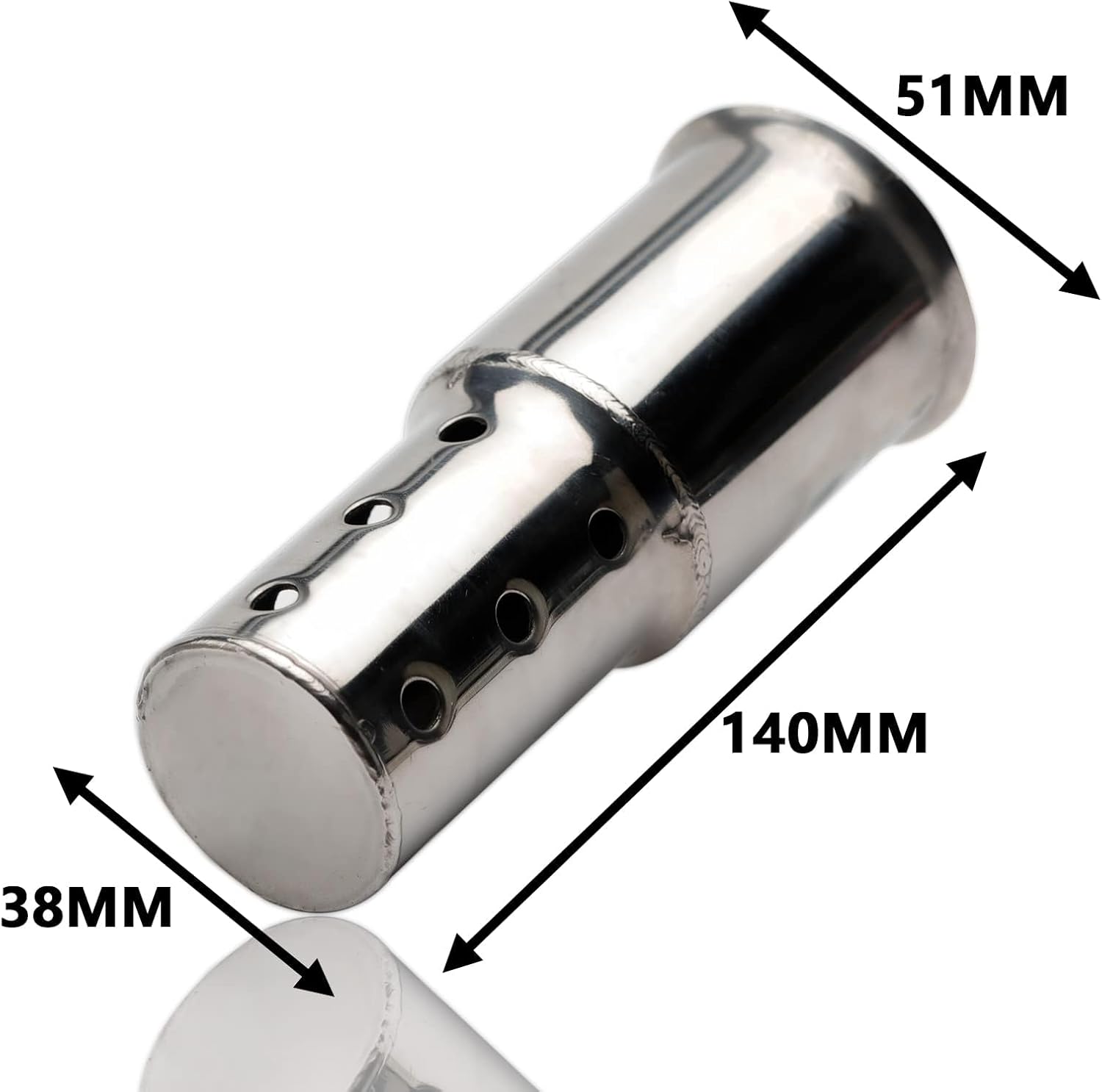

Image 7.1: Key dimensions of the LKV DB Killer, showing the 51mm inlet, 38mm outlet, and 140mm overall length.
8. Garantia i Suport
For warranty information or technical support regarding your LKV DB Killer, please refer to the seller's policies or contact LKV customer service directly through their official channels. Keep your purchase receipt as proof of purchase.
Nota: No specific warranty details were provided in the product information. Please consult your retailer or the manufacturer for current warranty terms.
